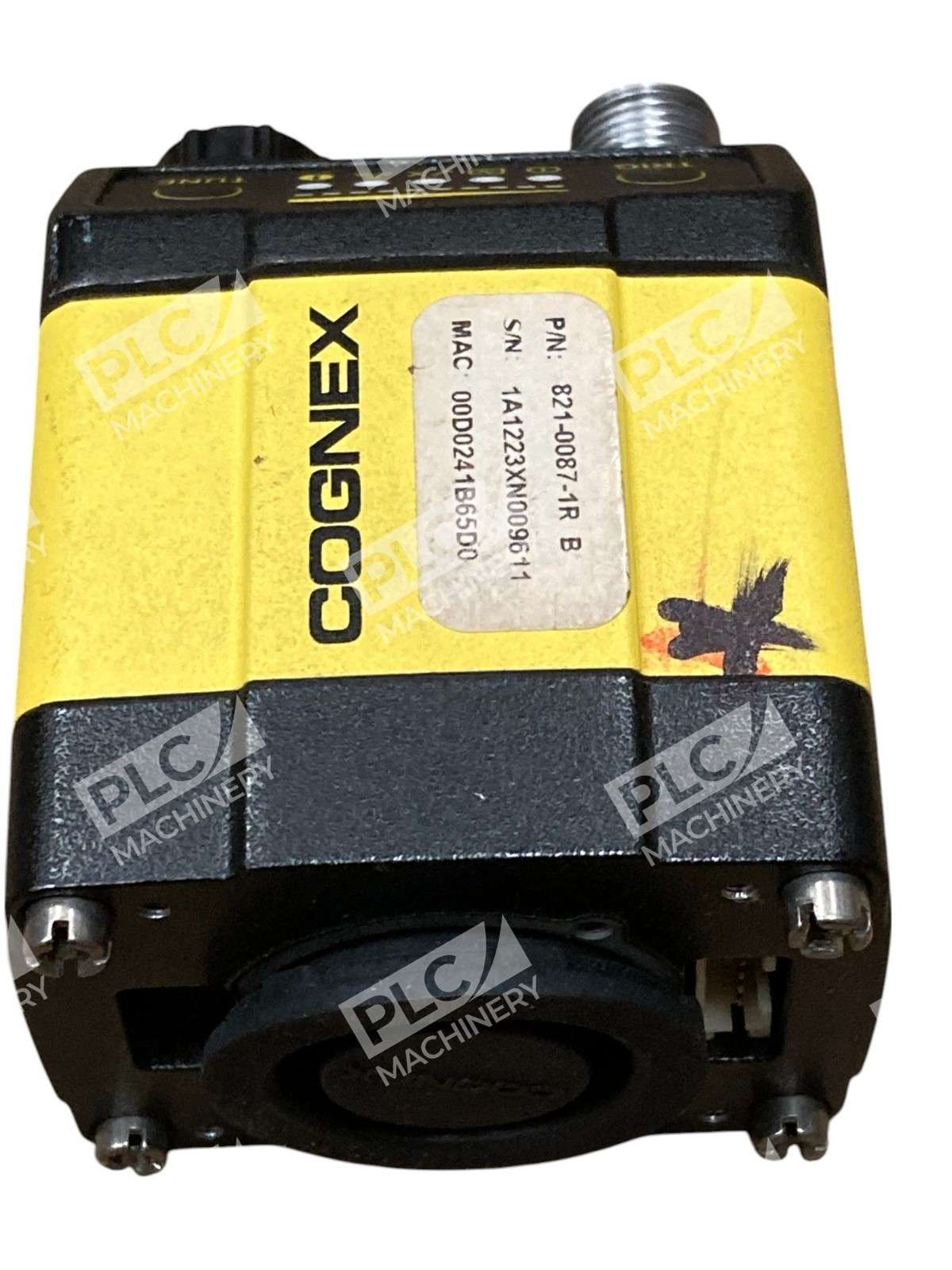

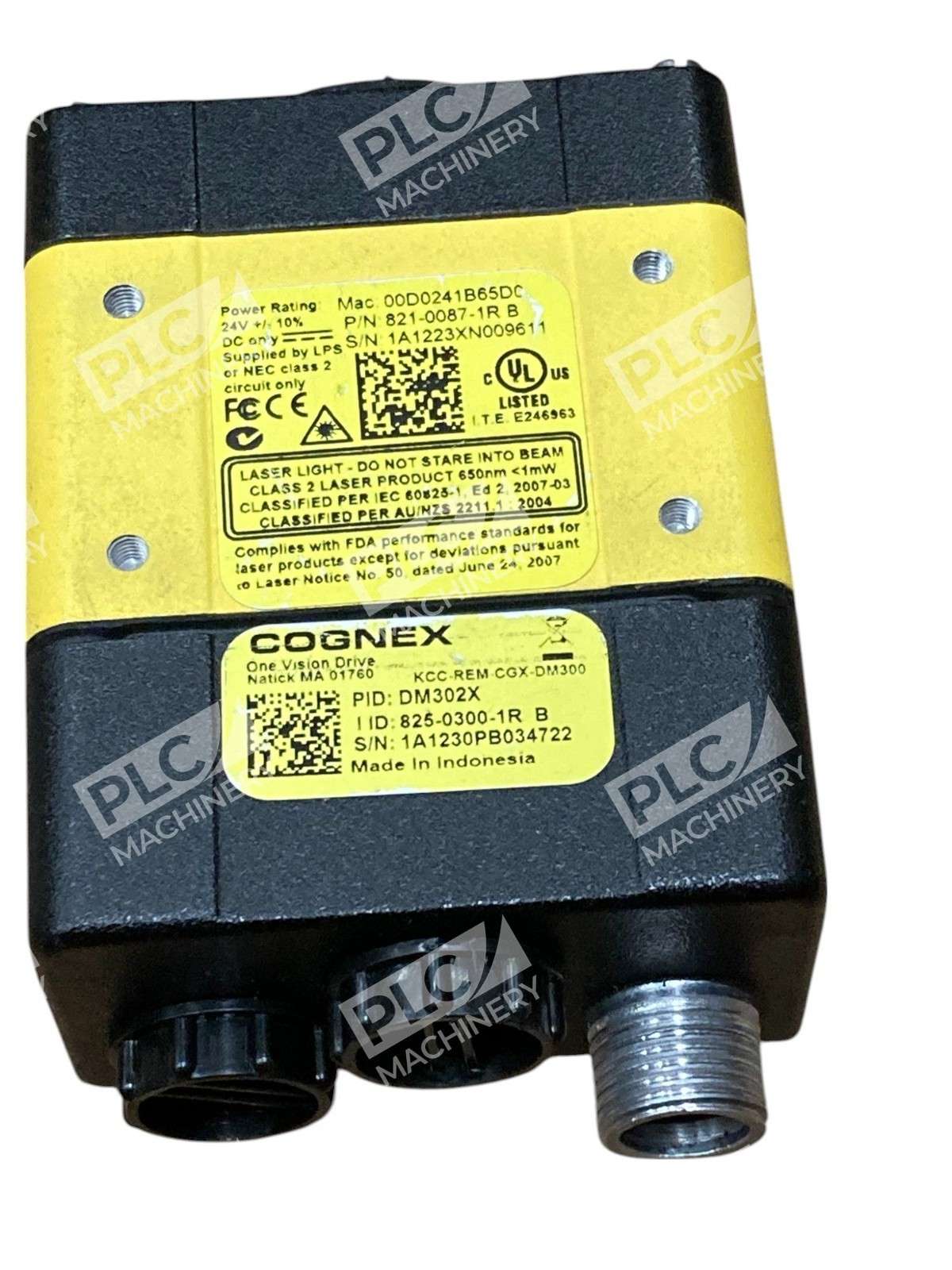

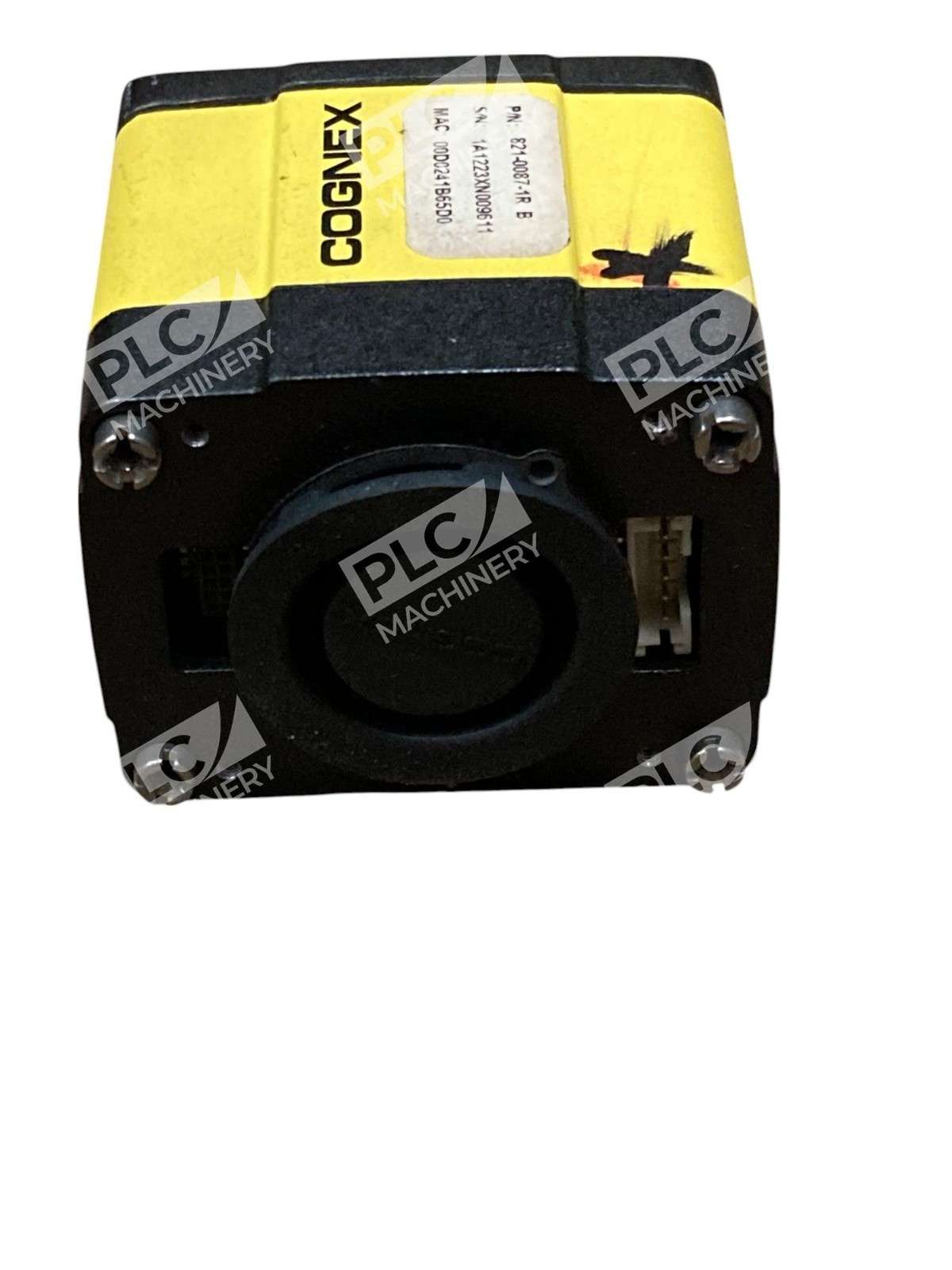

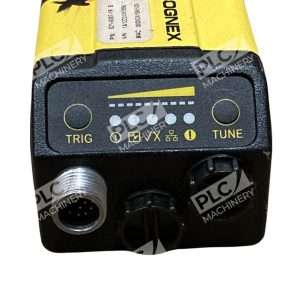

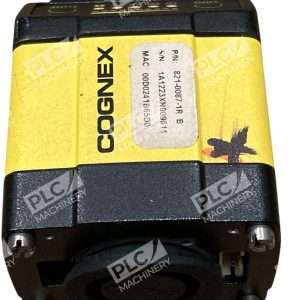

Cognex DM302X 821-0087-1R Barcode Reader
The Cognex DM302X 821-0087-1R is a high-performance barcode reader designed to meet the rigorous demands of industrial automation and logistics applications. This device offers advanced imaging capabilities and robust decoding algorithms, ensuring accurate and efficient reading of a wide range of barcode symbologies.
Key Features
- High-Resolution Imaging: Equipped with a 1/1.8-inch CMOS sensor, the DM302X captures images at a resolution of 1280 x 1024 pixels, providing detailed and precise barcode scans.
- Versatile Code Reading: Supports a comprehensive array of barcode types, including 1D codes such as Codabar, Code 39, Code 128, and 2D codes like Data Matrix, QR Code, and Aztec Code, making it suitable for diverse applications.
- Fast Acquisition Rate: Capable of processing up to 60 frames per second, the DM302X ensures rapid and reliable barcode reading, enhancing operational efficiency.
- Flexible Connectivity: Features both Ethernet and RS-232 interfaces, allowing seamless integration into various industrial systems and networks.
- Industrial-Grade Design: Housed in an IP65-rated enclosure, the device is protected against dust and water ingress, ensuring durability in challenging environments.
- Adjustable Illumination: Incorporates red LED lighting, providing consistent illumination for accurate barcode reading under varying lighting conditions.
- Power Efficiency: Operates on a 24V DC power supply with a maximum consumption of 20W, balancing performance with energy efficiency.
Technical Specifications
- Image Sensor: 1/1.8-inch CMOS
- Resolution: 1280 x 1024 pixels
- Frame Rate: Up to 60 frames per second
- Supported Codes: 1D (Codabar, Code 39, Code 128, etc.), 2D (Data Matrix, QR Code, Aztec Code, etc.)
- Interfaces: Ethernet, RS-232
- Power Supply: 24V DC, 20W max
- Operating Temperature: 0°C to 45°C
- Protection Rating: IP65
- Dimensions: 83 x 44 x 112 mm
- Weight: 0.44 lbs (approximately 200 grams)
The Cognex DM302X 821-0087-1R Barcode Reader is engineered to deliver reliable and precise barcode scanning performance, making it an ideal solution for industries requiring high-speed and accurate data capture.
