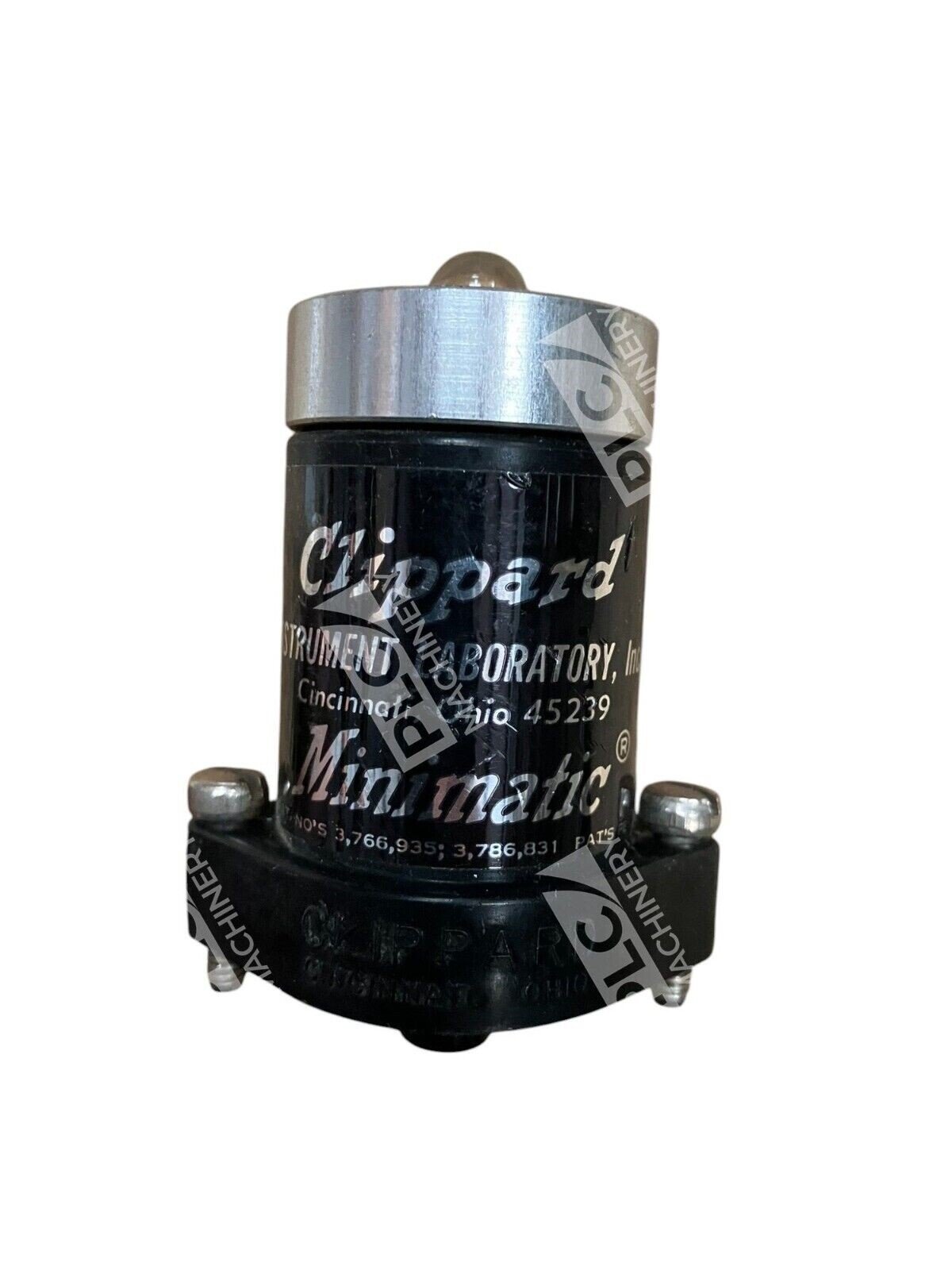

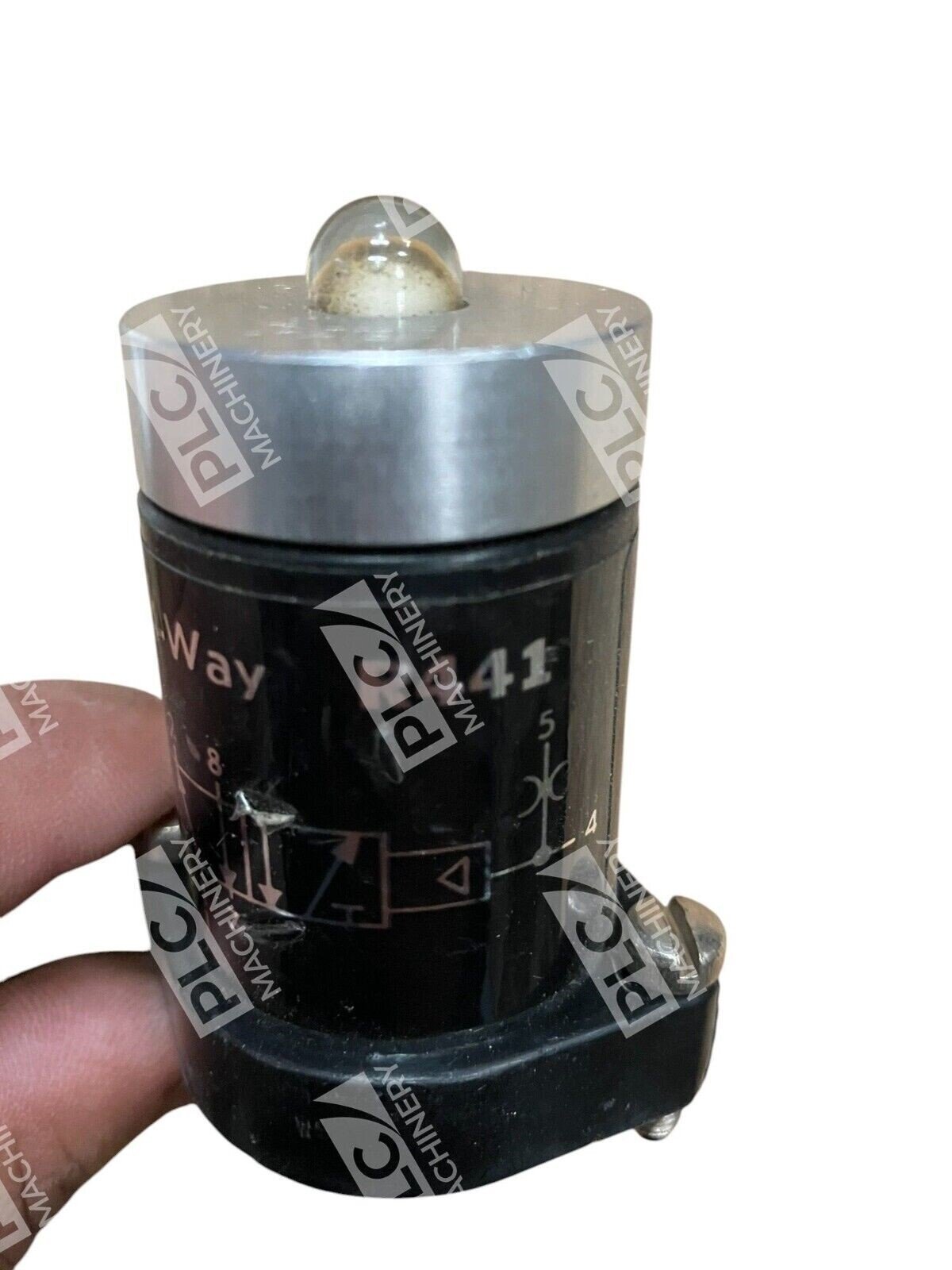

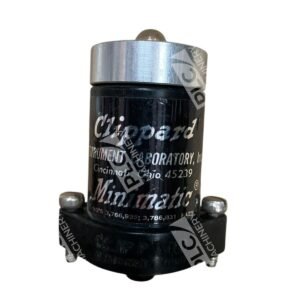

Clippard Minimatic 4-Way Spring Return Bleed Pilot Valve R441

Clippard Minimatic 4-Way Spring Return Bleed Pilot Valve R-441

The Clippard Minimatic R-441 is a 4-way, spring return, bleed piloted valve designed for precise pneumatic control applications. Its compact and efficient design makes it suitable for various industrial uses.

Key Features

• Bleed Piloted Operation: Utilizes a bleed pilot mechanism, allowing for control with low-force sensors.
• Spring Return: Ensures the valve returns to its default position upon pilot signal removal.
• Fully Ported Design: Features a 5-port configuration, providing versatility in pneumatic circuit designs.
• Micro Gap Construction: Offers snap action with minimal blow-by, enhancing performance and reliability.
• Balanced Design: Allows for speed control at exhausts, providing precise operation.

Specifications

• Air Flow: 250 l/min at 100 psig
• Maximum Pressure: 150 psig
• Temperature Range: 32°F to 180°F
• Weight: 0.32 lbs
• Minimum Pilot Pressure: 40 psig

Applications

The R-441 valve is ideal for applications requiring precise pneumatic control, especially where low-force sensors are utilized. Its design allows for independent vent supply pressure, making it adaptable to various system requirements.

For more detailed information and technical support, please refer to the manufacturer’s resources.
