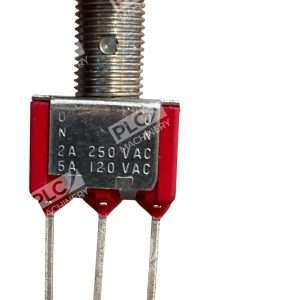

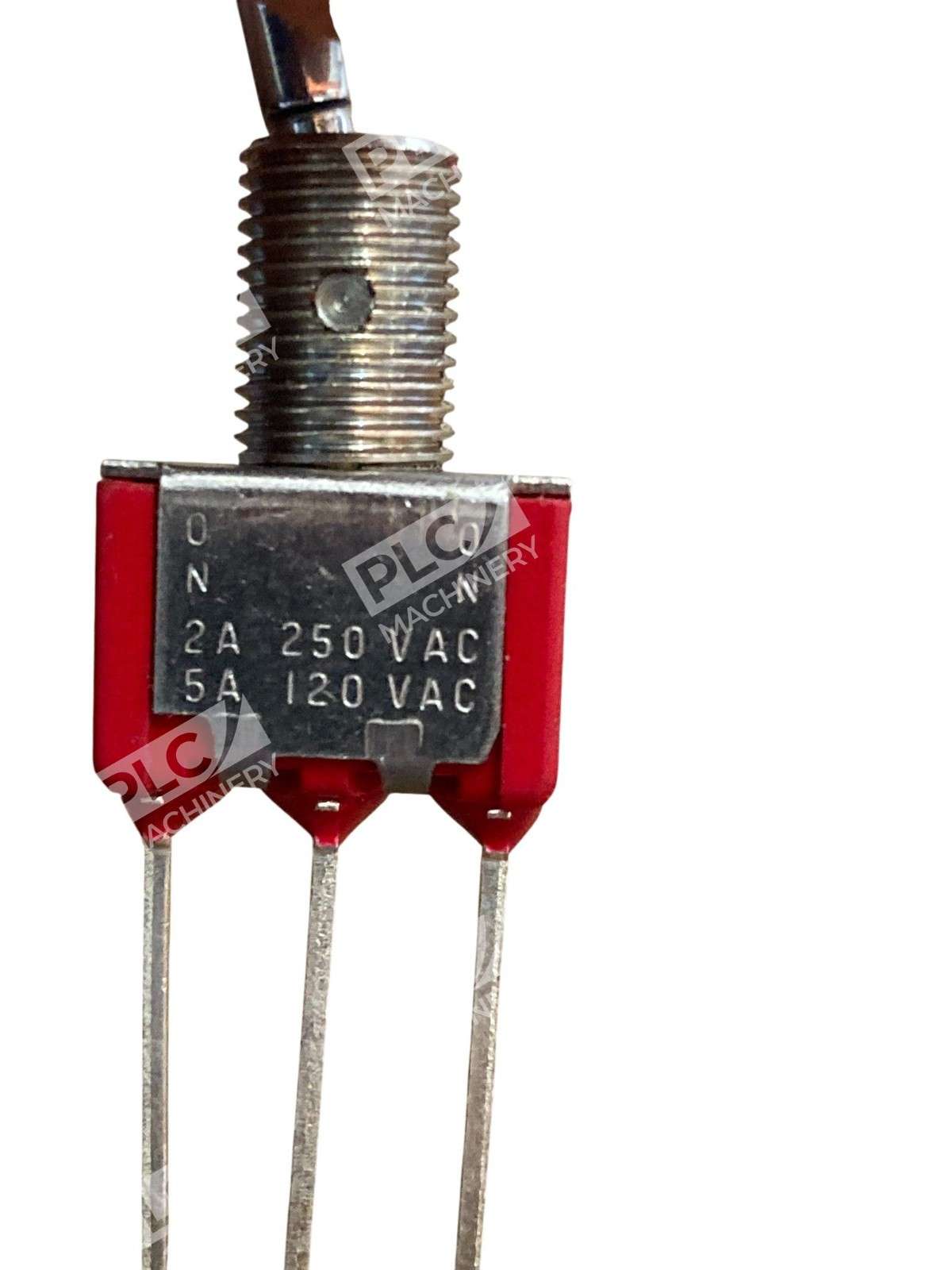

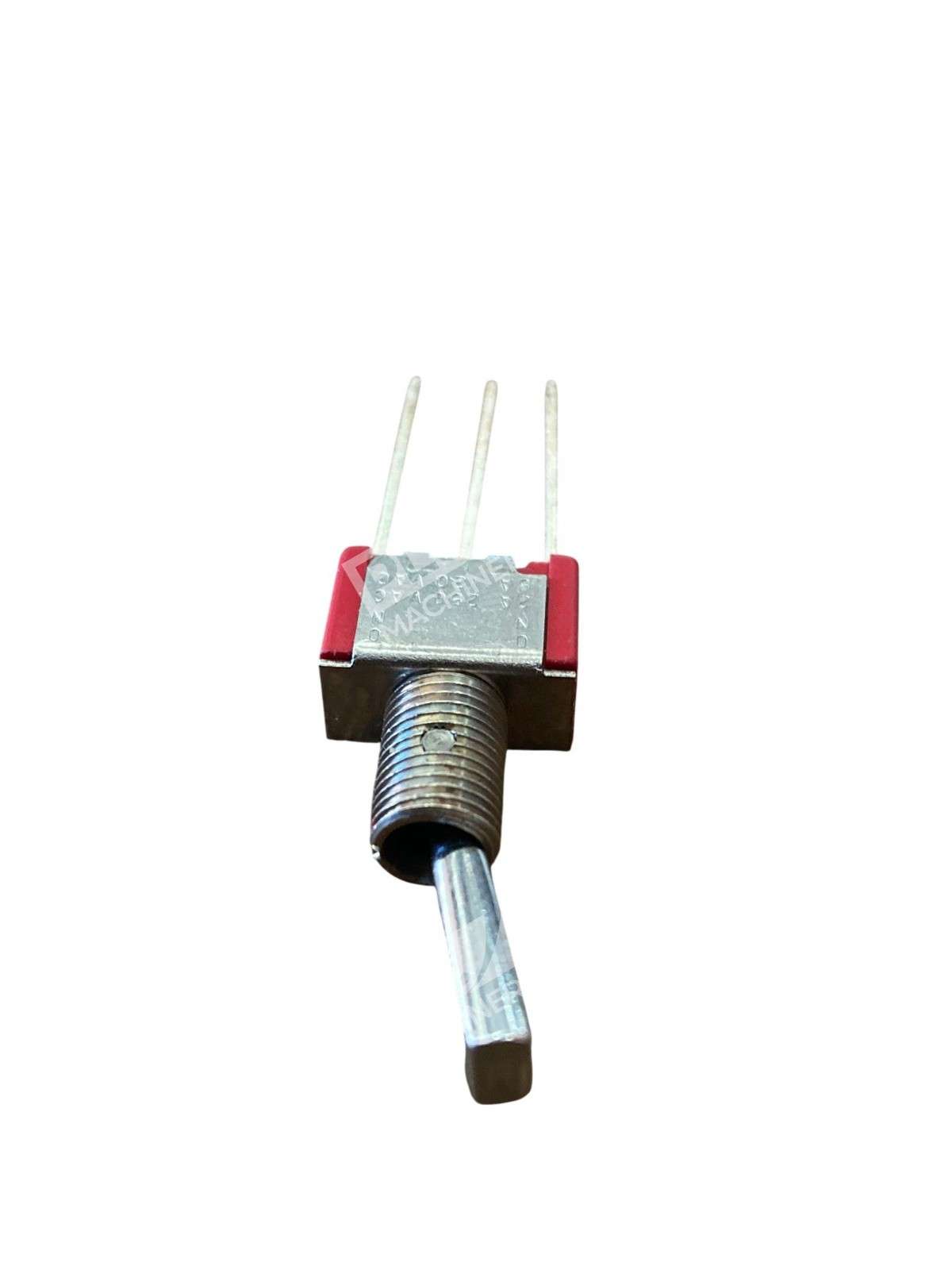

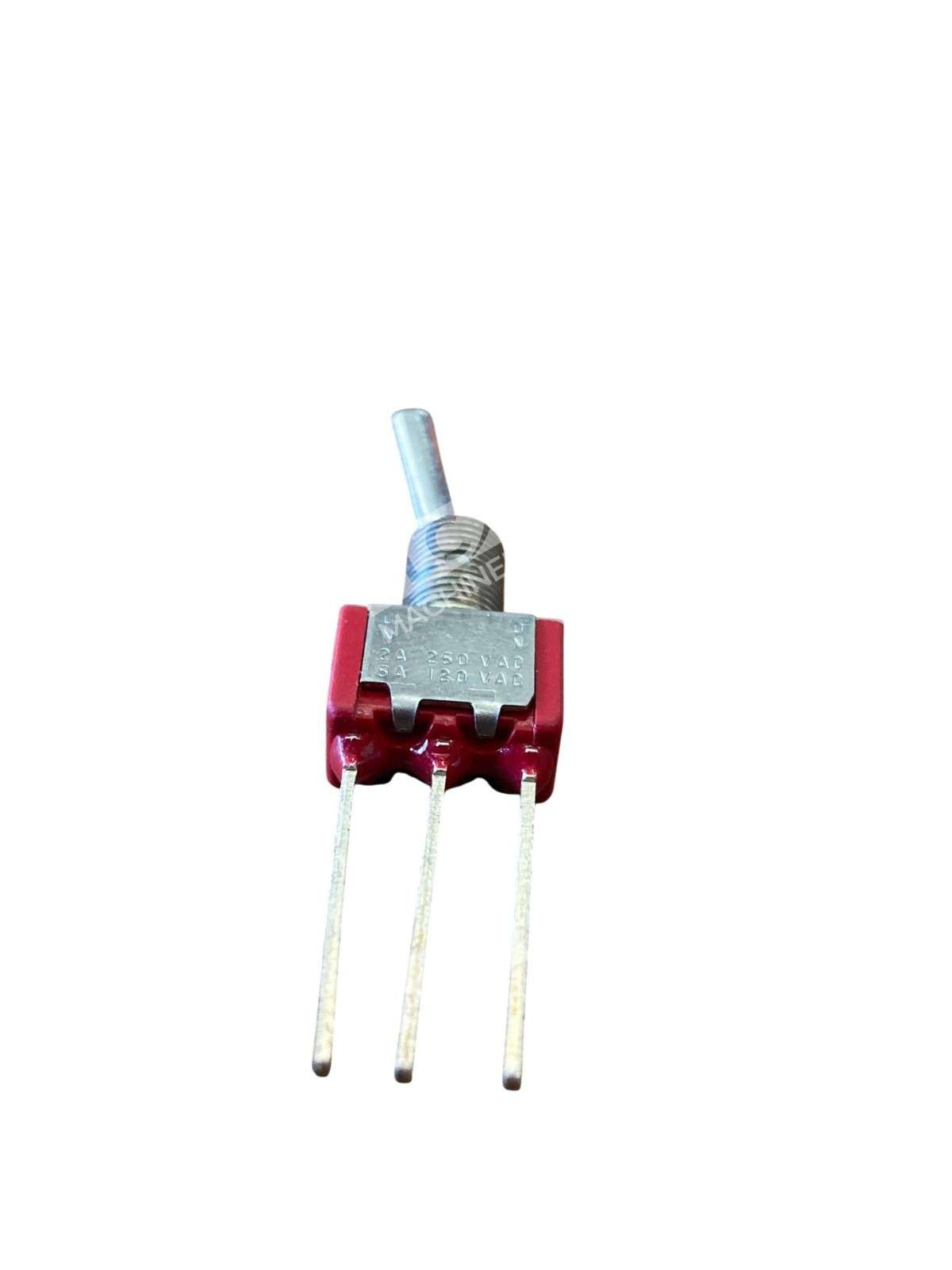

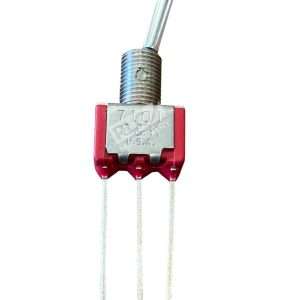

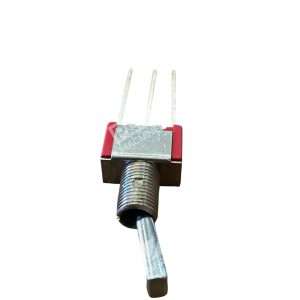

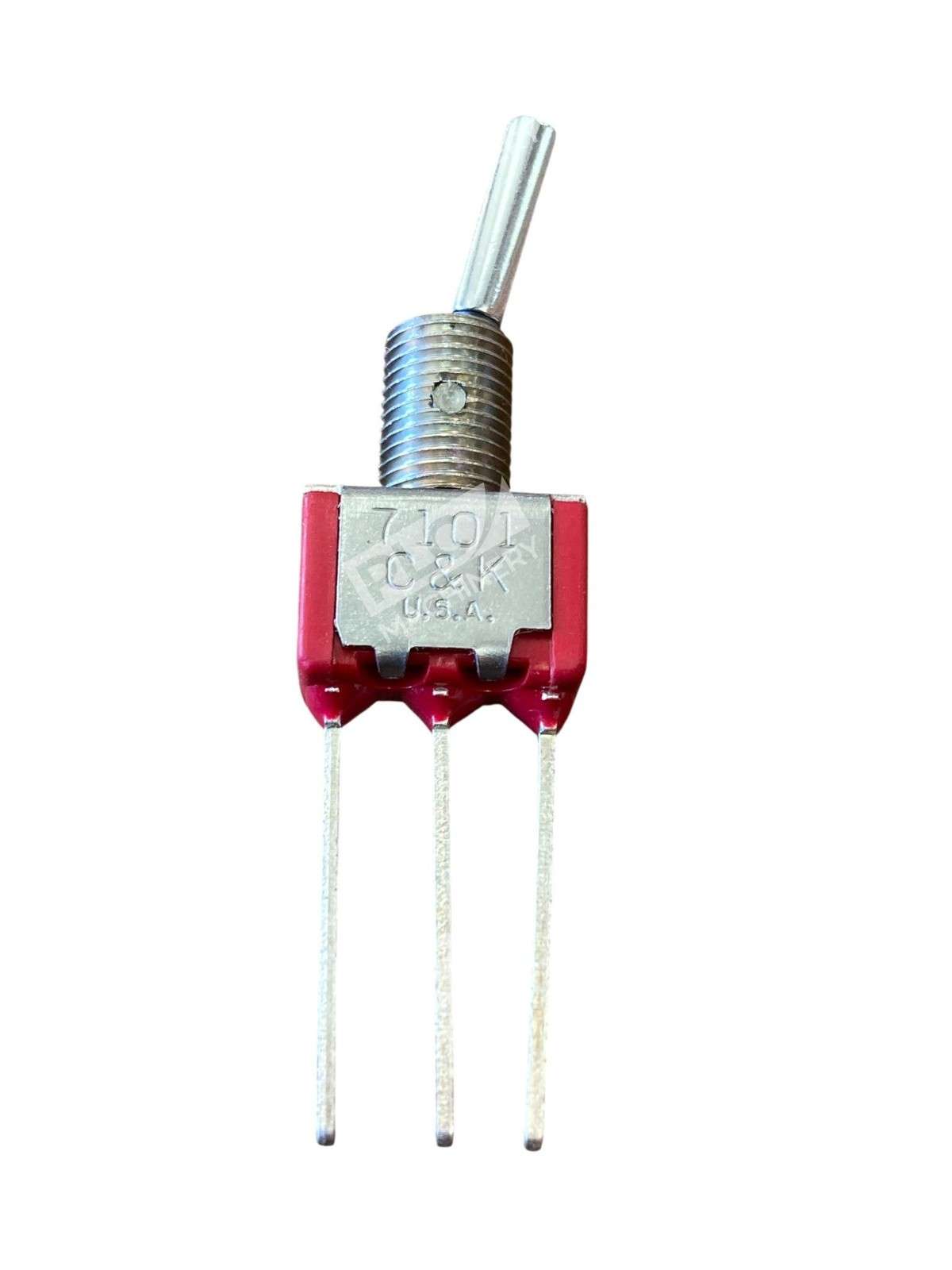

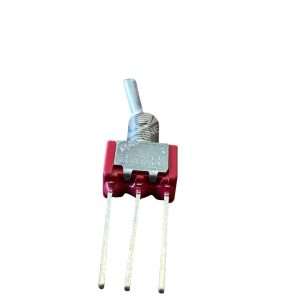

C&K 7101 Mini Toggle Switch Panel-Mount 250V 2A / 120V 5A
The C&K 7101 Mini Toggle Switch is a versatile and reliable component designed for various electrical applications. Its compact size and robust construction make it suitable for both commercial and industrial environments.
Key Features
- Contact Form: Single Pole Double Throw (SPDT)
- Switch Function: ON-ON
- Contact Rating: 5A at 120V AC, 2A at 250V AC
- Actuator Type: Standard Round
- Actuator Length: 10.67mm
- Mounting Type: Panel Mount
- Termination Style: Solder Lug
- Bushing Thread: 1/4-40 UNS-2A threaded (with keyway)
- Operating Temperature Range: -30°C to 85°C
- Electrical Life: 100,000 cycles
Applications
This mini toggle switch is ideal for applications requiring a compact and durable switch, such as:
- Industrial machinery controls
- Telecommunications equipment
- Instrumentation panels
- Medical devices
Additional Information
The C&K 7101 series is known for its high-quality construction and reliable performance. The switch features a chrome-plated brass actuator and a stainless steel housing, ensuring durability and longevity. The epoxy terminal seal is compatible with bottom-wash cleaning processes, making it suitable for environments where cleanliness is essential.
For detailed specifications and technical drawings, please refer to the manufacturer’s datasheet.
