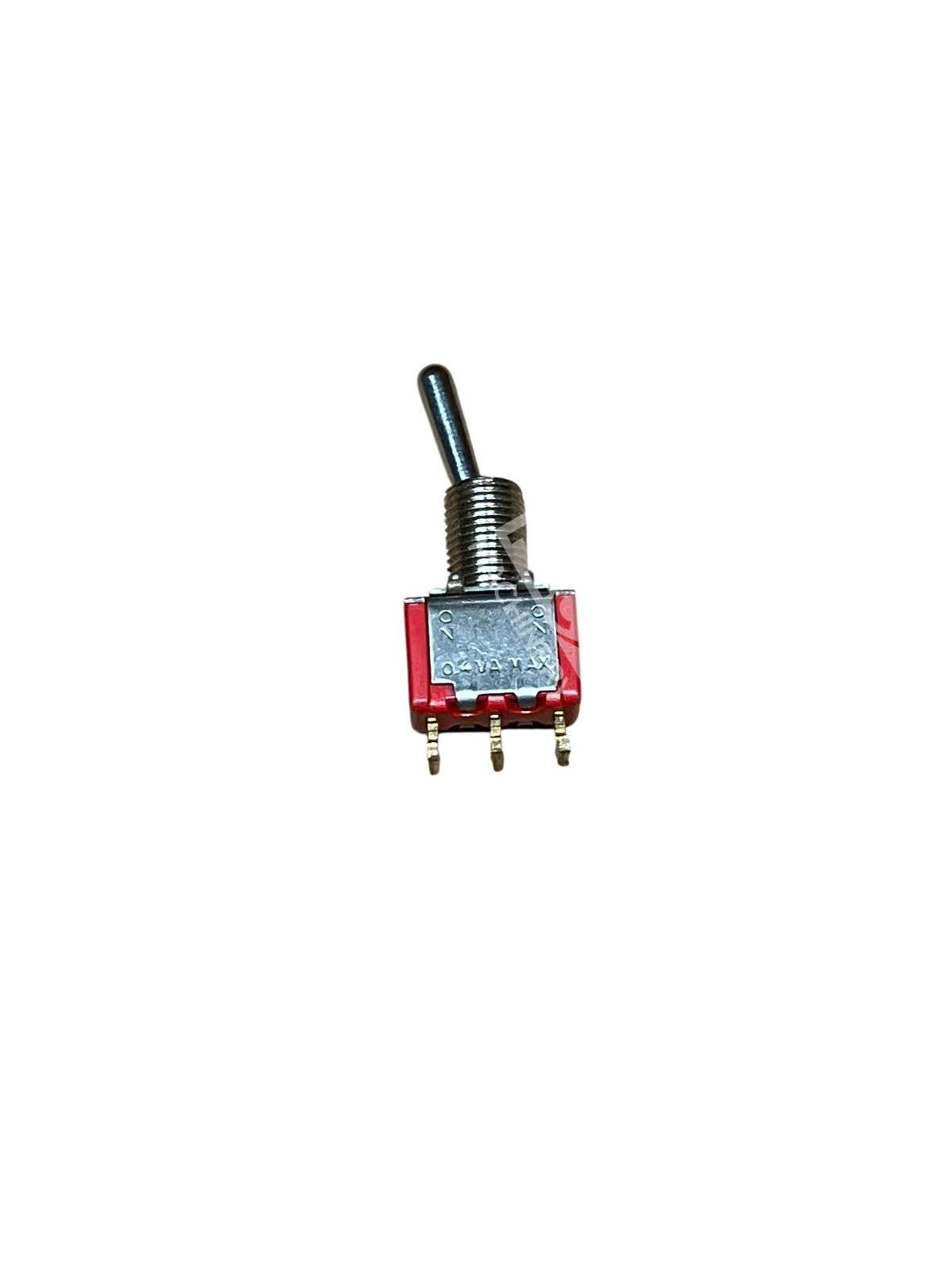

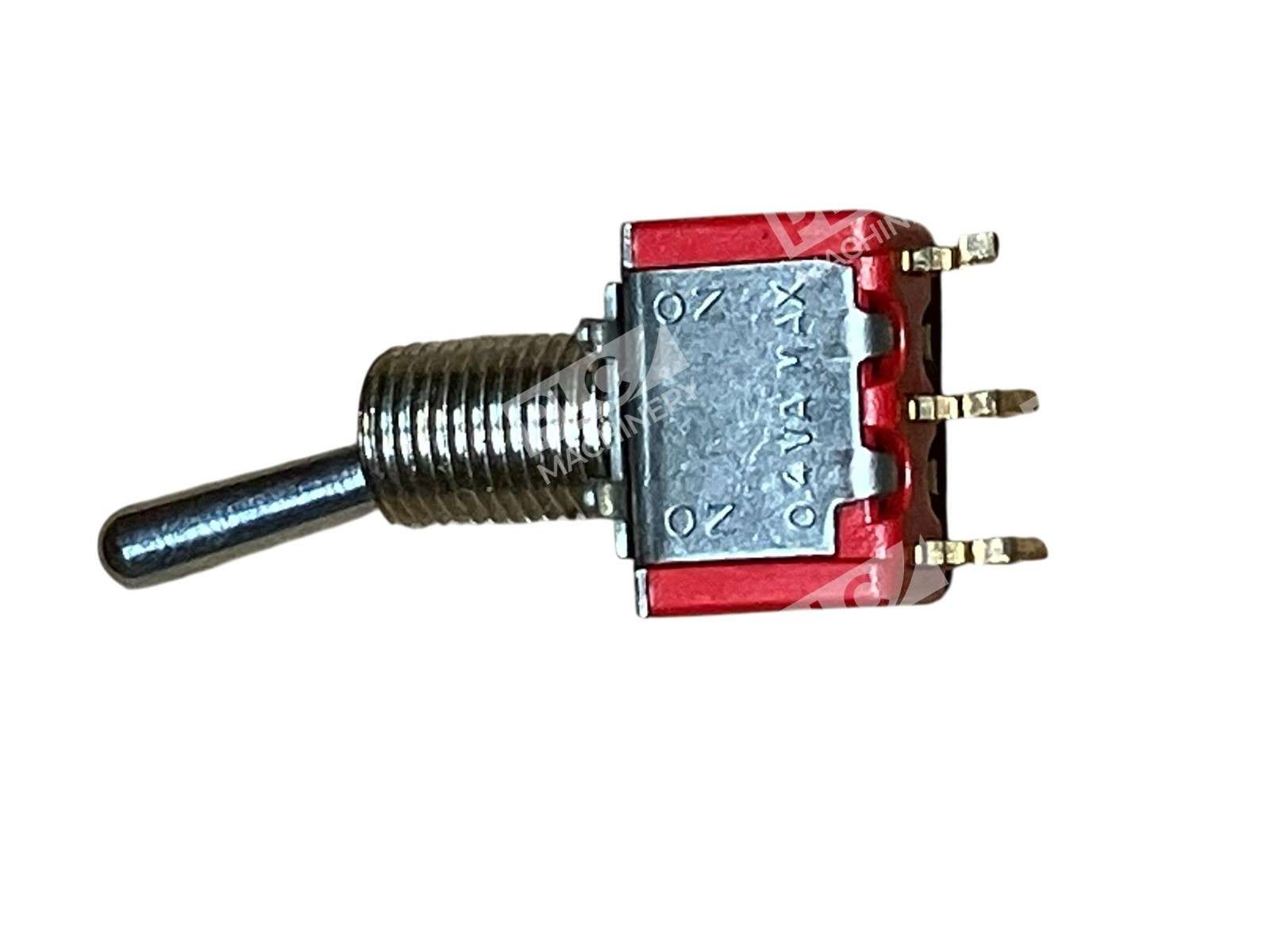

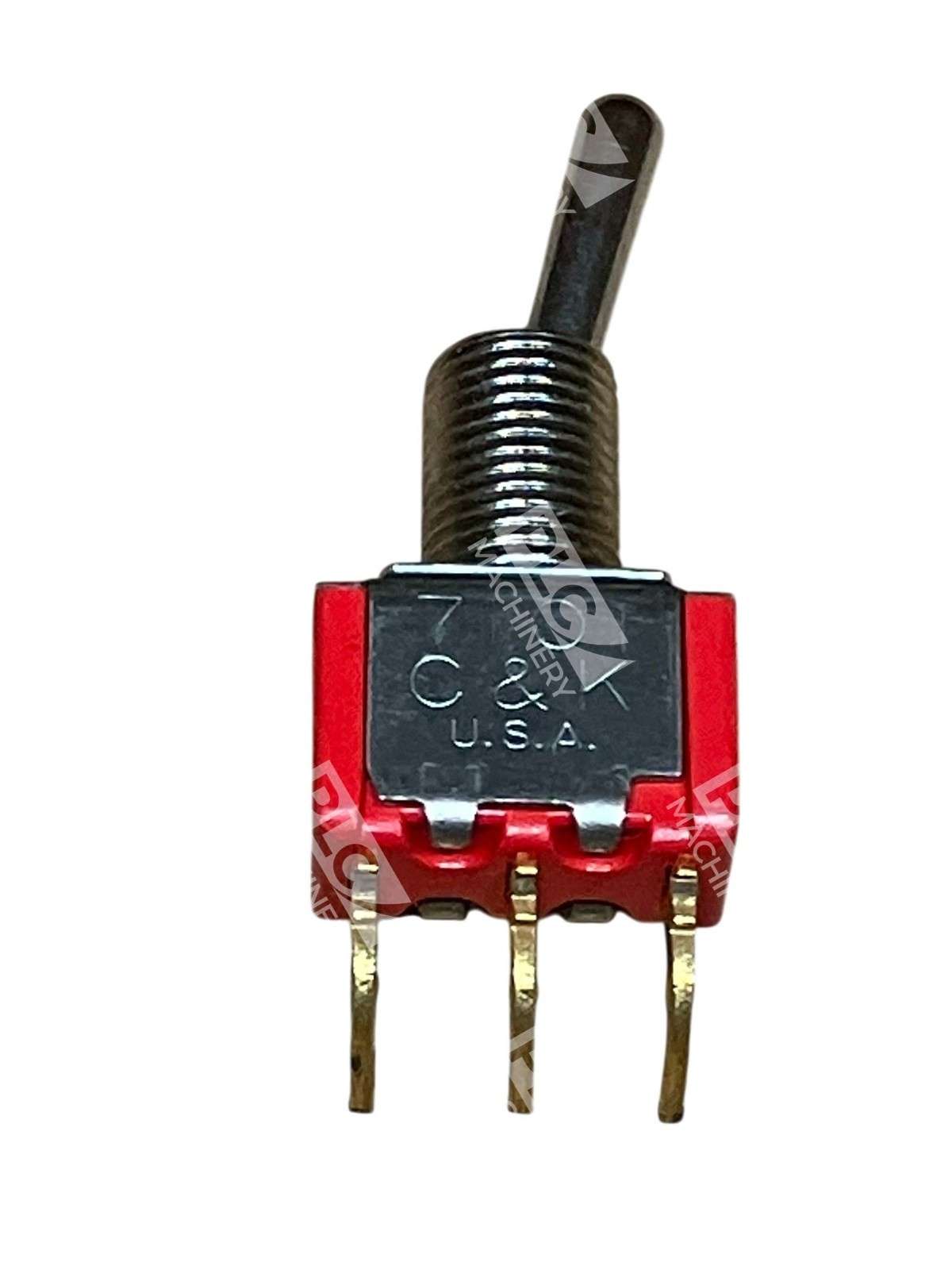

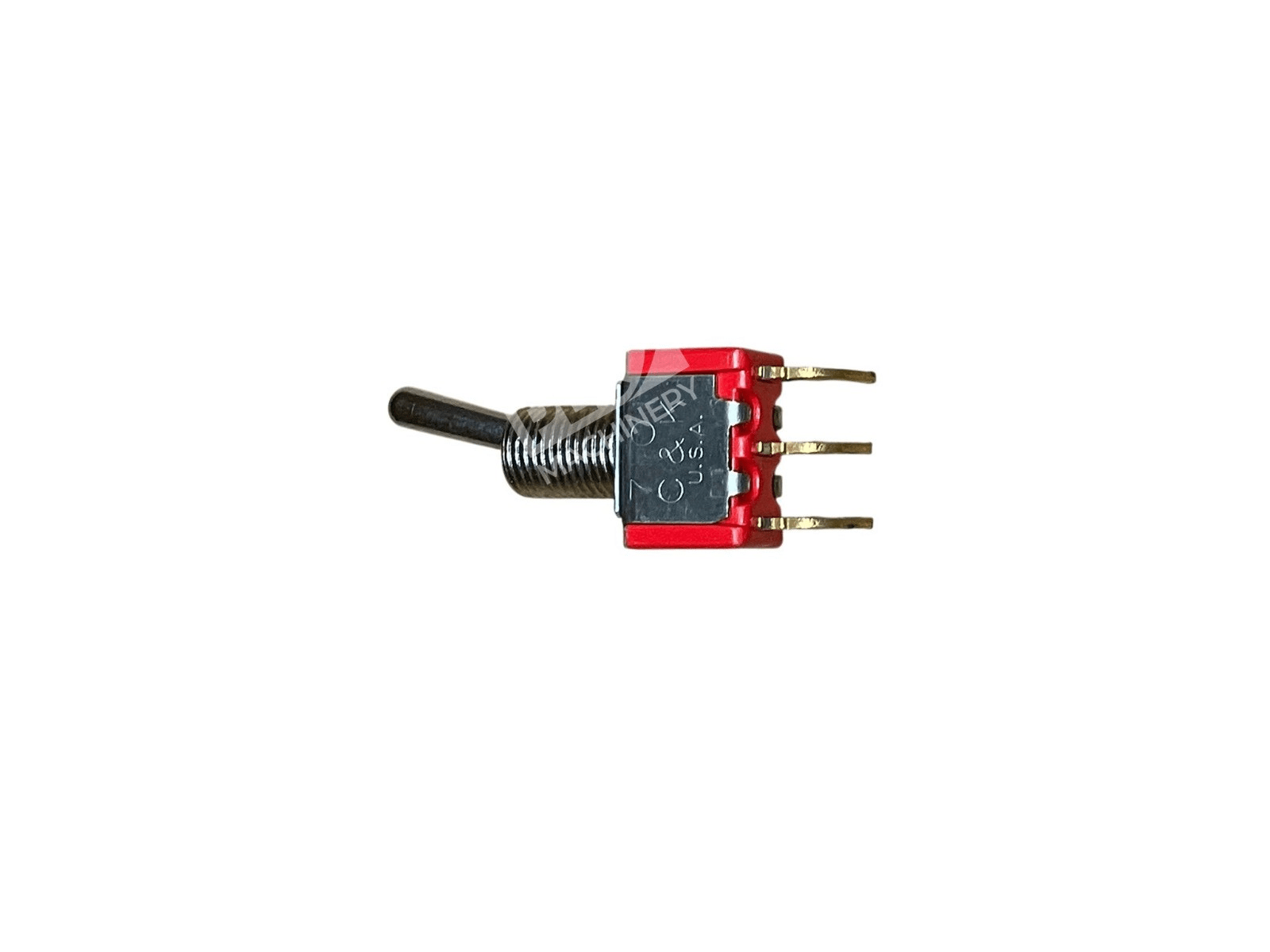

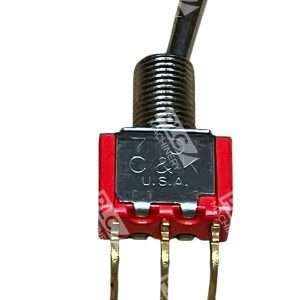

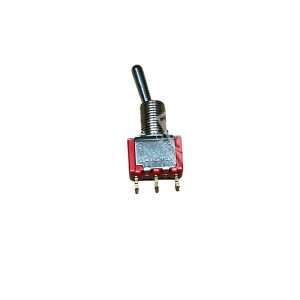

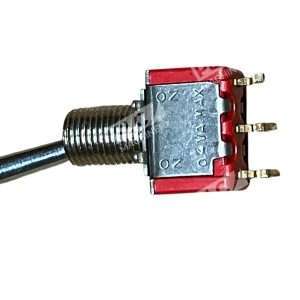

The C&K 70 Series Miniature Toggle Switch is a versatile and reliable component designed for various applications requiring precise control in compact spaces.
Key Features
- Contact Configuration: Single Pole Double Throw (SPDT)
- Switch Functions: Available in On-On and On-Off-On configurations
- Termination Style: Solder Lug for secure and straightforward connections
- Mounting Type: Panel Mount with rear, threaded mounting for stable installation
- Actuator Type: Standard round actuator with a length of 10.67mm
- Bushing Thread: 1/4 – 40 threading for compatibility with standard panel cutouts
Electrical Specifications
- Contact Rating: 5A at 120V AC or 28V DC; 2A at 250V AC
- Electrical Life: Up to 100,000 make-and-break cycles at full load
- Dielectric Strength: 1000Vrms minimum at sea level
- Operating Temperature Range: -30°C to 85°C
Additional Features
- Sealing: Epoxy terminal-seal compatible with bottom wash cleaning processes
- Actuator Options: Available with knurled caps for enhanced grip
- Compliance: RoHS compliant with lead-free options available
The C&K 70 Series Miniature Toggle Switch is engineered to meet the demands of various industries, including telecommunications, instrumentation, medical equipment, and industrial controls. Its robust design and multiple configuration options make it a suitable choice for applications requiring reliable switching in a compact form factor.
