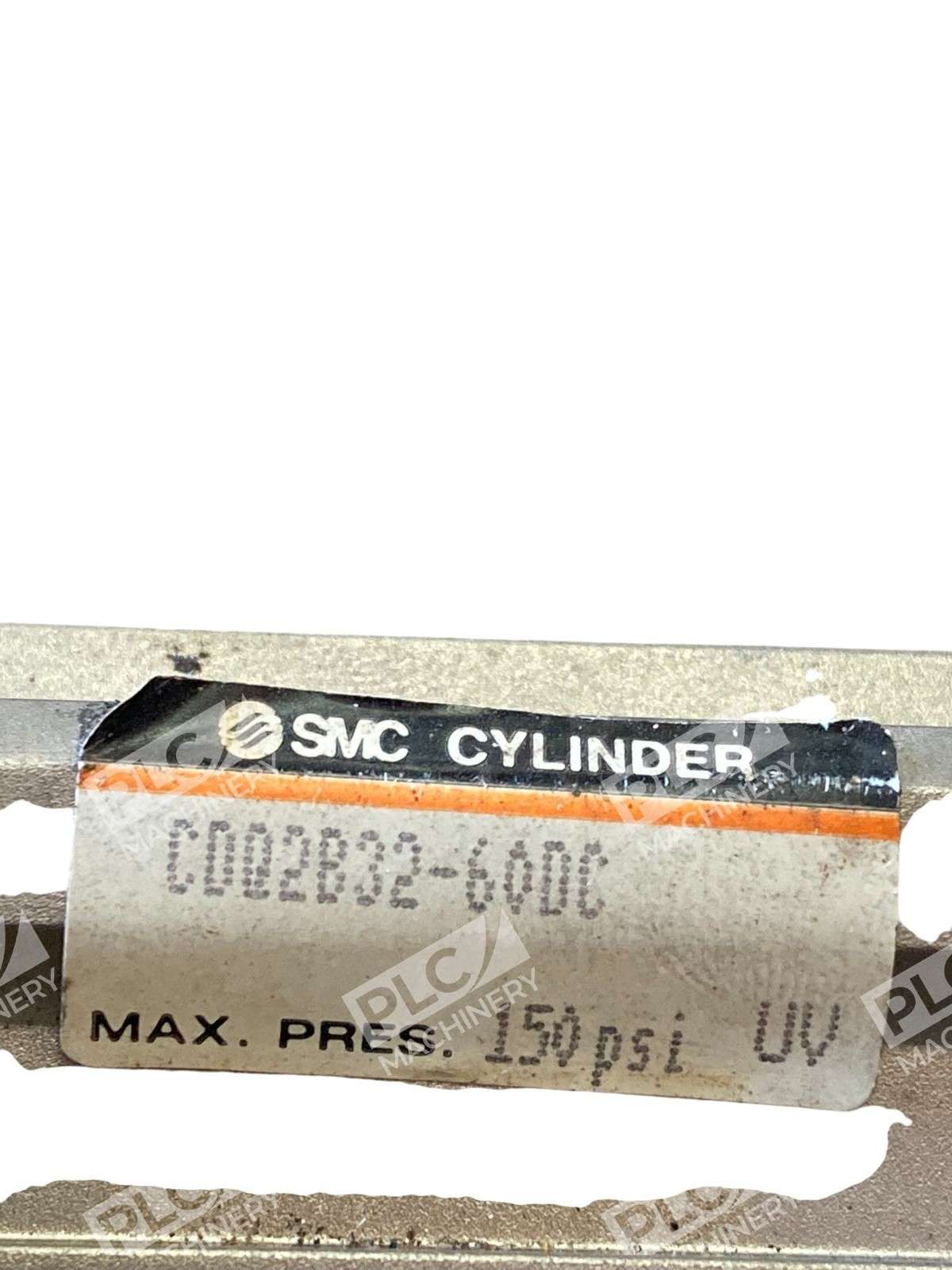

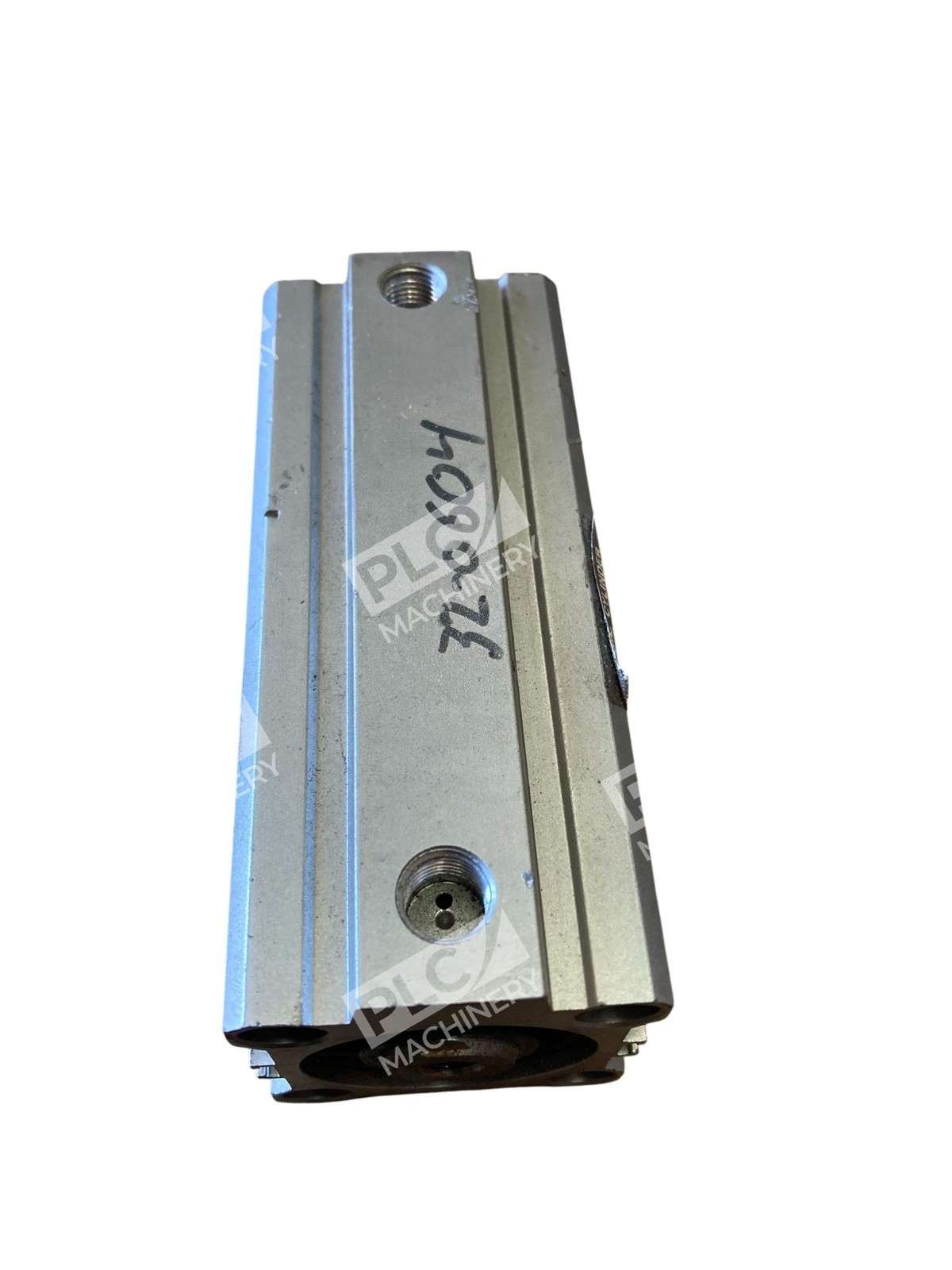

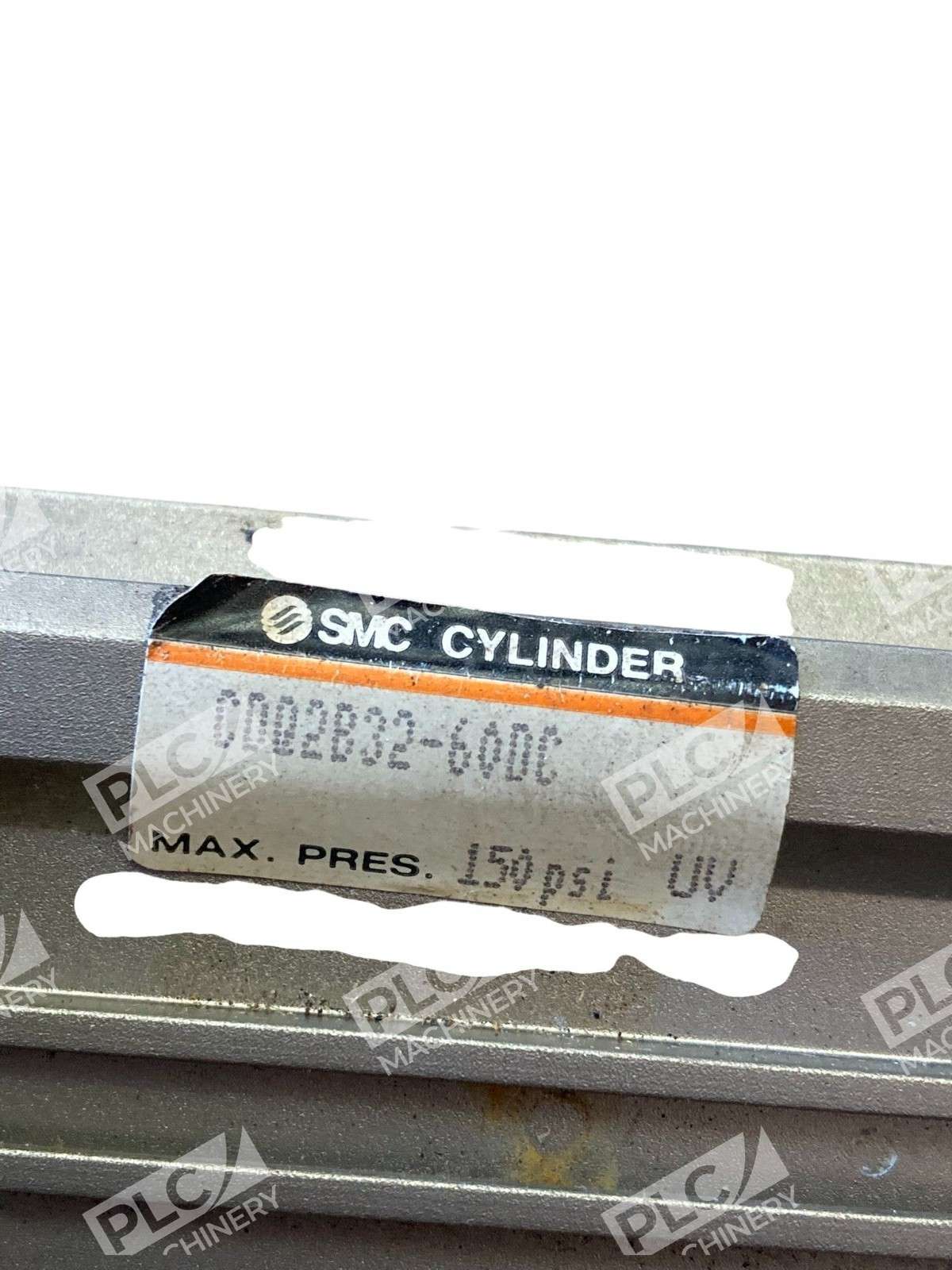

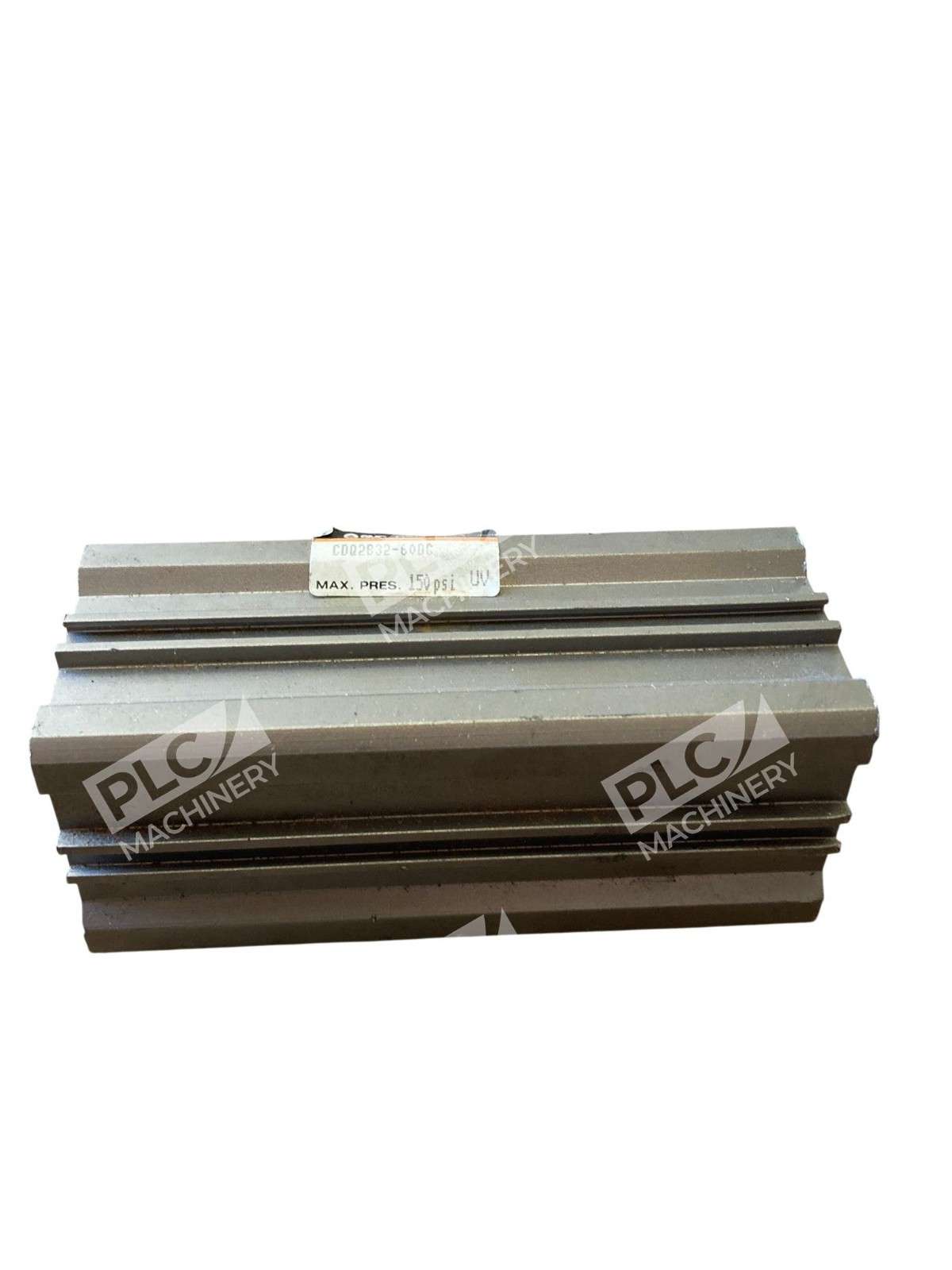

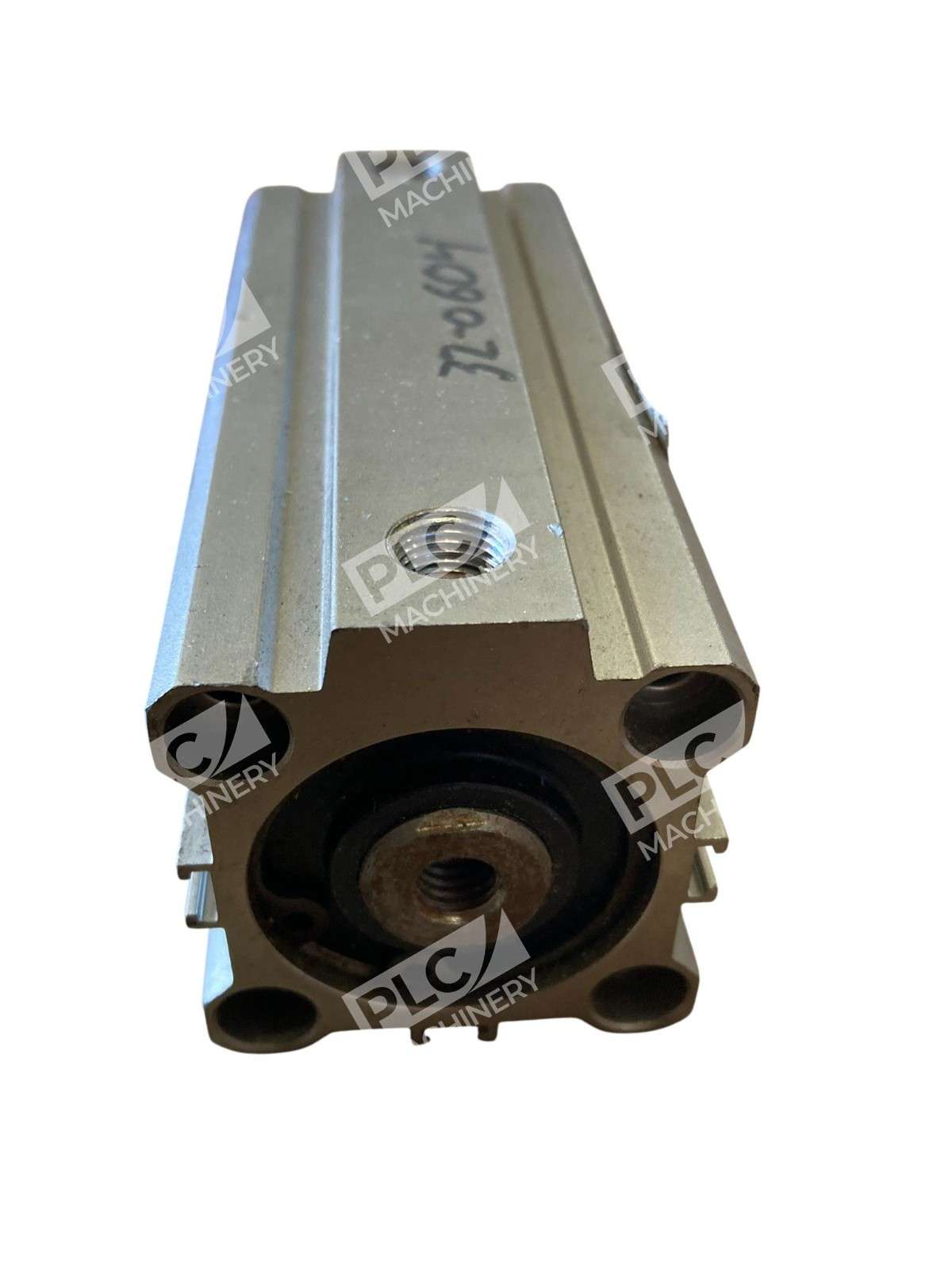

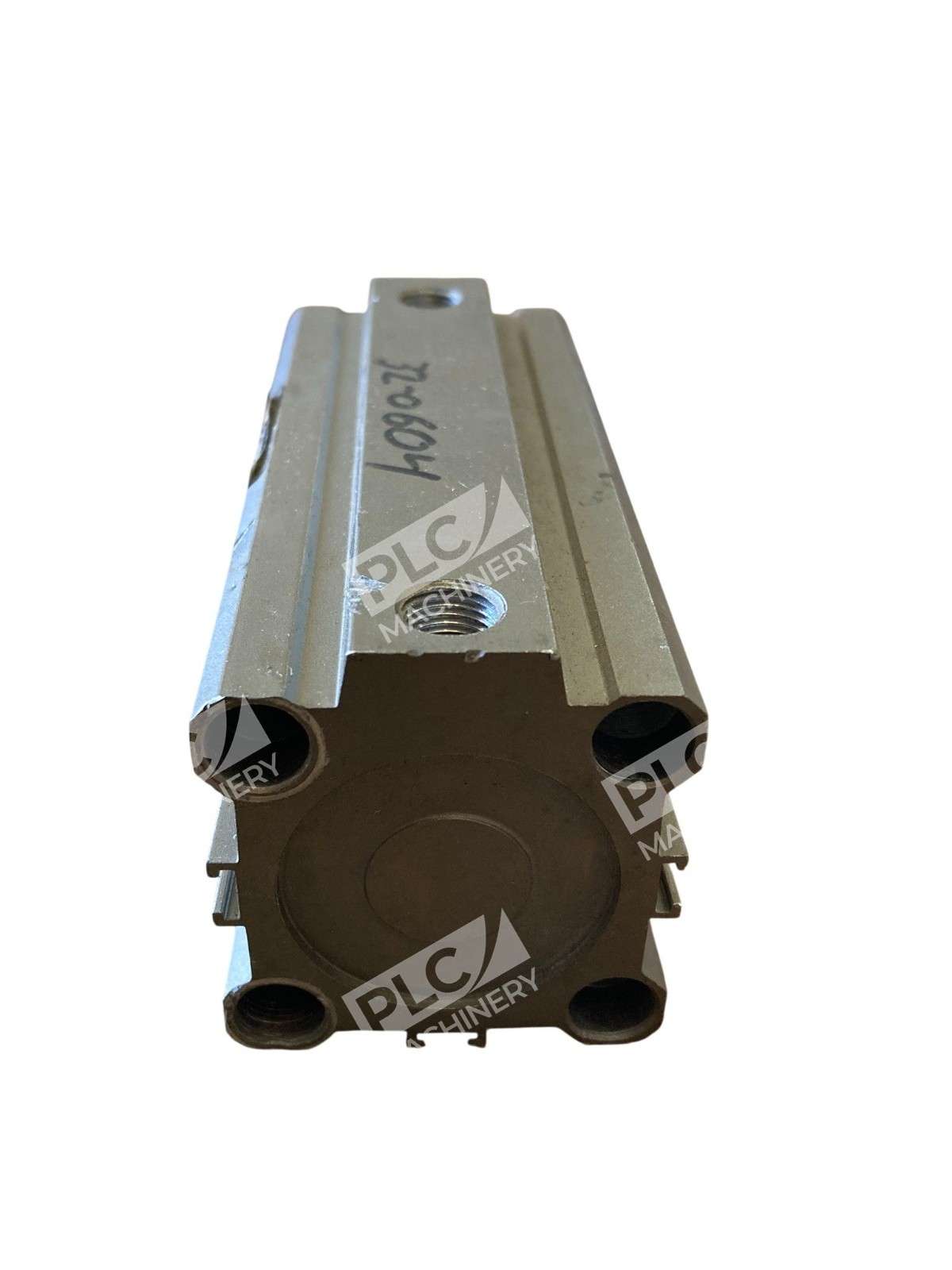

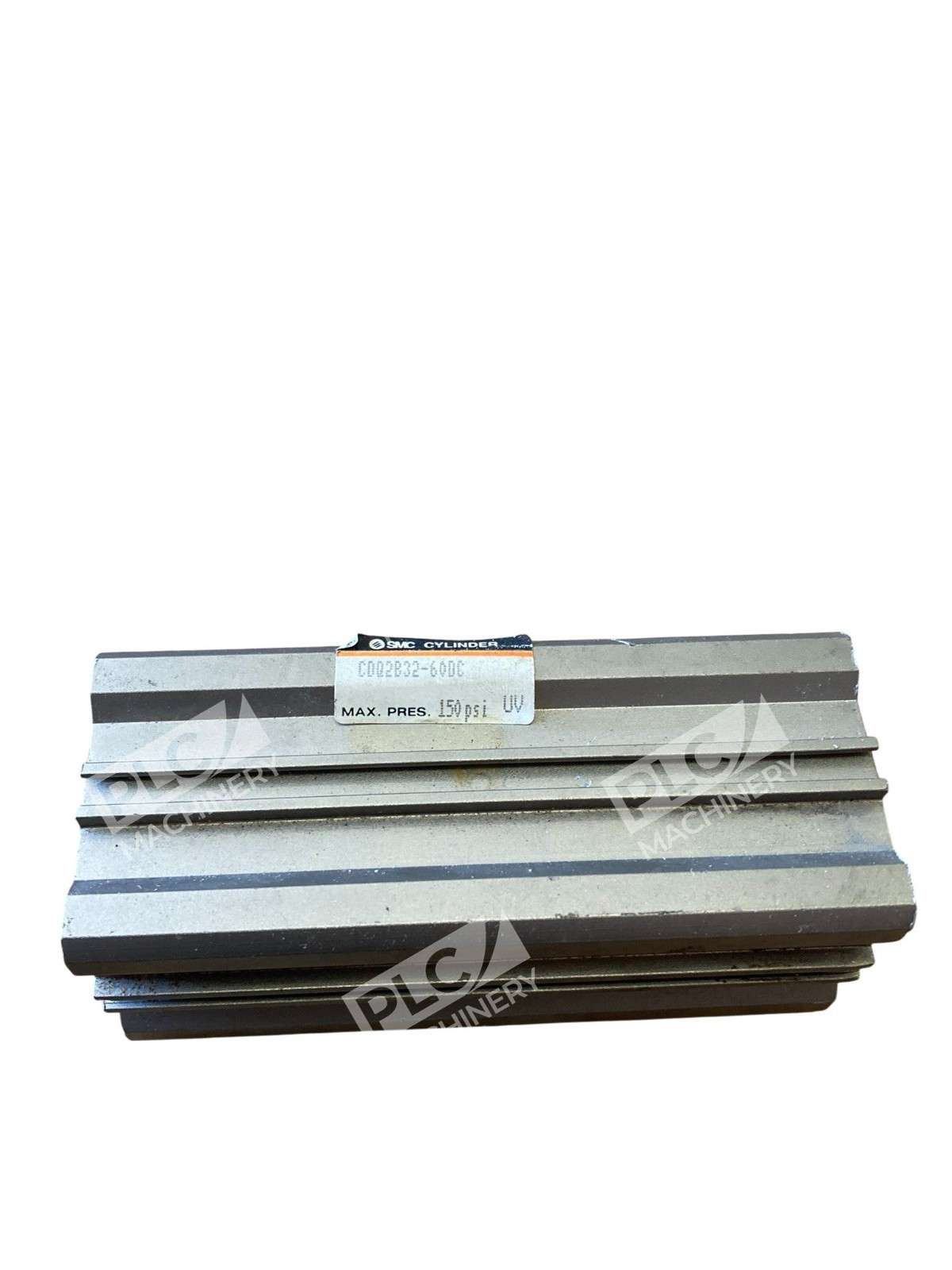

SMC CDQ2B32-60DC Pneumatic Cylinder The SMC CDQ2B32-60DC is a compact, double-acting pneumatic cylinder designed for applications requiring efficient space utilization without compromising performance. With a 32 mm bore size and a 60 mm stroke length, this cylinder is part of SMC’s renowned CQ2 series, known for its reliability and versatility in various industrial settings. Key Features Compact Design: The CDQ2 series features a space-saving design, making it ideal for installations where space is limited. Double-Acting Operation: This cylinder operates in both directions, providing consistent force during both extension and retraction strokes. Built-in Magnet: Equipped with a built-in magnet, the cylinder allows for easy integration of auto switches for position sensing without additional mounting brackets. Versatile Mounting Options: The cylinder includes through-hole mounting as standard, offering flexibility in installation. Auto Switch Compatibility: Designed with grooves on multiple surfaces, it accommodates small auto switches without protrusion, enhancing safety and aesthetics. Specifications Bore Size: 32 mm Stroke Length: 60 mm Port Thread Type: Rc (or M Thread for specific configurations) Rod End Thread: Female (standard); male thread options available Body Option: Rubber bumper for cushioning Auto Switch Mounting Groove: Integrated grooves on multiple surfaces for easy auto switch installation Applications The SMC CDQ2B32-60DC pneumatic cylinder is suitable for a wide range of applications, including: Automated assembly lines Material handling systems Packaging machinery Robotics Any application requiring precise linear motion in a compact form factor Its compact size, combined with robust performance and flexible mounting options, makes the CDQ2B32-60DC an excellent choice for engineers and designers seeking efficient and reliable pneumatic actuation solutions.
