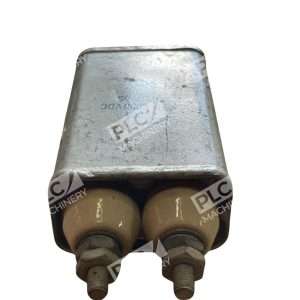

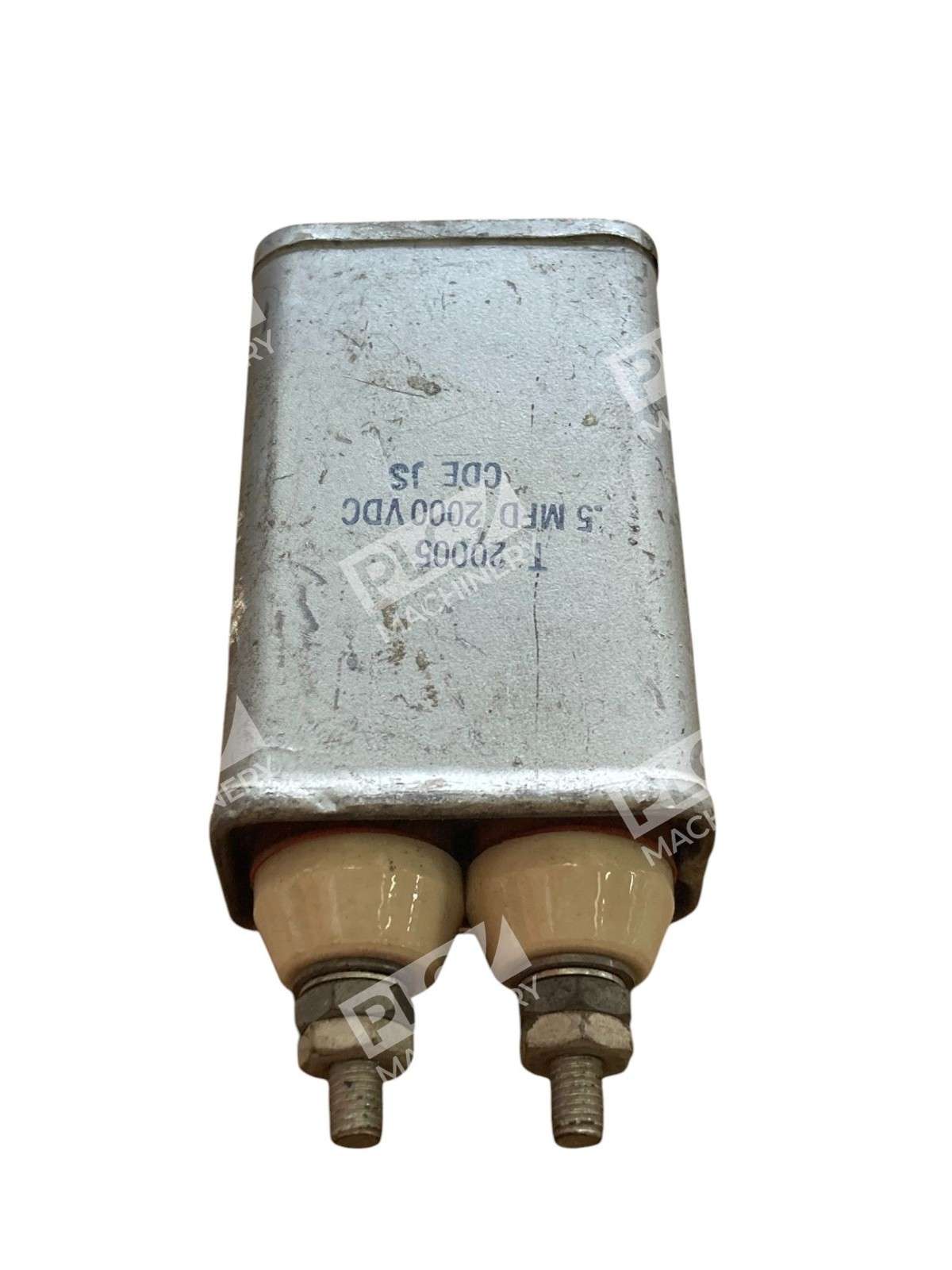

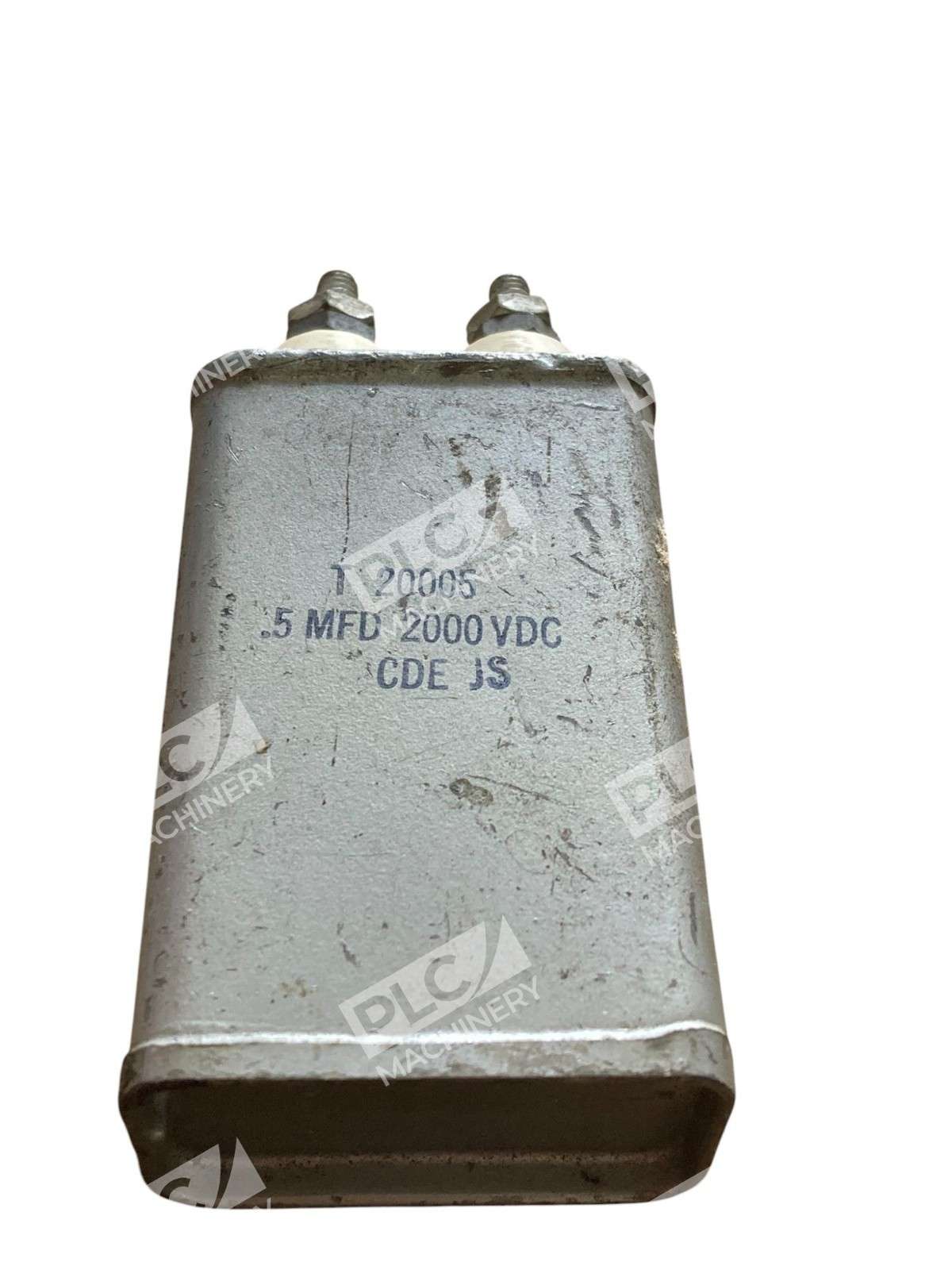

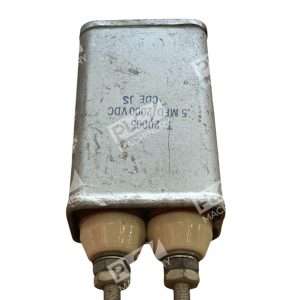

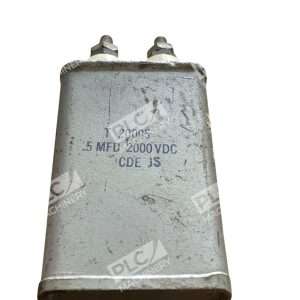

CDE JS 0.5 MFD 2000 VDC Capacitor

The CDE JS 0.5 MFD 2000 VDC Capacitor is a high-performance component designed for demanding applications requiring reliable energy storage and discharge capabilities. With a capacitance of 0.5 microfarads and a voltage rating of 2000 VDC, this capacitor is suitable for various industrial and electronic uses.

Key Features

• High dv/dt Capability: Ensures excellent pulse current handling, making it ideal for applications involving rapid voltage changes.
• Temperature and Frequency Stability: Maintains consistent performance across a wide range of temperatures and frequencies, ensuring reliability in diverse operating conditions.
• Self-Healing Properties: Enhances durability by allowing the capacitor to recover from dielectric breakdowns, thereby extending its operational life.
• Compact Design: Offers a small footprint, facilitating integration into space-constrained applications without compromising performance.

Applications

• Inverters and Converters: Provides efficient energy transfer and voltage regulation in power conversion systems.
• Power Semiconductor Circuits: Supports the operation of circuits involving power semiconductors by offering reliable energy storage and discharge.
• Induction Heating: Suitable for use in induction heating systems, where rapid energy discharge is required.
• Switching Power Supplies: Enhances the performance of switching power supplies by stabilizing voltage and filtering noise.

Specifications

• Operating Temperature Range: -55°C to +85°C, ensuring functionality in extreme environmental conditions.
• Capacitance Tolerance: ±10% at 1 kHz and 25°C, with an optional ±5% tolerance available for applications requiring higher precision.
• Surge Voltage: Capable of withstanding up to 2400 VDC, providing a safety margin for voltage spikes.
• Dissipation Factor: Maximum of 0.06% at 1 kHz and 25°C, indicating low energy loss during operation.
• Insulation Resistance: Minimum of 30,000 MΩ·μF at 100 VDC applied for 1 minute at 25°C, ensuring minimal leakage current.
• Life Expectancy: 100,000 hours at rated voltage and 70°C, highlighting its long-term reliability.

The CDE JS 0.5 MFD 2000 VDC Capacitor combines high performance, durability, and compactness, making it an excellent choice for applications requiring reliable energy storage and discharge under demanding conditions.
