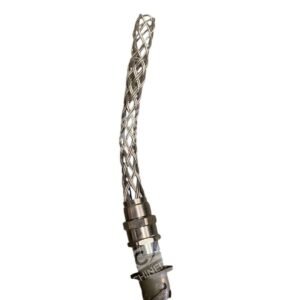

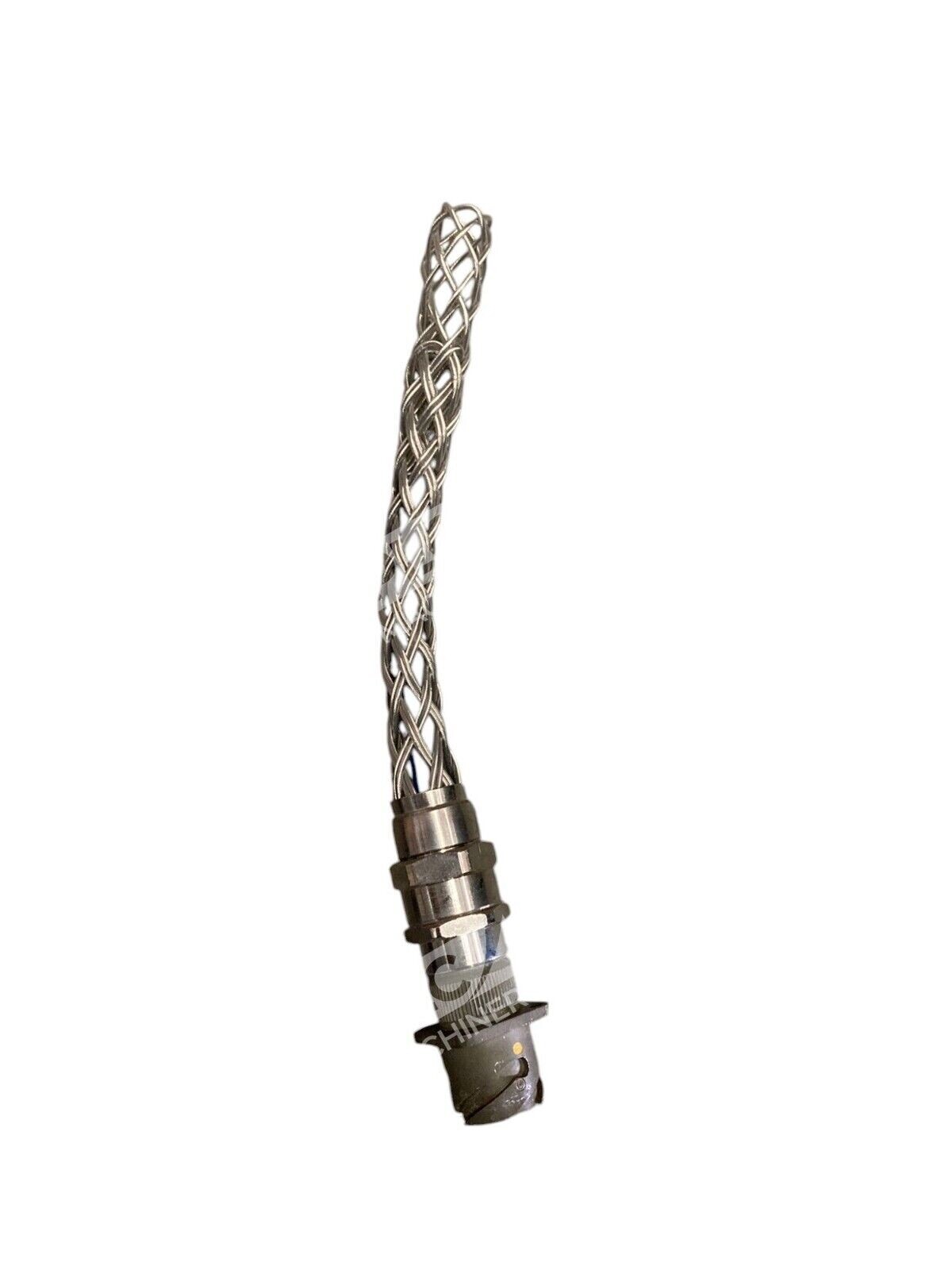

Canon ITT VEAM Connector Assembly CIR030R-16-11S-F80
The Canon ITT VEAM Connector Assembly CIR030R-16-11S-F80 is a high-performance circular connector designed to meet the rigorous demands of industrial and military applications. This receptacle features a bayonet lock mechanism, ensuring secure and reliable connections in environments subject to vibration and mechanical stress.
Key Features
- Connector Type: Receptacle with female sockets
- Number of Positions: 2
- Shell Size – Insert: 16-11
- Mounting Type: Panel Mount with Flange
- Termination: Crimp
- Fastening Type: Bayonet Lock
- Orientation: N (Normal)
- Shell Material: Aluminum Alloy with Olive Drab Cadmium Finish
- Contact Material: Copper Alloy with Silver Finish
- Current Rating: 23A
- Voltage Rating: 500VAC, 700VDC
- Operating Temperature Range: -55°C to 125°C
- Ingress Protection: Environment Proof
Applications
The CIR030R-16-11S-F80 connector is ideal for use in harsh environments where durability and reliability are paramount. Its robust design and high-quality materials make it suitable for military, aerospace, and industrial applications requiring secure and stable electrical connections.
Additional Information
This connector assembly complies with VG95234/MIL-DTL-5015 standards, ensuring compatibility and performance in demanding conditions. The bayonet coupling mechanism allows for quick and secure mating and unmating, enhancing operational efficiency.
For detailed specifications and availability, please refer to the manufacturer’s datasheet or contact authorized distributors.
