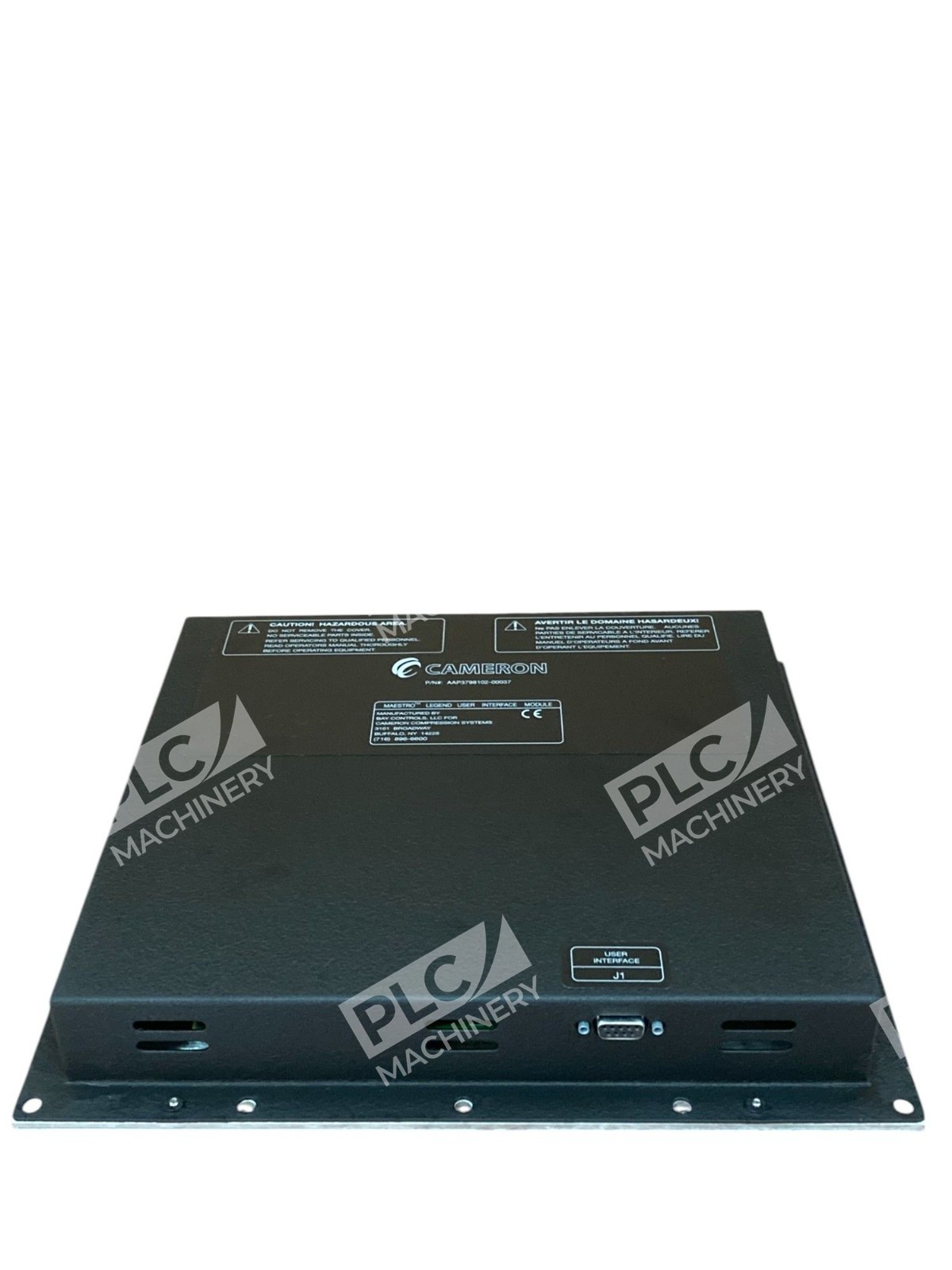

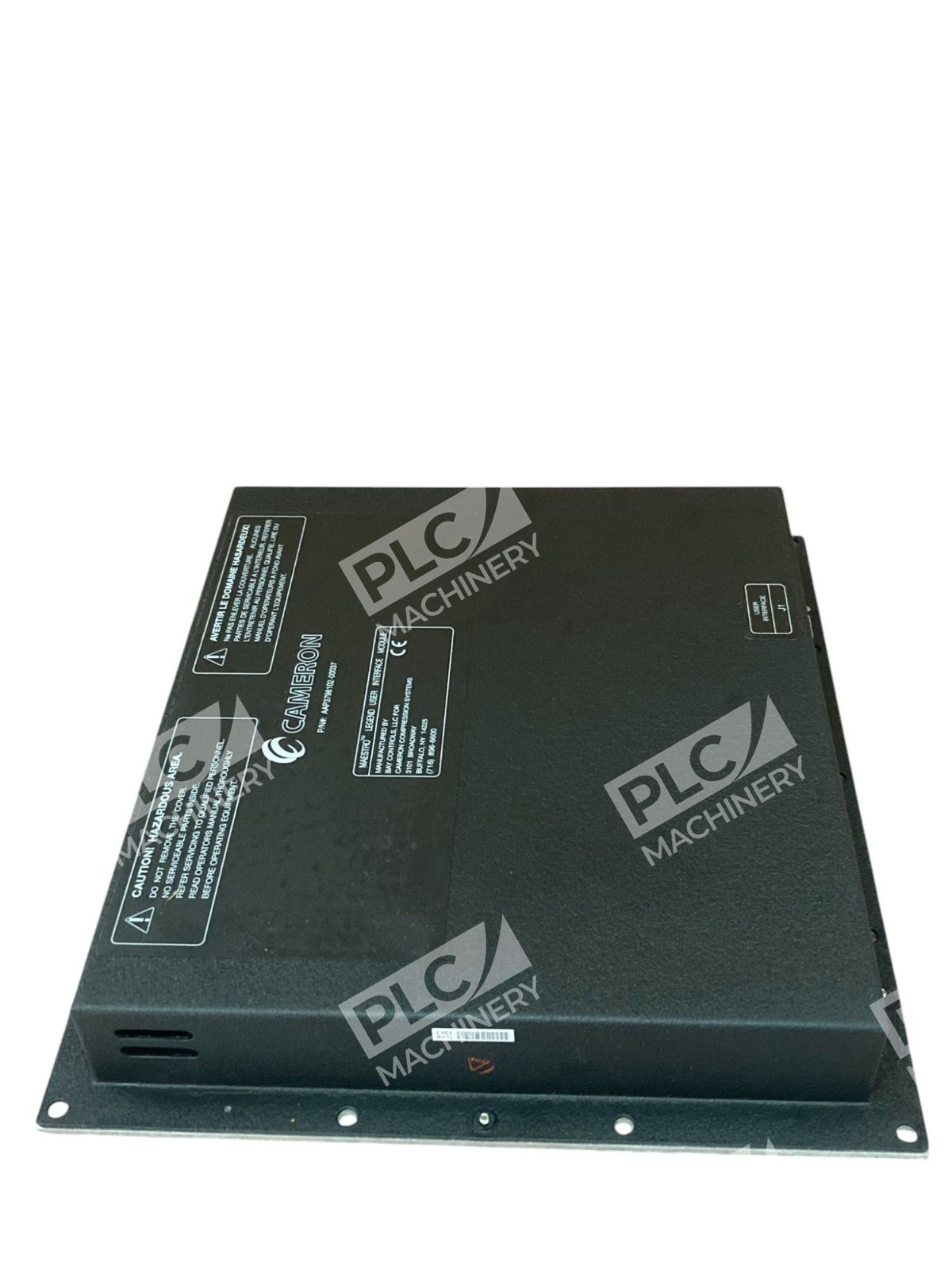

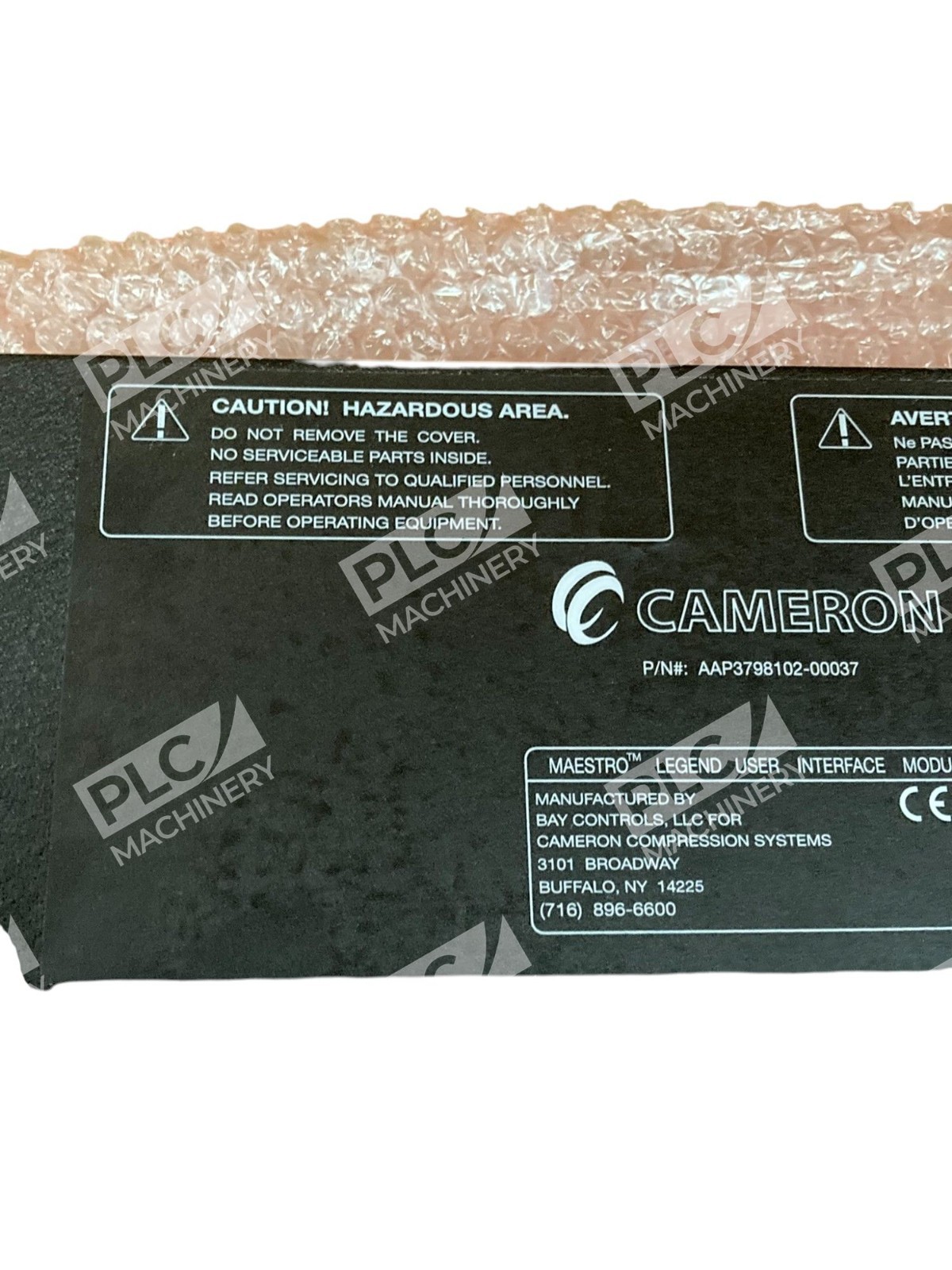

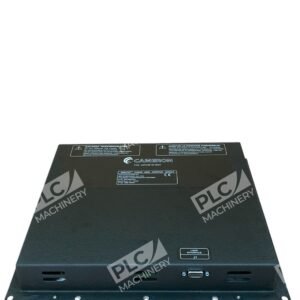

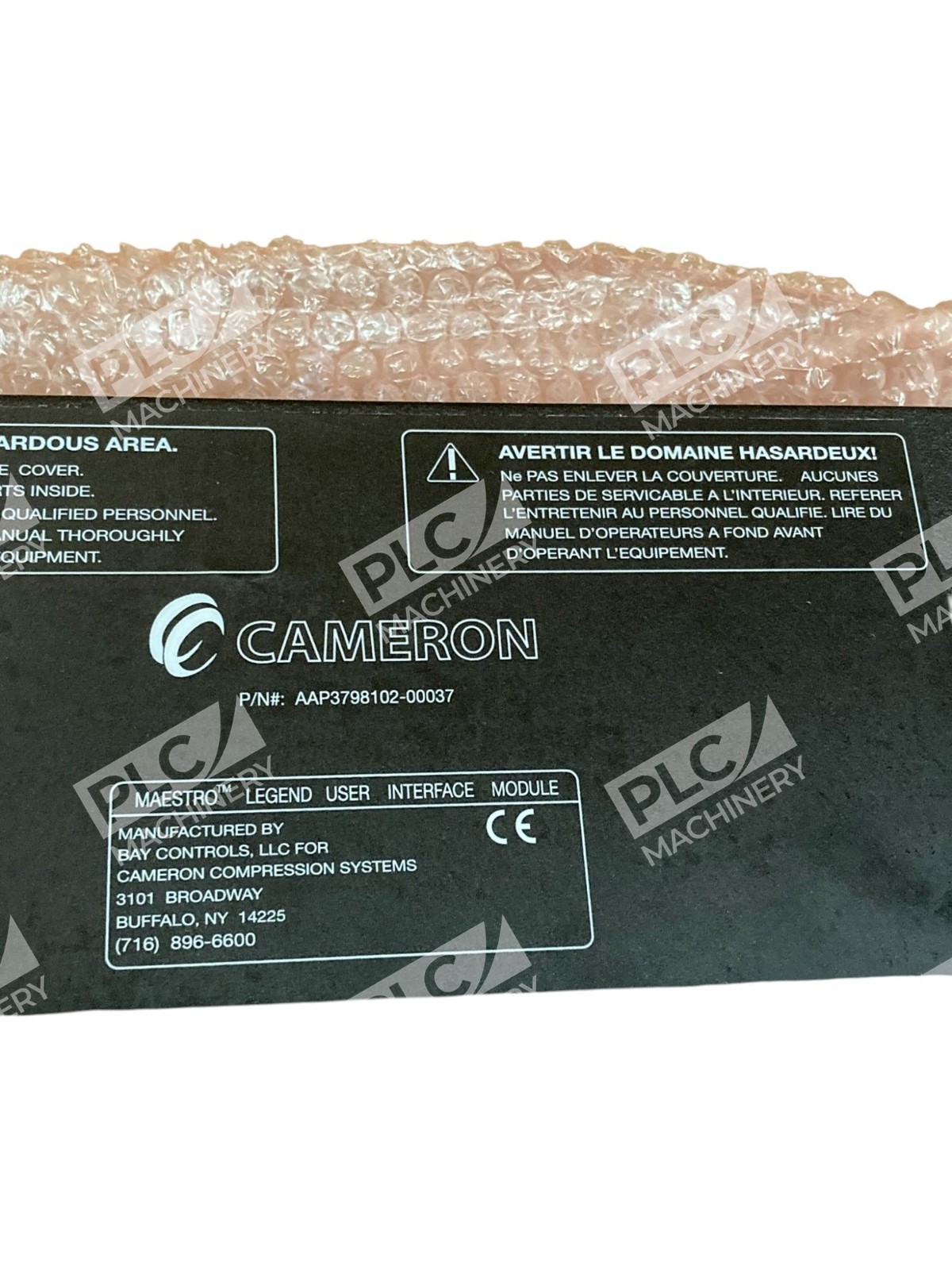

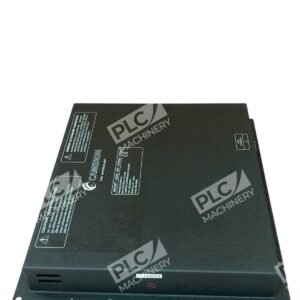

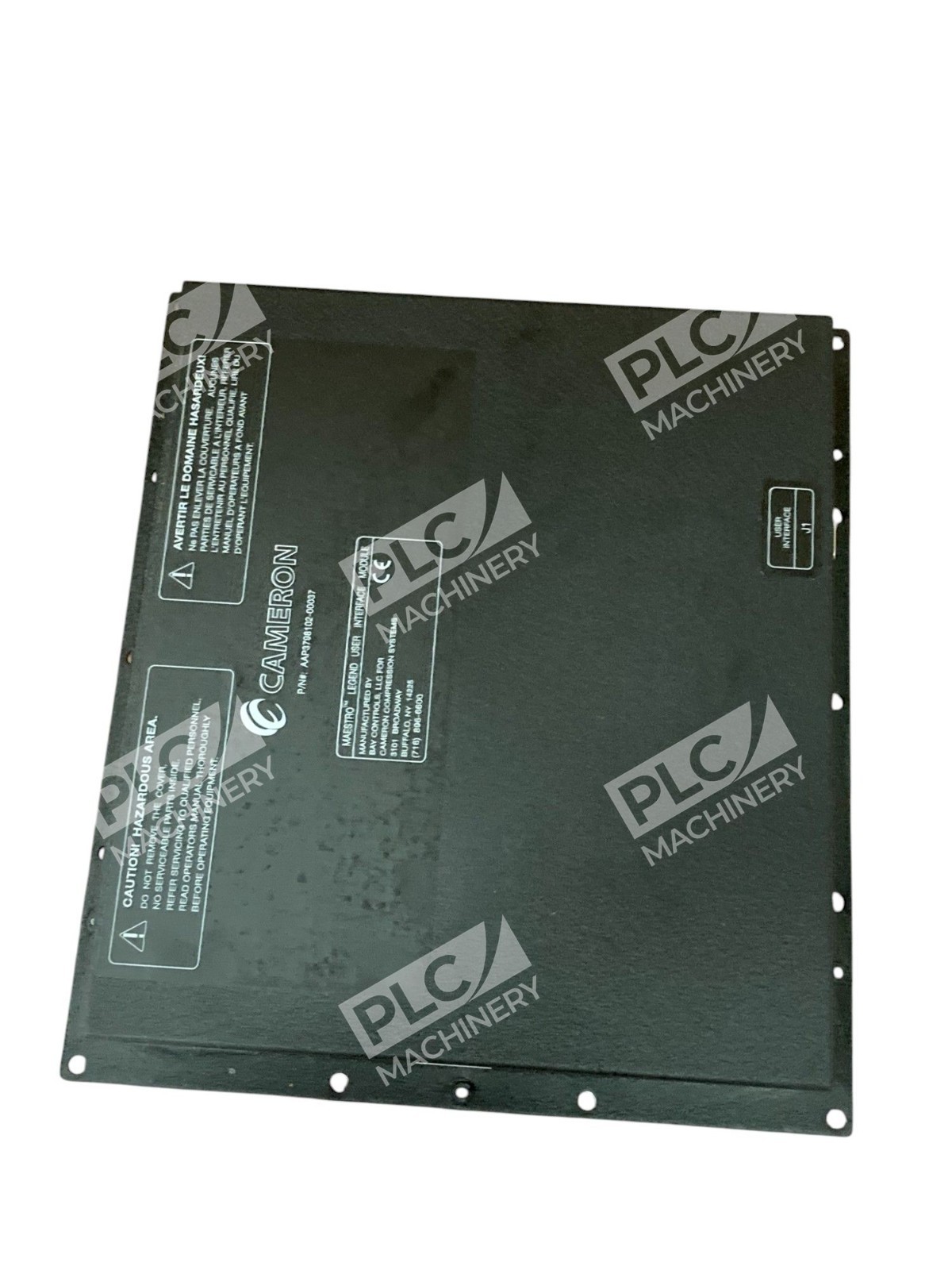

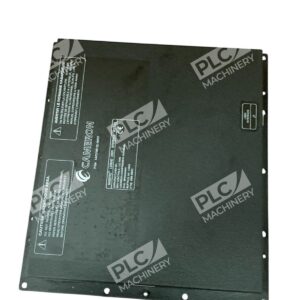

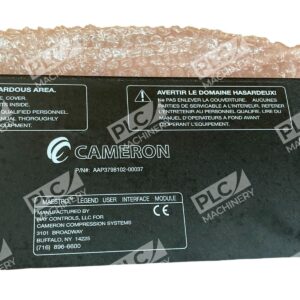

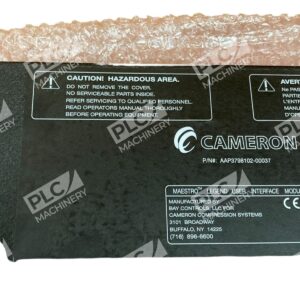

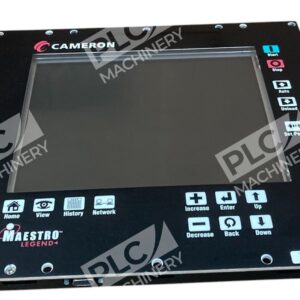

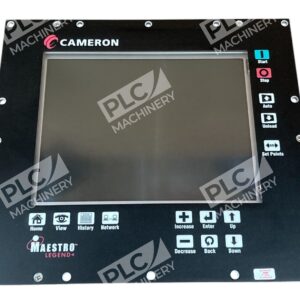

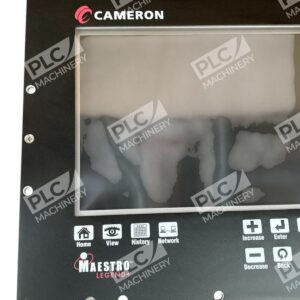

Cameron Maestro Legend Operator Interface AAP3798102-00037

The Cameron Maestro Legend Operator Interface, model AAP3798102-00037, is a high-performance Human-Machine Interface (HMI) designed for industrial automation systems. It provides operators with an intuitive platform to monitor and control various industrial processes, ensuring efficient and reliable operations.

Key Features

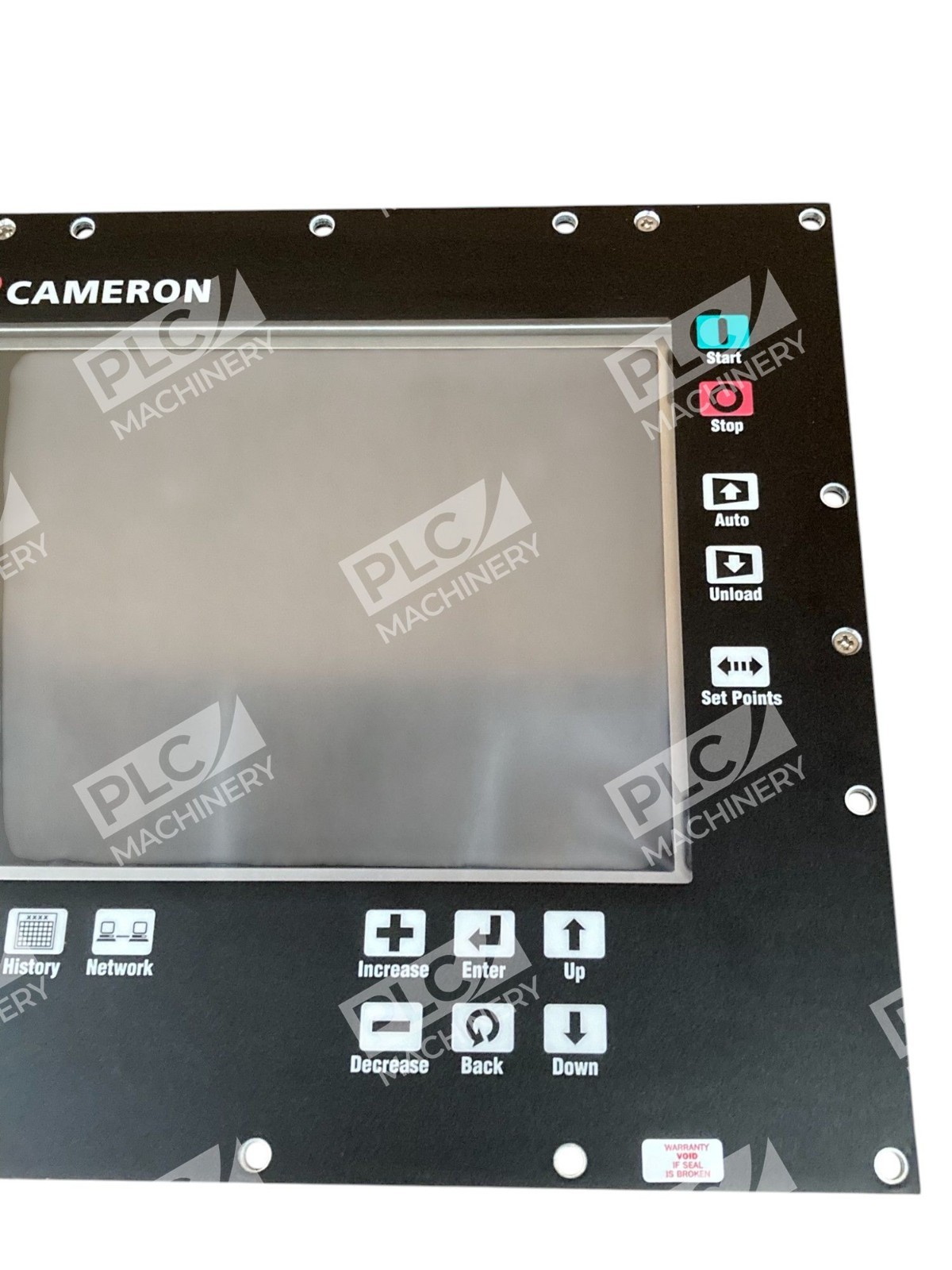

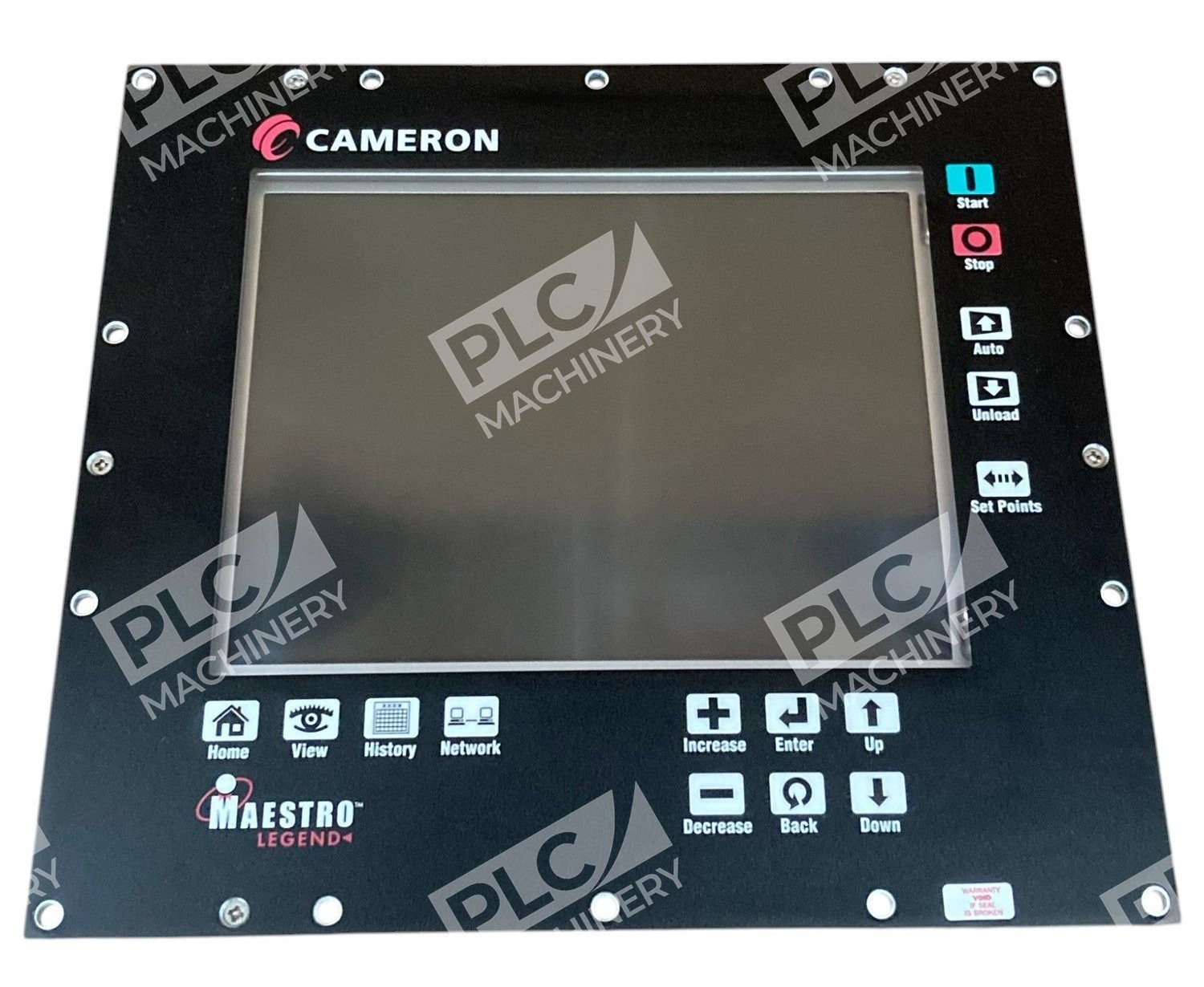

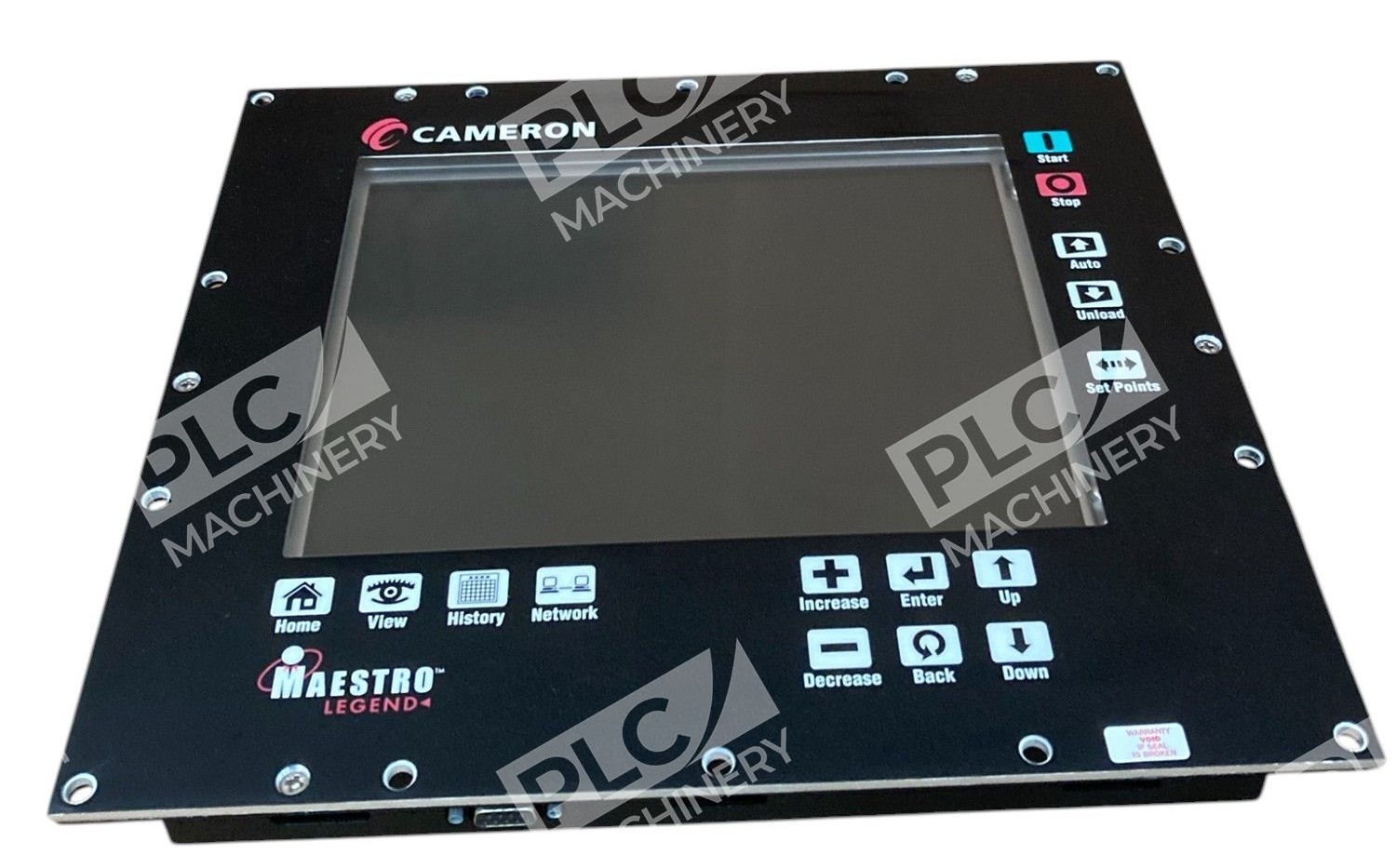

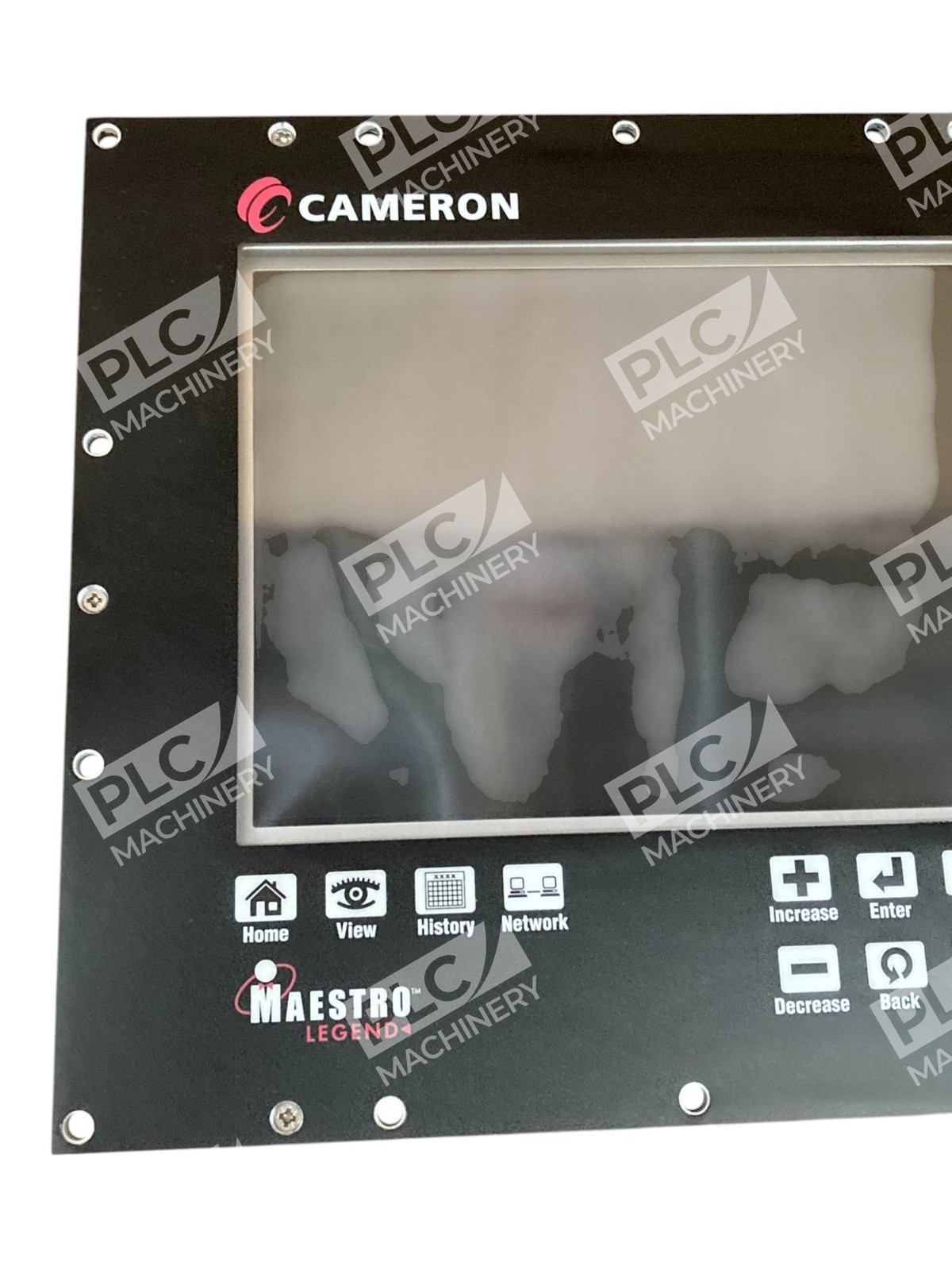

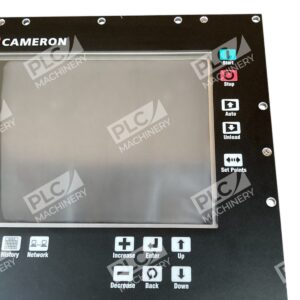

• Intuitive User Interface: Equipped with a high-resolution color TFT LCD touchscreen, the interface offers clear and accessible system information, facilitating real-time monitoring and control.
• Versatile Communication Protocols: Supports multiple communication protocols, including Ethernet (Modbus/TCP), RS-485 (Modbus/RTU), and open network protocols like PROFIBUS-DP, CC-Link, and DeviceNet, ensuring seamless integration with various industrial automation systems.
• Robust Design: Built to withstand harsh industrial environments, the interface features a durable construction with an IP65 protection rating, ensuring reliable performance in demanding conditions.
• Multilingual Support: Offers multi-language capabilities, including English, Spanish, French, German, Turkish, Chinese, Russian, and Portuguese, making it adaptable to diverse operational settings.
• Advanced Diagnostic Functions: Incorporates event history recording and diagnostic features, allowing for efficient troubleshooting and maintenance.
• Remote Monitoring: Features a built-in web server for remote monitoring and control, enhancing operational flexibility and responsiveness.

Technical Specifications

• Display Type: Color TFT LCD touchscreen
• Power Requirements: 24 VDC
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Relative Humidity: 5% to 95% (non-condensing)
• Mounting Method: Panel mount
• Protection Rating: IP65

Applications

The AAP3798102-00037 operator interface is widely utilized across various industries, including:

• Oil and Gas: Monitoring and controlling critical processes in refineries, chemical plants, and offshore platforms.
• Chemical Industry: Overseeing chemical production processes to ensure safety and efficiency.
• Power Generation: Managing operations in power plants and substations to maintain grid stability.
• Water Treatment: Controlling processes in water and wastewater treatment facilities to ensure reliable service.
• Manufacturing: Supervising production lines and automated equipment to enhance productivity.

The Cameron Maestro Legend Operator Interface AAP3798102-00037 stands as a versatile and reliable solution for industrial process monitoring and control, offering advanced features and robust performance to meet the demands of modern industrial environments.
