Bussmann 100A Low Peak Fuse LPS-RK-100SP

Bussmann 100A Low-Peak Fuse LPS-RK-100SP

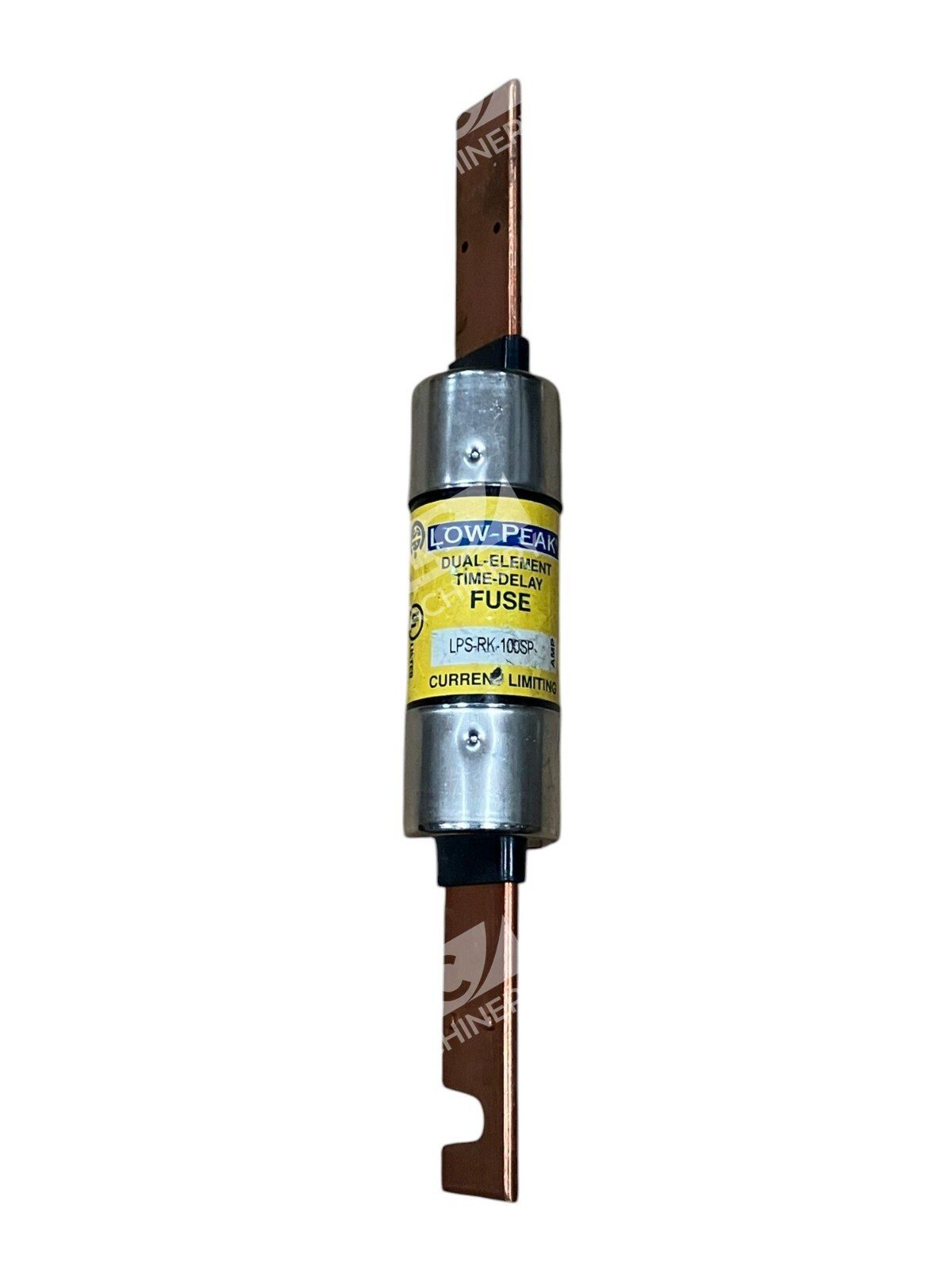

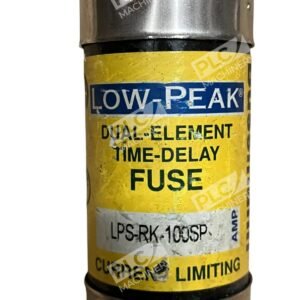

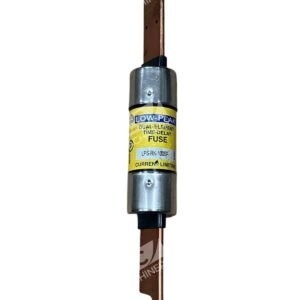

The Bussmann LPS-RK-100SP is a 100-ampere, dual-element, time-delay fuse designed to provide superior protection for electrical circuits. As part of the Low-Peak™ series, this Class RK1 fuse offers advanced current-limiting capabilities, ensuring enhanced safety and performance in various applications.

Key Features

• Voltage Rating: 600 VAC / 300 VDC
• Interrupting Rating: 300 kA at 600 VAC; 100 kA at 300 VDC
• Time-Delay: Minimum of 10 seconds at 500% of rated current
• Current-Limiting: Provides maximum short-circuit protection and reduces arc flash hazards
• Selective Coordination: Simplified with a 2:1 ampacity ratio within the Low-Peak fuse family
• Motor Protection: Handles high inrush currents, allowing for 130% Full Load Amperes (FLA) sizing for backup motor overload protection
• Construction: Features electrically isolated end caps for added safety and low watt loss power consumption

Applications

The LPS-RK-100SP fuse is ideal for use in:

• Feeder and branch circuits
• Motors and motor control centers
• Transformers
• Solenoids
• General-purpose circuits

Compliance and Certifications

This fuse meets the following standards:

• UL Listed
• CSA Certified
• CE Marked
• RoHS Compliant

By incorporating the Bussmann LPS-RK-100SP fuse into your electrical systems, you ensure reliable protection against overcurrents and short circuits, enhancing the safety and longevity of your equipment.
