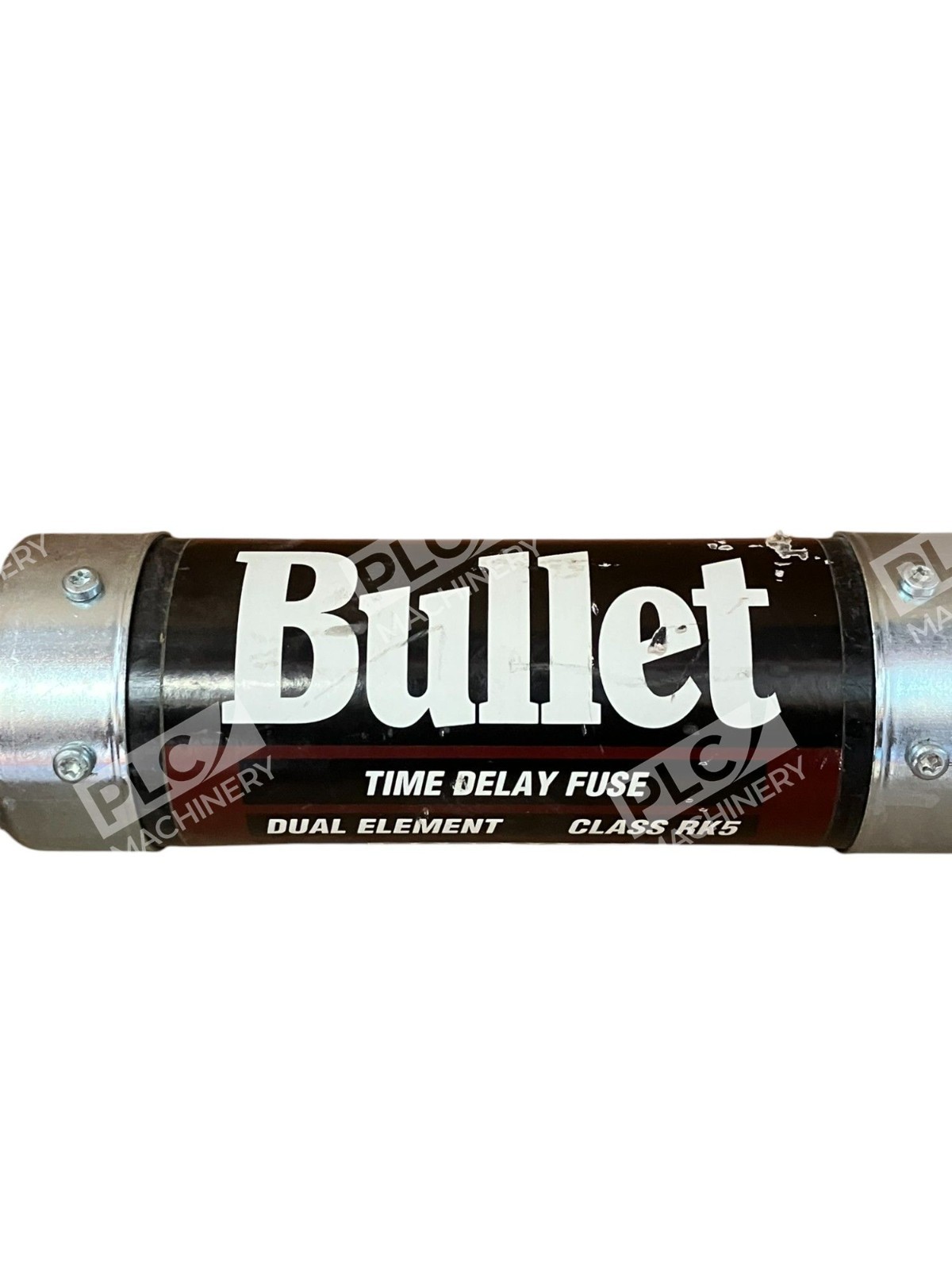

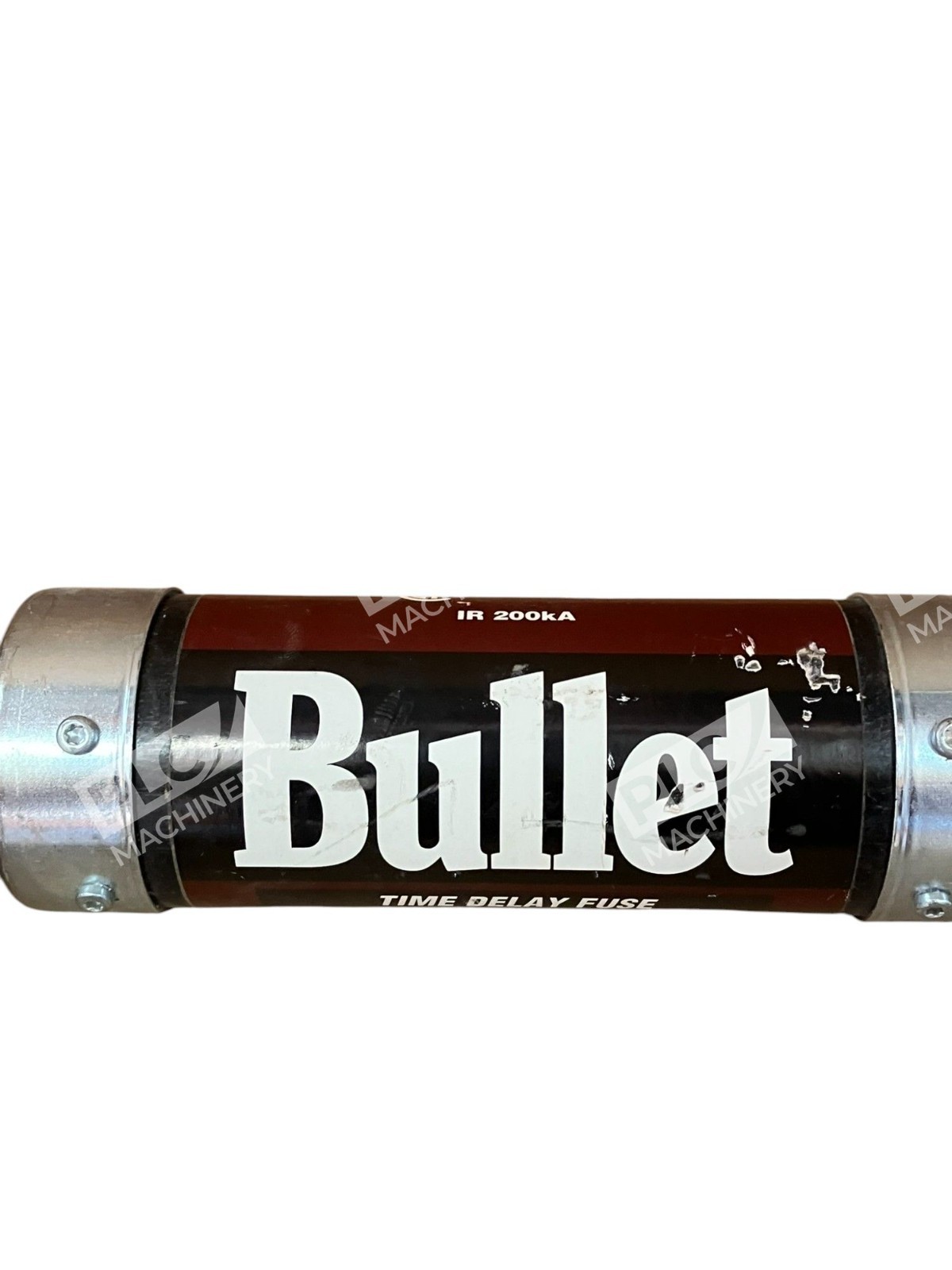

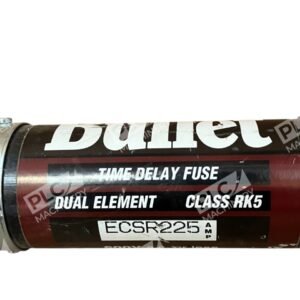

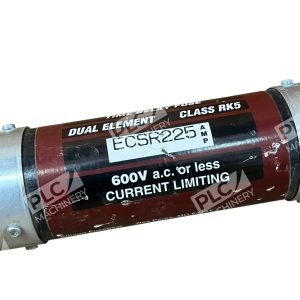

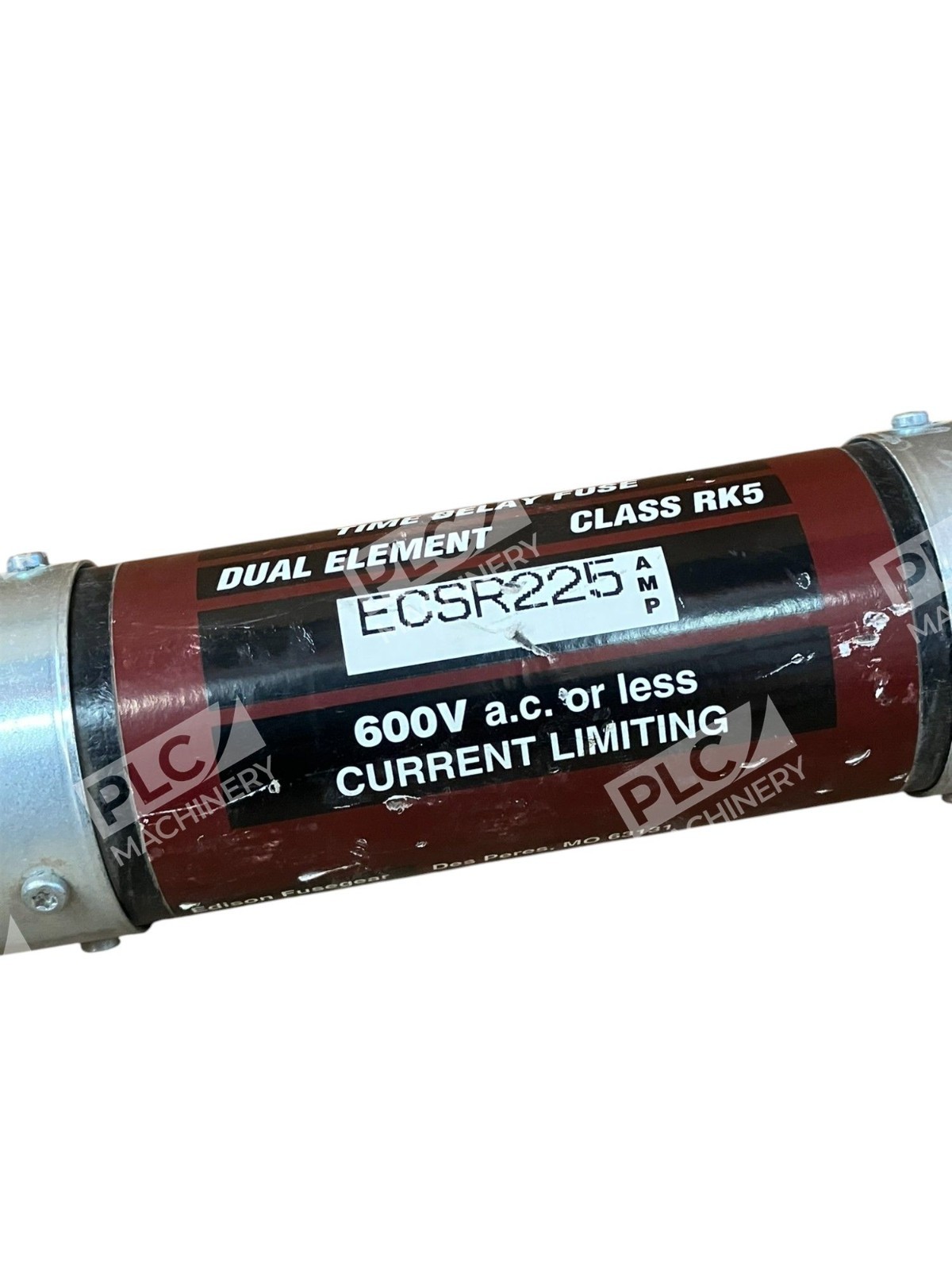

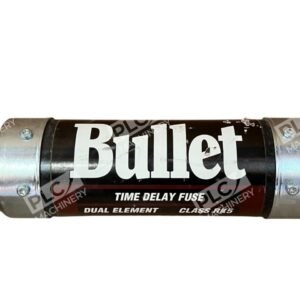

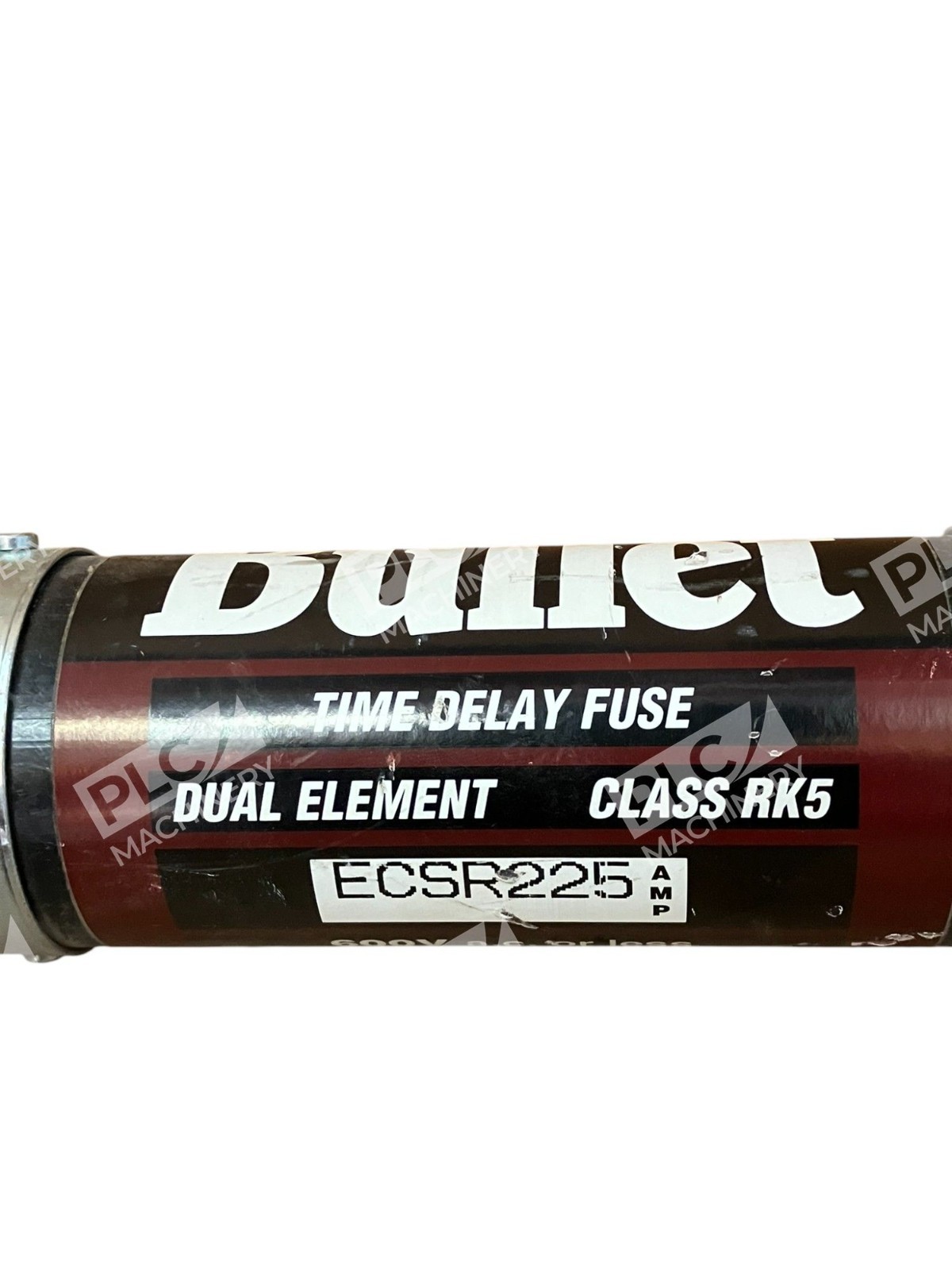

Bullet 600VAC 225A Dual Element Class RK5 Time Delay Fuse ECSR225

Bullet 600VAC 225A Dual Element Class RK5 Time Delay Fuse ECSR225

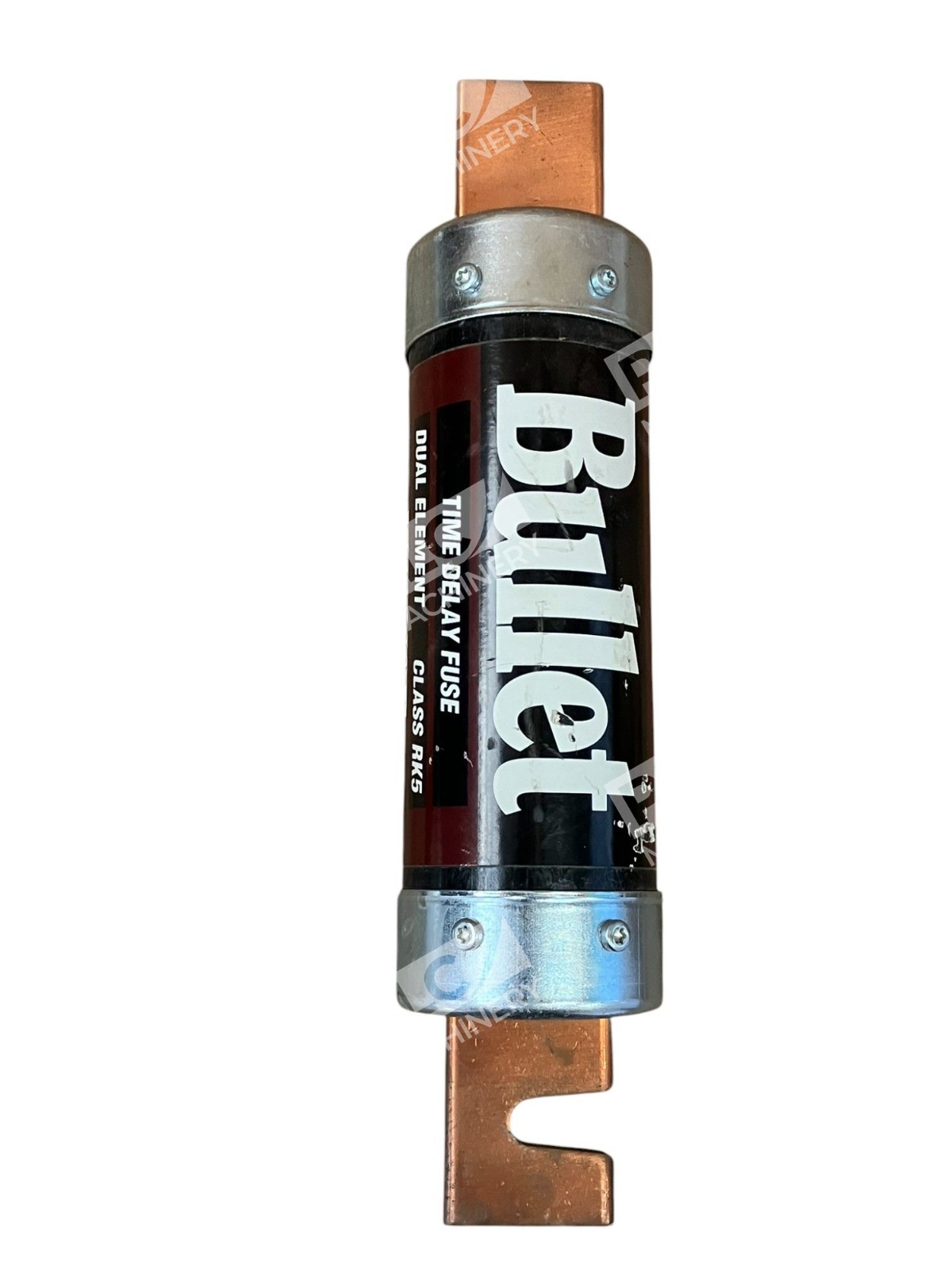

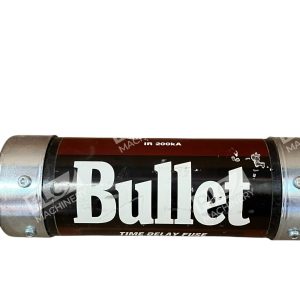

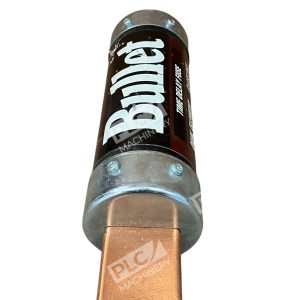

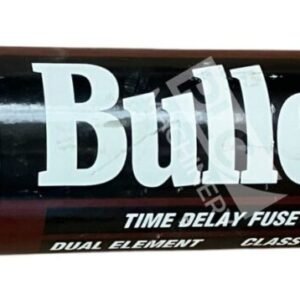

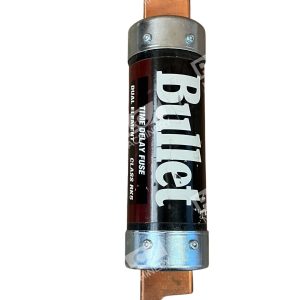

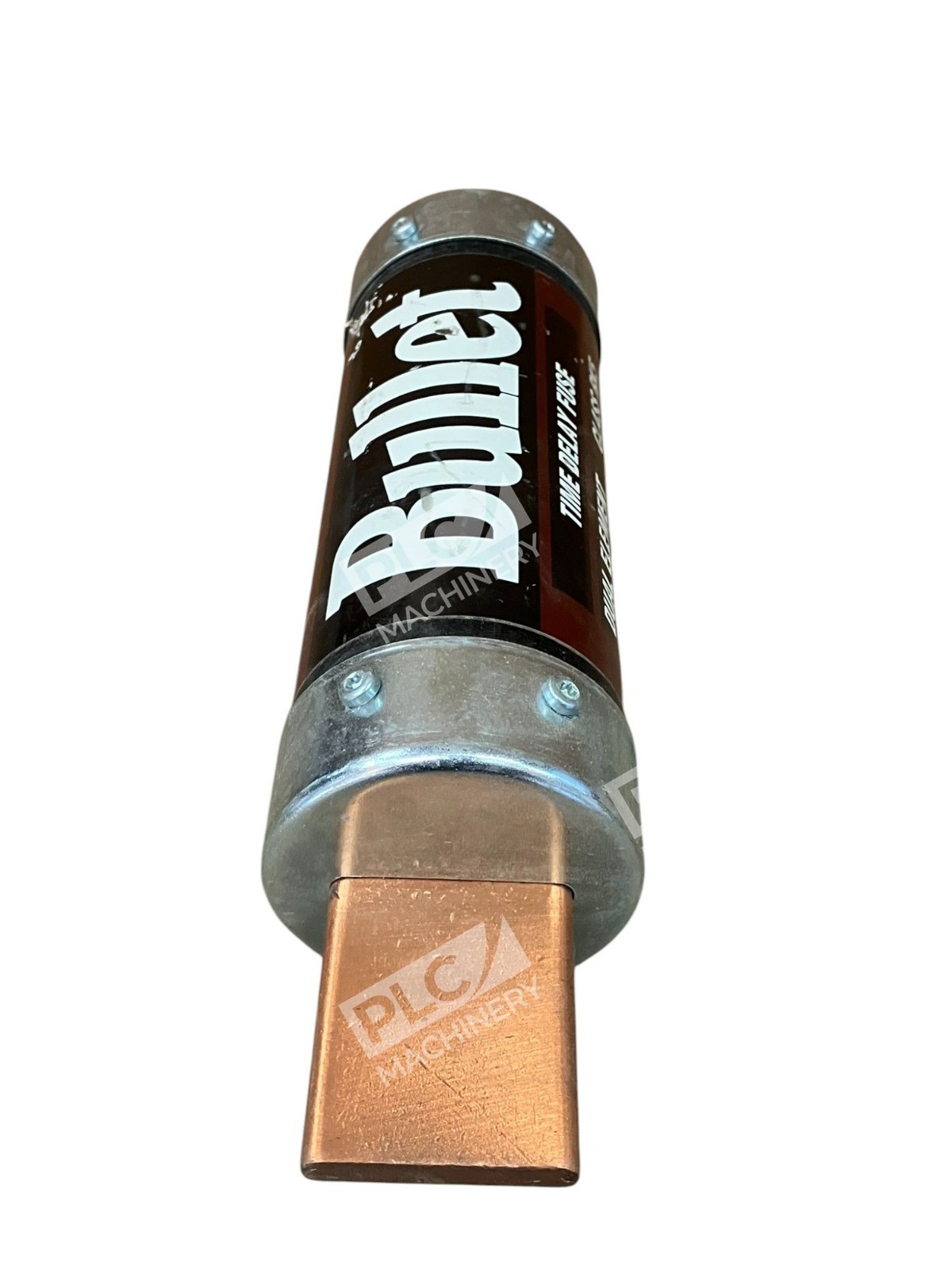

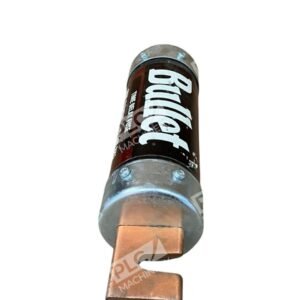

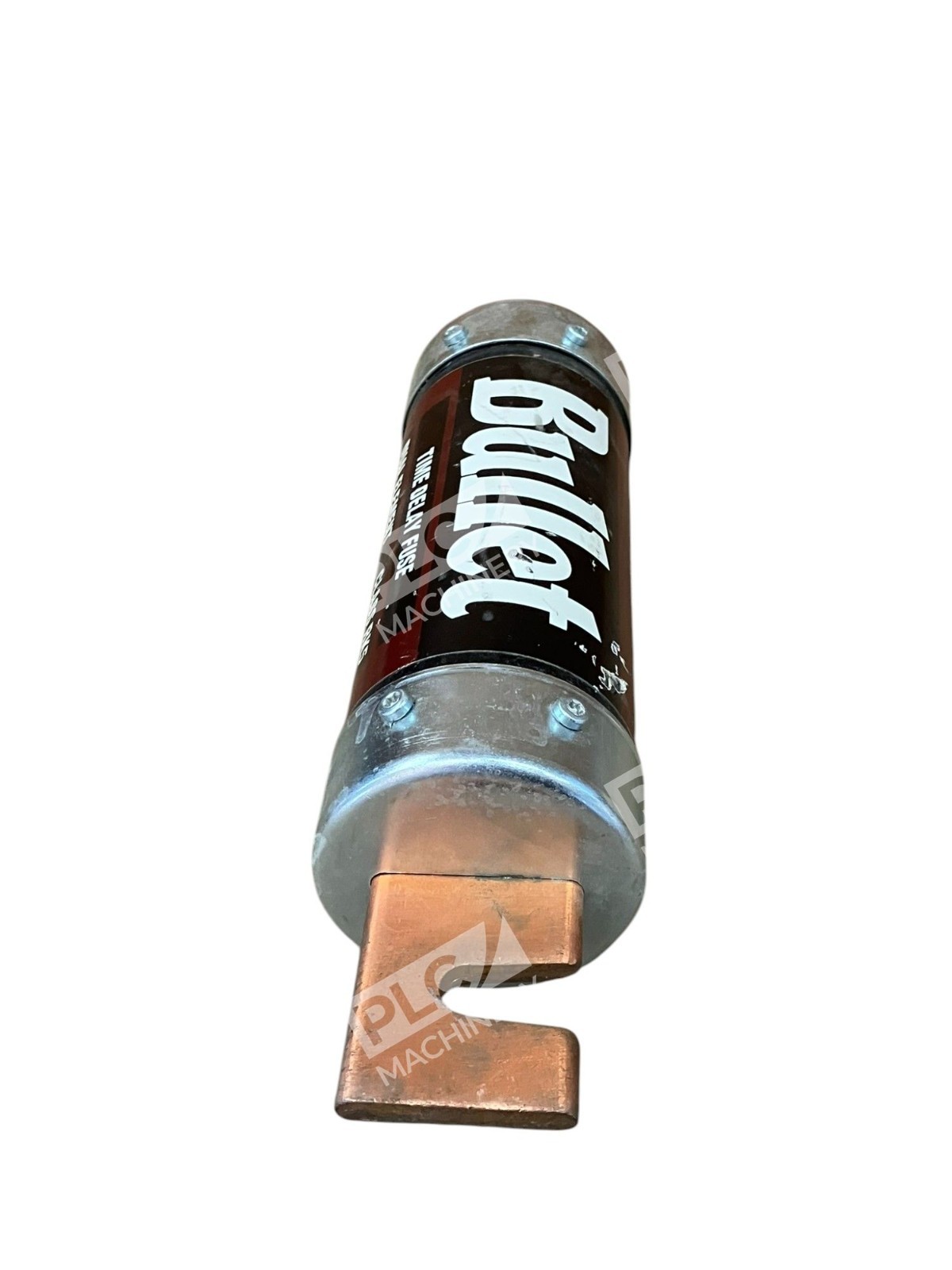

The Bullet 600VAC 225A Dual Element Class RK5 Time Delay Fuse ECSR225 is engineered to deliver reliable overcurrent protection in a variety of industrial applications. Its dual-element, time-delay design ensures superior performance, particularly in circuits with inductive loads such as motors and transformers.

Key Features

• Voltage Rating: 600 VAC
• Current Rating: 225 Amperes
• Interrupting Capacity: 200,000 Amperes (200 kAIC)
• Fuse Class: RK5
• Response Time: 10 seconds at 500% overload
• Construction: Dual-element, time-delay

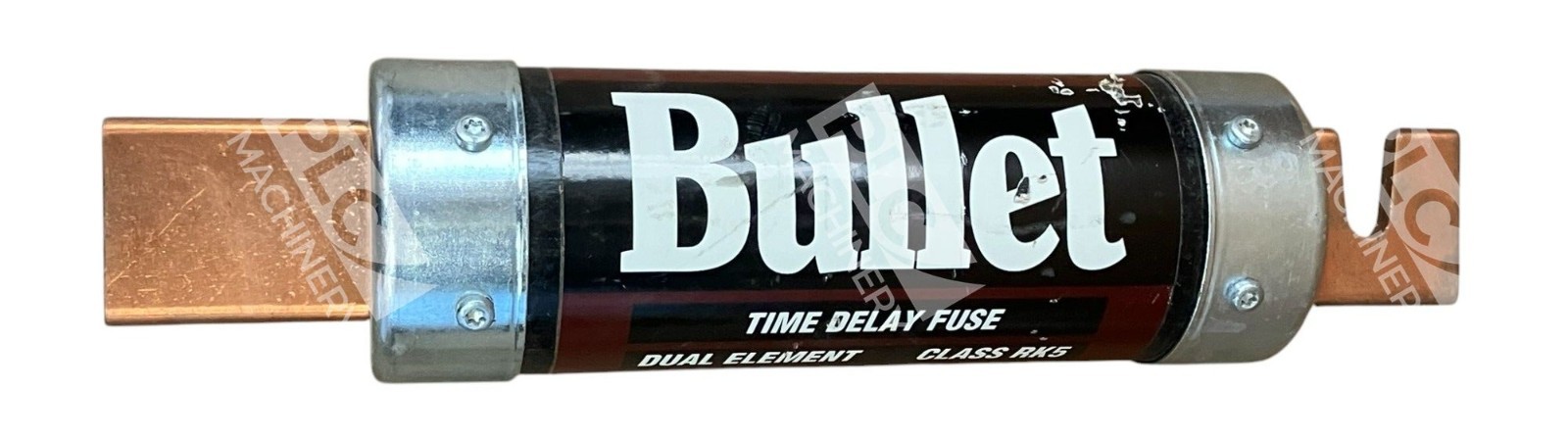

• Terminal Type: Blade end
• Body Material: Fiberglass
• Dimensions: 2.34 inches in diameter x 11.63 inches in length

Applications

The ECSR225 fuse is ideal for protecting AC power distribution system mains, feeders, and branch circuits. It is particularly effective in safeguarding motors, motor branch circuits, transformers, and other inductive loads. Additionally, it is suitable for general-purpose applications, including lighting and heating circuits.

Certifications and Standards

This fuse complies with CE, CSA, and UL standards, ensuring it meets rigorous safety and performance criteria.

Advantages

• Provides reliable protection against overcurrent conditions
• Time-delay feature allows for temporary inrush currents without nuisance tripping
• High interrupting capacity accommodates high fault currents
• Dual-element design enhances performance and longevity

In summary, the Bullet 600VAC 225A Dual Element Class RK5 Time Delay Fuse ECSR225 offers robust and dependable protection for a wide range of industrial electrical systems, ensuring operational safety and efficiency.
