Brass 90° Push-On Hose Barb Elbow 3/8″ x 3/8″ NPTF

Brass 90° Push-On Hose Barb Elbow 3/8″ x 3/8″ NPTF

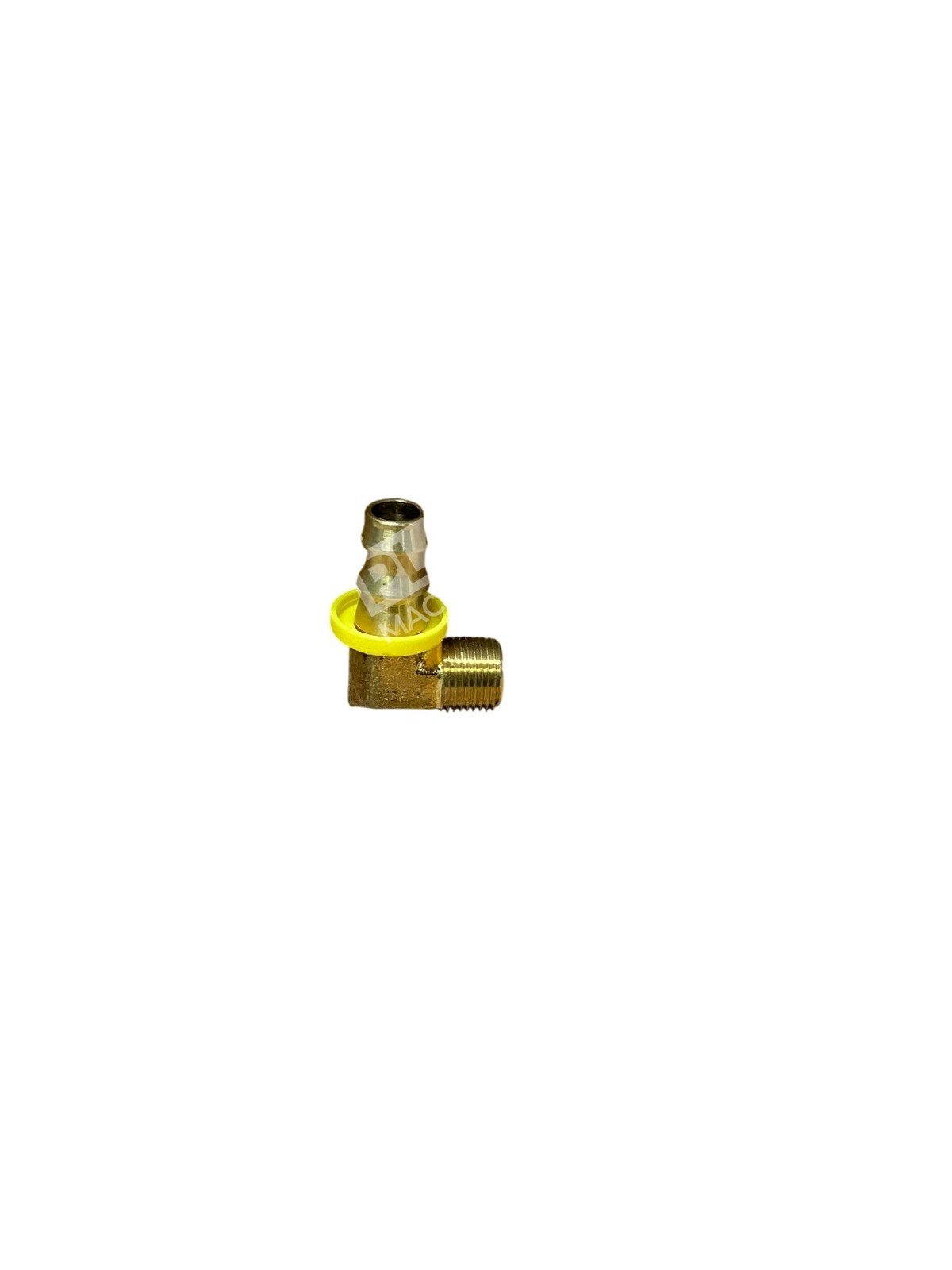

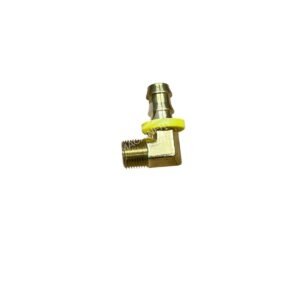

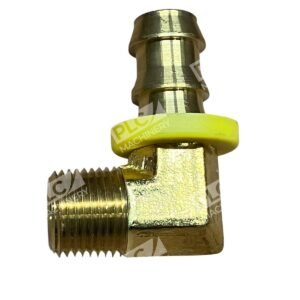

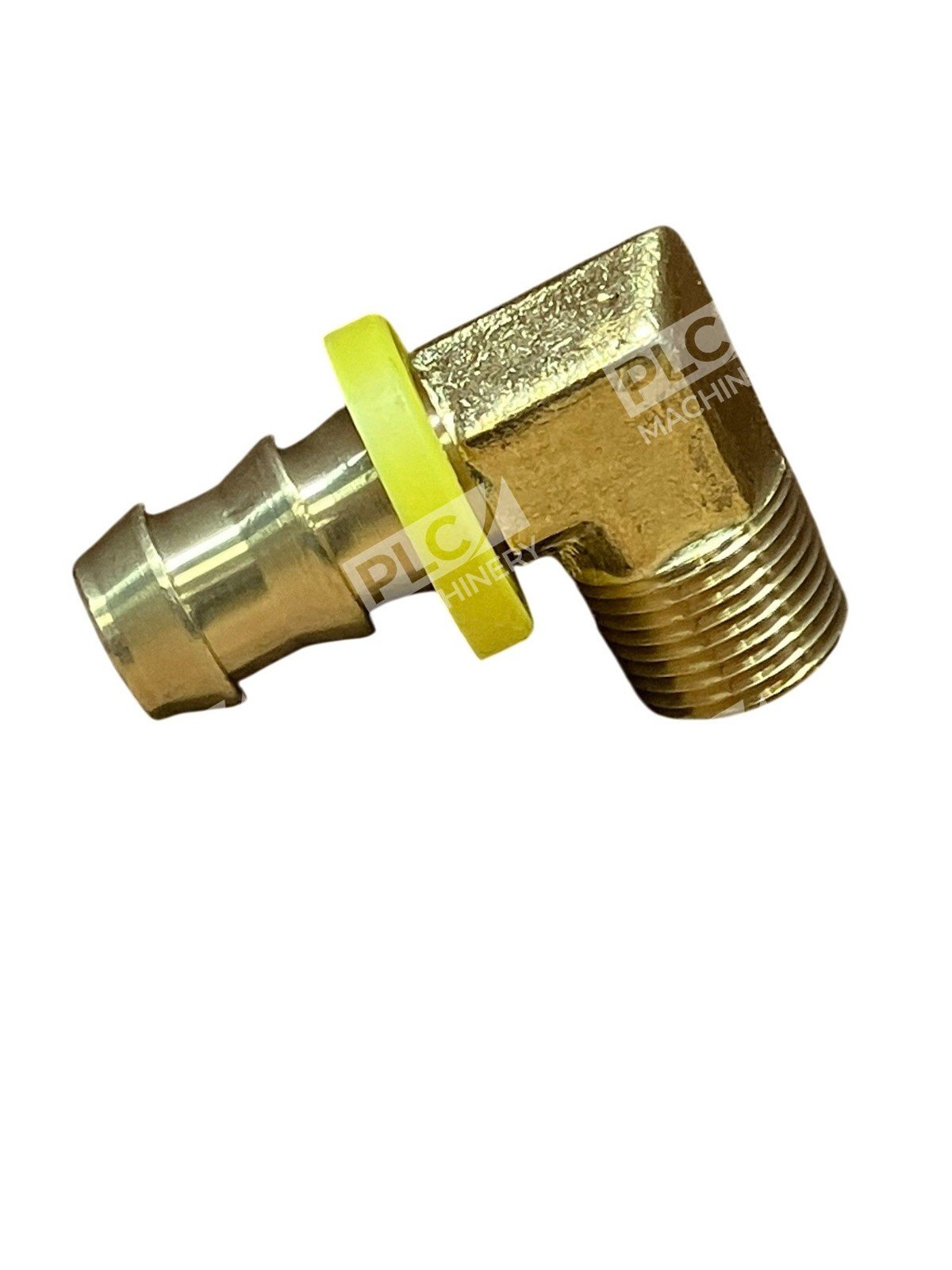

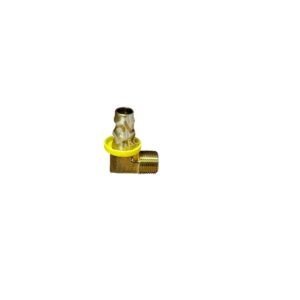

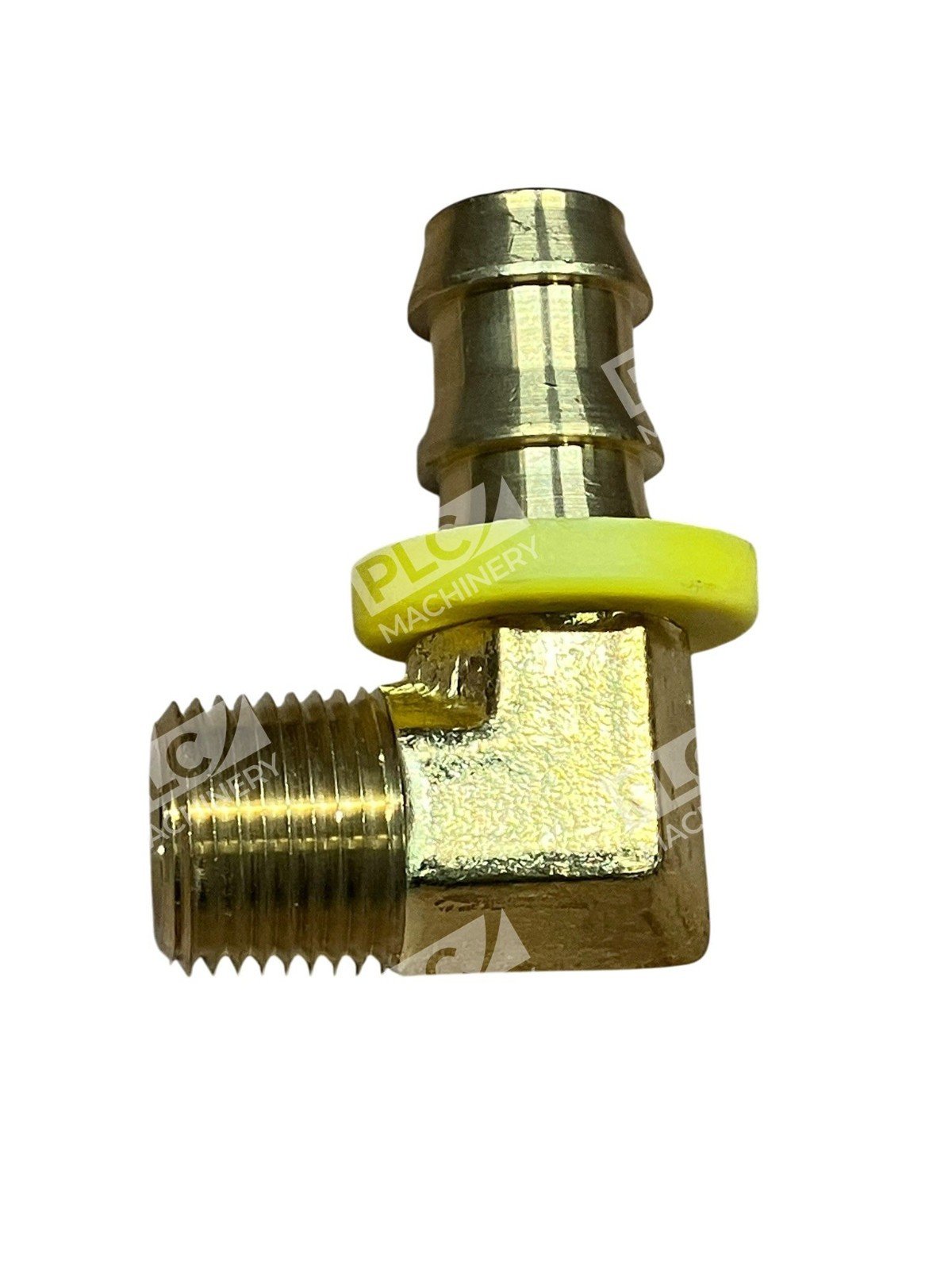

The Brass 90° Push-On Hose Barb Elbow is a high-quality fitting designed for efficient and secure connections in various fluid transfer applications. This elbow features a 3/8-inch hose barb on one end and a 3/8-inch male NPTF (National Pipe Taper Fuel) thread on the other, facilitating a seamless 90-degree connection between hoses and threaded components.

Key Features

• Material: Constructed from durable forged brass, ensuring longevity and resistance to corrosion.
• Design: The 90-degree elbow configuration allows for efficient routing of hoses in tight spaces, reducing strain and potential kinks.
• Push-On Capability: Specifically designed for use with push-on style hoses, eliminating the need for clamps or ferrules during installation.
• Thread Type: Equipped with a 3/8-inch male NPTF thread, providing a secure and leak-resistant connection.

Specifications

• Hose Barb Size: 3/8 inch
• Male NPTF Thread Size: 3/8 inch
• Operating Temperature Range: -40°F to 160°F
• Maximum Operating Pressure: 150 PSI

Applications

This brass elbow fitting is ideal for low-pressure air, fuel, lubrication, and oil lines. Its robust construction and design make it suitable for automotive, industrial, and commercial applications where reliable fluid transfer is essential.

Installation Guidelines

1. Ensure the hose end is cut cleanly and squarely.
2. Lubricate the hose and the barb end of the fitting.
3. Insert the fitting into the hose until the hose end is completely concealed by the plastic cap.
4. Verify that the connection is secure and leak-free before operation.

By following these guidelines, users can achieve a secure and efficient connection without the need for additional clamps or ferrules.
