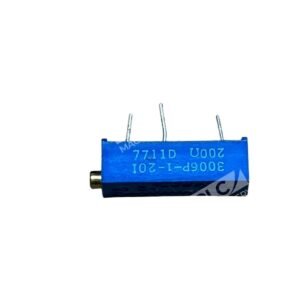

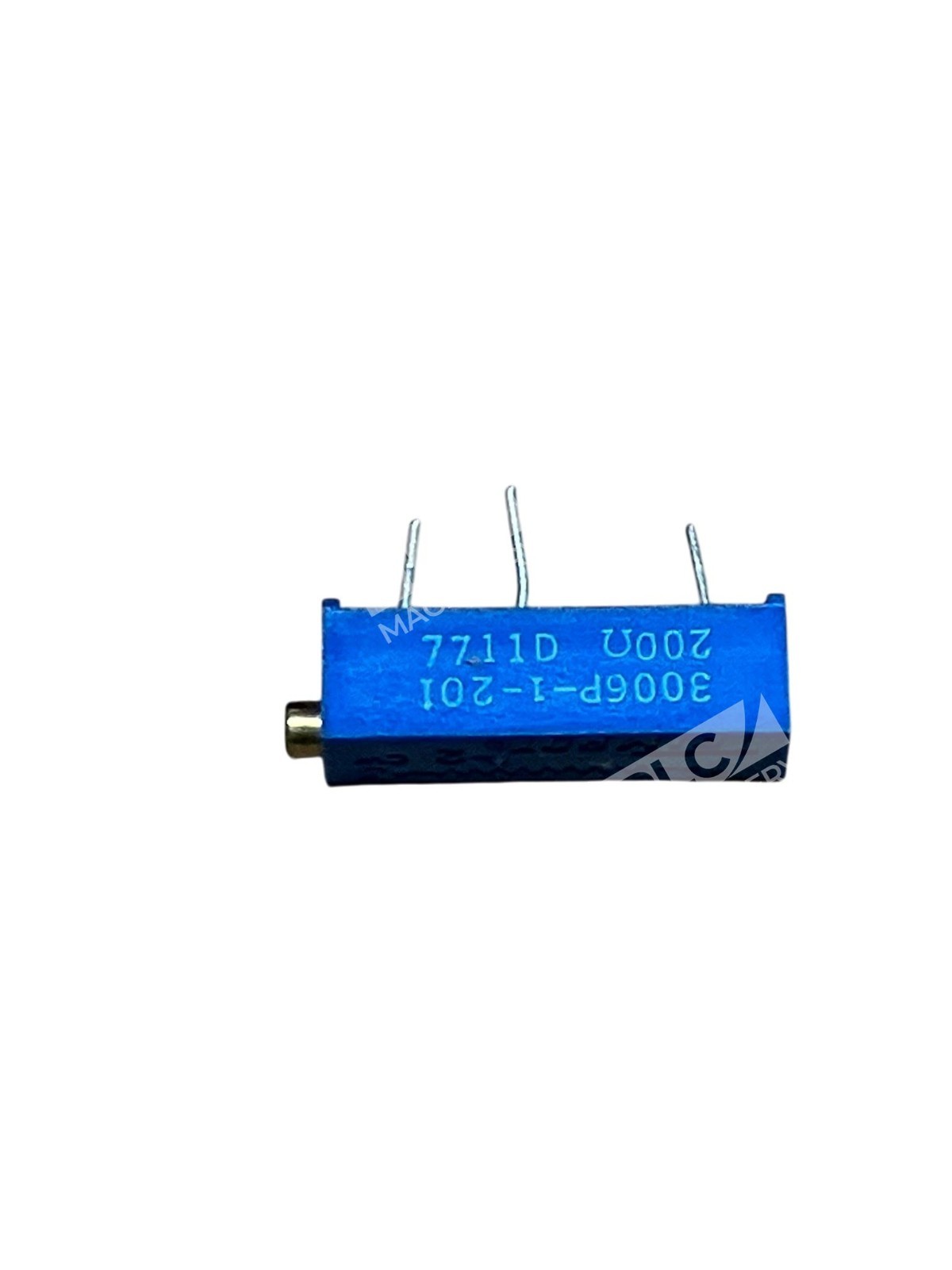

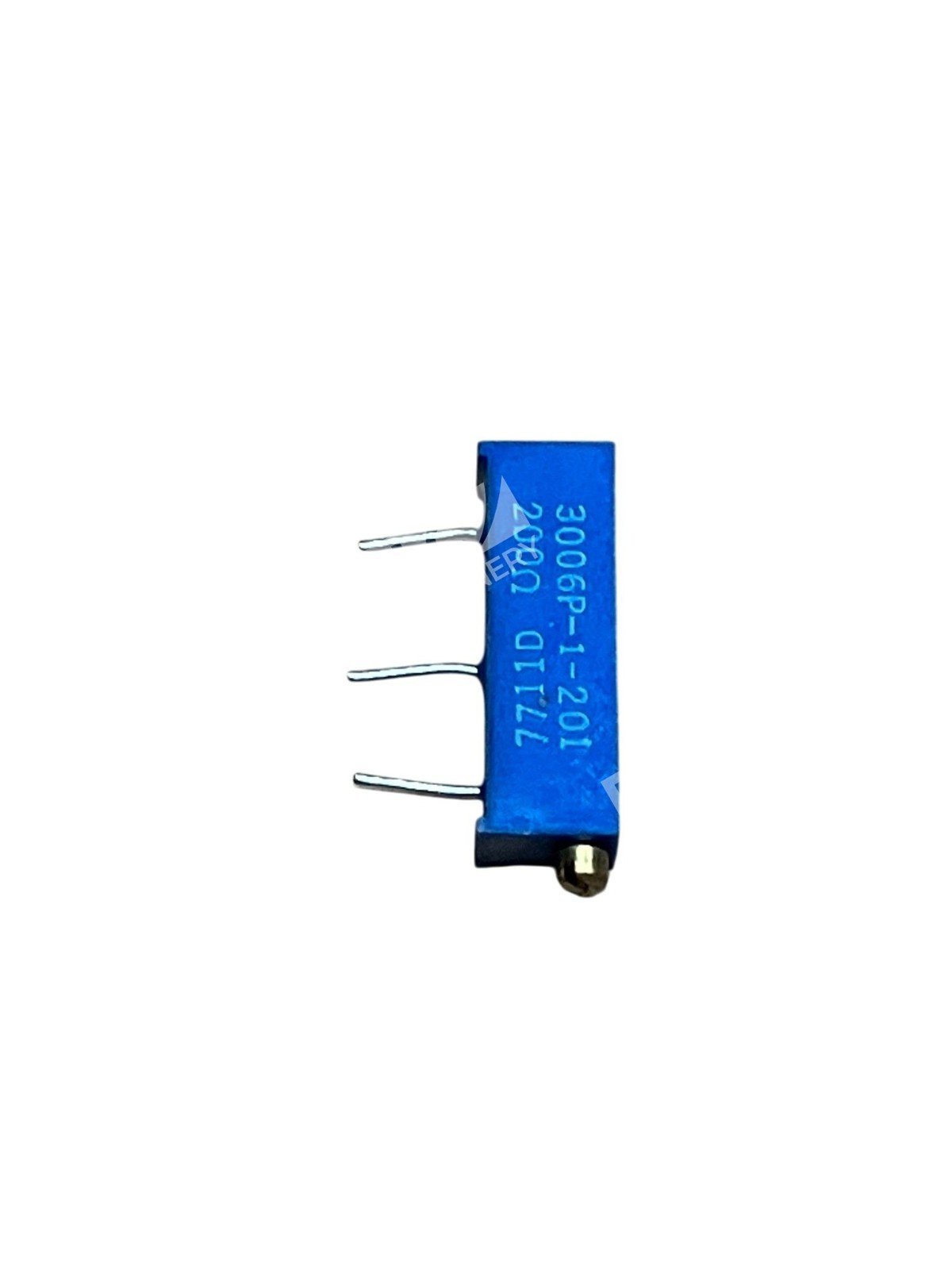

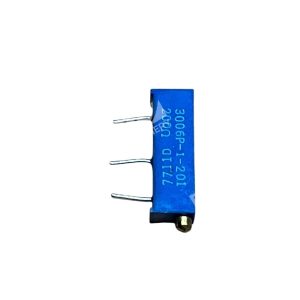

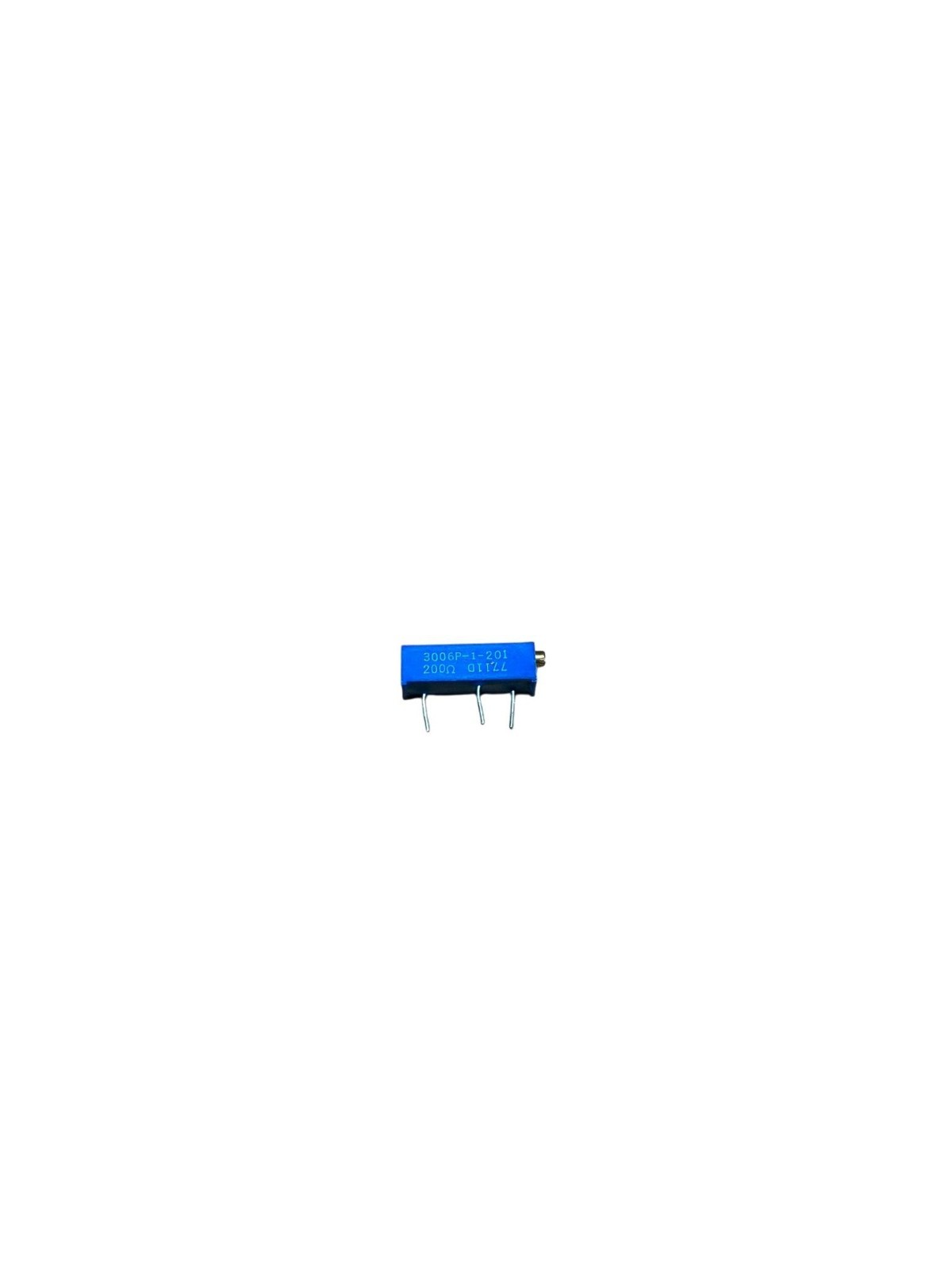

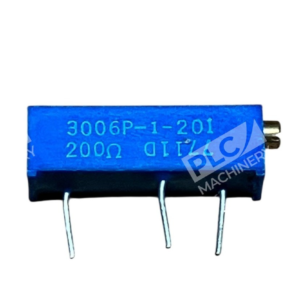

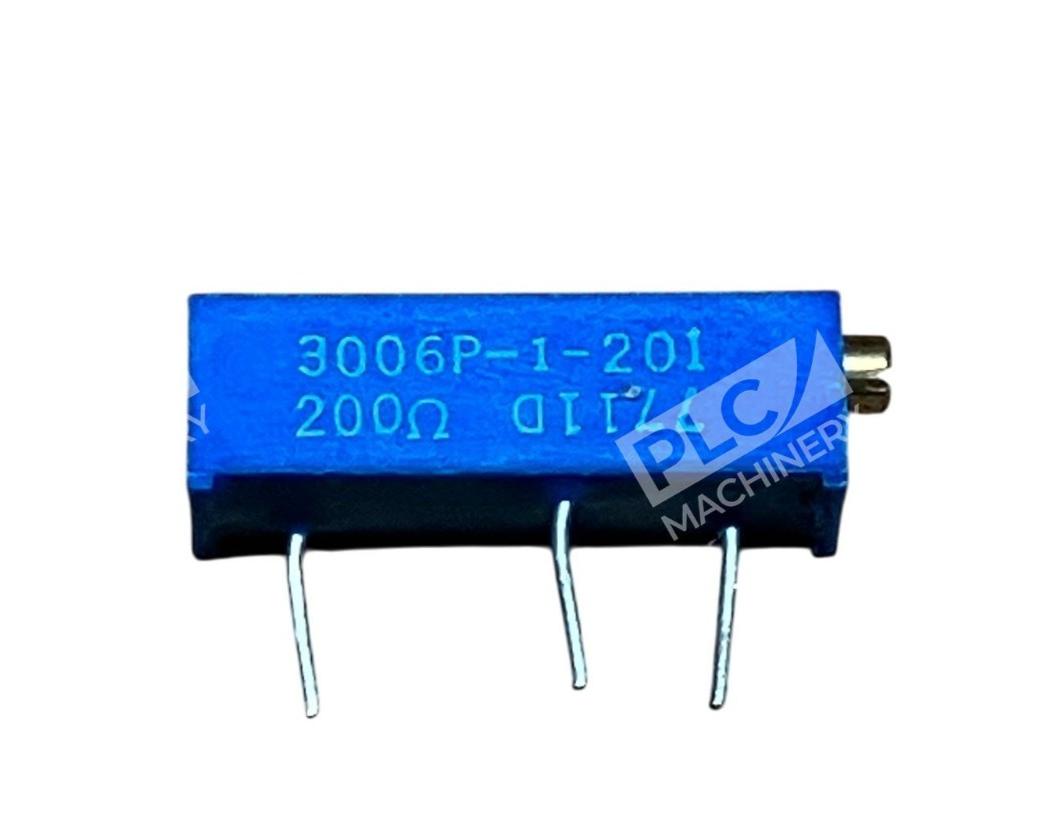

The Bourns 3006P-1-201 is a 200-ohm, 15-turn cermet trimmer potentiometer designed for precise resistance adjustments in electronic circuits.
Key Features
- Resistance Value: 200 ohms with a tolerance of ±10%.
- Power Rating: 0.75 watts, suitable for various applications.
- Number of Turns: 15-turn design allows for fine-tuned adjustments.
- Adjustment Type: Side adjustment for easy access during calibration.
- Mounting Type: Through-hole with PC pins for secure PCB integration.
- Temperature Coefficient: ±100 ppm/°C, ensuring stability across temperature variations.
- Operating Temperature Range: -55°C to +125°C, accommodating diverse environmental conditions.
- Construction: Sealed cermet element for enhanced durability and reliability.
Applications
Ideal for use in industrial equipment, instrumentation, and other electronic devices requiring precise resistance calibration.
Dimensions
- Size: Rectangular body measuring 0.250″ x 0.190″ (6.35mm x 4.83mm).
- Profile: Low PCB profile of only 0.25″ (6.35mm) height.
The Bourns 3006P-1-201 trimmer potentiometer offers reliable performance and precise adjustability, making it a valuable component in various electronic applications.
