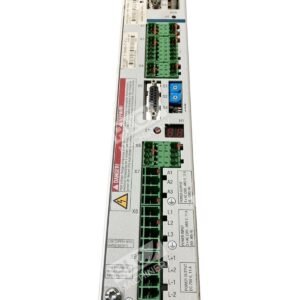

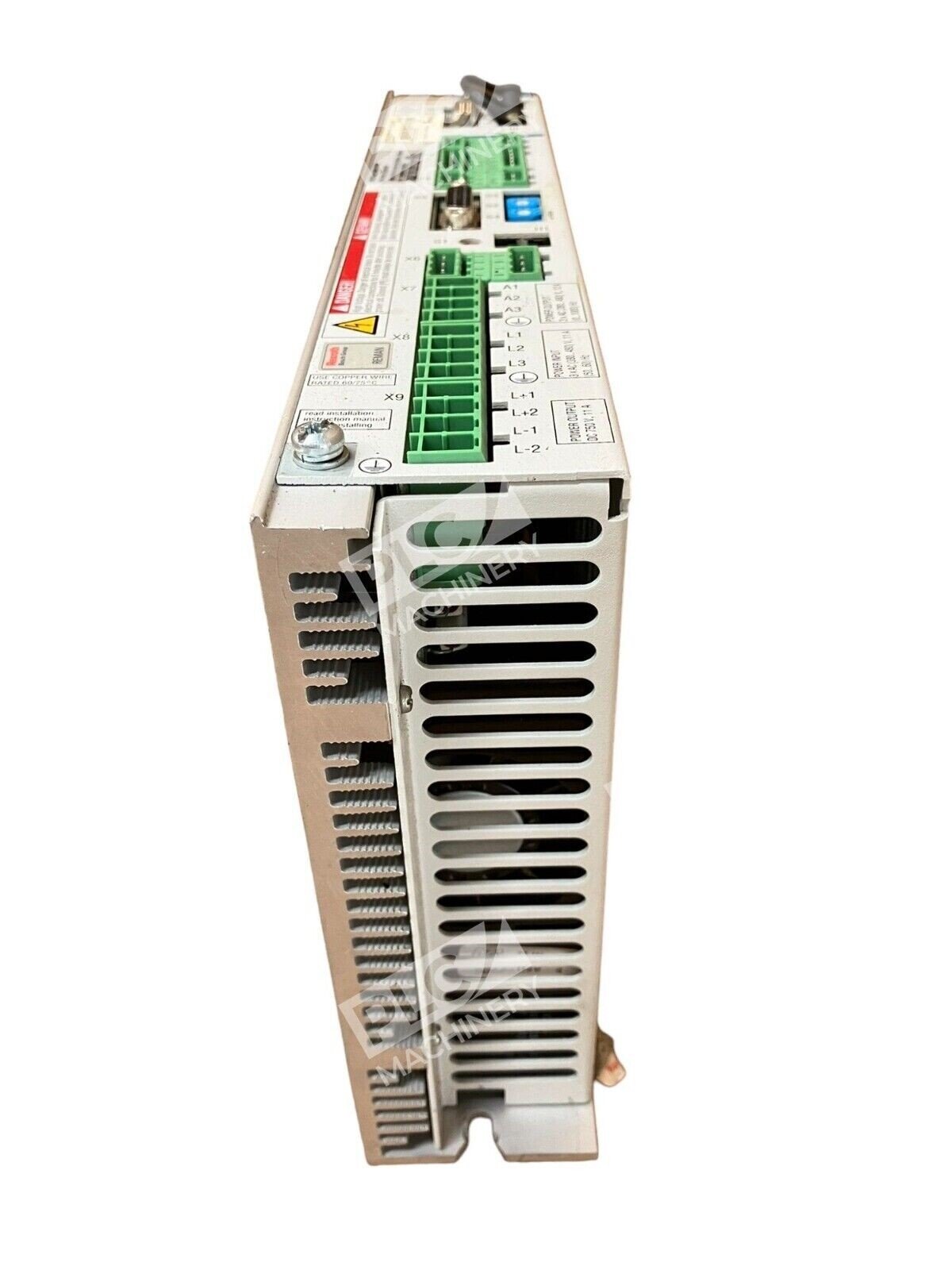

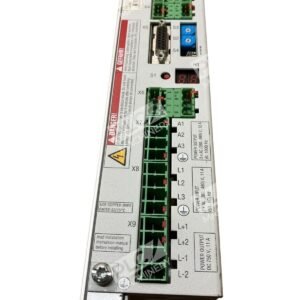

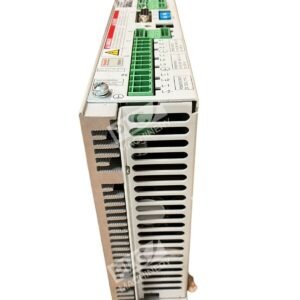

Bosch Indramat DKC02.1-040-7-FW Servo Drive FWA-ECODRV-SSE-03VRS-MS

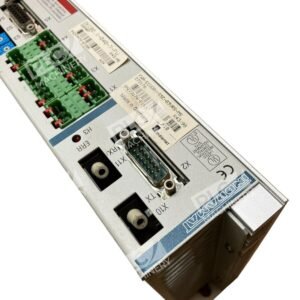

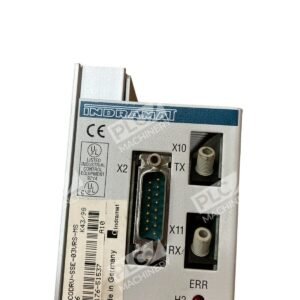

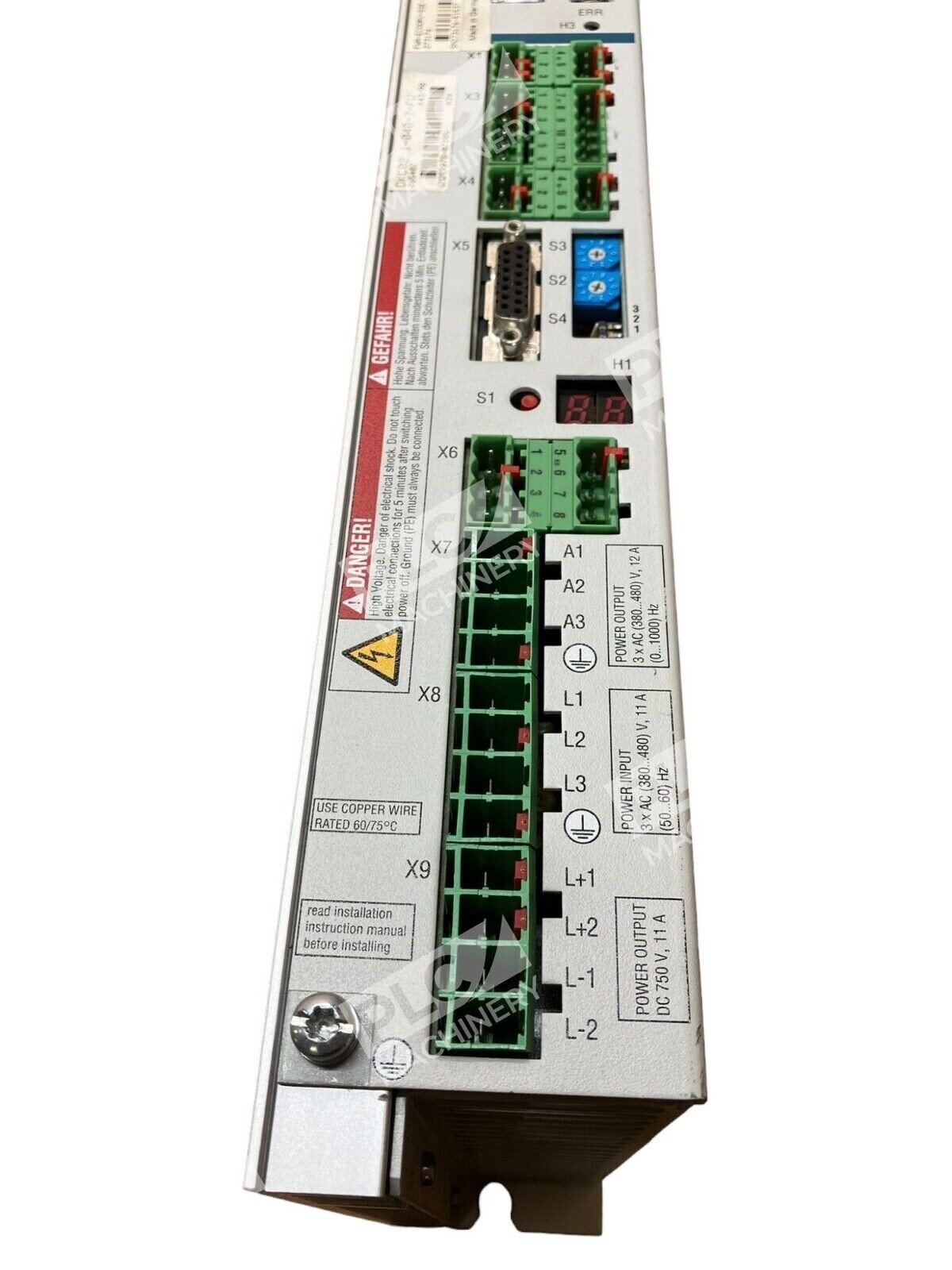

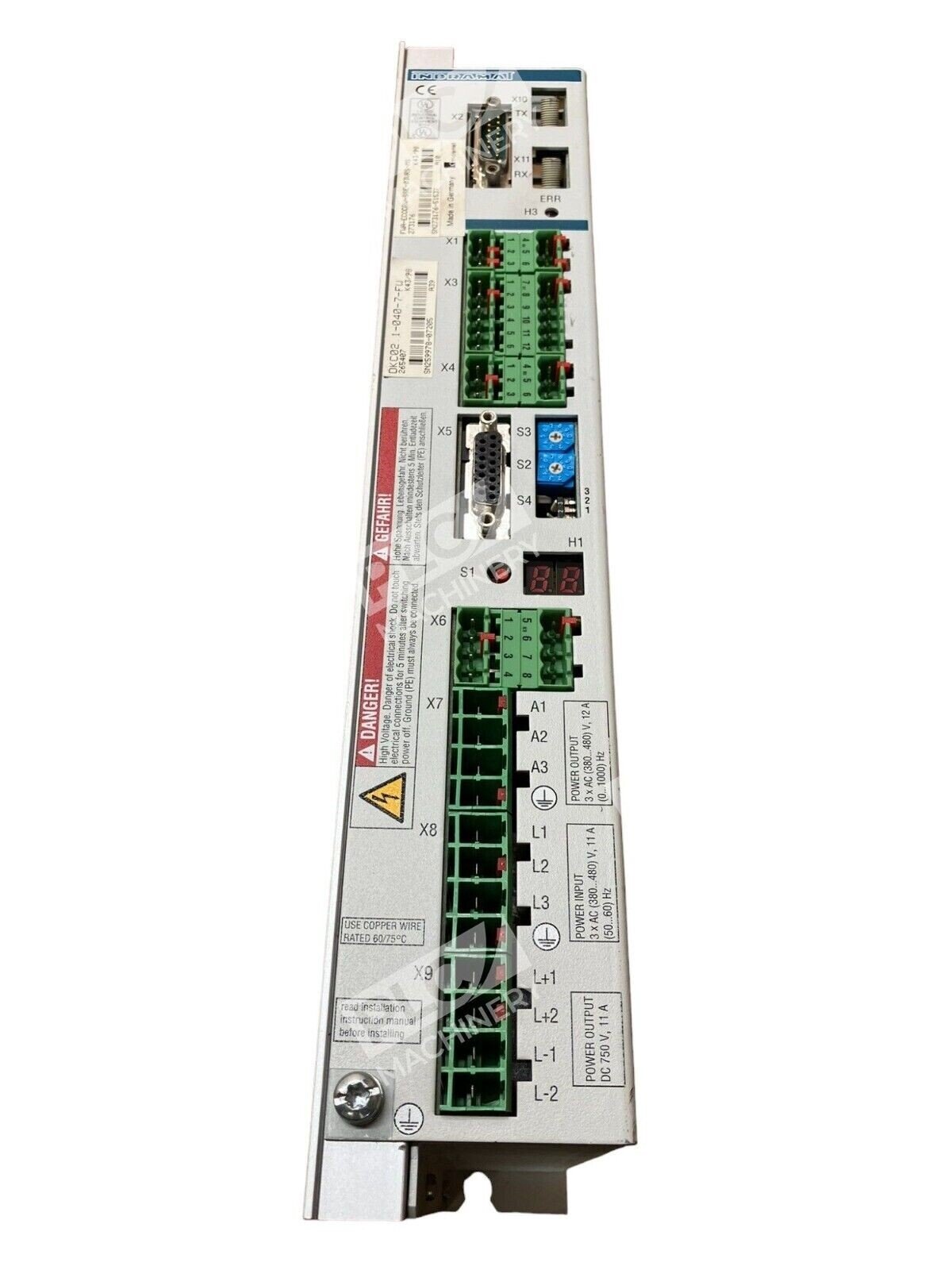

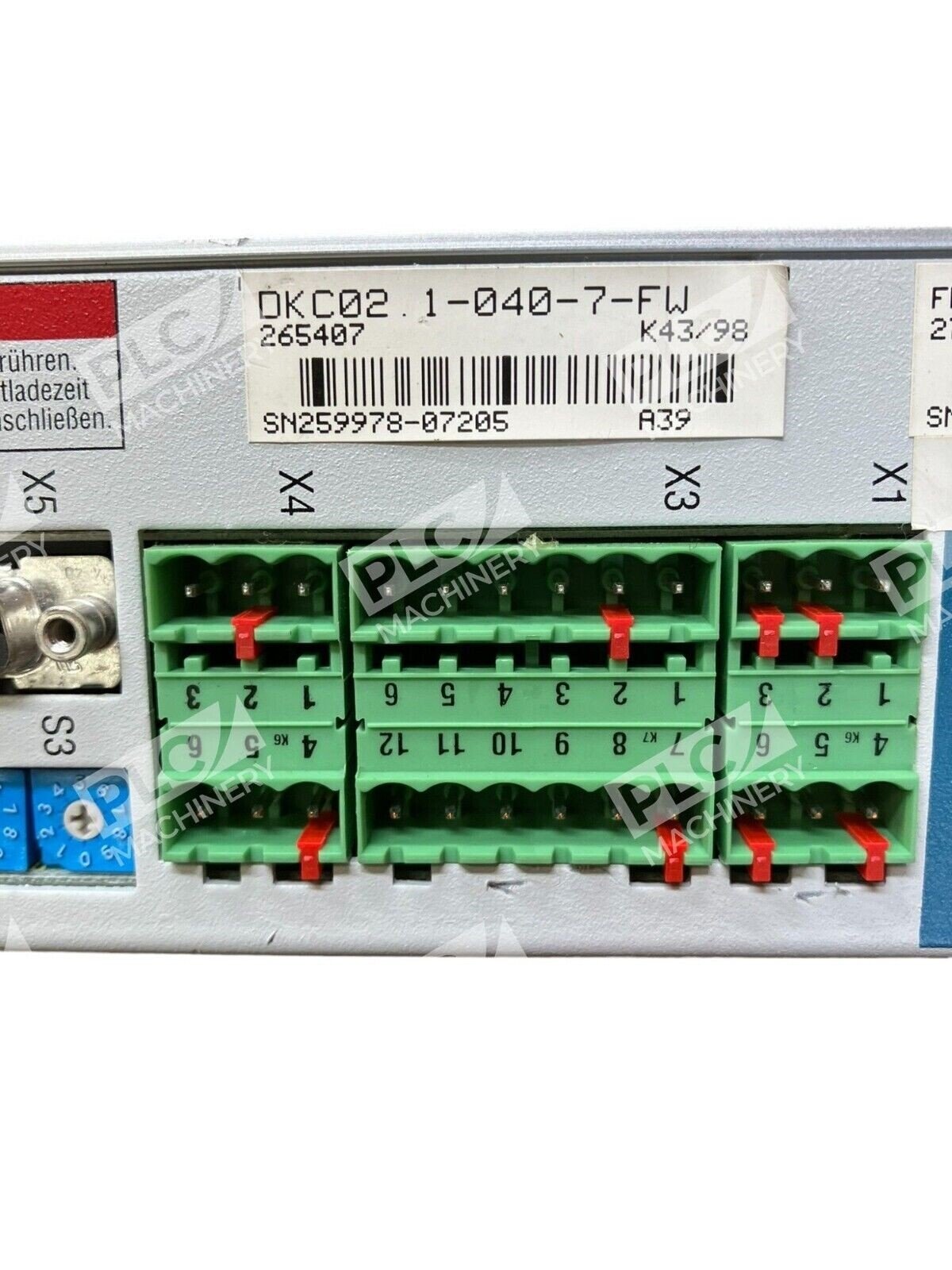

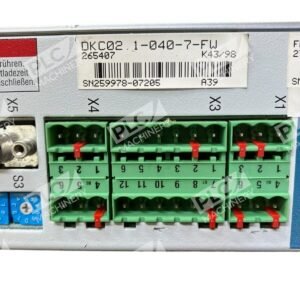

Bosch Indramat DKC02.1-040-7-FW Servo Drive

The Bosch Indramat DKC02.1-040-7-FW is a high-performance servo drive controller from the ECODRIVE series, engineered to deliver precise motion control in various industrial applications. Designed for seamless integration with the MKD servomotor series, this drive controller offers a cost-effective solution for both single and multi-axis control systems.

Key Features

• Rated Current: 40 A
• DC Bus Nominal Voltage: 700 V
• Design Version: 1
• Series: 02
• Firmware: Supplied separately

Technical Specifications

• Input Voltage: Three-phase AC, 380V to 480V
• Input Frequency: 50 Hz to 60 Hz
• Communication Protocol: SERCOS interface for real-time communication
• Minimum Cycle Time: 2 ms
• Cooling Method: Natural convection
• Protection Class: IP20

Applications

The DKC02.1-040-7-FW is ideal for a wide range of industrial applications, including:

• Handling systems
• Packaging machinery
• Assembly lines
• Printing machines
• Machine tooling

Firmware Information

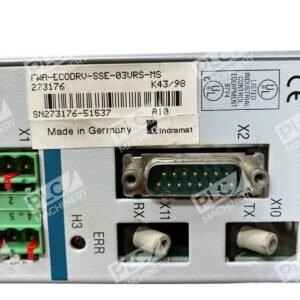

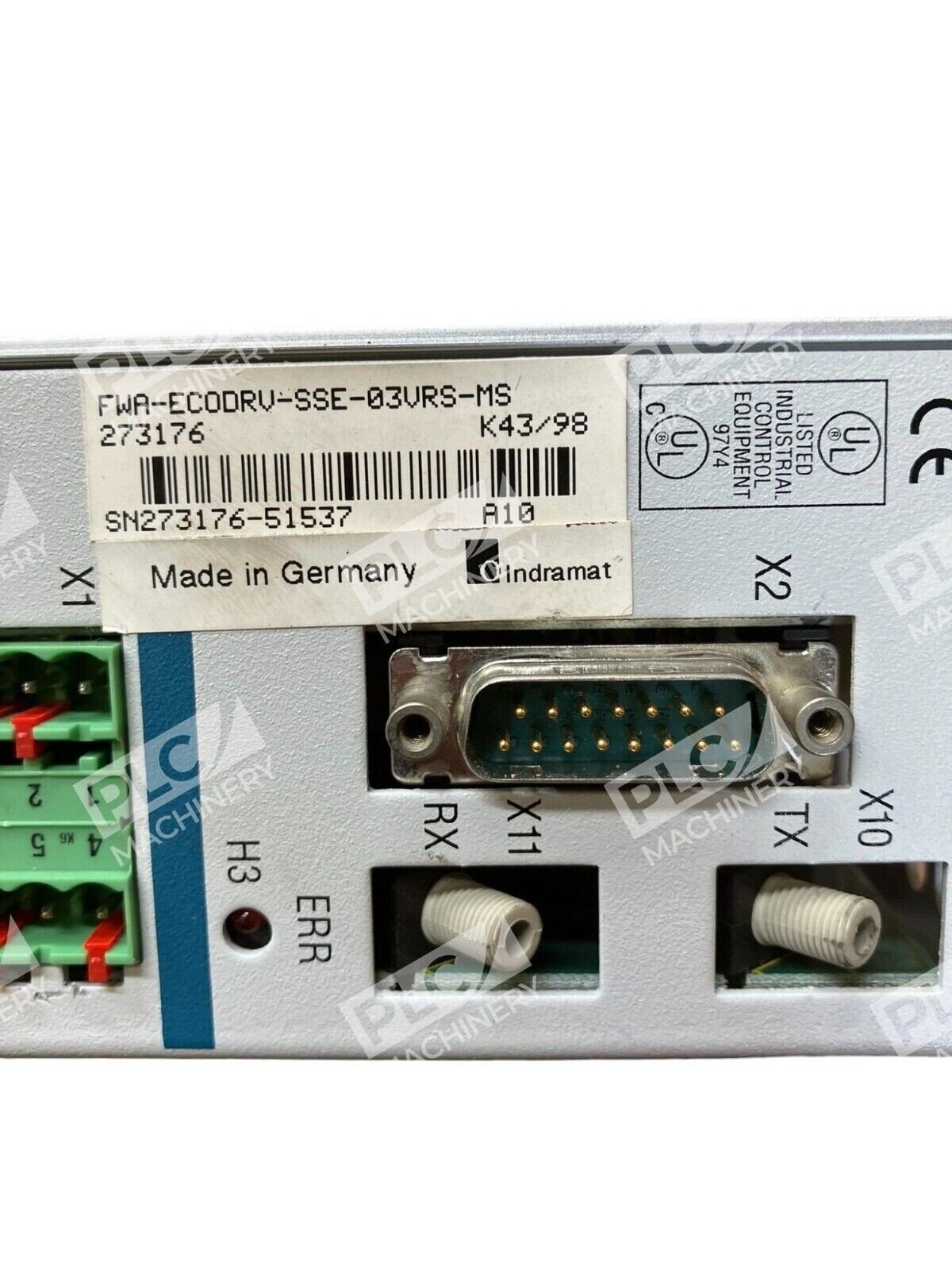

The drive controller operates with firmware version FWA-ECODRV-SSE-03VRS-MS, which supports the SERCOS interface for efficient and reliable communication between the drive and servomotor. This firmware is supplied separately and should be ordered to match the specific application requirements.

Environmental Considerations

Built to withstand harsh industrial environments, the DKC02.1-040-7-FW features a robust design resistant to pollution and dirt. It operates effectively within an ambient temperature range of 0 to 40°C, ensuring reliable performance under demanding conditions.

Conclusion

The Bosch Indramat DKC02.1-040-7-FW servo drive controller combines high functionality with cost-effectiveness, making it a versatile choice for various industrial automation tasks. Its compatibility with the MKD servomotor series and support for the SERCOS communication protocol ensure precise and efficient motion control in complex systems.
