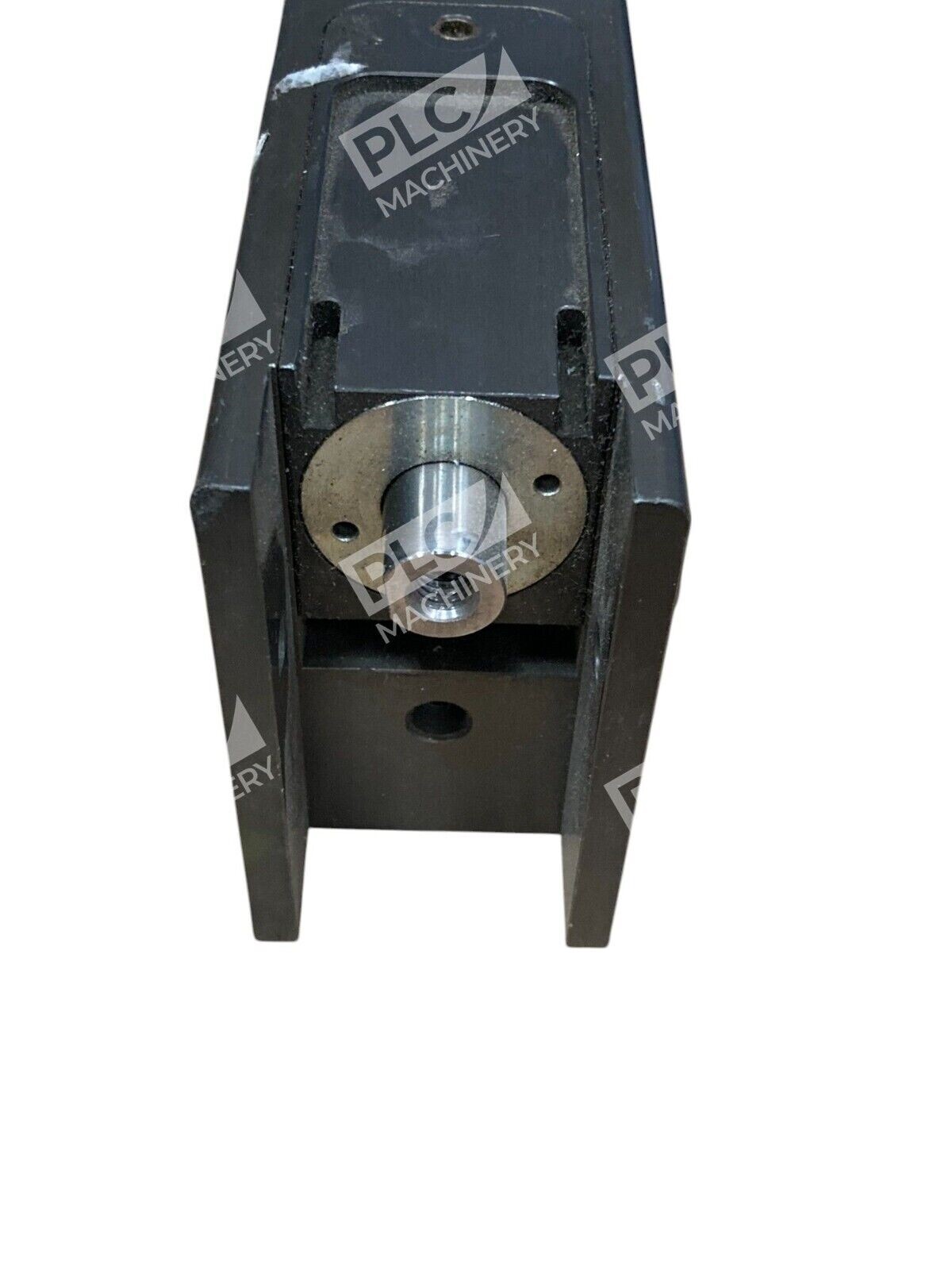

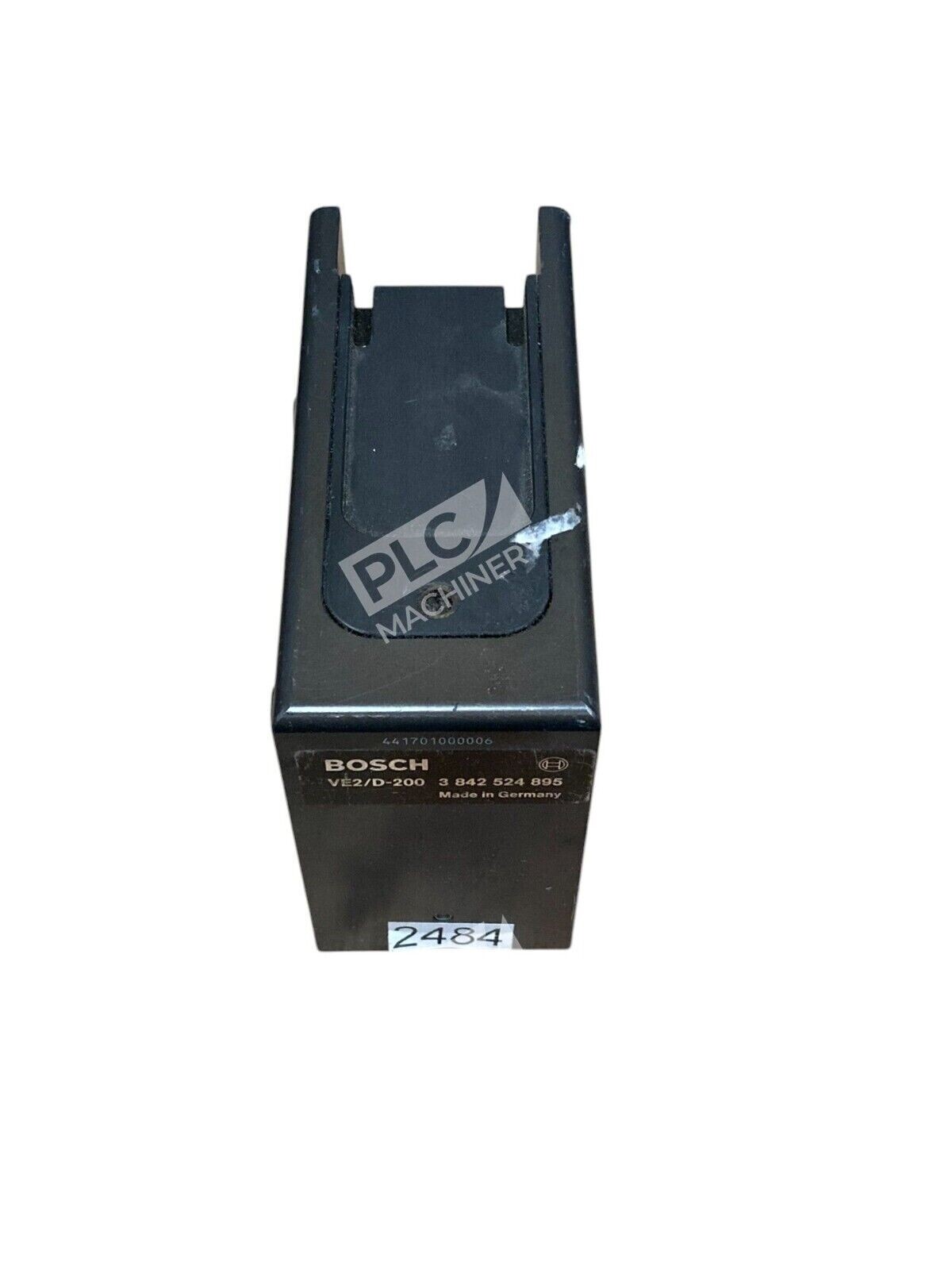

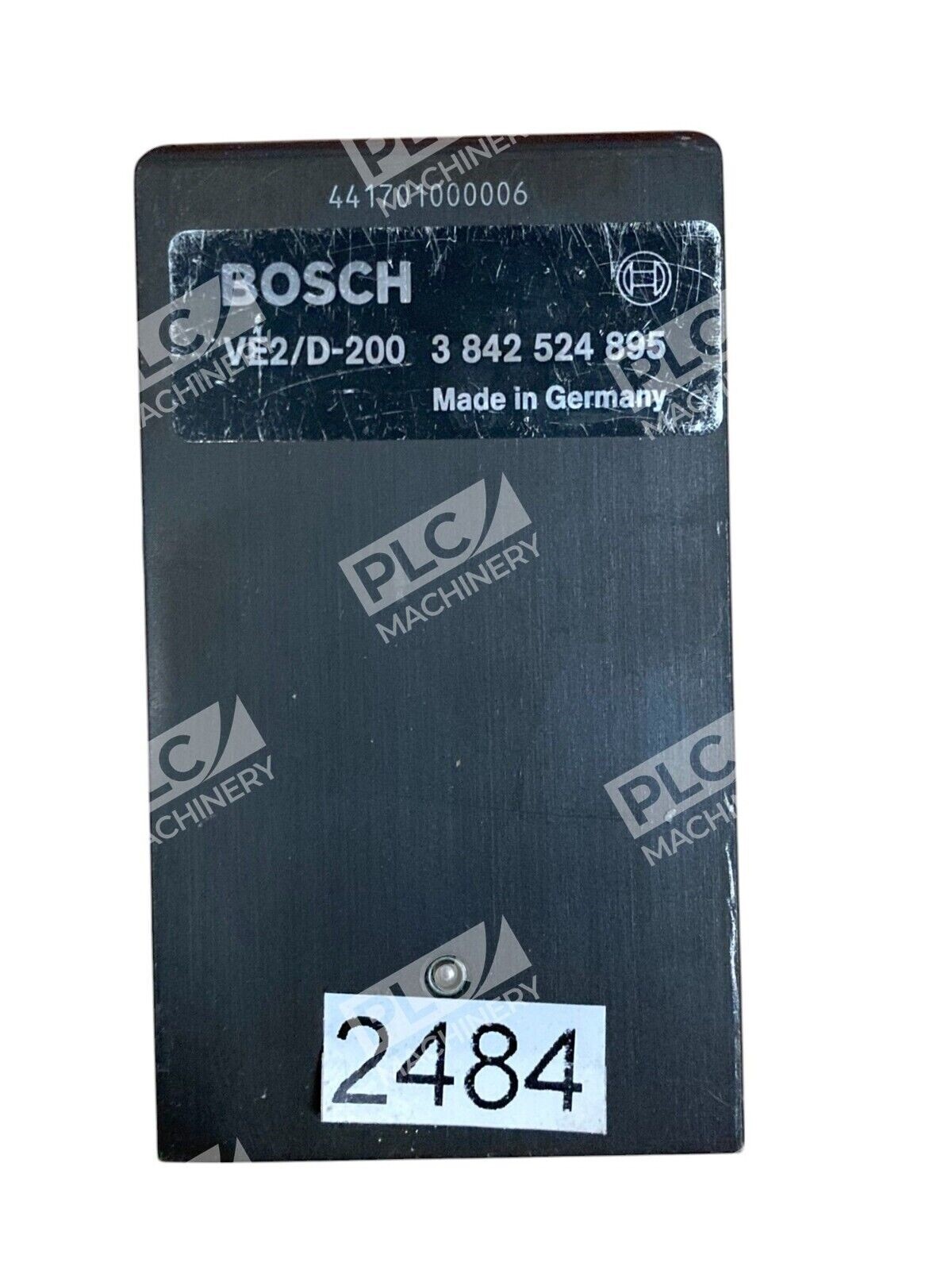

The Bosch Rexroth VE2/D-200 Stop Gate (Part Number: 3 842 524 895) is a pneumatic stop gate designed to manage the flow of workpiece pallets in conveyor systems. It effectively halts one or more accumulating pallets at a defined stop surface, ensuring precise control over material handling processes.
**Key Features:**
– **Pneumatic Operation:** Utilizes compressed air to control the stopping mechanism, providing reliable and efficient performance.
– **Adjustable Damping:** Features infinitely adjustable damping to accommodate workpiece pallet total weights ranging from 50 kg to 200 kg, ensuring optimal stopping performance.
– **Compatibility:** Designed for seamless integration with Bosch Rexroth’s WT 2 and WT 2/F conveyor sections, enhancing system versatility.
– **Robust Construction:** Constructed with a hard-anodized aluminum housing and a hardened steel stop cam, offering durability and longevity in industrial environments.
**Technical Specifications:**
– **Workpiece Pallet Weight Capacity:** Supports total weights up to 200 kg.
– **Operating Temperature Range:** Suitable for environments with temperatures between 0°C and +60°C.
– **Pneumatic Connection:** Equipped with a 6 mm pneumatic straight connection, operating within a pressure range of 4 to 6 bar.
– **Nominal Speeds:** Capable of handling nominal speeds of 6, 9, 12, 15, 18, 24, and 30 m/min.
– **Installation:** Supplied fully assembled with all necessary fastening materials for direct mounting on ST 2/… conveyor sections.
The VE2/D-200 Stop Gate is an essential component for optimizing workflow in automated material handling systems, providing precise control and reliable performance.
