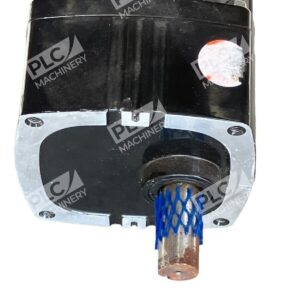

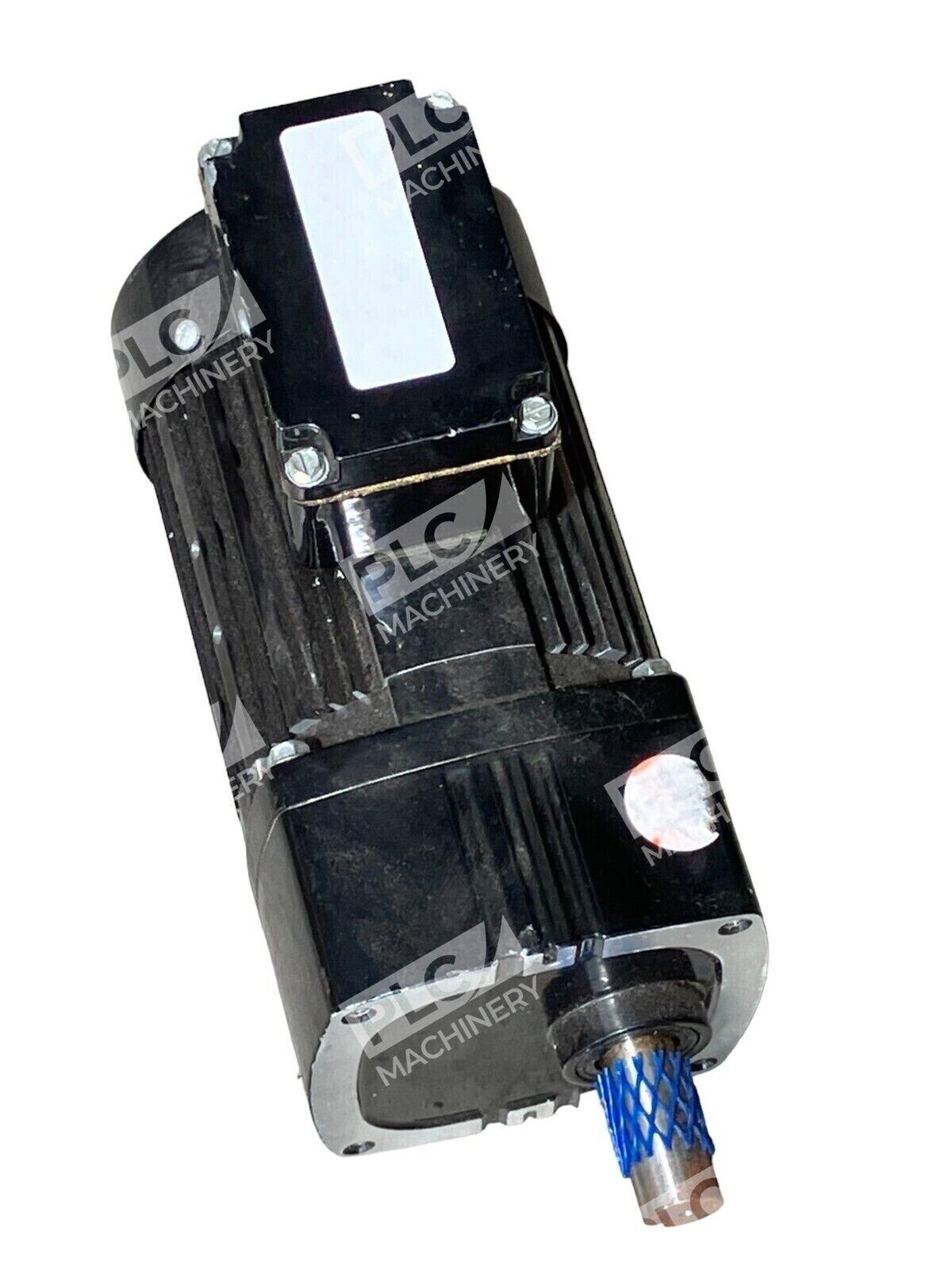

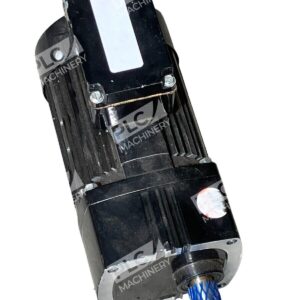

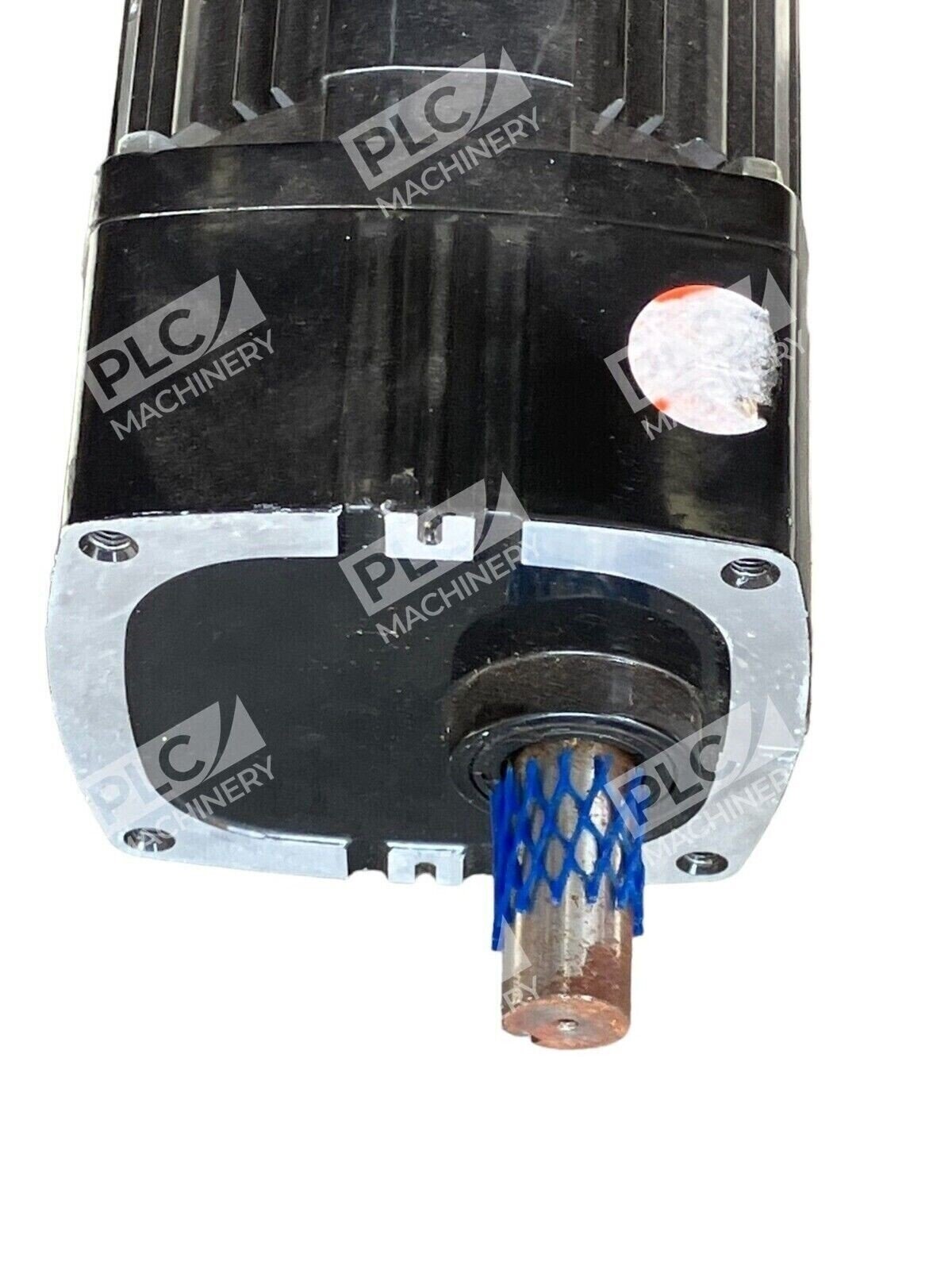

Bodine Electric 42R6BFPP-F2 Servo Motor

Bodine Electric 42R6BFPP-F2 Servo Motor

The Bodine Electric 42R6BFPP-F2 is a high-performance AC induction motor designed for demanding industrial applications. With a power output of 3/8 horsepower (0.375 HP) and a rated speed of 1700 RPM, this motor delivers reliable and efficient operation.

Key Features

• Inverter Duty Design: Engineered for variable speed applications, the 42R6BFPP-F2 is compatible with a wide range of inverter (AC drive) products, ensuring flexibility in various industrial settings.
• Quintsulation™ Insulation System: This advanced five-stage insulation system meets NEMA MG 1-1993, Section IV, Part 31 standards, providing enhanced protection against voltage spikes and corona damage.
• Class “F” Insulation: Utilizes inverter-grade magnet wire and Class “F” insulation for increased durability and longevity.

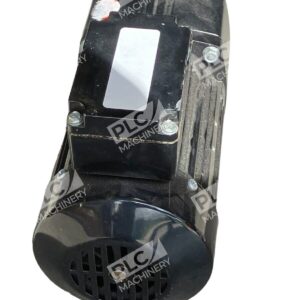

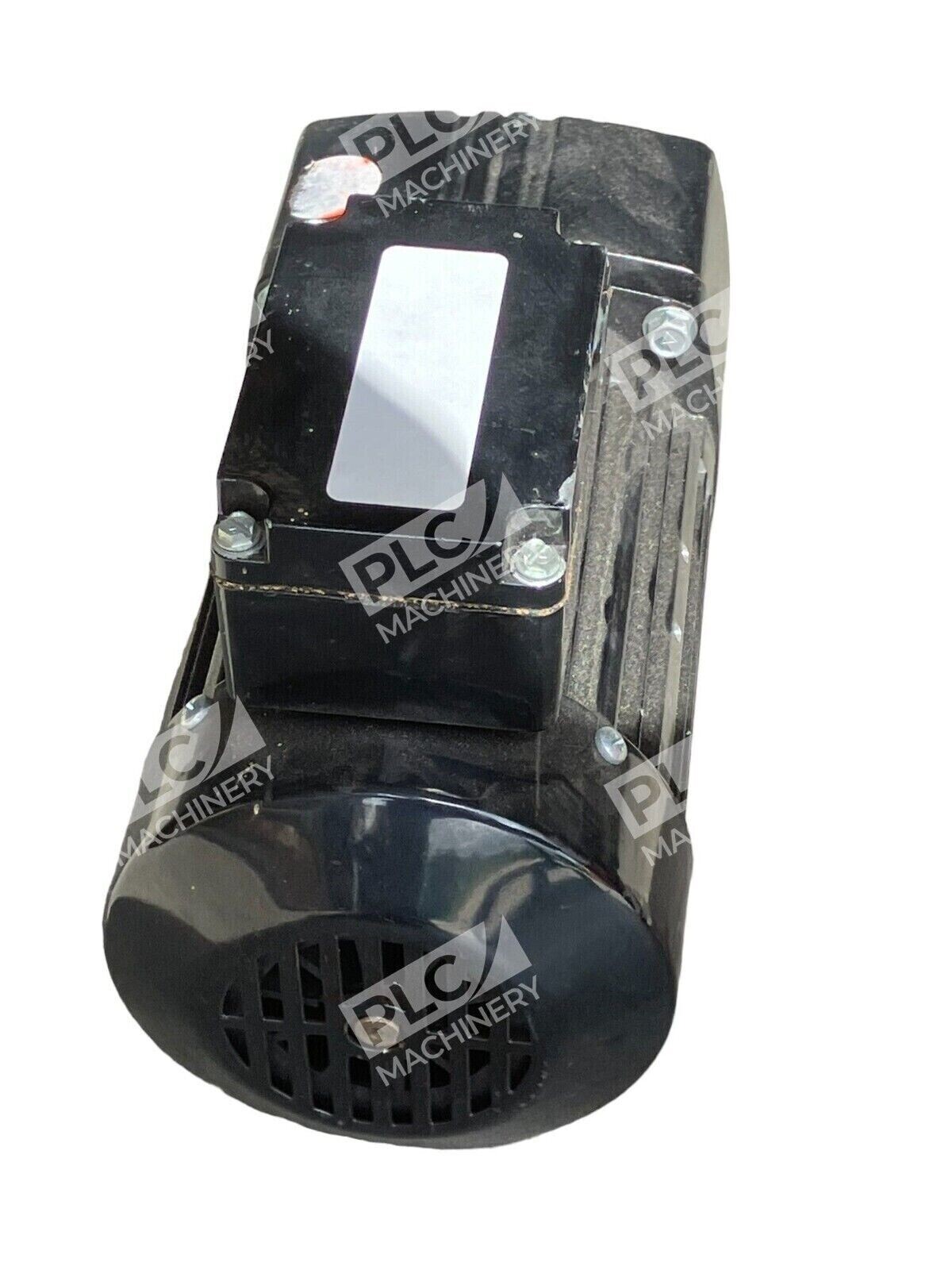

• Totally Enclosed Fan Cooled (TEFC) Enclosure: The IP-20 rated enclosure protects the motor from dust and other contaminants, with an optional terminal box kit available to achieve an IP-44 rating.
• Aluminum Construction: Features an aluminum center ring and end shields for high thermal efficiency and reduced weight.
• Permanently Lubricated Bearings: Equipped with noise-tested ball bearings that are permanently lubricated for maintenance-free operation.
• Locked Bearing Design: Minimizes shaft endplay, ensuring consistent performance and longevity.

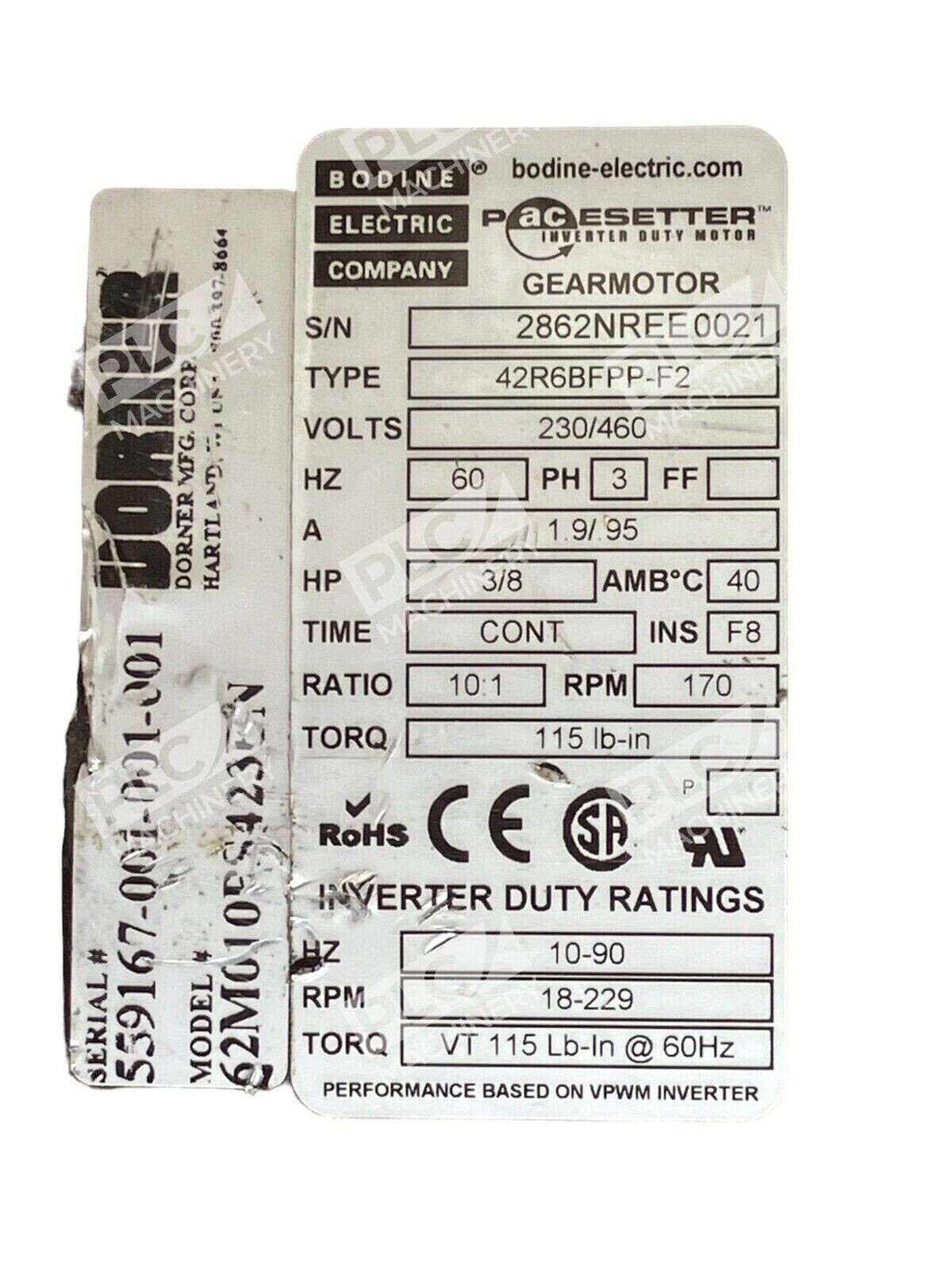

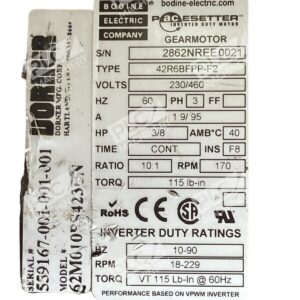

Specifications

• Voltage: 230 VAC
• Frequency: 60 Hz
• Current: 1.9 A
• Mounting: NEMA C face mounting
• Weight: Approximately 11 lbs

The Bodine Electric 42R6BFPP-F2 servo motor is an ideal choice for applications requiring precise control and reliable performance in variable speed environments.
