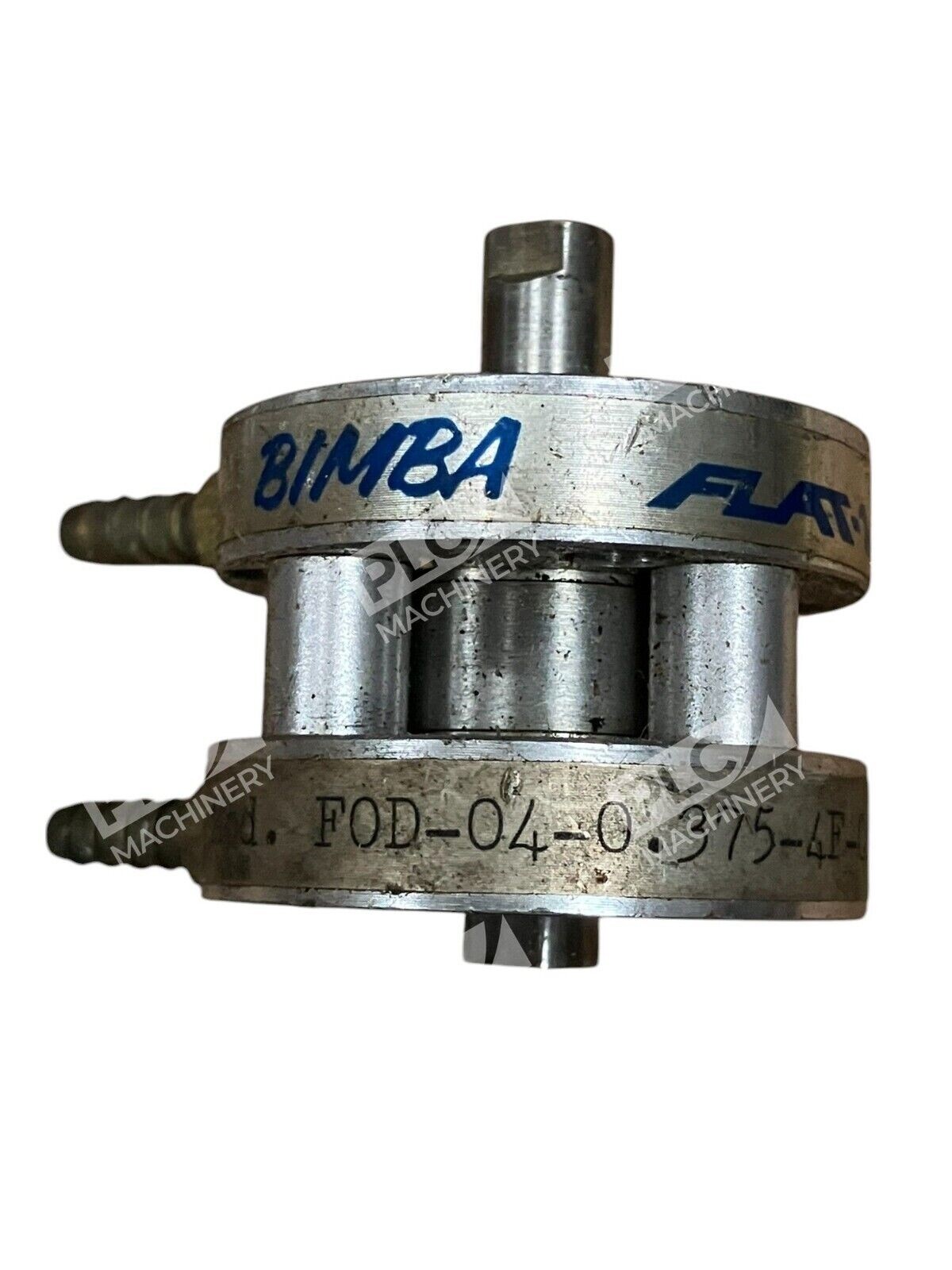

The Bimba Flat-1® Pneumatic Cylinder, model FOD-04-0.375-4F-CFT, is a compact and efficient actuator designed for applications where space is limited. This double-acting cylinder features a 3/4-inch bore and a 0.375-inch stroke, providing precise linear motion control.
Key Features
- Compact Design: The Flat-1® series is engineered to fit into tight spaces without compromising performance.
- Durable Construction: Equipped with a hard chrome-plated piston rod, the cylinder ensures extended rod seal life and reliable operation.
- Enhanced Performance: The re-engineered bumper design maximizes performance and longevity, reducing maintenance needs.
- Versatile Mounting: The “F Series” mounting option allows for direct interchangeability with competitor mounting patterns, facilitating easy integration into existing systems.
- Lubrication and Seals: Permanent grease lubrication and optional low-pressure hydraulic seals rated for 3,000 miles of travel enhance the cylinder’s durability.
- Material Options: Available with thick-walled aluminum and composite cylinder bodies to suit various application requirements.
- Additional Options: Compatible with magnetic reed switches and offers multiple fail-safe options, along with standard stainless steel fasteners at no extra charge.
Specifications
- Bore Size: 3/4 inch
- Stroke Length: 0.375 inch
- Maximum Pressure: 200 PSI (air only)
- Port Size: #10-32 thread
- Rod End: Double rod end, female, #10-32 thread
The Bimba Flat-1® Pneumatic Cylinder FOD-04-0.375-4F-CFT is an ideal solution for applications requiring a reliable, space-saving actuator with versatile mounting and durable construction.
