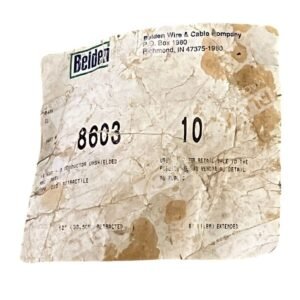

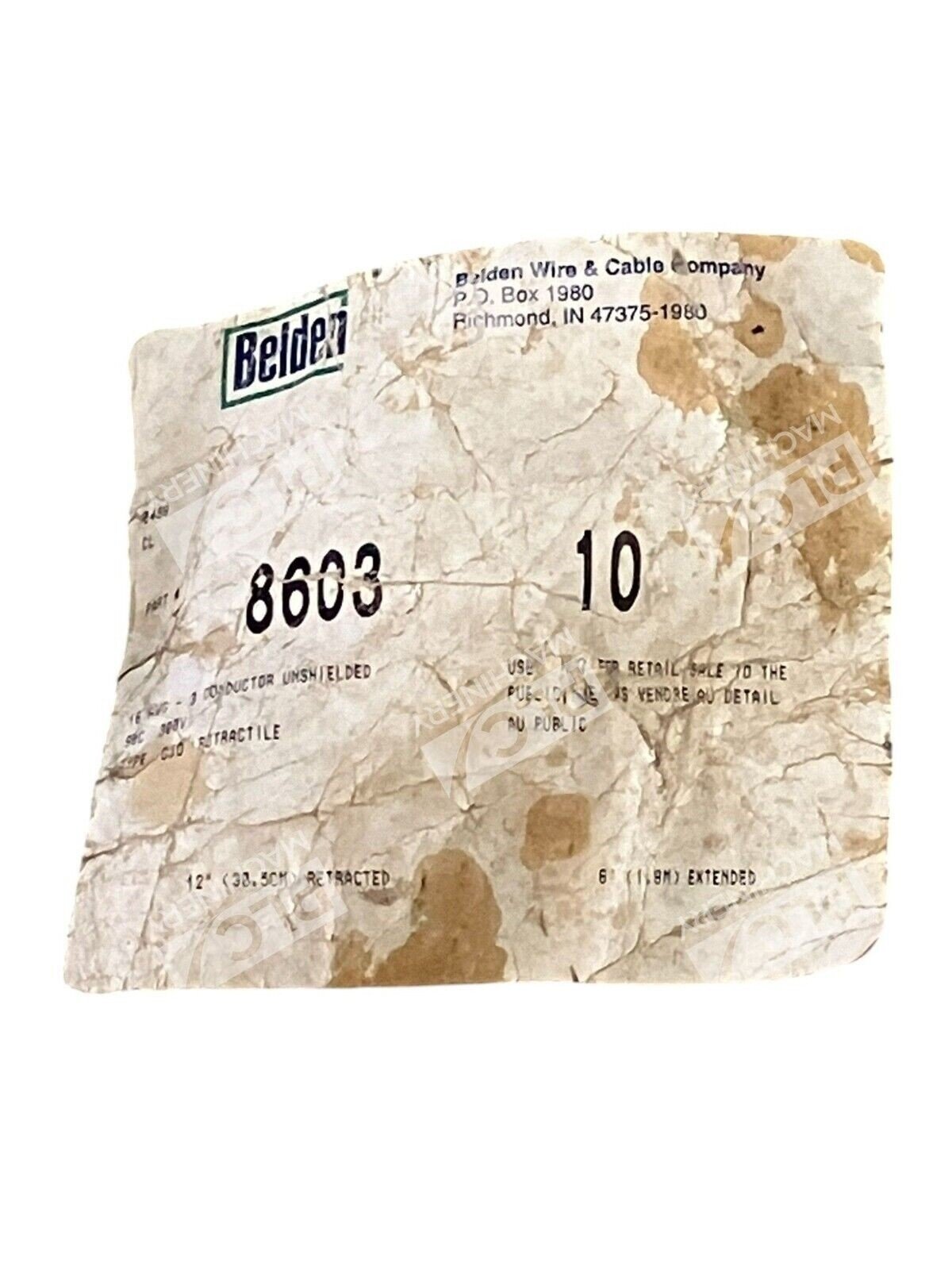

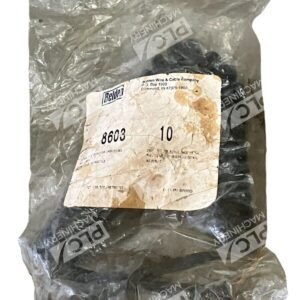

The Belden 8603 is a high-quality multi-conductor cable designed for reliable performance in various electronic applications.
Key Features
- Conductor Configuration: Comprises 3 conductors of 16 AWG tinned copper, ensuring efficient signal transmission.
- Insulation Material: Each conductor is insulated with polyethylene (PE), providing excellent electrical properties and durability.
- Shielding: Features an overall Beldfoil® shield, offering 100% coverage to protect against electromagnetic interference (EMI).
- Jacket Material: Encased in a robust PVC outer jacket, enhancing mechanical protection and flexibility.
- Voltage Rating: Rated for 300 V (CL3) and 600 V (UL AWM 20253), suitable for various low-voltage applications.
- Temperature Range: Operates effectively within a temperature range of -20°C to +80°C, accommodating diverse environmental conditions.
Applications
The Belden 8603 cable is ideal for:
- Low voltage analog signals (4-20mA, 0-10V)
- Low voltage control (24V)
- Line level audio
- Voice communications
- Panel wiring
Its robust construction and shielding make it suitable for environments where signal integrity and durability are paramount.
Specifications
- Conductor Size: 16 AWG
- Conductor Material: Tinned Copper
- Insulation Material: Polyethylene (PE)
- Shield Type: Overall Beldfoil® Shield
- Jacket Material: Polyvinyl Chloride (PVC)
- Overall Diameter: 0.327 in (8.31 mm)
- Operating Temperature: -20°C to +80°C
- Voltage Rating: 300 V (CL3), 600 V (UL AWM 20253)
The Belden 8603 cable combines quality materials and construction to deliver reliable performance in demanding electronic applications.
