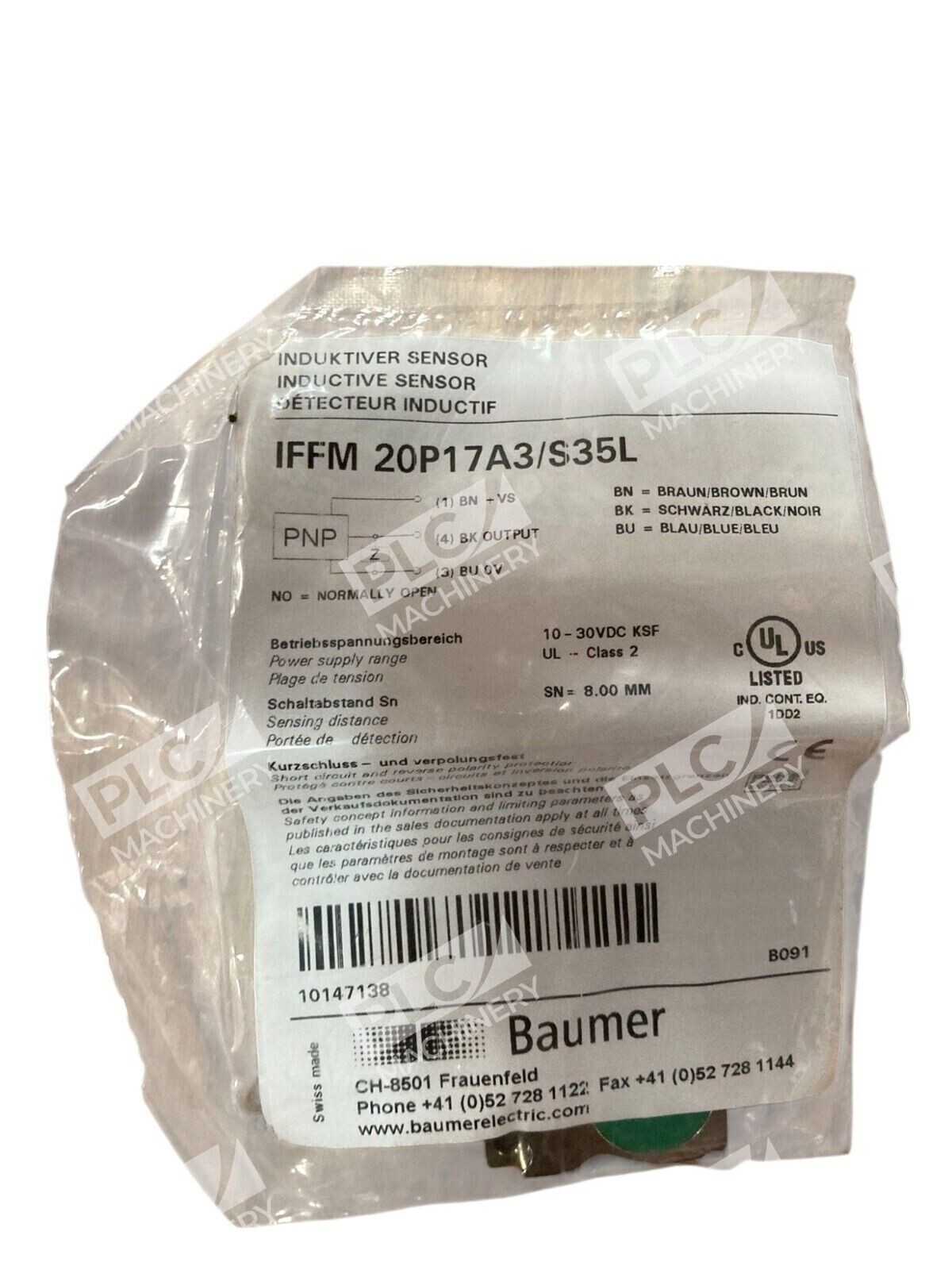

Baumer IFFM 20P17A3/S35L Inductive Proximity Switch
The Baumer IFFM 20P17A3/S35L is a high-performance inductive proximity switch designed for precise object detection in industrial applications. Its compact rectangular design and robust construction make it suitable for various environments.
Key Features
- Mounting Type: Flush
- Nominal Sensing Distance (Sn): 8 mm
- Output Circuit: PNP make function (NO)
- Voltage Supply Range: 10 to 30 VDC
- Switching Frequency: Up to 500 Hz
- Operating Temperature Range: -25°C to +75°C
- Protection Class: IP67
- Connection Type: M8 connector
Electrical Specifications
- Current Consumption (No Load): 10 mA
- Voltage Drop (Vd): Less than 2 VDC
- Output Current: Up to 200 mA
- Short Circuit Protection: Yes
- Reverse Polarity Protection: Yes
Mechanical Specifications
- Housing Material: Nickel-plated brass
- Sensing Face Material: PBT
- Dimensions: 20 mm x 32 mm
The IFFM 20P17A3/S35L’s red LED output indicator provides clear status visibility, enhancing operational efficiency. Its IP67 rating ensures reliable performance in challenging environments, making it an ideal choice for demanding industrial applications.
