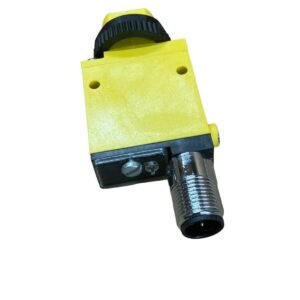

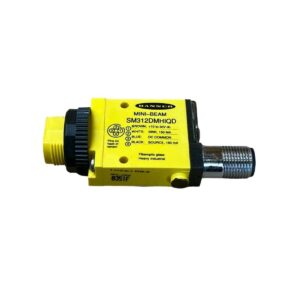

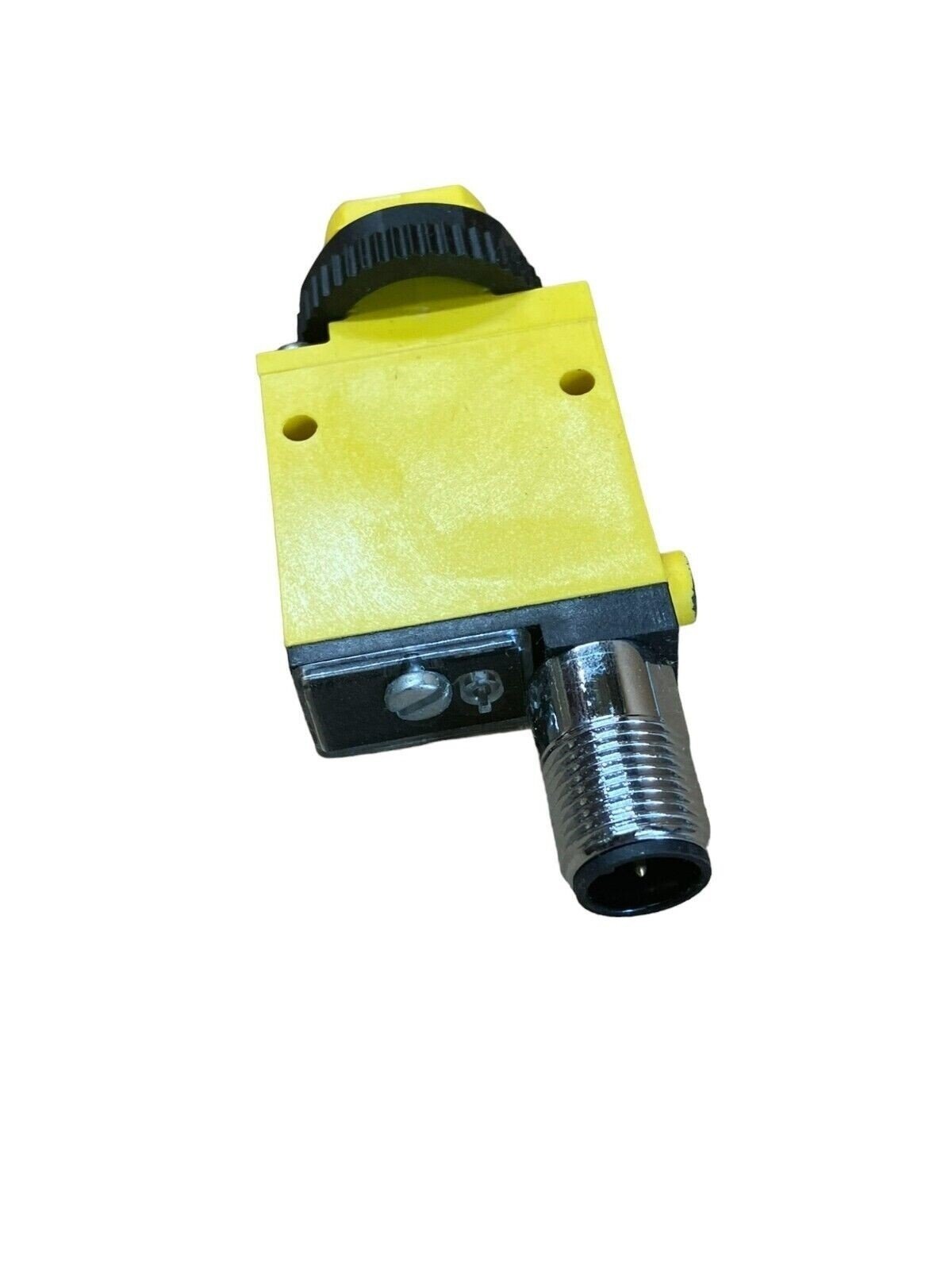

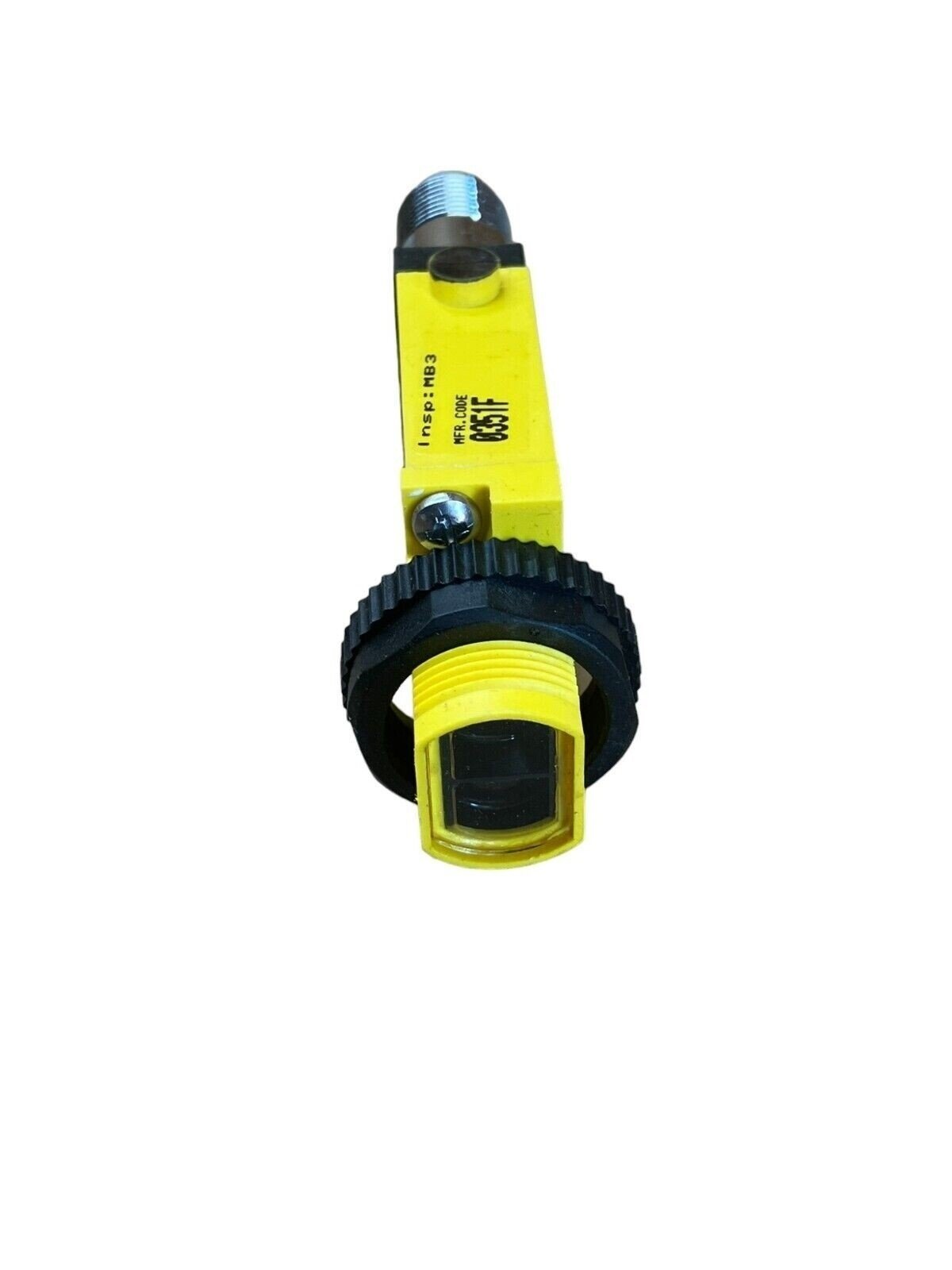

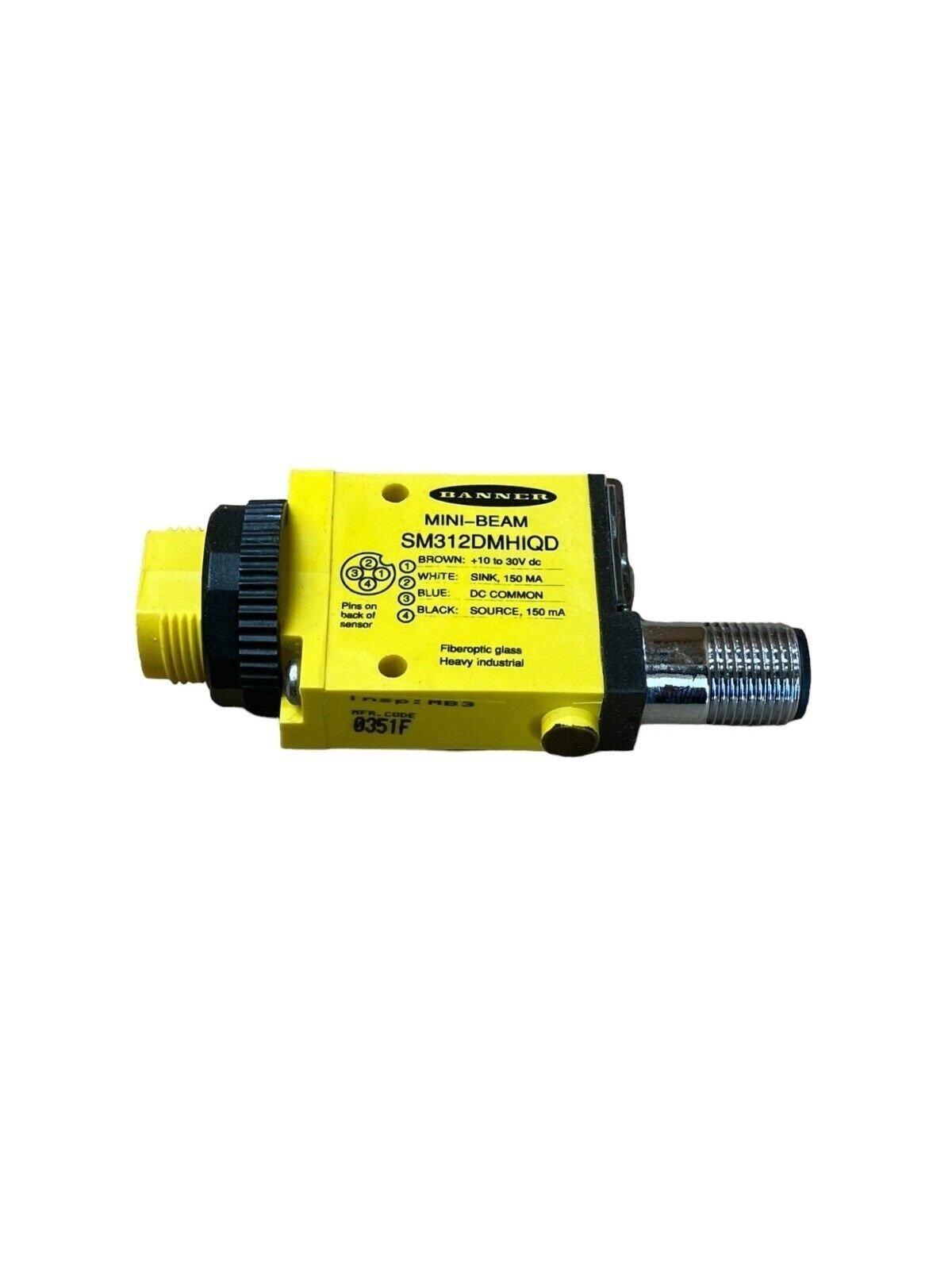

The Banner SM312DMHIQD Mini-Beam is a compact, self-contained photoelectric sensor designed for reliable object detection in industrial environments. This sensor utilizes an infrared LED to detect objects up to 380 mm away, making it suitable for various proximity sensing applications.
Key Features
- Infrared Sensing Beam: Employs an infrared LED for accurate object detection.
- Proximity Sensing Mode: Operates in diffuse mode, detecting objects within a 380 mm range.
- Quick Disconnect: Features an integral M12 quick-disconnect for easy installation and maintenance.
- Durable Housing: Constructed with a thermoplastic rectangular housing and M18 mount, ensuring robustness in industrial settings.
- Wide Operating Voltage: Supports a supply voltage range of 10-30 V DC.
- Dual Outputs: Provides bipolar outputs (NPN and PNP) for versatile integration.
- Environmental Protection: Rated IP67 and NEMA 4X, offering resistance to dust and water ingress.
- Temperature Range: Operates effectively in temperatures from -20°C to 70°C.
- Fast Response Time: Delivers an output response time of 0.3 milliseconds, suitable for high-speed applications.
- Adjustable Settings: Equipped with a potentiometer for sensitivity adjustments.
Applications
The SM312DMHIQD Mini-Beam sensor is ideal for applications requiring precise and rapid object detection, such as:
- Automated assembly lines
- Material handling systems
- Packaging machinery
- Conveyor belt monitoring
Its compact design and quick-disconnect feature facilitate easy integration into existing systems, enhancing operational efficiency.
