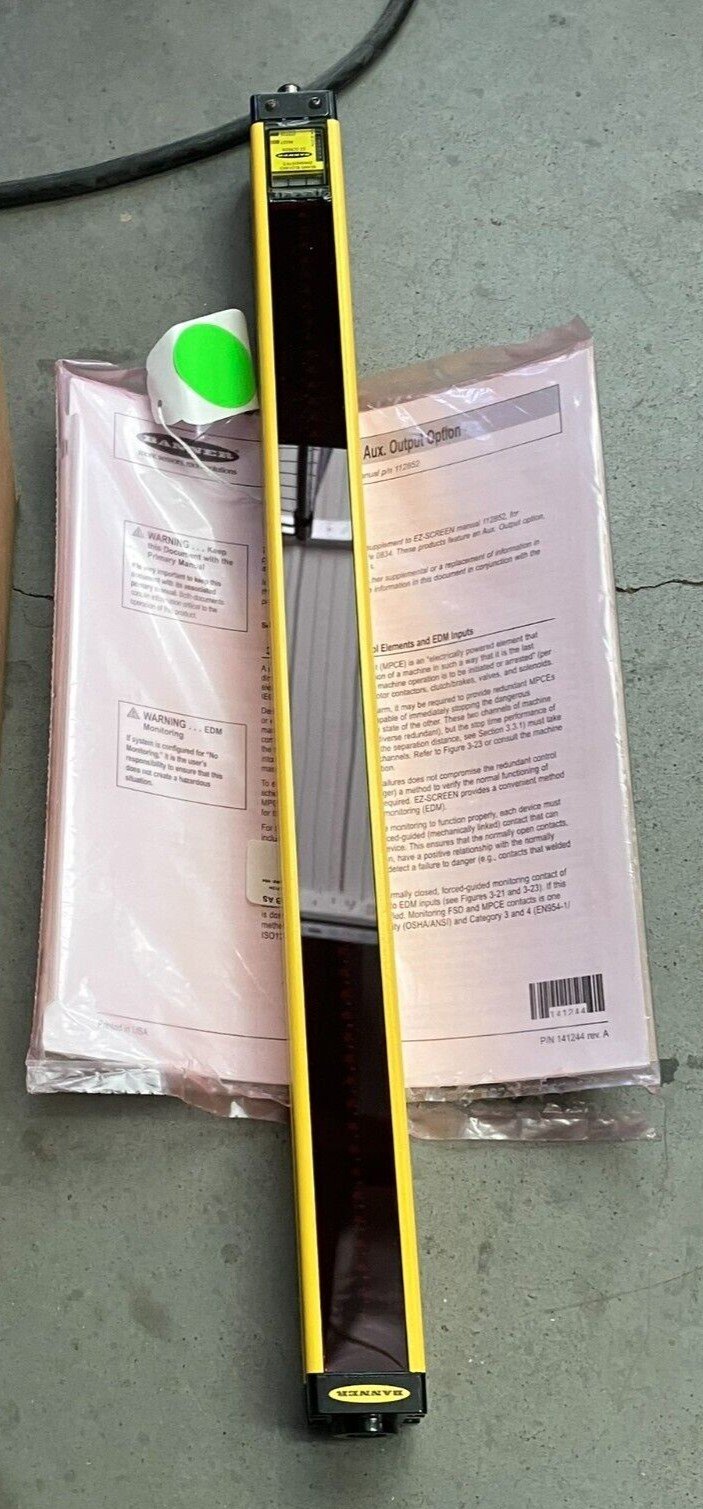

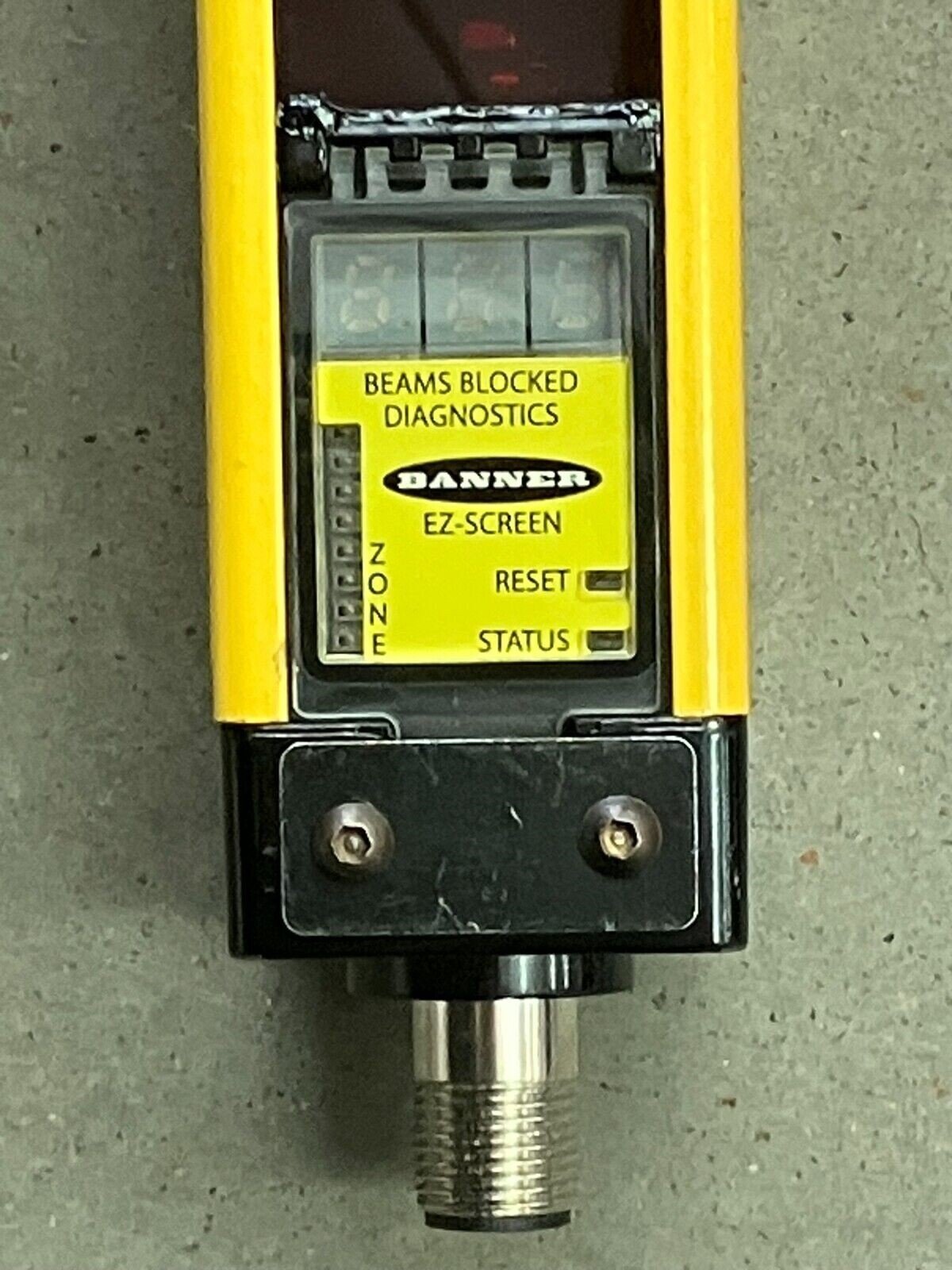

Banner SLSR14-450Q8 Safety Light Curtain
The Banner SLSR14-450Q8 is a high-performance safety light curtain designed to enhance workplace safety by detecting the presence of objects or individuals within hazardous areas. This device is ideal for industrial applications requiring reliable and precise safety measures.
Key Features
- Protected Height: 450 mm
- Resolution: 14 mm, suitable for finger detection
- Operating Range: 0.1 to 6 meters
- Response Time: 19 milliseconds
- Safety Level: Type 4 per IEC 61496-2
- Supply Voltage: 24 VDC
- Housing Material: Aluminum with black polyester finish
- Ingress Protection: IP65, ensuring dust-tight and water-resistant performance
- Operating Temperature: 0 to 55°C

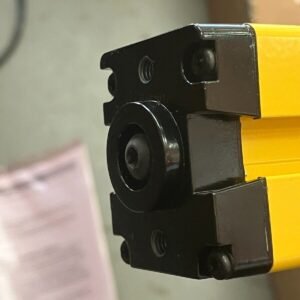

- Connector Type: M12 Quick-Disconnect
Applications
The SLSR14-450Q8 is suitable for various industrial environments where safety is paramount, including:
- Automated assembly lines
- Robotic work cells
- Material handling systems
- Packaging machinery
Additional Information
This model features fixed blanking capabilities and supports external device monitoring with 1 or 2 channels. It also includes auxiliary output functionality and offers selectable trip/latch output options. The device’s compact dimensions (36 mm W x 45.2 mm D) allow for easy integration into existing systems.
For detailed specifications and installation guidelines, please refer to the product manual.
