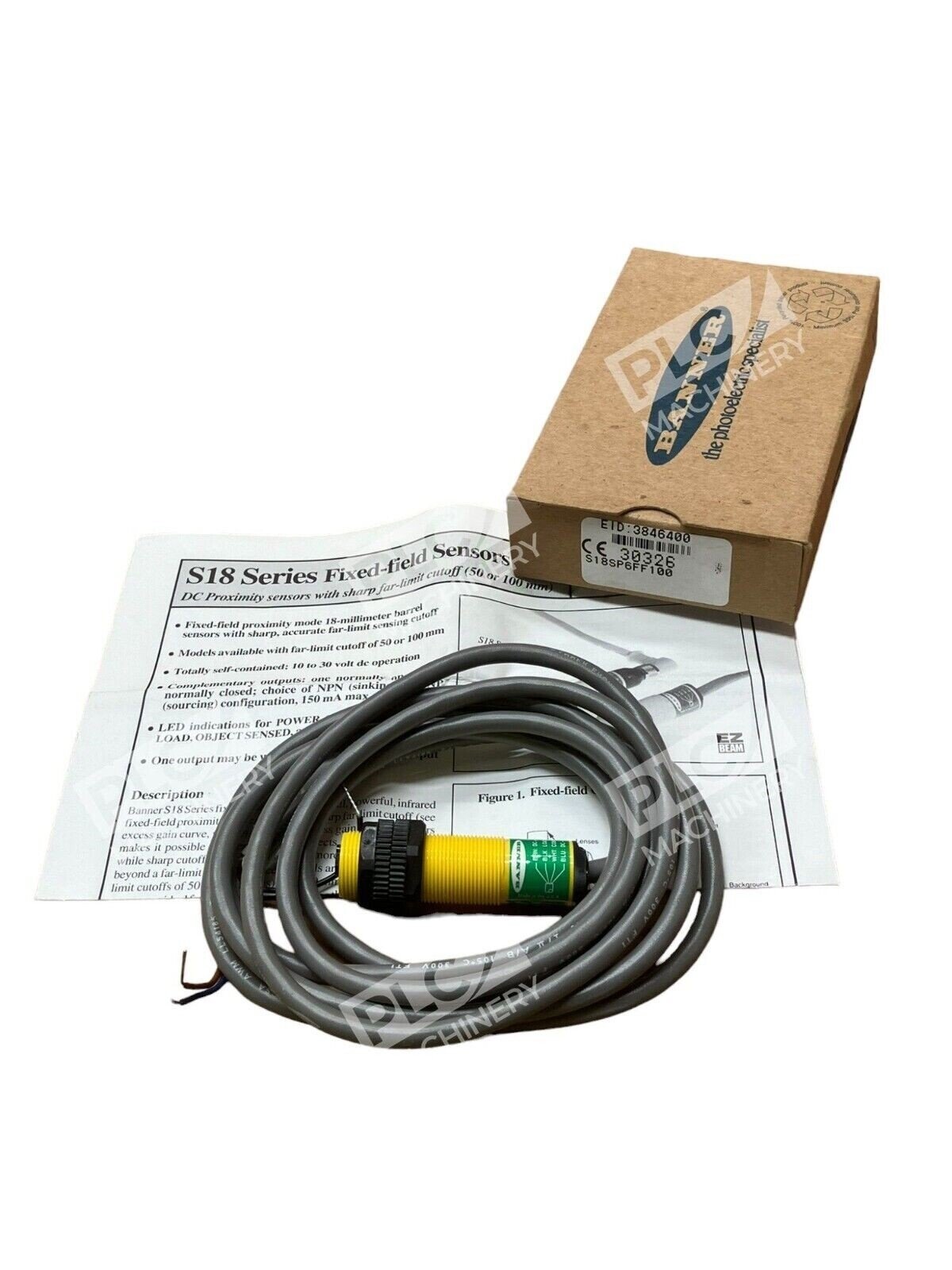

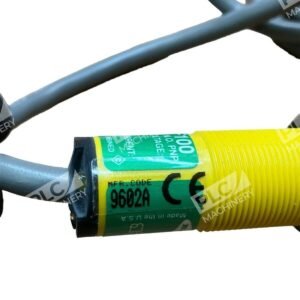

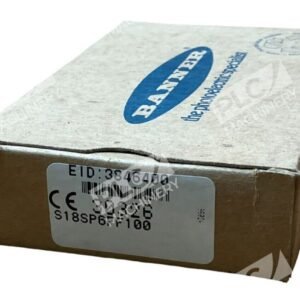

Banner S18SP6FF100 EZ-Beam S18 Series Fixed Field

Banner S18SP6FF100 EZ-Beam S18 Series Fixed Field Sensor

The Banner S18SP6FF100 is a fixed-field photoelectric sensor from the EZ-Beam S18 Series, engineered for reliable object detection without the need for adjustments. Utilizing advanced EZ-Beam technology, this sensor ensures consistent performance across various industrial applications.

Key Features

• Fixed-Field Sensing: Designed with a 100 mm sensing range, ideal for applications requiring precise object detection within a defined distance.
• Infrared Sensing Beam: Operates using an 880 nm infrared LED, providing accurate detection capabilities.

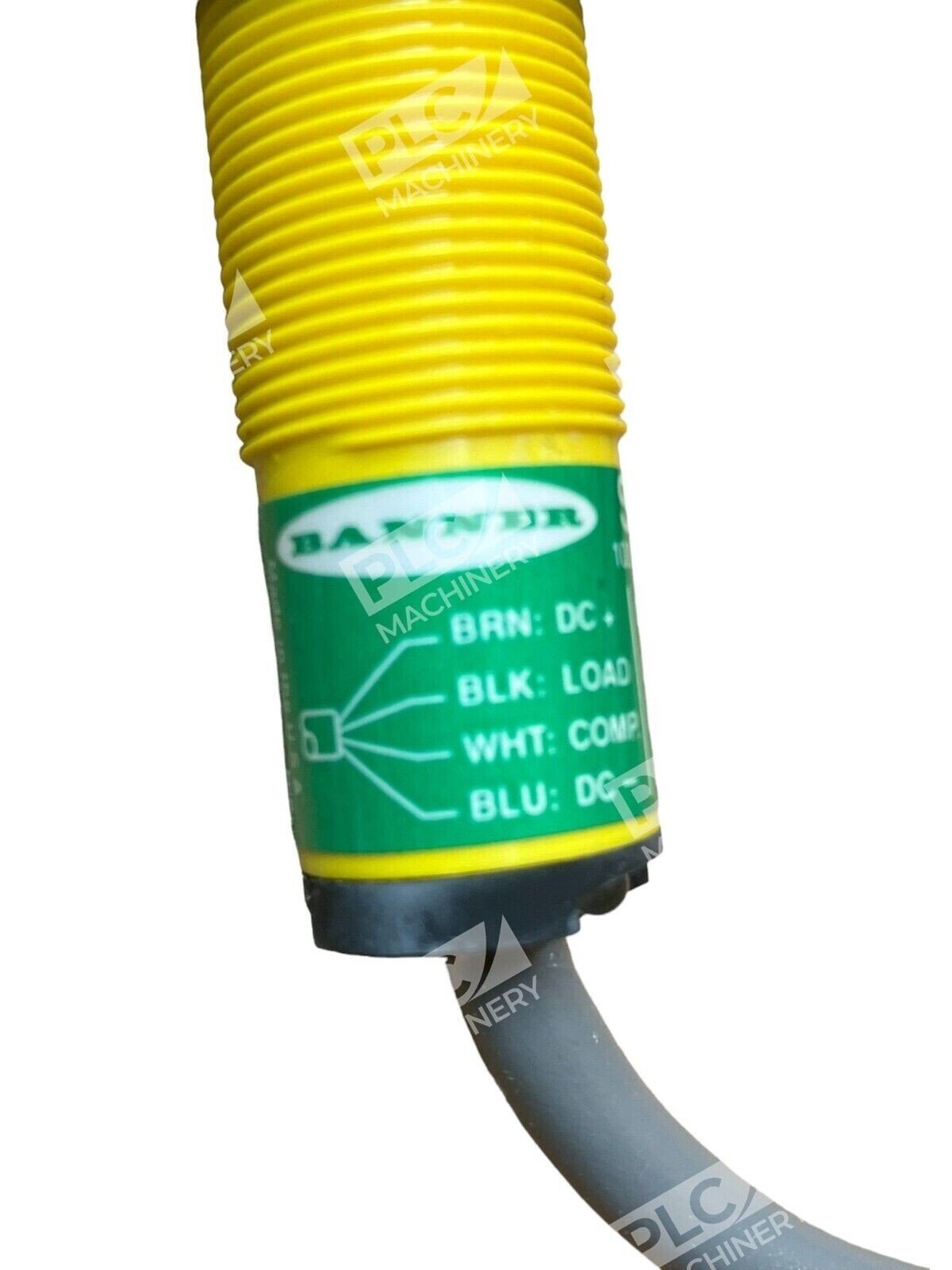

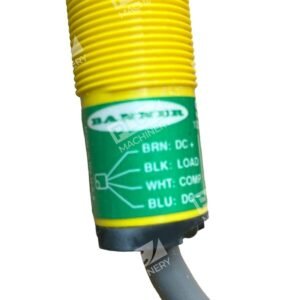

• Complementary PNP Outputs: Equipped with complementary PNP outputs, allowing for versatile integration into control systems.
• Durable Construction: Features a thermoplastic polyester housing with an acrylic lens, ensuring robustness in demanding environments.
• Environmental Resilience: Rated IP67 and IP69K, offering protection against dust, water, and high-pressure washdowns.
• Wide Operating Temperature Range: Functions effectively in temperatures ranging from -40°C to 70°C, suitable for various industrial settings.
• Quick Response Time: Boasts a swift 3 ms response time, facilitating rapid detection and processing.
• Advanced Diagnostics: Incorporates dual LED indicators for monitoring sensor performance, including power status and output conditions.

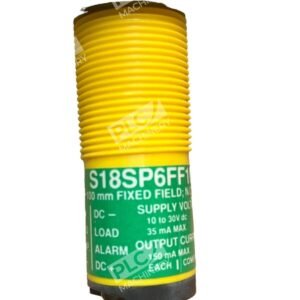

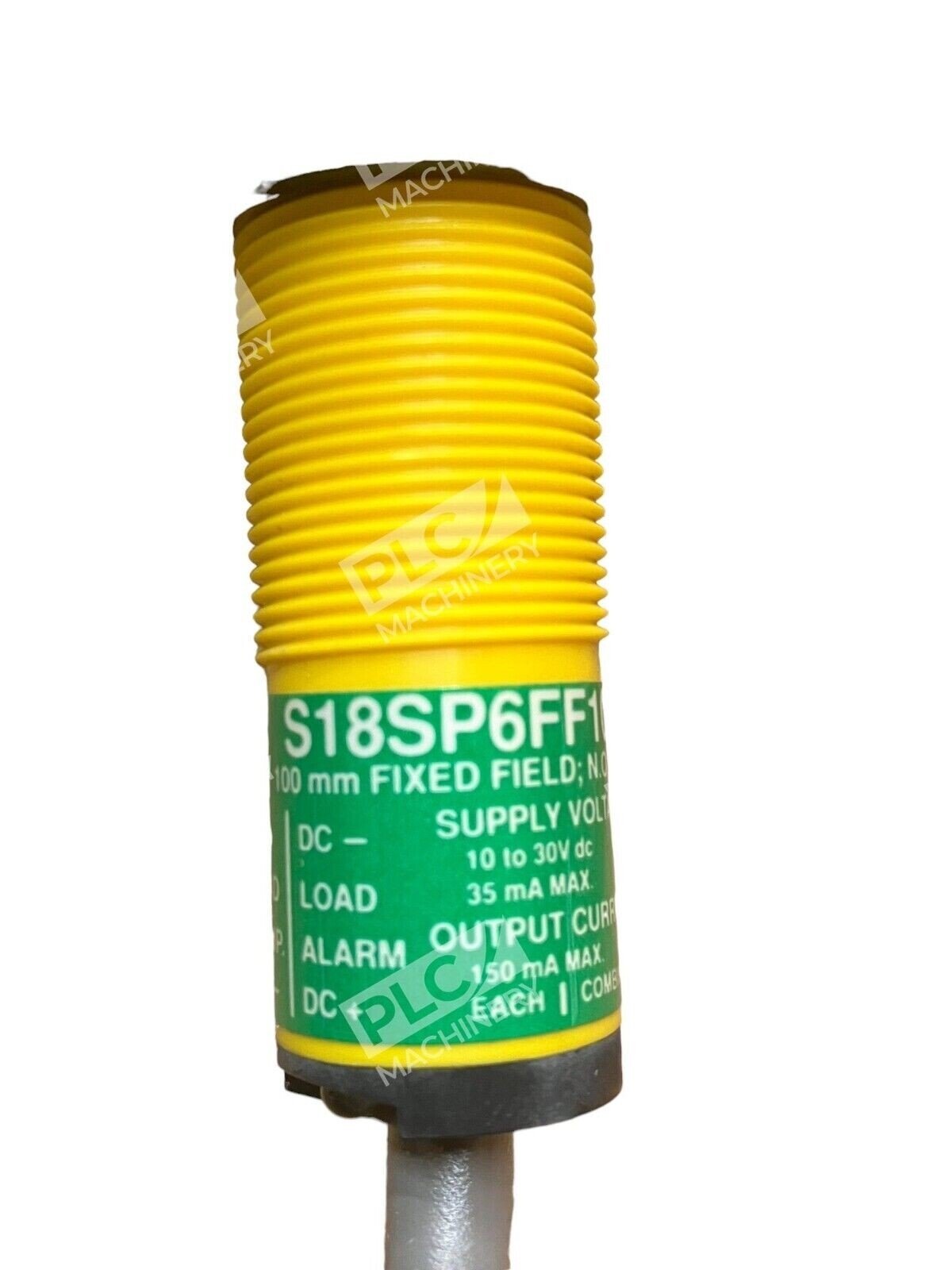

Specifications

• Series: S18
• Sensing Mode: Proximity – Fixed Field
• Maximum Sensing Range: 100 mm

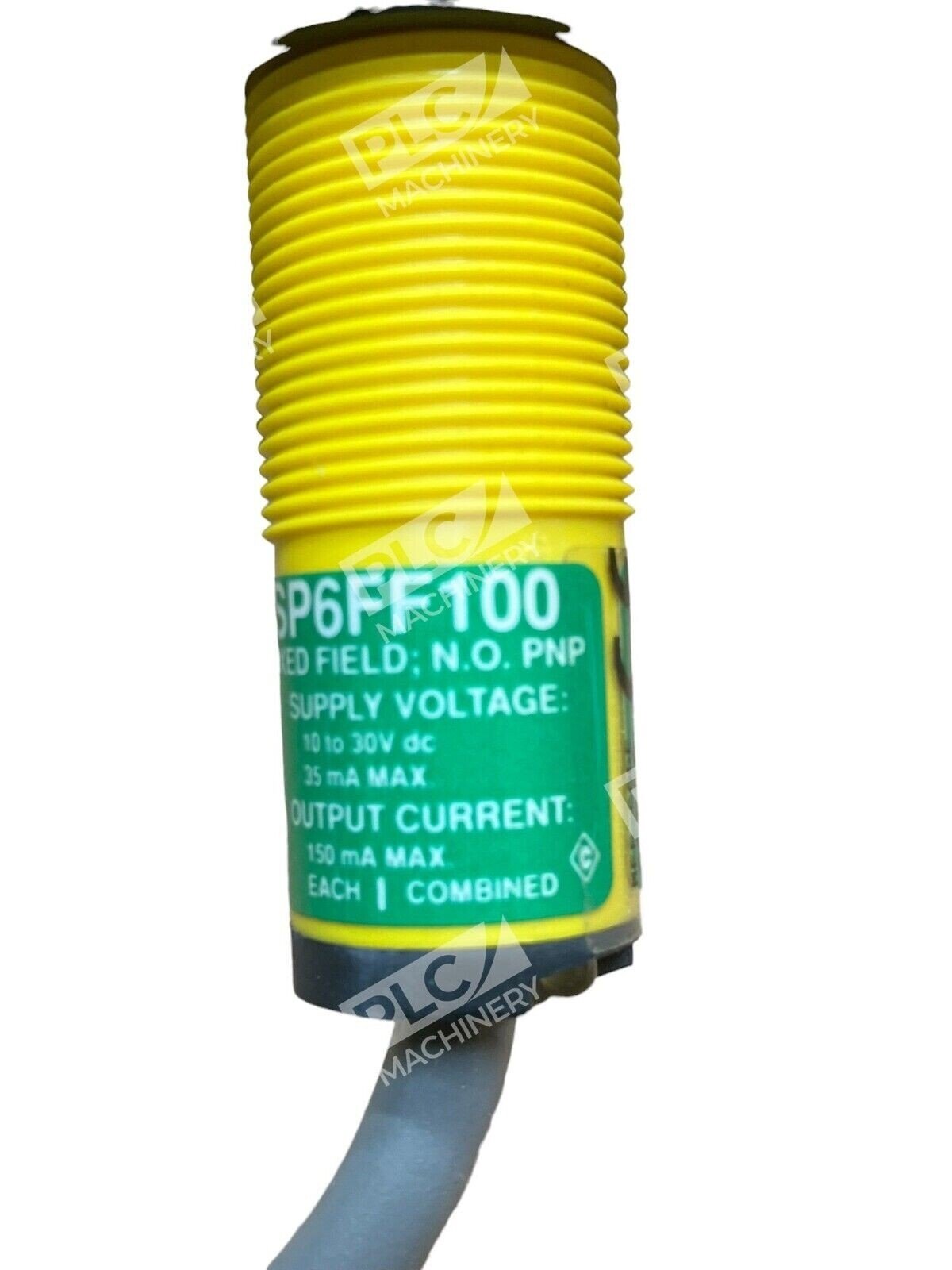

• Input Voltage: 10-30 V DC
• Output Type: Complementary PNP

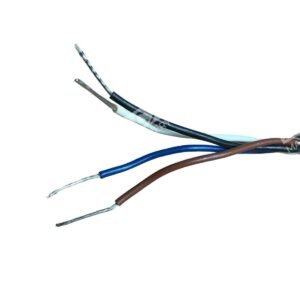

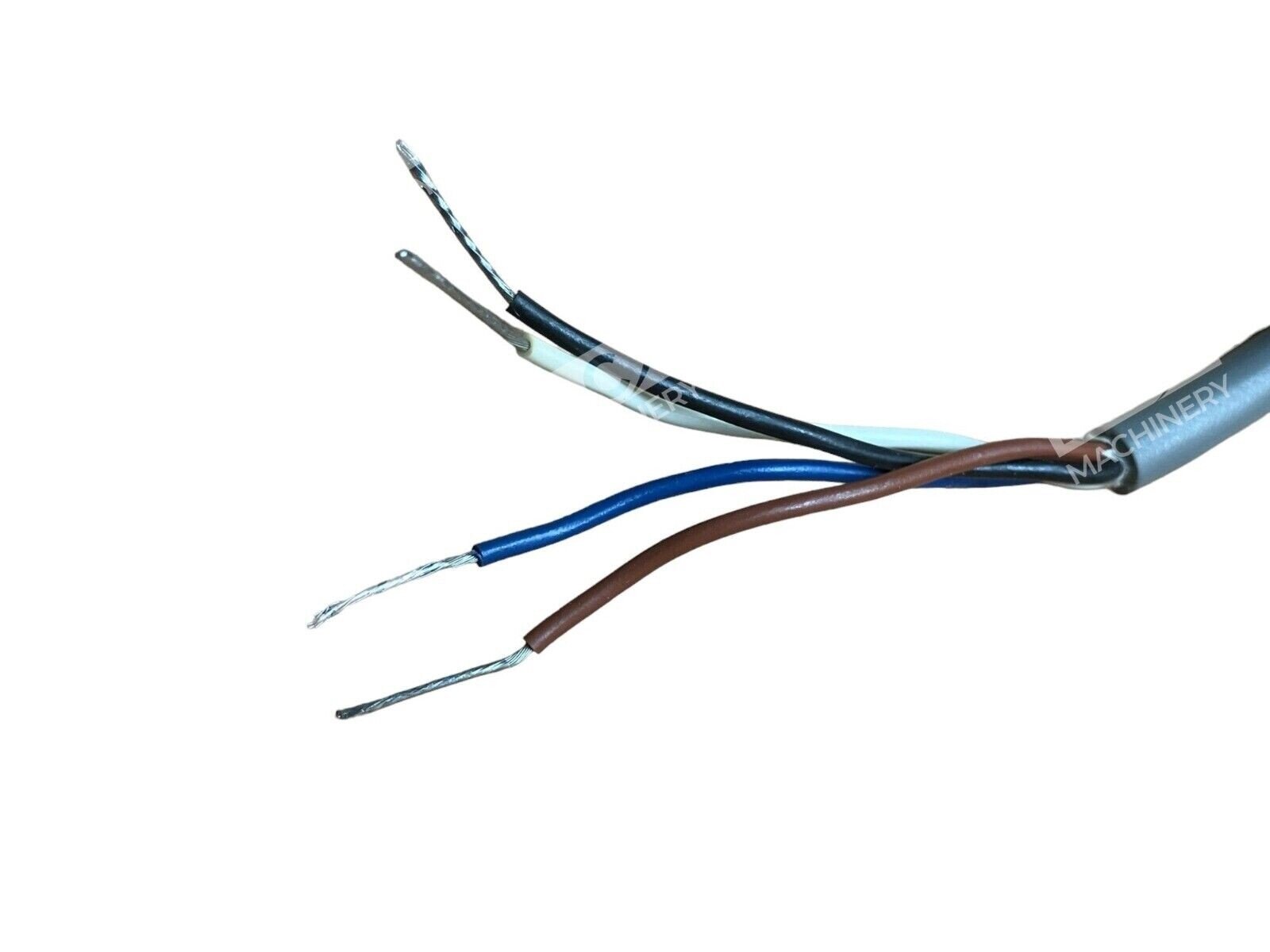

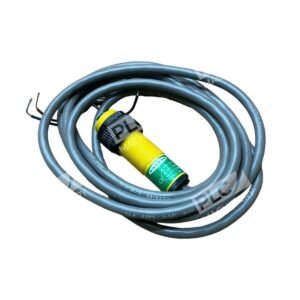

• Electrical Connection: 2 m (6.5 ft) cable

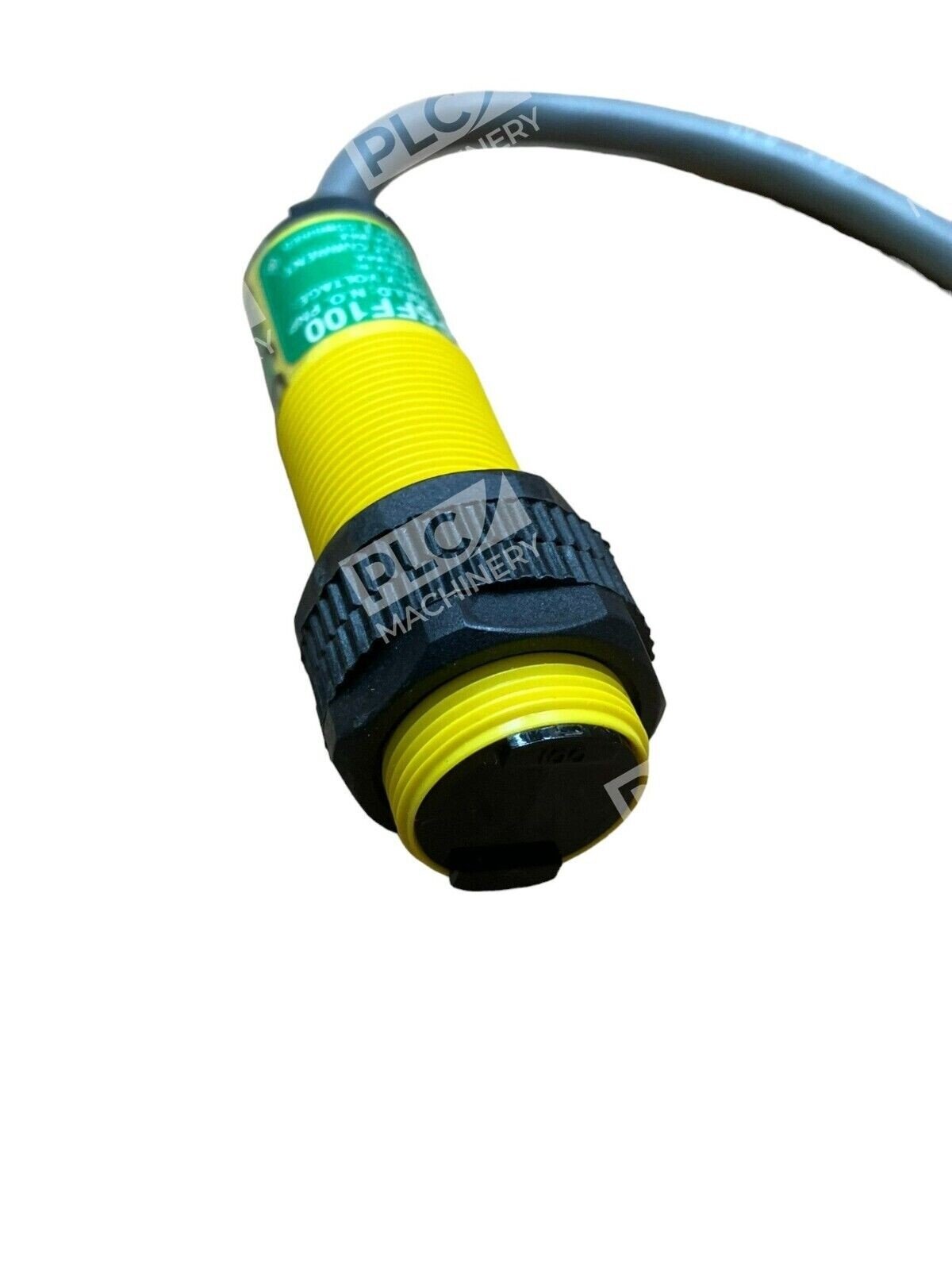

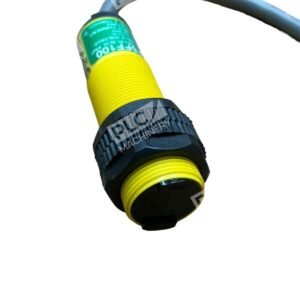

• Housing Style: 18 mm barrel – straight
• Primary Housing Material: Thermoplastic polyester
• IP Rating: IP67, IP69K
• Operating Temperature Range: -40°C to 70°C
• Response Time: 3 ms
• Light Source: 880 nm infrared LED

The Banner S18SP6FF100 sensor is an excellent choice for applications requiring precise and reliable object detection within a fixed range. Its robust design and advanced features make it suitable for various industrial environments.
