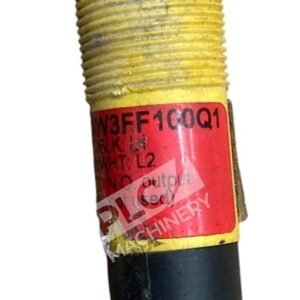

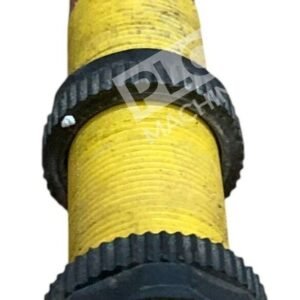

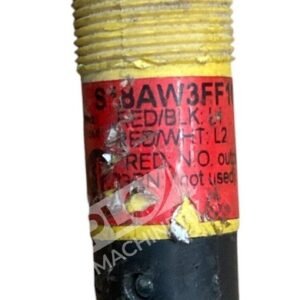

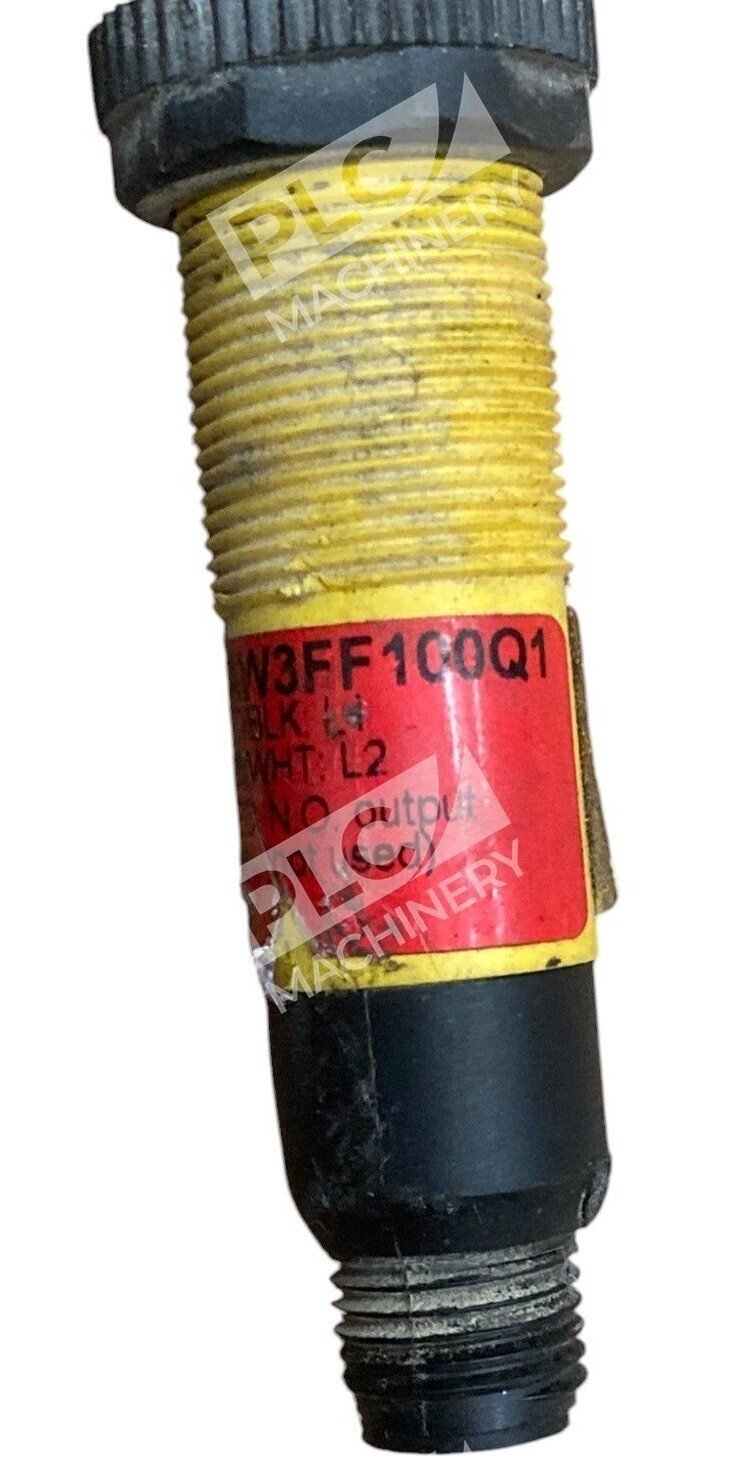

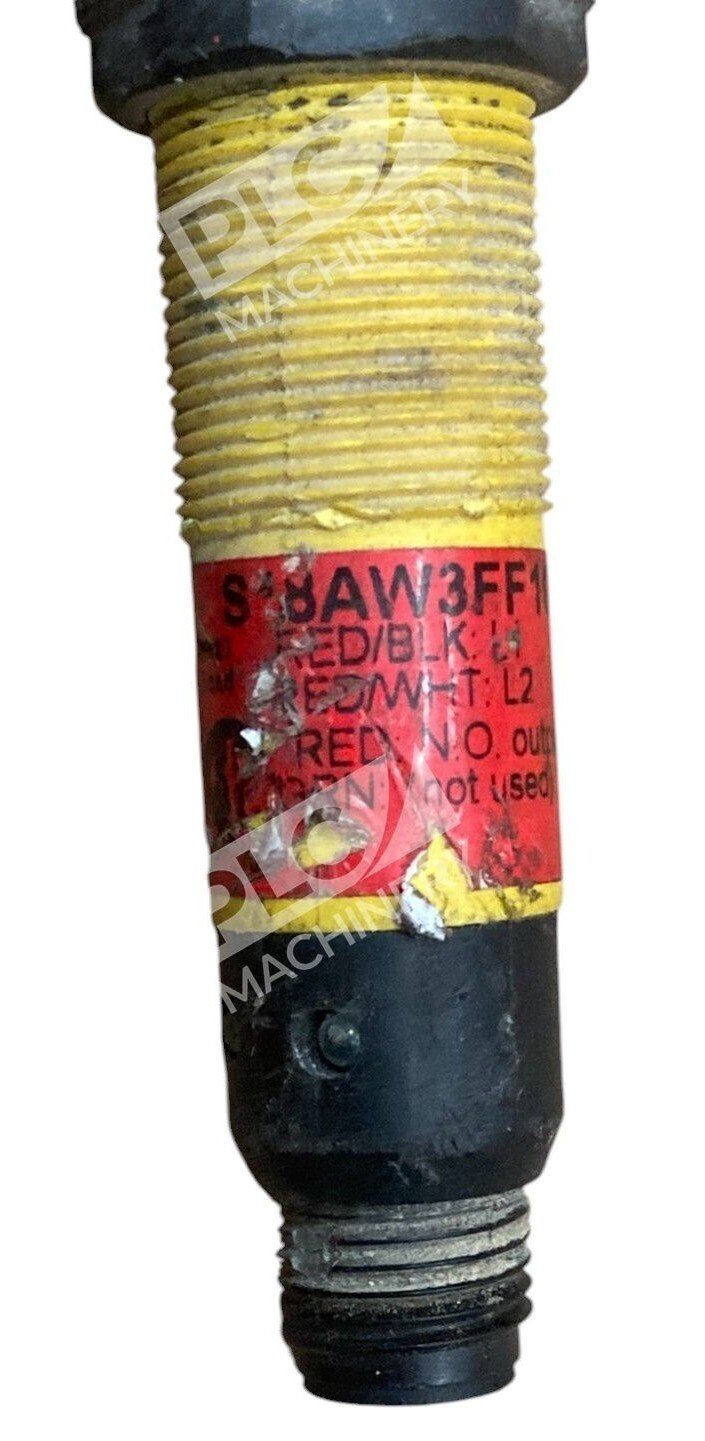

Banner S18 Series EZ-Beam Barrel Mount Encapsulated Sensor S18AW3FF100Q1

Banner S18 Series EZ-Beam Barrel Mount Encapsulated Sensor S18AW3FF100Q1

The Banner S18AW3FF100Q1 is a robust photoelectric sensor from the S18 Series, designed for reliable performance in demanding industrial environments. Its encapsulated design ensures durability and resistance to harsh conditions.

Key Features

• Sensing Mode: Background suppression with a fixed field range of 100 mm.
• Light Source: Infrared LED operating at 880 nm.
• Supply Voltage: Operates on 20-250 V AC, accommodating various power requirements.
• Output Configuration: SPST solid-state AC switch with light operate functionality.
• Housing: 18 mm thermoplastic threaded barrel, facilitating easy mounting.
• Environmental Protection: Rated IP67 and IP69K, ensuring resistance to dust, water, and high-pressure washdowns.
• Operating Temperature: Functions effectively in temperatures ranging from -40°C to 70°C.
• Connection: Integral 4-pin micro quick-disconnect for straightforward installation.
• Indicators: Dual LEDs provide clear status updates for sensor performance.

Applications

The S18AW3FF100Q1 is ideal for applications requiring precise object detection with background suppression, such as:

• Material handling systems
• Packaging lines
• Automated assembly processes
• Conveyor belt monitoring

Its encapsulated design and high ingress protection ratings make it suitable for environments where exposure to moisture, dust, or high-pressure cleaning is common.

Additional Information

The sensor’s epoxy encapsulation enhances its durability, making it resistant to mechanical shock and vibration. Its quick-disconnect feature simplifies maintenance and replacement, minimizing downtime in critical operations.
