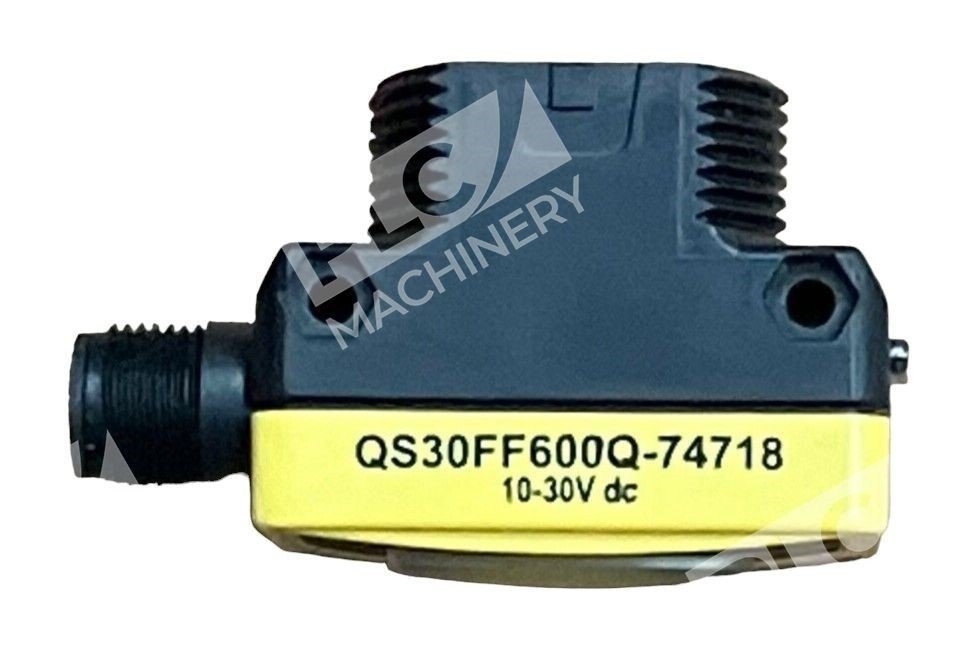

Banner QS30FF600Q-74718 Photoelectric Sensor 161K627H01

Banner QS30FF600Q-74718 Photoelectric Sensor 161K627H01

The Banner QS30FF600Q-74718 Photoelectric Sensor, part number 161K627H01, is a high-performance proximity sensor designed for precise and reliable object detection in industrial environments. With a sensing range of up to 600 mm, this sensor is ideal for applications requiring accurate background suppression.

Key Features

• Sensing Range: Capable of detecting objects up to 600 mm away, ensuring flexibility in various applications.
• Sensing Method: Utilizes fixed background suppression to accurately detect objects while ignoring backgrounds.
• Sensing Beam: Employs a visible red LED for clear and precise detection.
• Response Time: Offers a swift 2 ms response time, facilitating rapid detection and processing.
• Output Type: Features bi-polar NPN/PNP outputs for versatile integration with various control systems.
• Power Supply: Operates within a 10 to 30 VDC range, accommodating standard industrial power supplies.
• Connection: Equipped with an M12 integral Euro-style quick disconnect for easy installation and maintenance.
• Housing: Constructed with a durable thermoplastic material, the rectangular housing includes a 30 mm barrel mount for versatile mounting options.
• Environmental Ratings: Rated NEMA 6/IP67, ensuring protection against dust and water ingress, suitable for harsh industrial conditions.
• Operating Temperature: Functions effectively within a temperature range of -20 to 70°C, accommodating various environmental conditions.

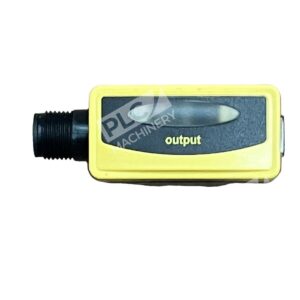

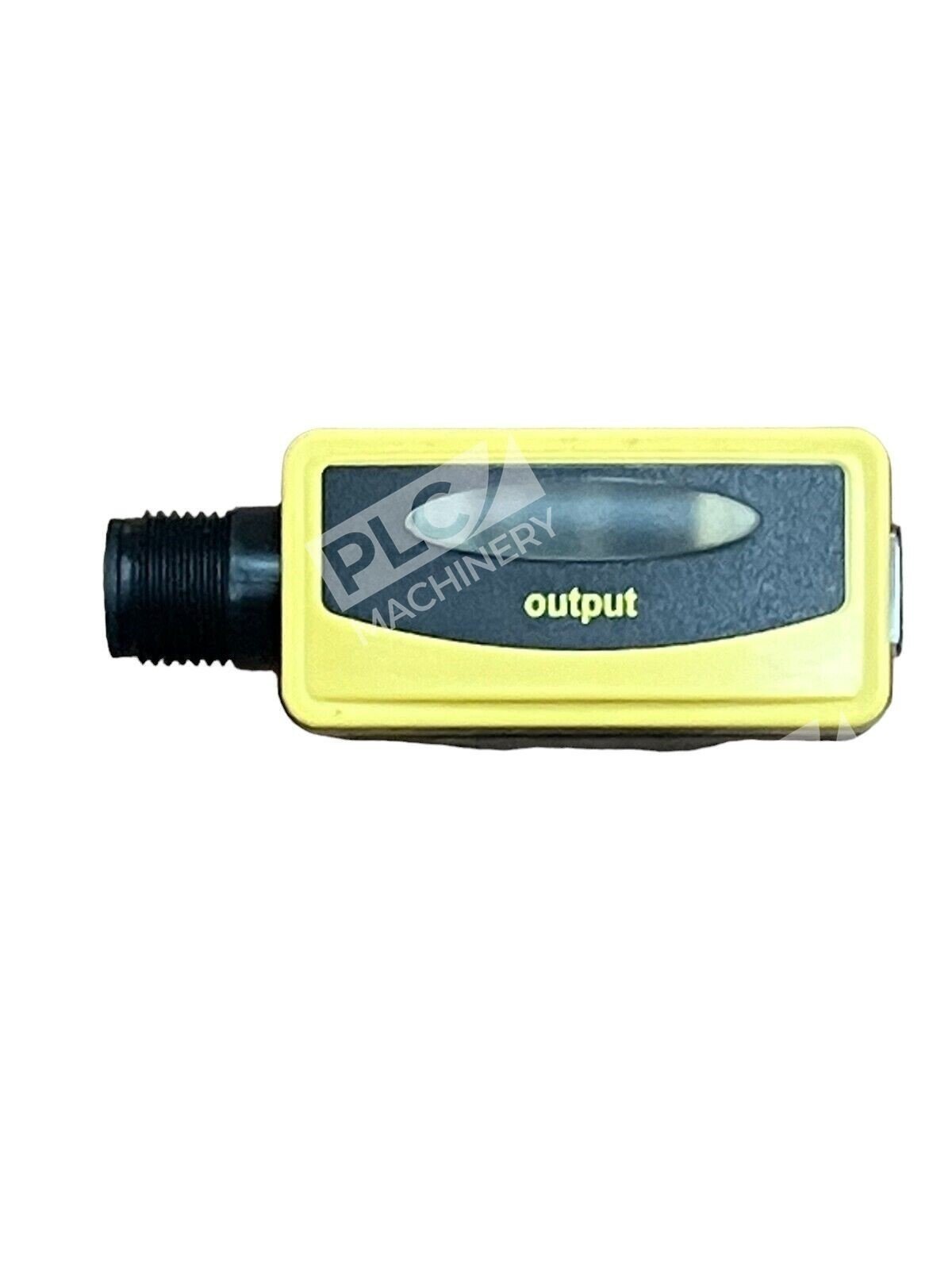

• Indicators: Features two status LEDs visible from 360°, along with an extra-large output indicator on the back of the sensor housing for easy status monitoring.

Applications

The QS30FF600Q-74718 is well-suited for a variety of industrial applications, including:

• Material handling systems
• Packaging lines
• Assembly processes
• Automated inspection systems

Its advanced background suppression capability ensures accurate detection of objects without interference from background materials, making it a reliable choice for complex sensing tasks.

Specifications

• Series: QS30
• Sensing Method: Fixed Background Suppression
• Sensing Range: 600 mm
• Sensing Beam: Visible Red LED
• Response Time: 2 ms
• Output Type: Bi-Polar NPN/PNP
• Voltage Rating: 10 to 30 VDC
• Connection Type: M12 Integral Euro-Style Quick Disconnect
• Housing Material: Thermoplastic
• Enclosure Rating: NEMA 6/IP67
• Operating Temperature: -20 to 70°C
• Environmental Conditions: 95% at 50°C Maximum Relative Humidity

For detailed technical information and installation guidelines, please refer to the manufacturer’s documentation.
