Autotech Controls AC Resolver SAC-RL100-010

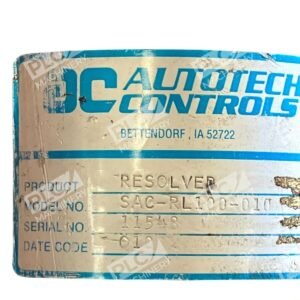

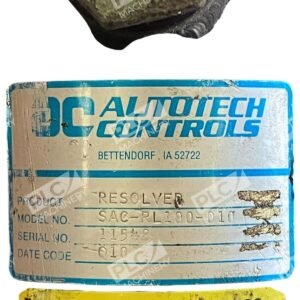

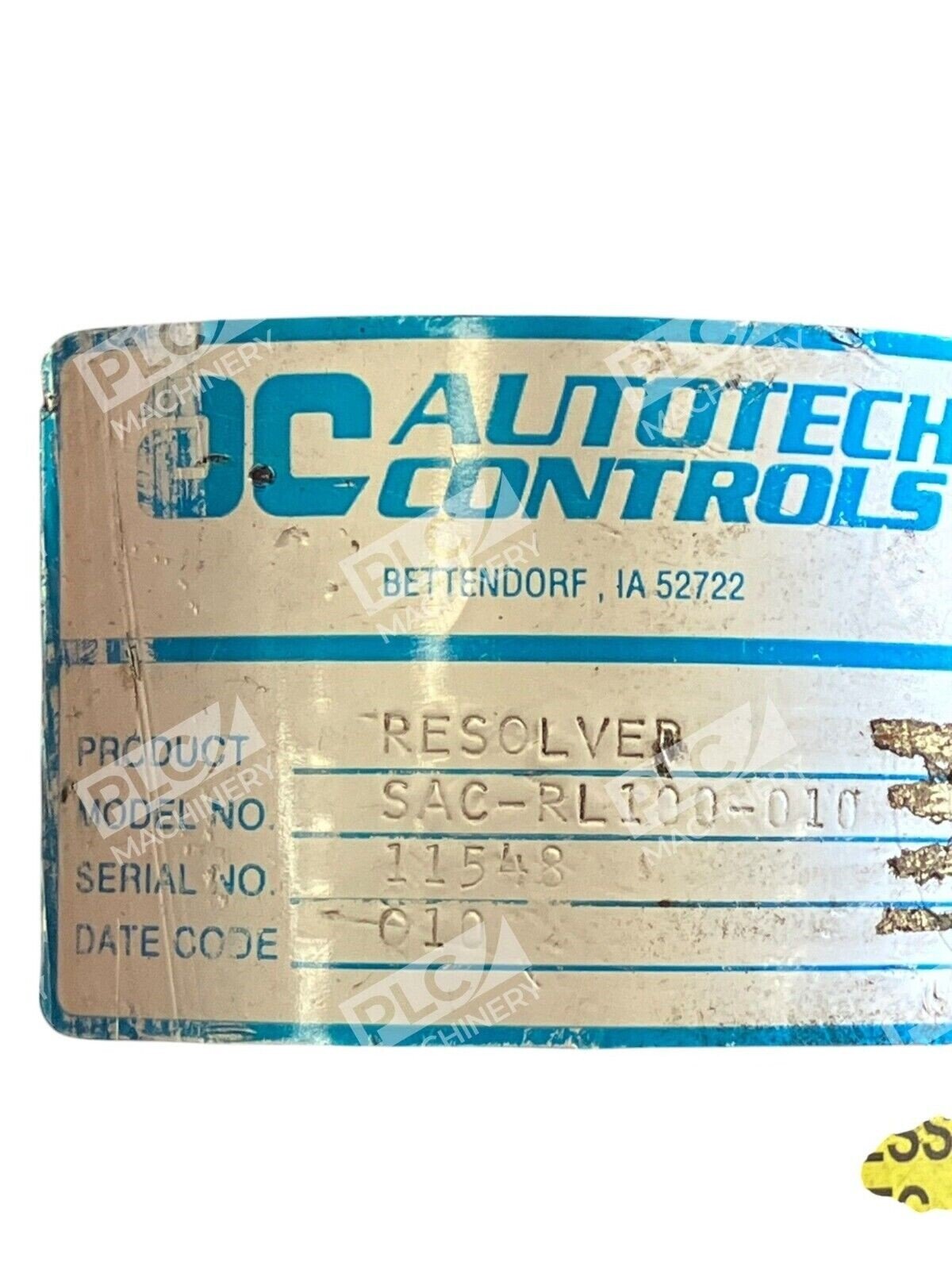

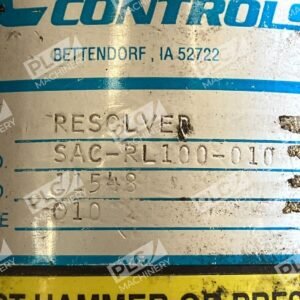

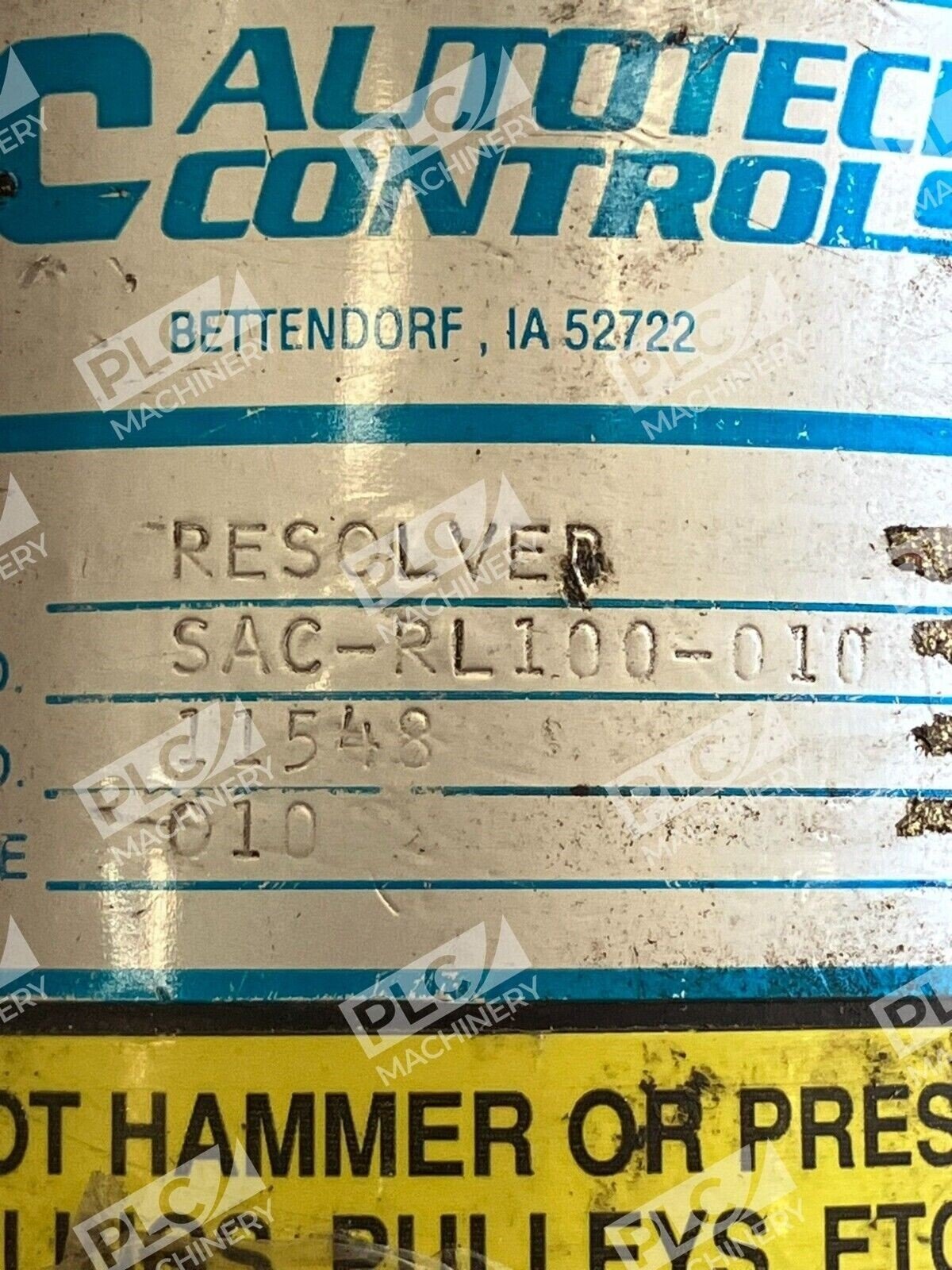

Autotech Controls SAC-RL100-010 Single-Turn Resolver

The Autotech Controls SAC-RL100-010 is a robust and reliable single-turn resolver, engineered to deliver precise position feedback in demanding industrial environments. Its durable construction and high-performance specifications make it an ideal choice for applications in automotive manufacturing, can-manufacturing, and packaging industries.

Key Features

• Size 40 Housing: Encased in a 4.0-inch (101.6 mm) diameter housing, providing a compact yet sturdy design suitable for various industrial applications.
• 5/8″ Shaft Diameter: Equipped with a 5/8-inch (15.88 mm) shaft, ensuring compatibility with standard industrial equipment.
• High Slew Speed: Capable of operating at a maximum slew speed of 5,000 RPM, accommodating high-speed applications.
• Rugged Construction: Features a heavy-duty, double-row ball bearing and an internal flexible coupling, enhancing durability and reliability.
• Environmental Resilience: Designed to withstand harsh conditions with an operating temperature range from -67°F to 248°F (-55°C to 120°C) and a shock resistance of 200g for 11 milliseconds.

Electrical Specifications

• Input Frequency: 2250 Hz
• Input Voltage: 1.88 V
• Input Current: 6 mA
• Output Voltage (Stator): 2.63 V ±5%
• Transformation Ratio: 1.400

Mechanical Specifications

• Maximum Starting Torque at 25°C: 8 oz-in
• Moment of Inertia: 45 gm/cm²
• Maximum Shaft Loading: Axial: 50 lbs; Radial: 100 lbs
• Bearing Life at Maximum Manufacturer Specification: 2 x 10⁹ revolutions
• Approximate Weight: 6 lbs

Environmental Specifications

• Shock Resistance: 200g for 11 milliseconds
• Vibration Resistance: 20g up to 2000 Hz
• Operating Temperature Range: -67°F to 248°F (-55°C to 120°C)
• Storage Temperature Range: -85°F to 302°F (-65°C to 150°C)
• Enclosure Rating: NEMA 13, providing protection against dust and dripping water.

The SAC-RL100-010 resolver’s combination of precision, durability, and environmental resilience ensures optimal performance in a wide range of industrial applications, making it a dependable component for accurate position sensing and control.
