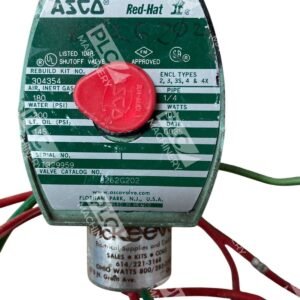

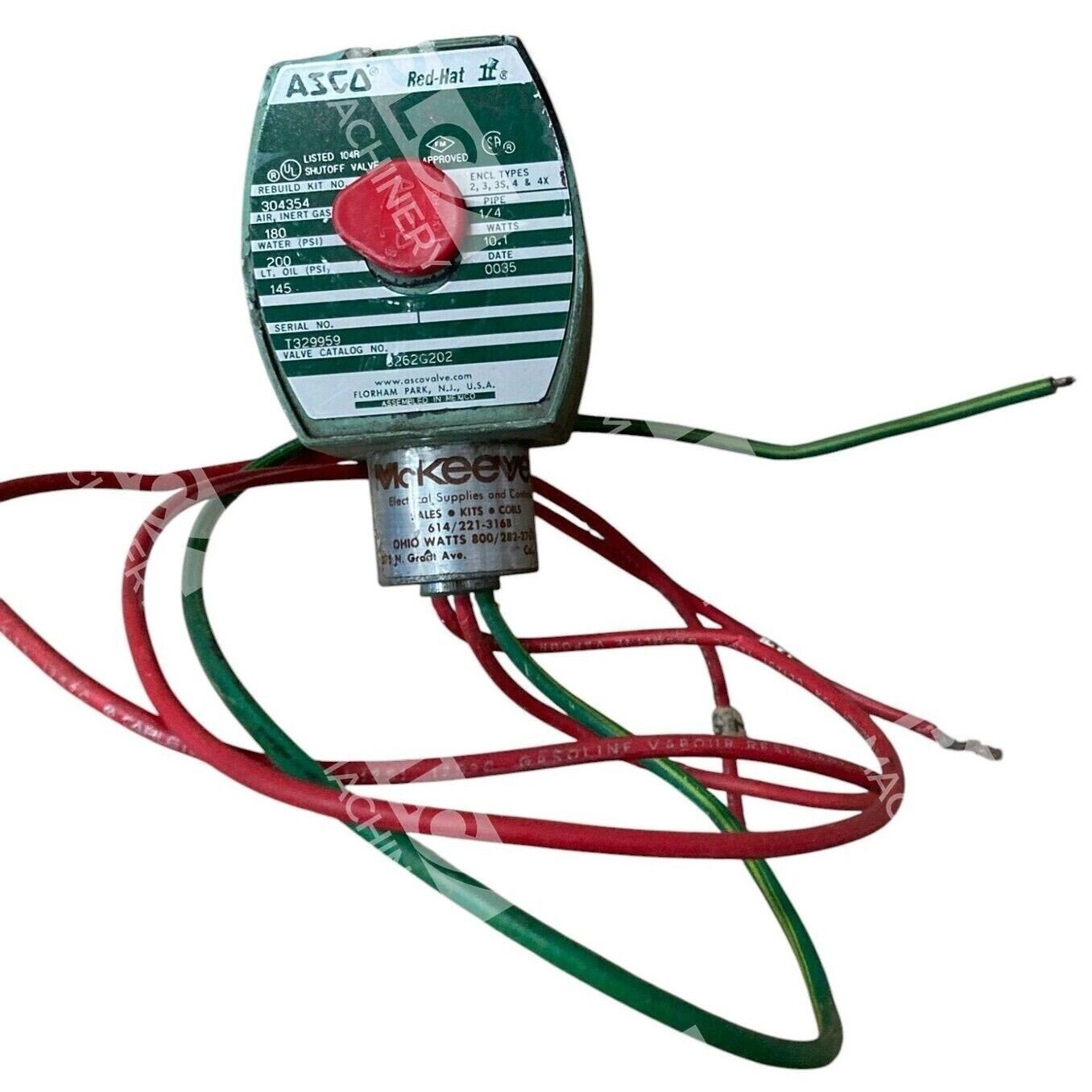

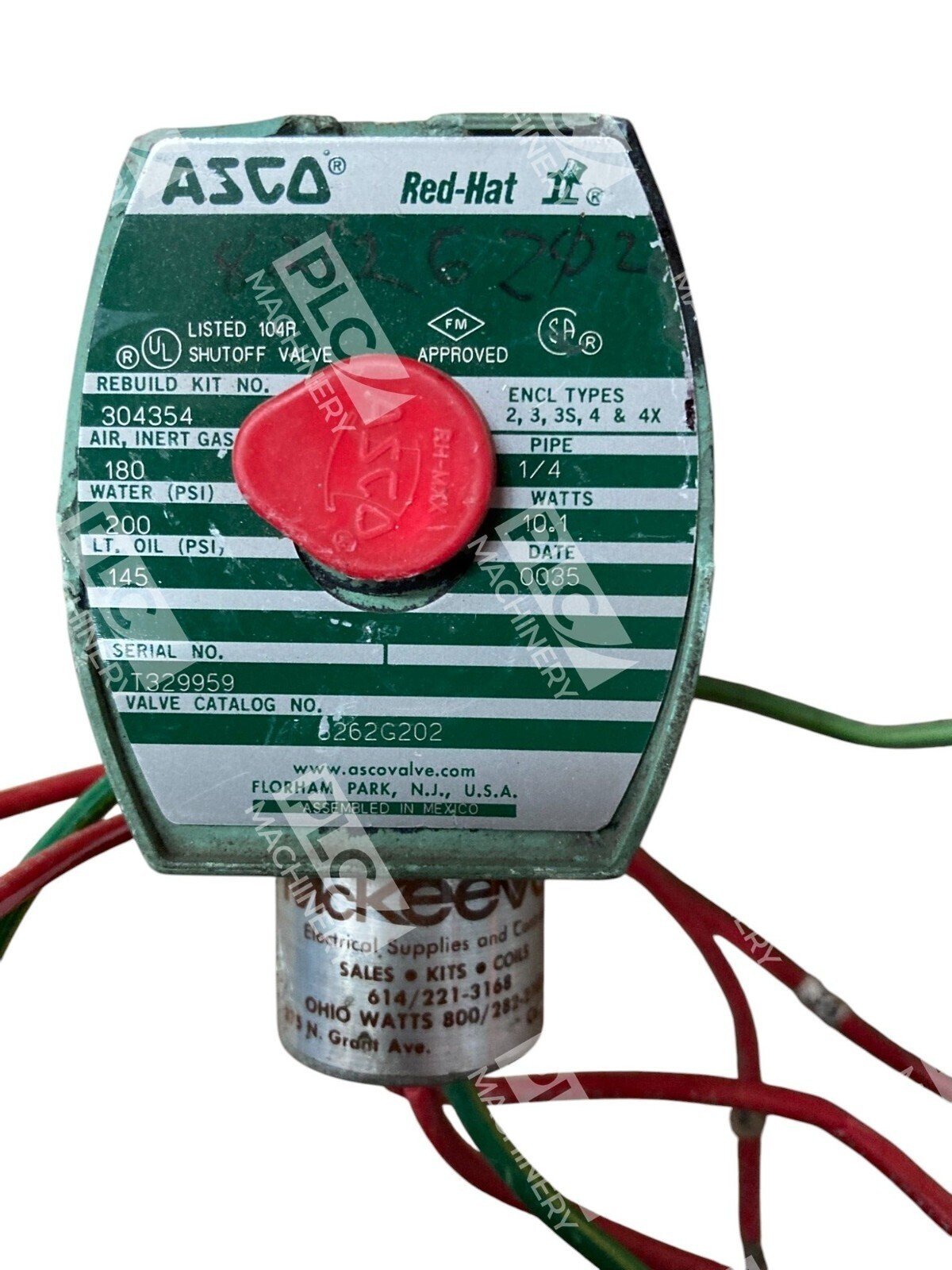

ASCO Red-Hat II 304354 10.1W Solenoid Shutoff Valve 8262G202

ASCO Red-Hat II 304354 10.1W Solenoid Shutoff Valve 8262G202

The ASCO Red-Hat II 304354 Solenoid Shutoff Valve, catalog number 8262G202, is a direct-acting, normally closed valve designed for efficient fluid control in various industrial applications. Its compact design and robust construction make it suitable for handling air, inert gases, water, and light oil.

Key Features

• Direct-Acting Design: Operates without the need for a pressure differential, ensuring immediate response.
• Normally Closed Function: Ensures flow is halted when the valve is de-energized, providing reliable shutoff.
• High Flow Capacity: Delivers a flow factor (Cv) of 0.50, facilitating efficient fluid movement.
• Compact Poppet Construction: Enables tight shutoff, minimizing leakage and enhancing performance.
• Versatile Mounting: Can be installed in any position, offering flexibility in system design.

Technical Specifications

• Pipe Size: 1/4″ NPT
• Operating Pressure Differential:
  • Air/Inert Gas: Up to 180 psi (AC)
  • Water: Up to 200 psi (AC)
  • Light Oil: Up to 145 psi (AC)
• Maximum Fluid Temperature:
  • AC: 180°F (82°C)
• Body Material: Brass
• Seal Material: NBR (Nitrile Butadiene Rubber)
• Voltage Options: 120V/60Hz, 110V/50Hz
• Power Consumption: 10.1 watts
• Enclosure Types: 2, 3, 3S, 4, and 4X, providing protection against various environmental conditions.

Applications

The ASCO 8262G202 Solenoid Shutoff Valve is ideal for use in:

• Compressed air systems for isolating medium-pressure circuits.
• Fuel skid modules to control additive or main flow lines.
• Automation panels requiring compact shutoff solutions.
• Water processing units for auxiliary flow isolation.
• Test benches needing responsive air or liquid cutoff.

Compliance and Approvals

• UL Listed for safety shutoff applications.
• CSA Certified.
• Meets applicable CE directives.
• FM Approved.

Installation and Maintenance

For optimal performance:

• Verify the catalog number, voltage, and service compatibility before installation.
• Connect the inlet and outlet as indicated on the valve body.
• Mount the solenoid vertically when possible to enhance lifespan.
• Install a strainer at the inlet to prevent clogging and ensure smooth flow.
• Always depressurize and disconnect power before servicing the valve.

The ASCO Red-Hat II 304354 Solenoid Shutoff Valve 8262G202 combines reliability, efficiency, and versatility, making it a valuable component in various industrial fluid control systems.
