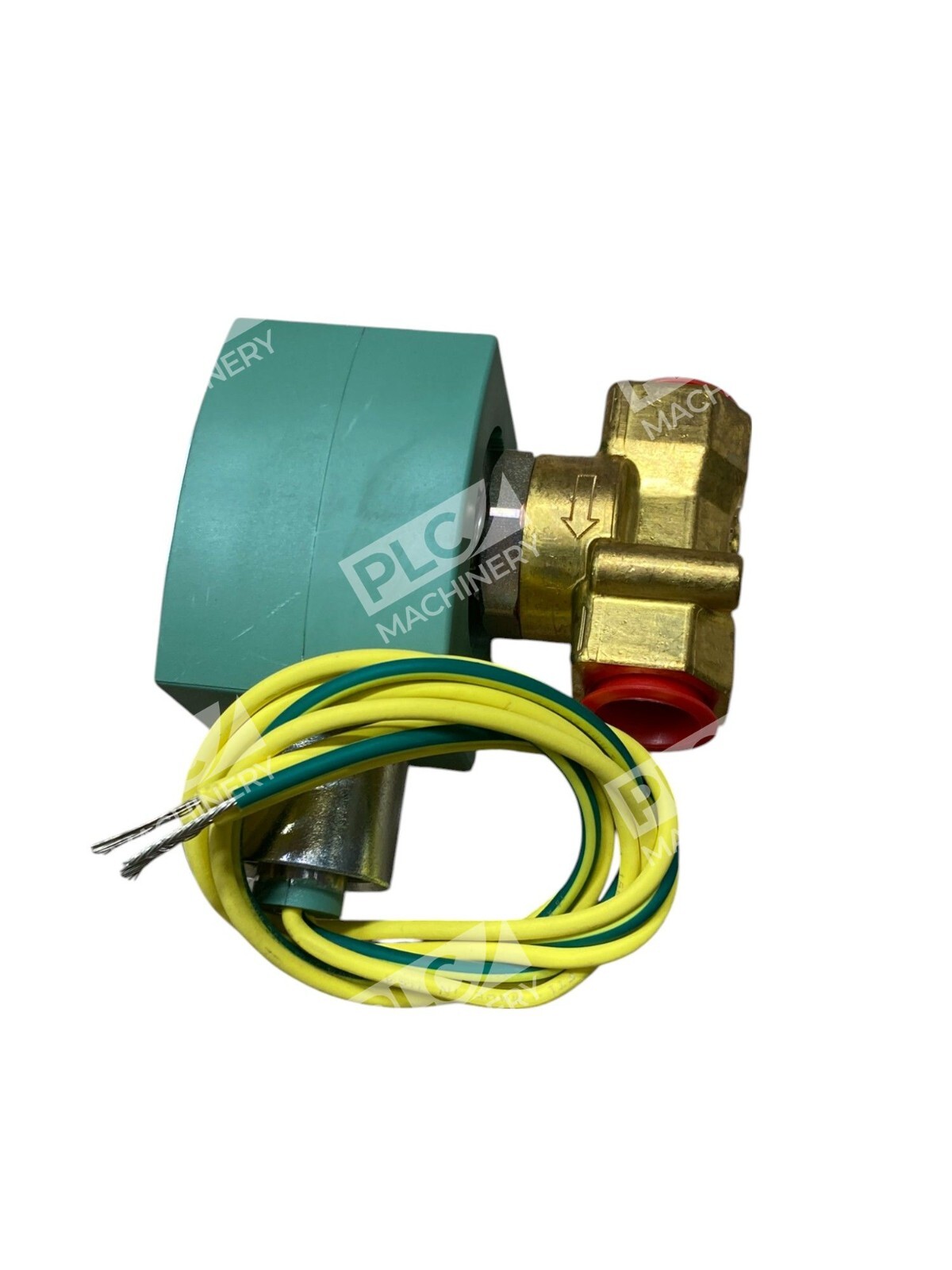

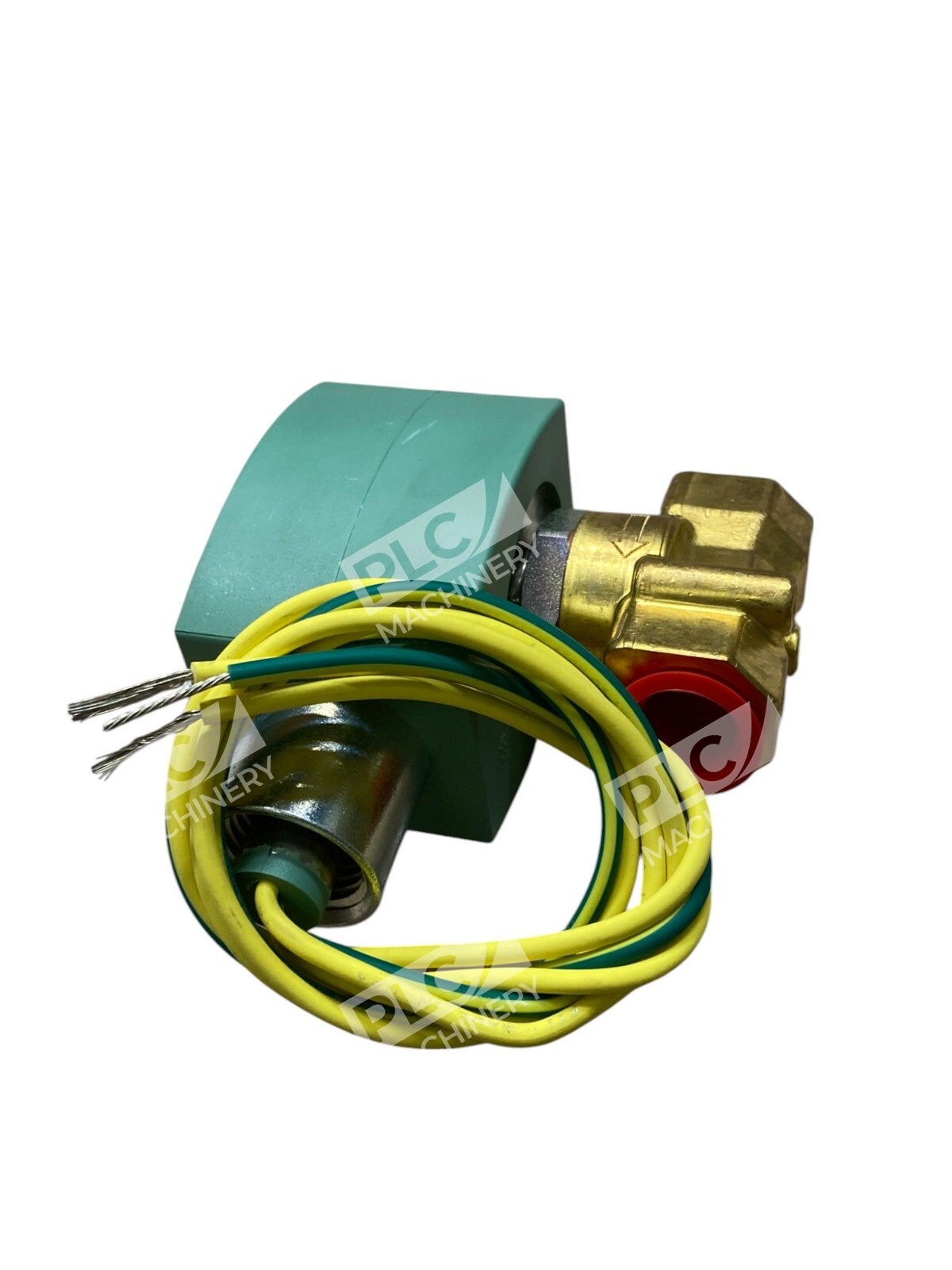

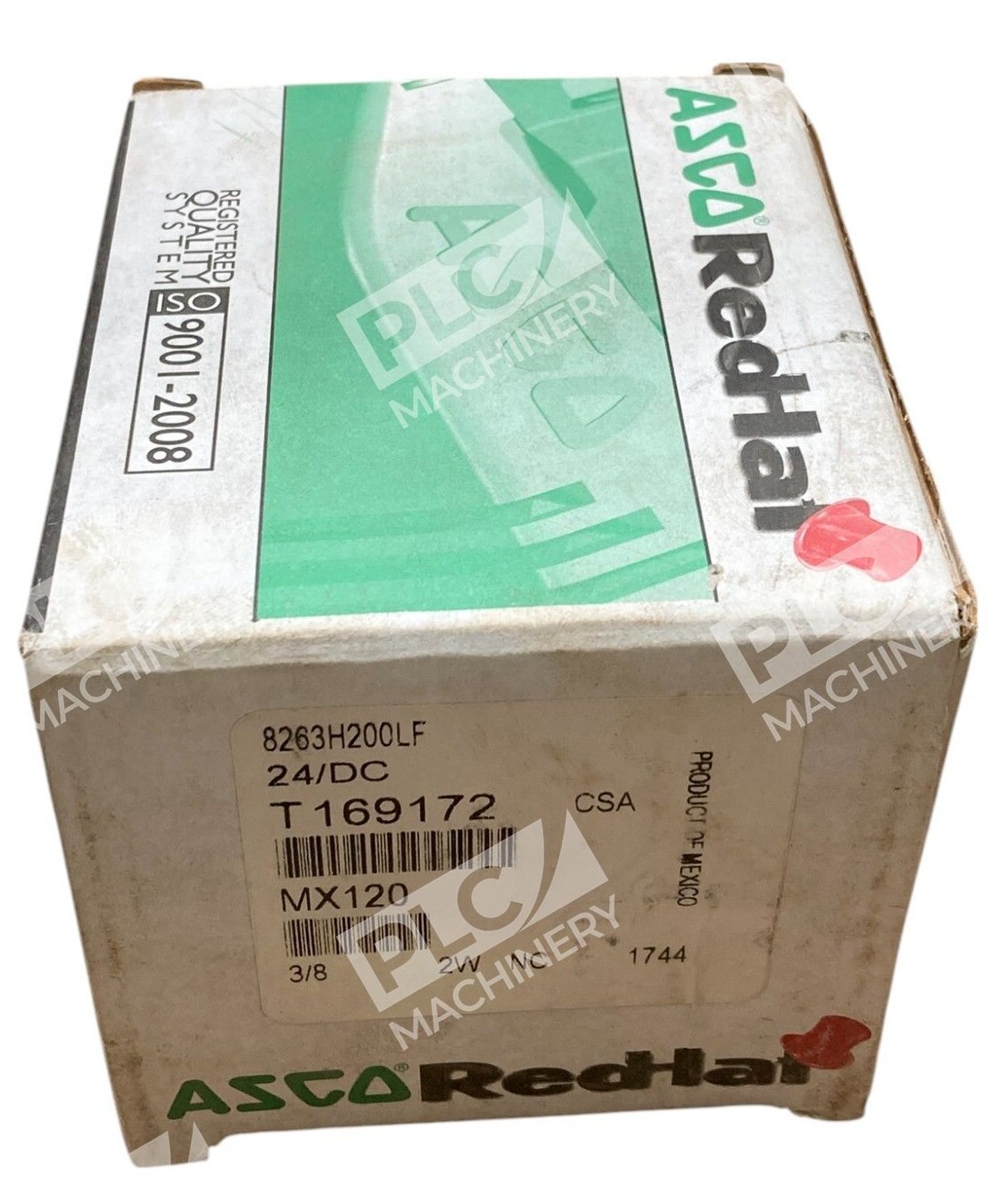

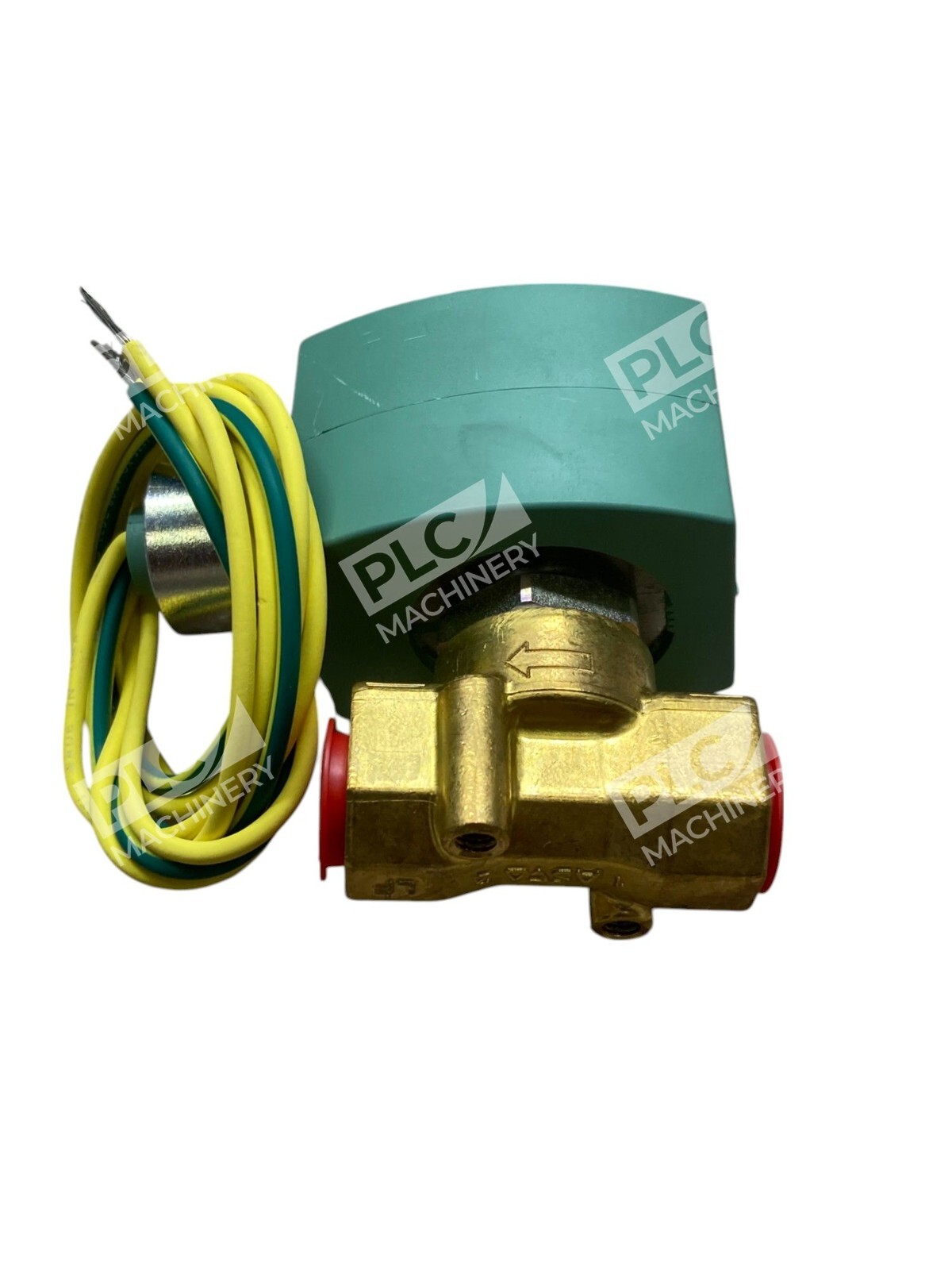

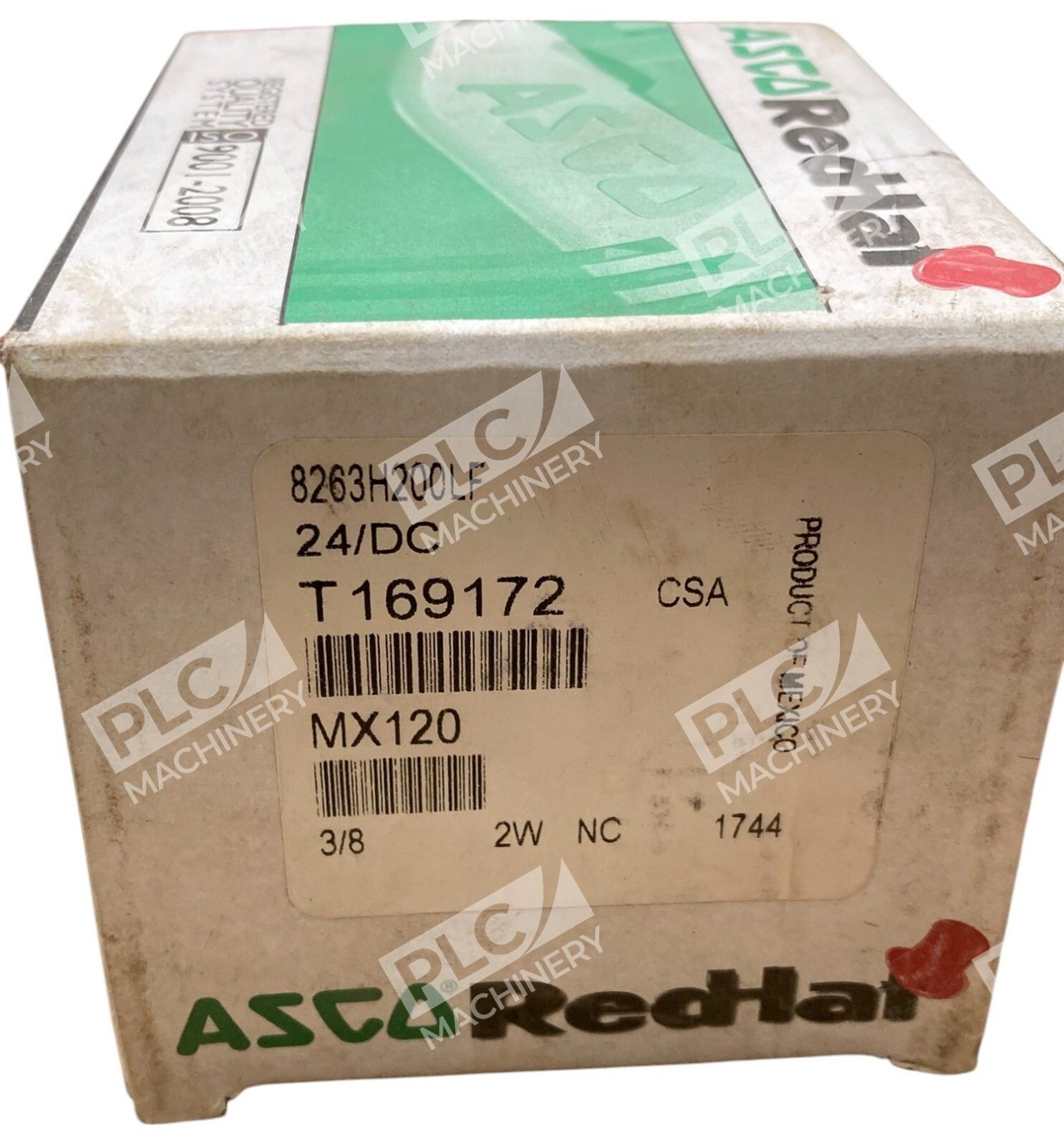

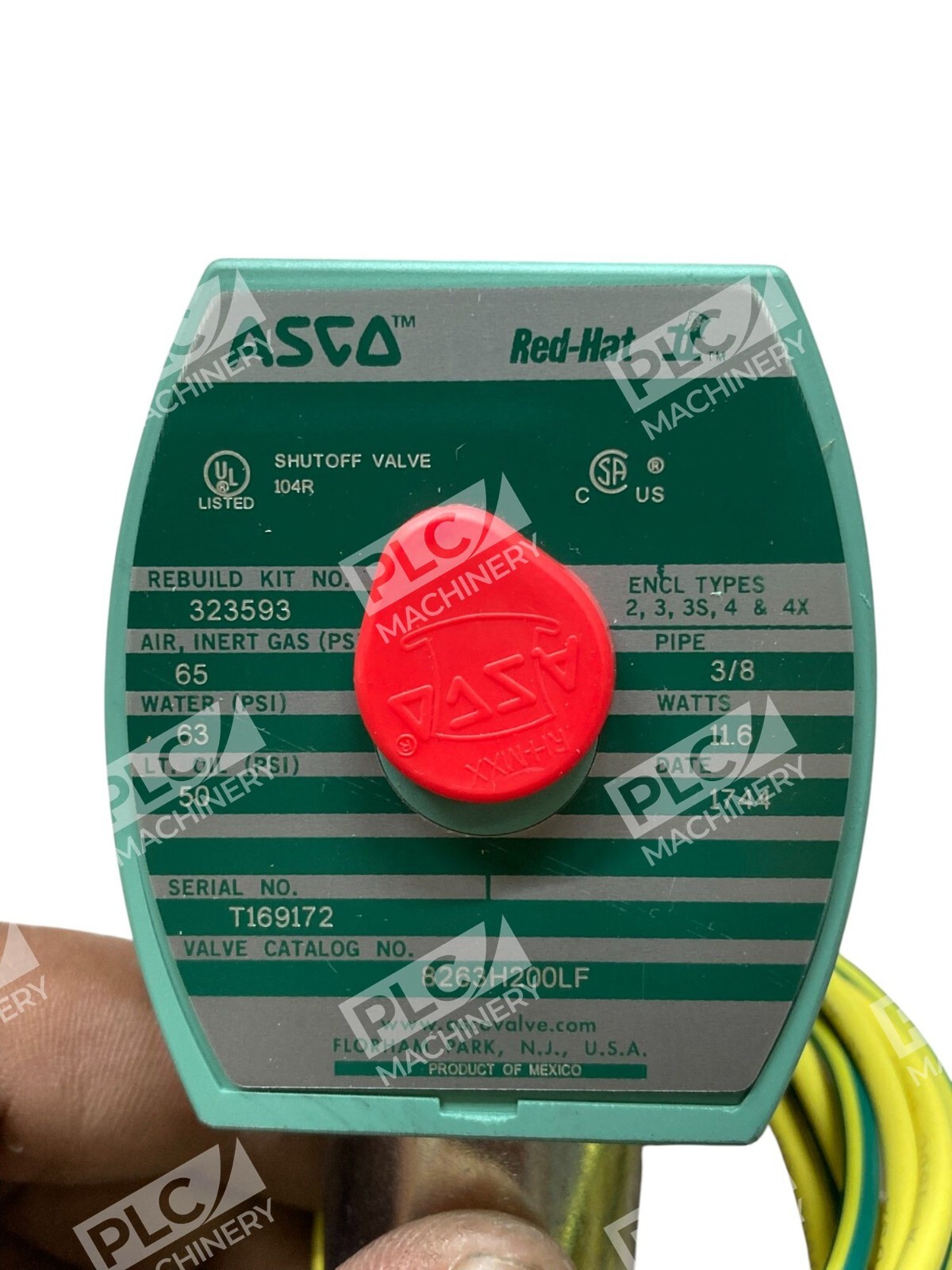

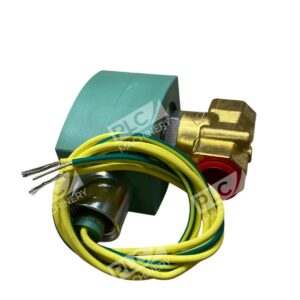

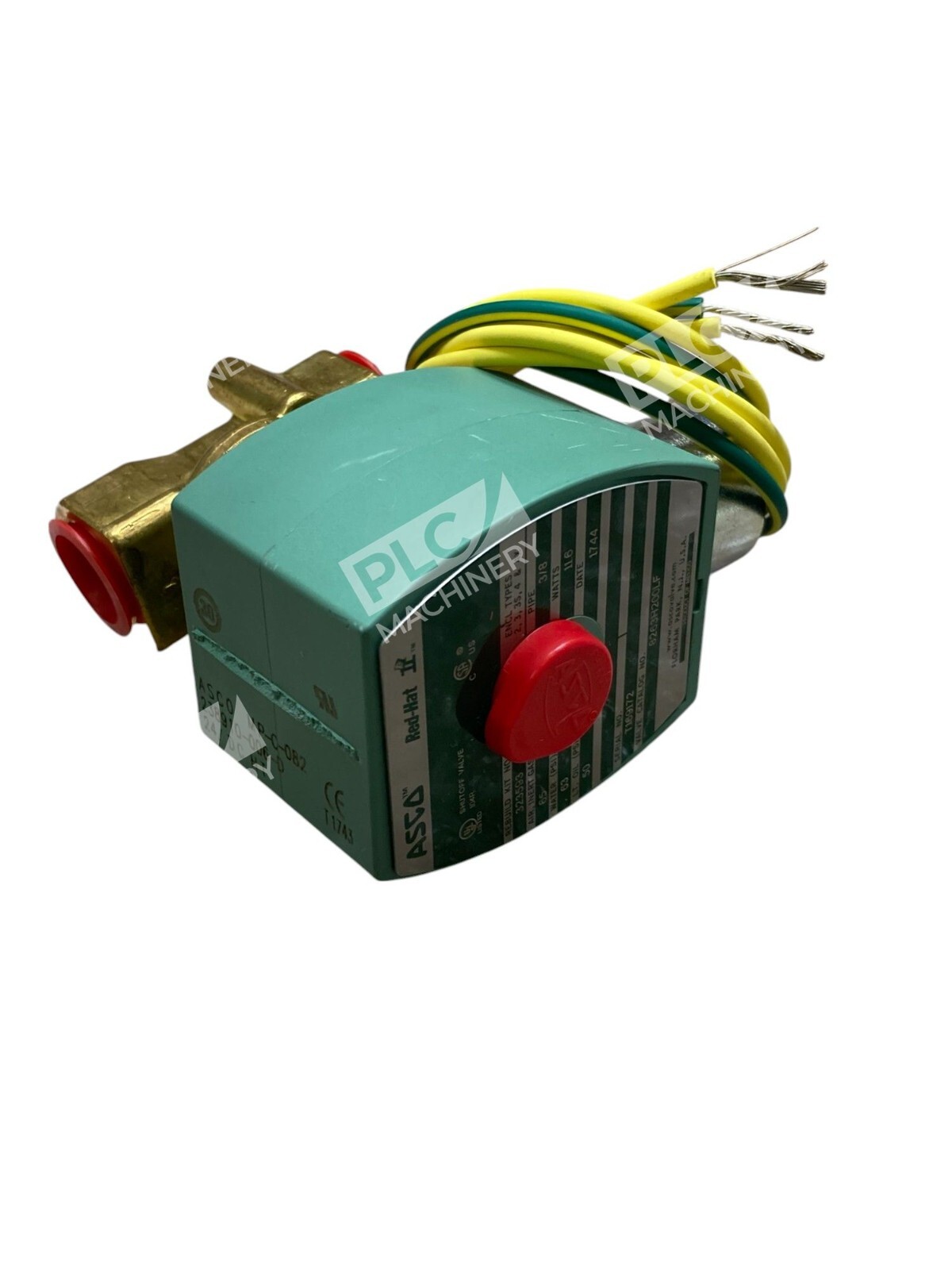

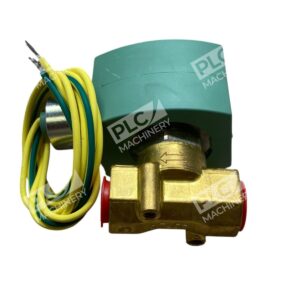

ASCO Red Hat 24V DC 3/8″ 2-Way Solenoid Valve 8263H200LF
The ASCO Red Hat 8263H200LF is a high-performance 2-way solenoid valve designed for precise fluid control in various industrial applications. Operating on a 24V DC power supply, this normally closed valve ensures reliable operation and durability.
Key Features
- Pipe Size: 3/8 inch NPTF
- Orifice Diameter: 5/32 inch
- Body Material: Lead-free brass
- Seal Material: Nitrile Butylene Rubber (NBR)
- Voltage: 24V DC
- Power Consumption: 11.6 watts
- Operating Pressure Differential:
- Air/Inert Gas: 0 to 65 psi
- Light Oil: 0 to 50 psi
- Water: 0 to 63 psi
- Maximum Fluid Temperature: 180°F
- Ambient Temperature Range: -13°F to 131°F
- Electrical Connections: 16-inch leads
- Coil Insulation Class: H
- Enclosure Rating: NEMA 4X, IP65
- Mounting Orientation: Horizontal or vertical
- Compliance: CSA, UL
Applications
This solenoid valve is suitable for controlling the flow of air, inert gases, light oil, and water in various systems, including:
- Boilers
- Burners
- Car wash equipment
- Compressors
- Dishwashing and laundry equipment
- Food processing
- Pumps
Additional Information
The ASCO 8263H200LF features a direct-acting operation type, ensuring quick response times of approximately 1 second. Its lead-free brass construction complies with the Safe Drinking Water Act (SDWA) Section 1417 requirements, making it suitable for potable water applications. The valve’s compact design, with overall dimensions of 1-1/4 inches in length, 1-7/8 inches in width, and 3-7/32 inches in height, allows for easy integration into existing systems.
For optimal performance, ensure the valve is installed in accordance with the manufacturer’s guidelines, and verify compatibility with the specific media and operating conditions of your application.
