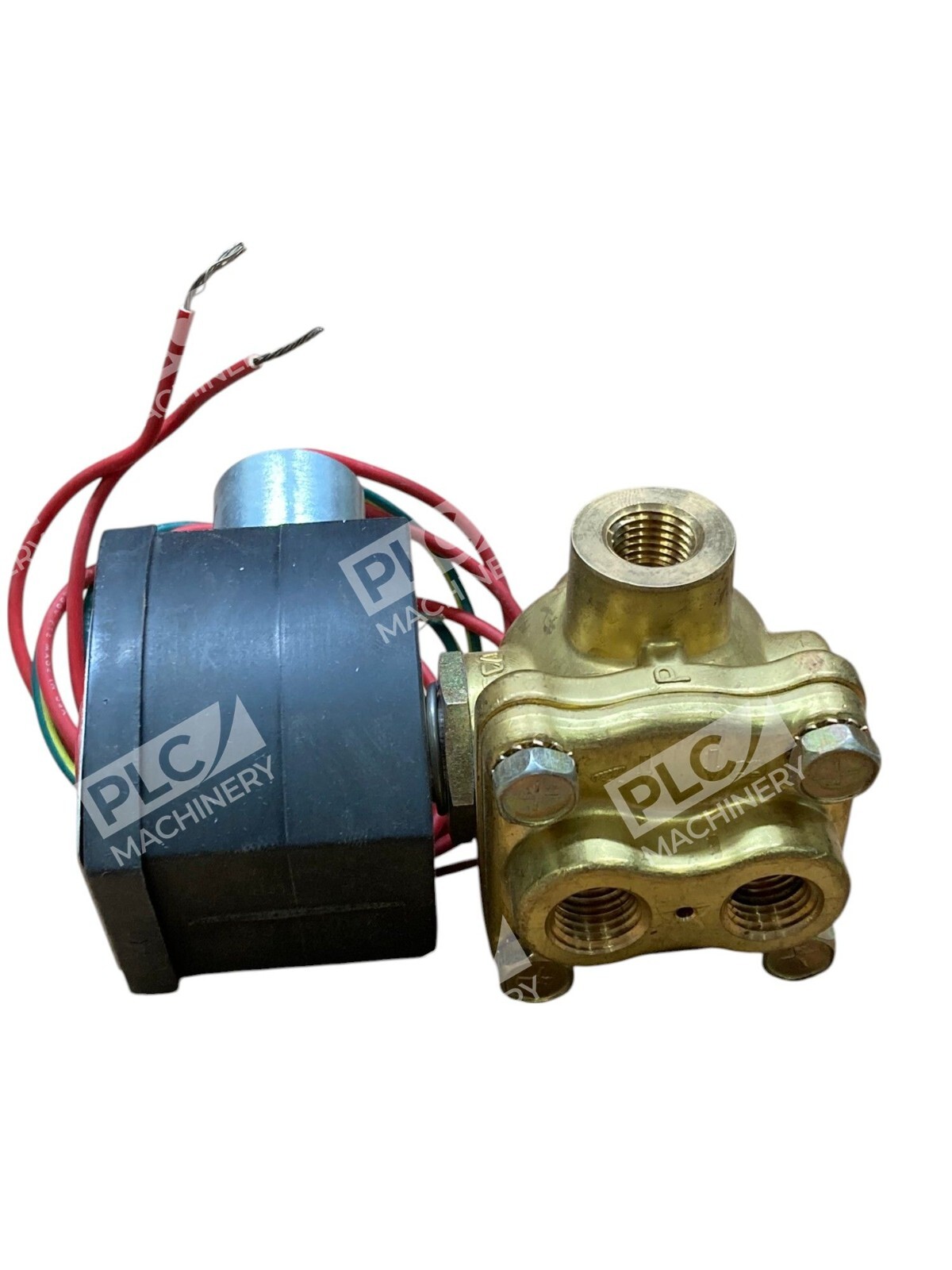

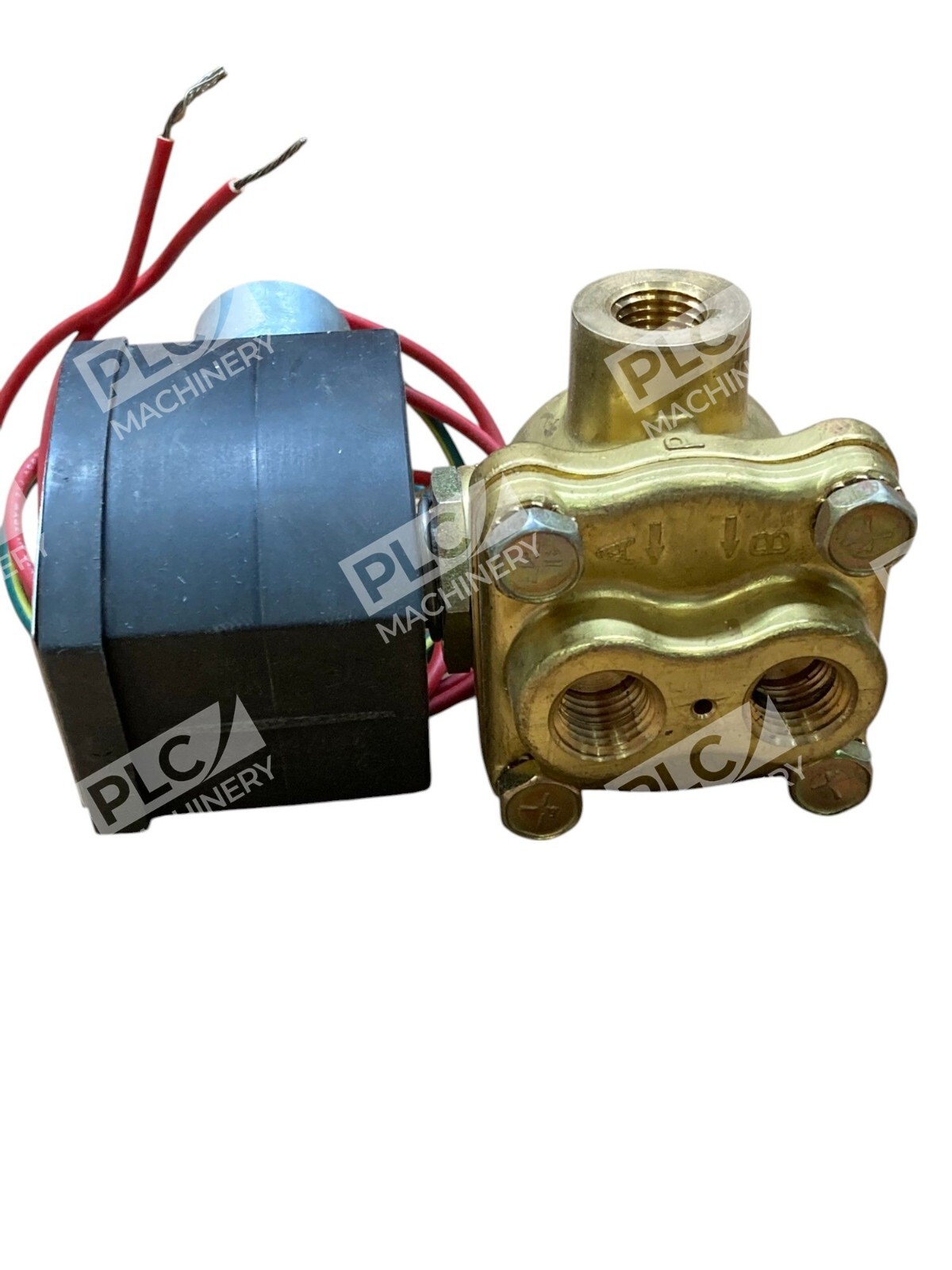

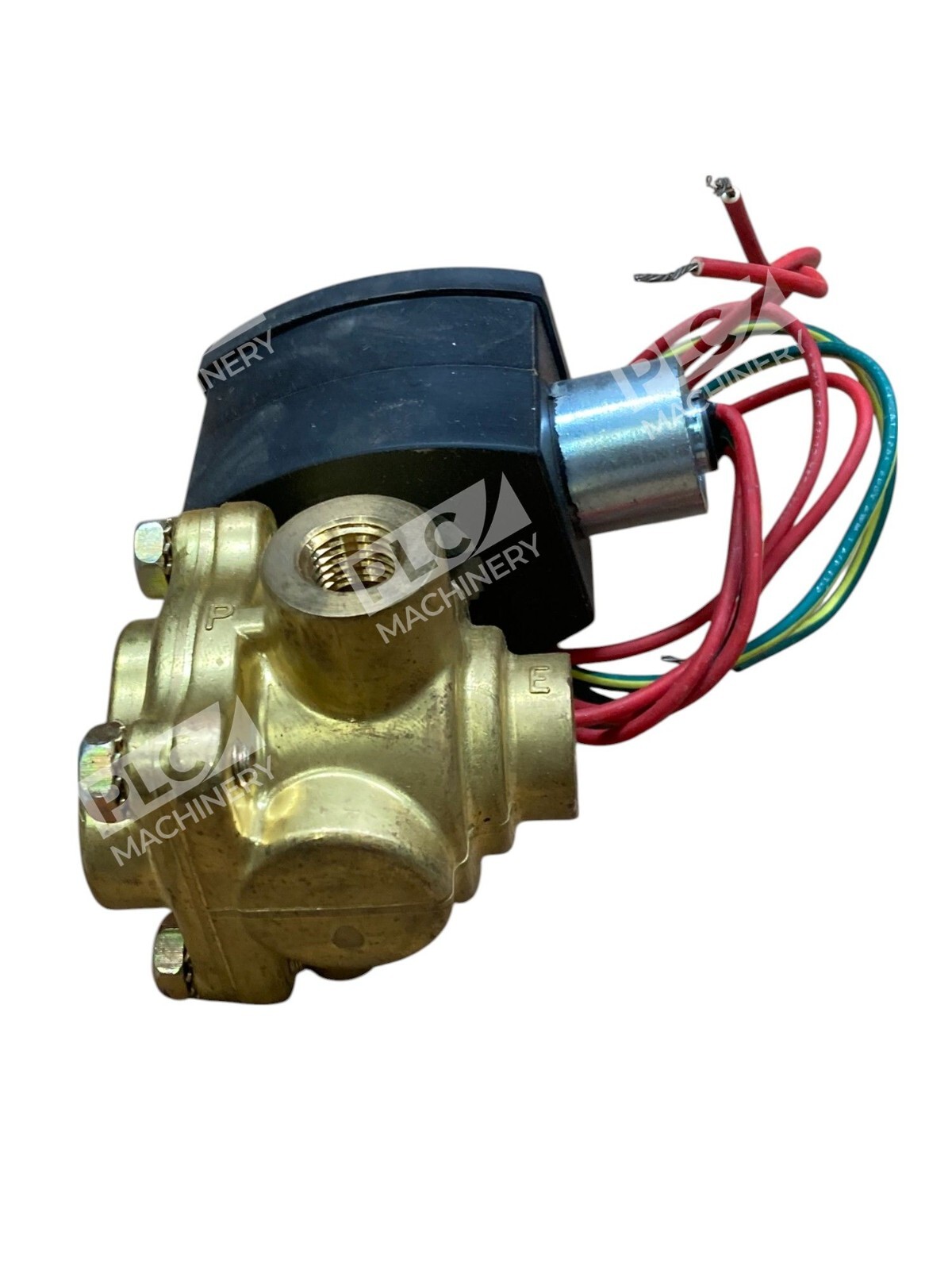

ASCO EF8342G001-240 240V Red Hat Solenoid Valve EF8342G1

ASCO EF8342G001-240 240V Red Hat Solenoid Valve EF8342G1

The ASCO EF8342G001-240 is a high-performance 4-way, 2-position solenoid valve designed for precise control of air, inert gases, water, and light oil. Operating at 240V AC, this valve is part of ASCO’s renowned Red Hat series, known for reliability and efficiency in various industrial applications.

Key Features

• Direct Acting Operation: Ensures immediate response without the need for a minimum operating pressure differential.
• High Flow Slide-Style Design: Provides enhanced flow rates, optimizing system performance.
• Optional Flow Control: Allows independent regulation of cylinder speed in both directions.
• Mechanical Detent on Dual Solenoids: Maintains the last valve position even after loss of electric power, pneumatics, or pressure.
• Flexible Mounting: Can be installed in any position to suit various system configurations.

Technical Specifications

• Body Material: Brass
• Orifice Size: 3/16 inch
• Flow Coefficient (Cv): 0.7
• Maximum Operating Pressure Differential:
  • Air/Inert Gas: 125 psi
  • Water and Light Oil: 100 psi
• Fluid Temperature Range: Up to 160°F
• Coil Insulation Class: F

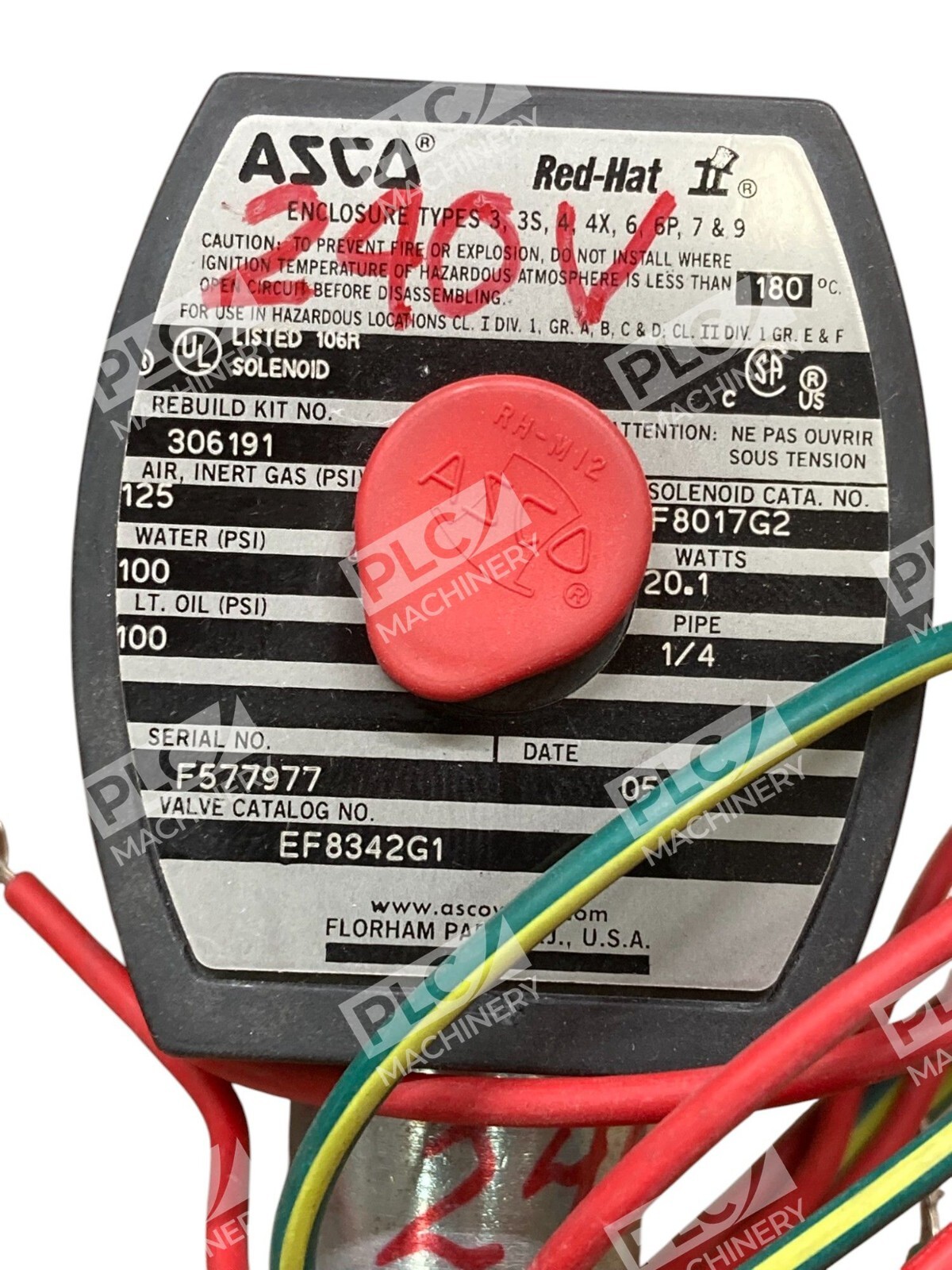

• Enclosure Ratings: NEMA 3, 3S, 4, 4X, 6, 6P, 7, 9

Applications

The ASCO EF8342G001-240 solenoid valve is ideal for use in:

• Analytical and diagnostic equipment
• Biofuel systems
• Dust collector systems
• Heating equipment
• Refining applications

Its robust construction and versatile design make it suitable for demanding industrial environments where reliable fluid control is essential.
