ASCO 8344A71M0 302715M0 Red-Hat

ASCO 8344A71M0 302715M0 Red-Hat Solenoid Valve

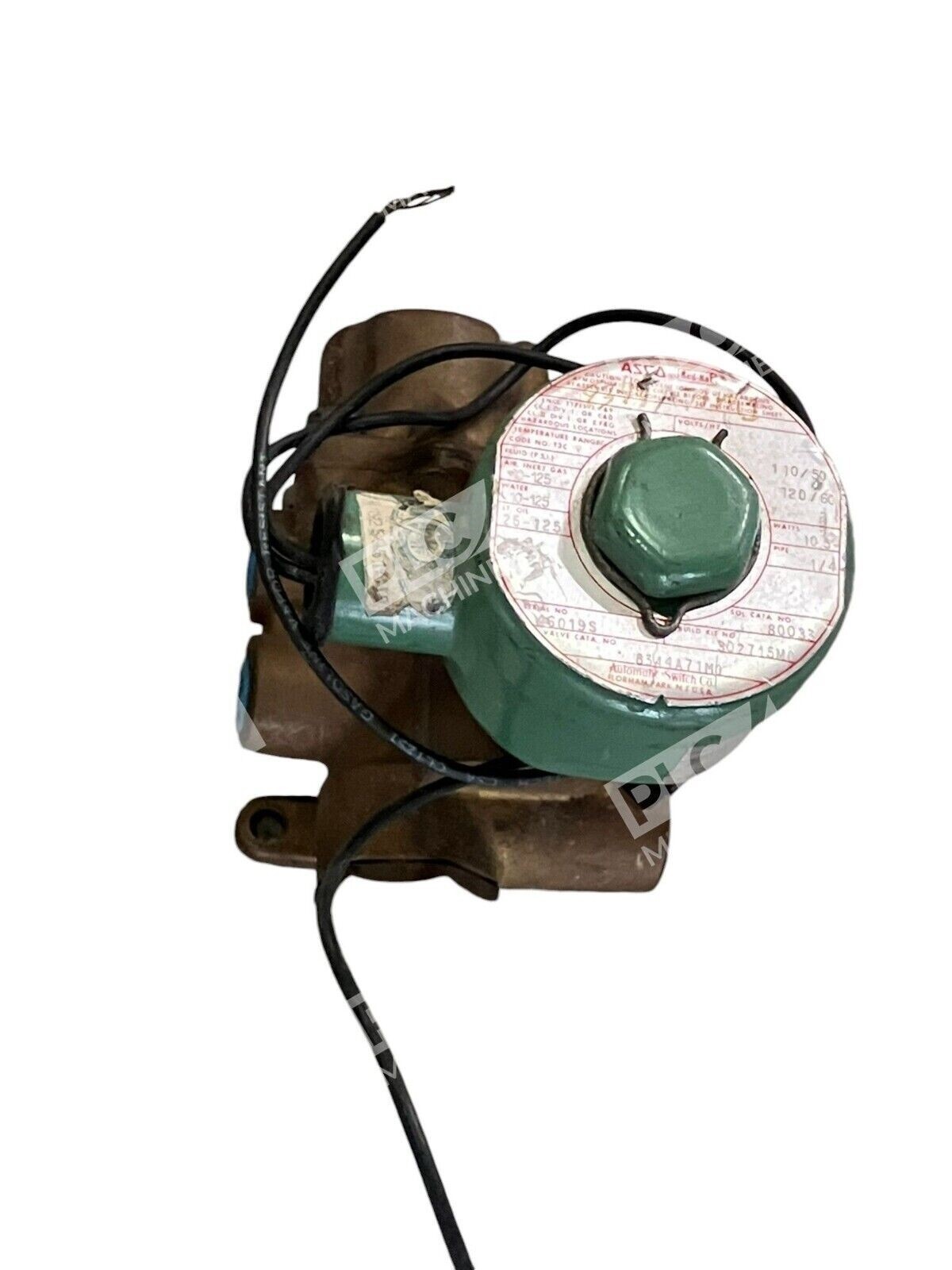

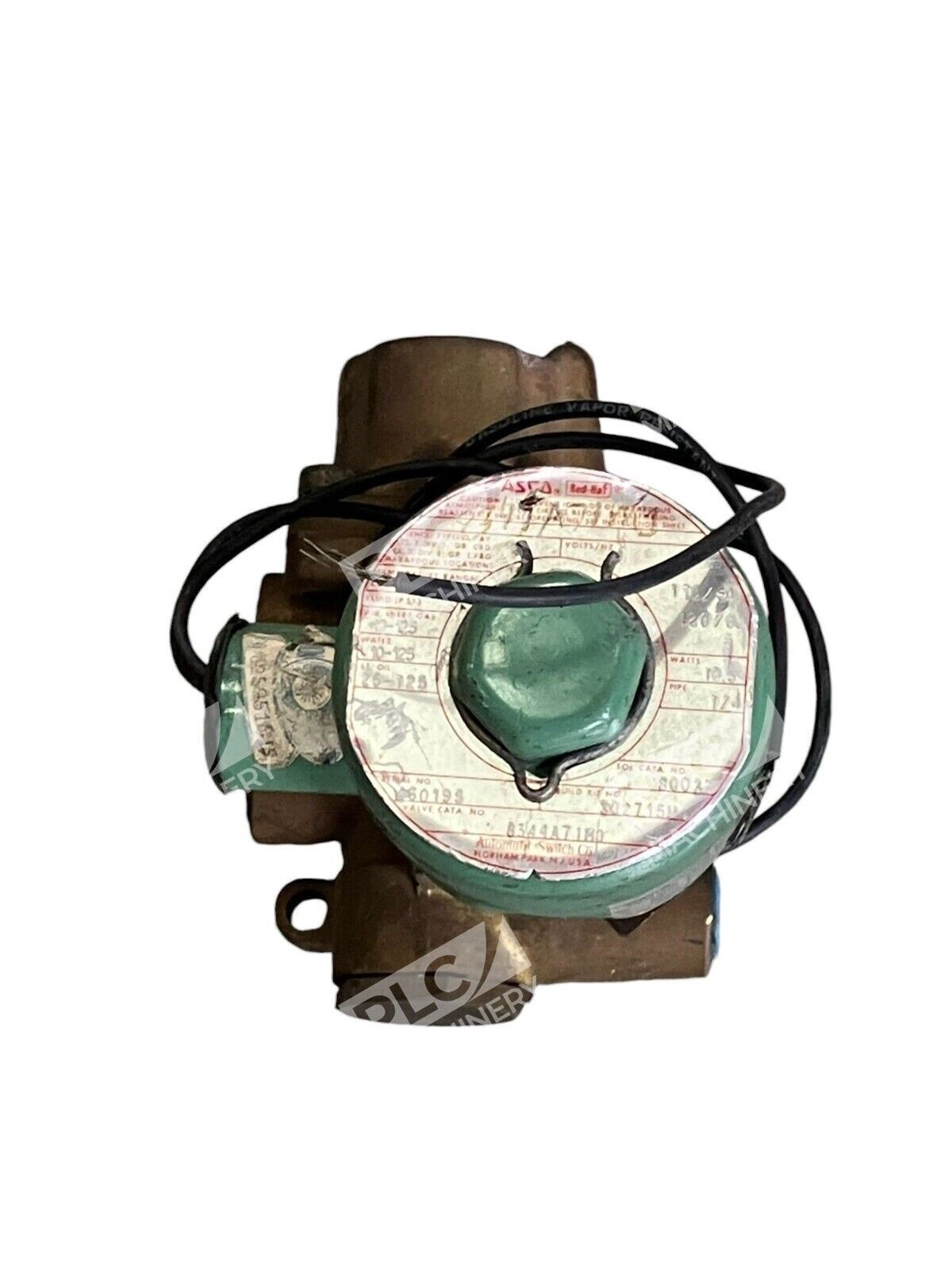

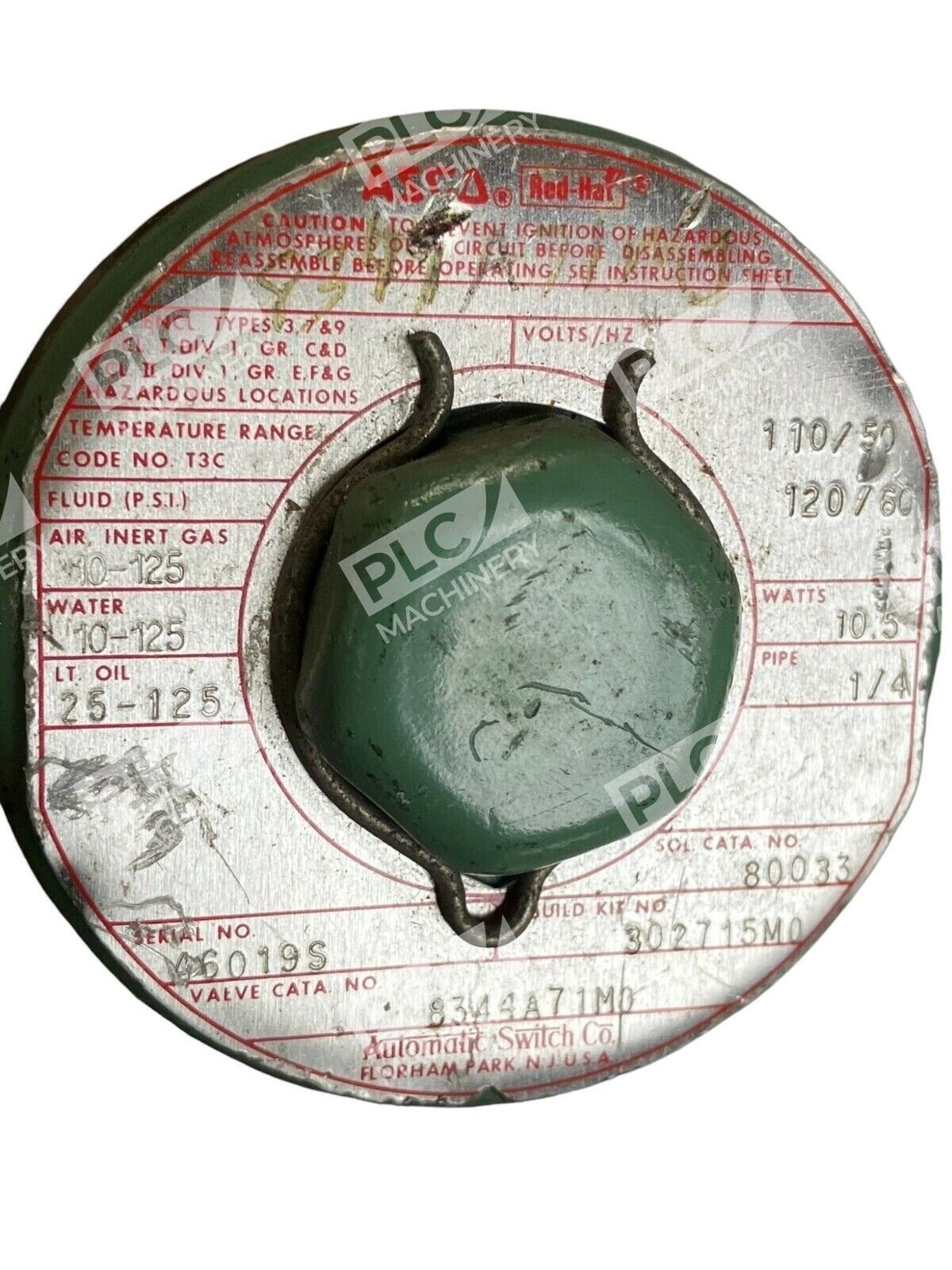

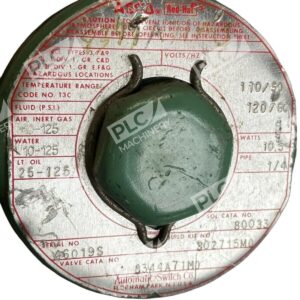

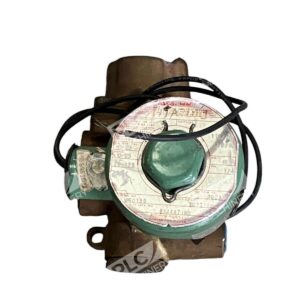

The ASCO 8344A71M0 302715M0 Red-Hat Solenoid Valve is a high-performance, 4-way, 2-position valve designed for precise control of air, inert gases, water, and light oil in various industrial applications. Its robust construction and reliable operation make it an ideal choice for automation systems requiring efficient fluid control.

Key Features

• Valve Type: 4-Way, 2-Position, Single Solenoid
• Pipe Size: 3/4″ NPT
• Orifice Size: 3/4″
• Flow Coefficient (Cv): 5.2 (pressure), 5.6 (exhaust)
• Body Material: Brass
• Seal Material: NBR (Buna-N)
• Operating Pressure:
  • Air/Inert Gas: 10-150 PSI
  • Water: 10-125 PSI
  • Light Oil: 25-125 PSI
• Flow Rate:
  • Water: 16.5-58 GPM
  • Air: 71-512 SCFM
  • Light Oil: 28-61 GPM
• Coil Type: General Purpose/Watertight, Dusttight, Corrosion Resistant
• Enclosure Rating: NEMA Types 1, 2, 3, 3S, 4, & 4X
• Coil Voltage: 120V/60Hz
• Power Consumption: 10.1 Watts
• Coil Insulation Class: F
• Ambient Temperature Range: 32°F to 125°F (Nominal), Minimum 0°F where freezing water is not a factor
• Maximum Media Temperature: 180°F
• Electrical Connection: 1/2″ Conduit Hub with 18″ Lead Wires
• Agency Approvals: UL Listed, CSA Certified, CE

Applications

The ASCO 8344A71M0 302715M0 Red-Hat Solenoid Valve is suitable for a wide range of applications, including:

• Pneumatic and hydraulic system control
• Industrial automation and fluid power systems
• Water and wastewater treatment
• HVAC and air compressor systems
• Oil, gas, and petrochemical fluid handling
• Process control and material handling systems

Installation and Maintenance

For optimal performance, ensure the valve is installed in accordance with the manufacturer’s guidelines. Regular maintenance is recommended to maintain efficiency and prolong the valve’s service life.

For more information or to request a quote, please contact your authorized ASCO distributor.
