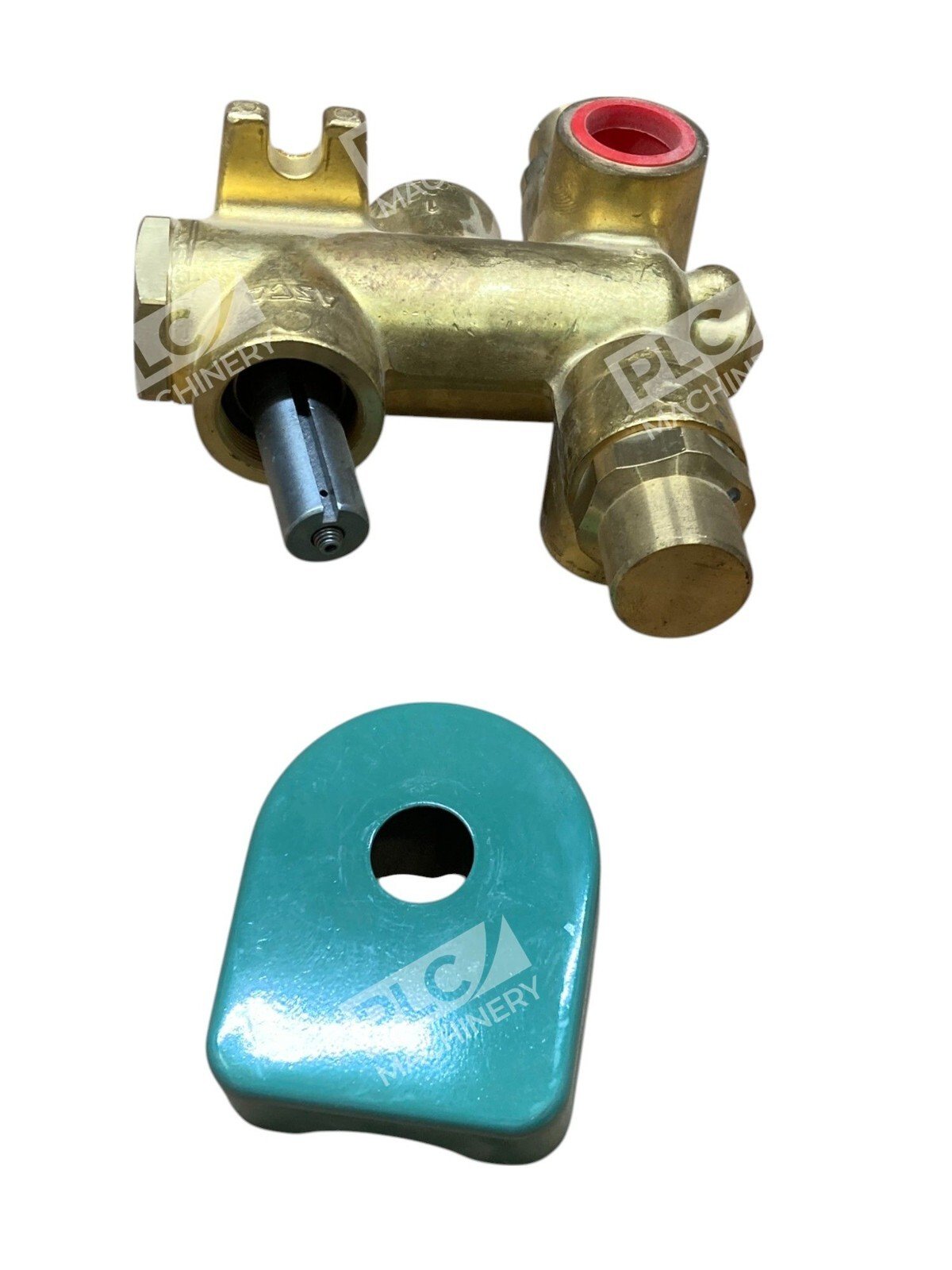

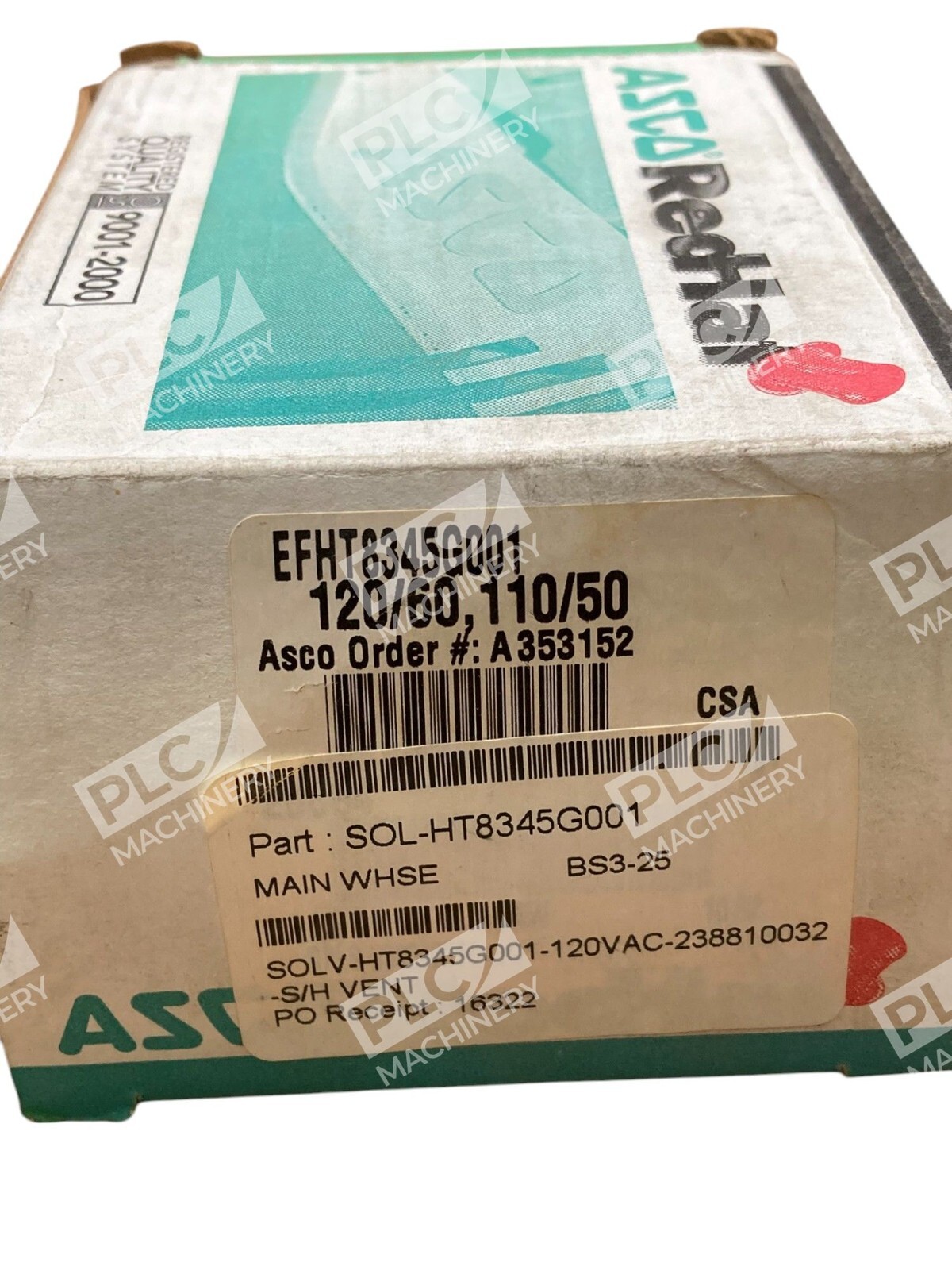

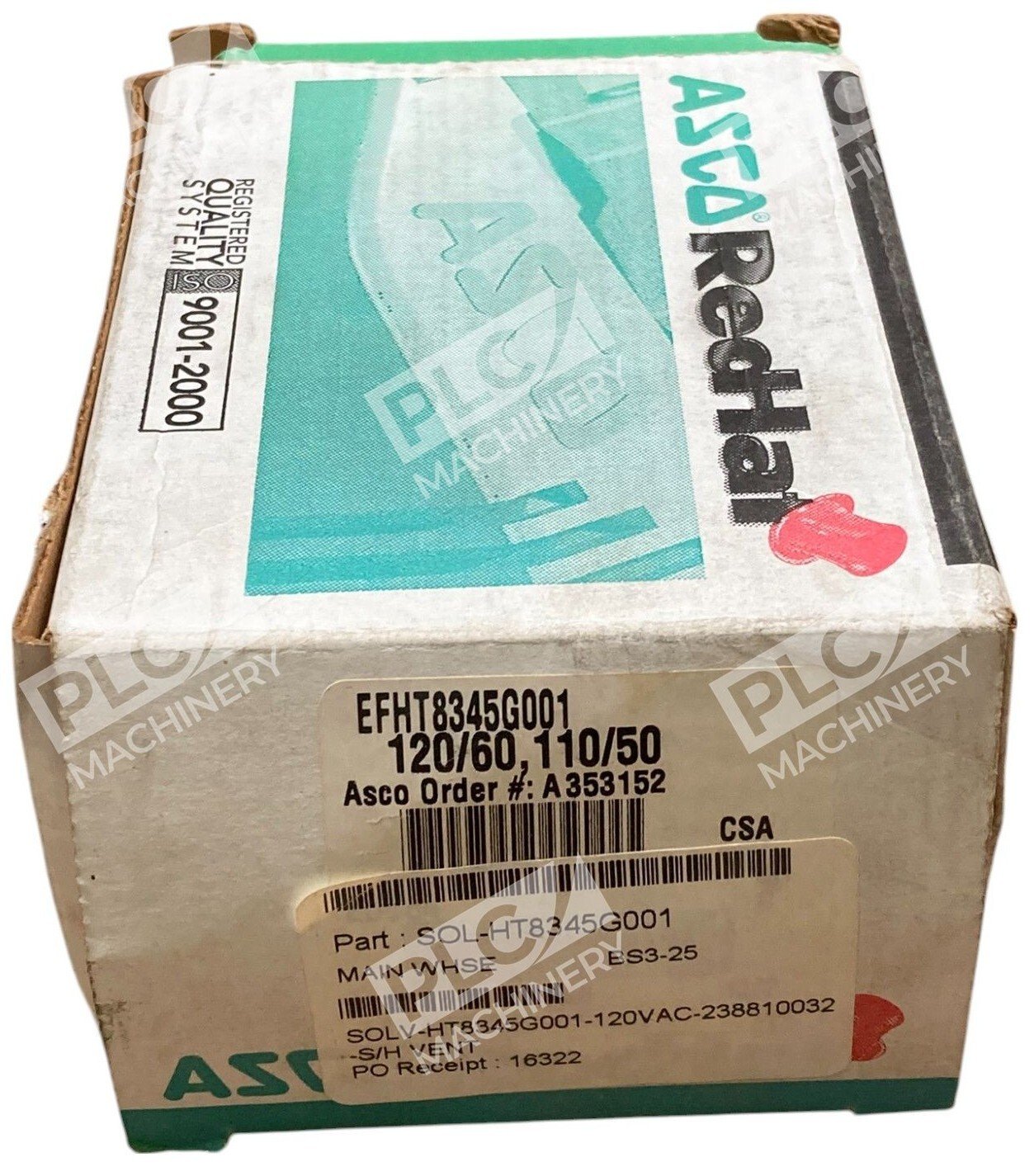

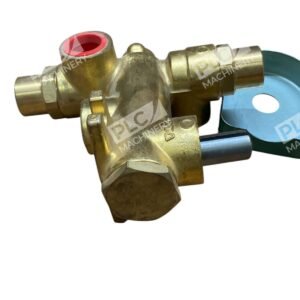

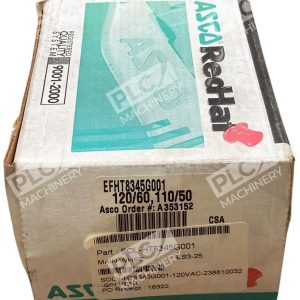

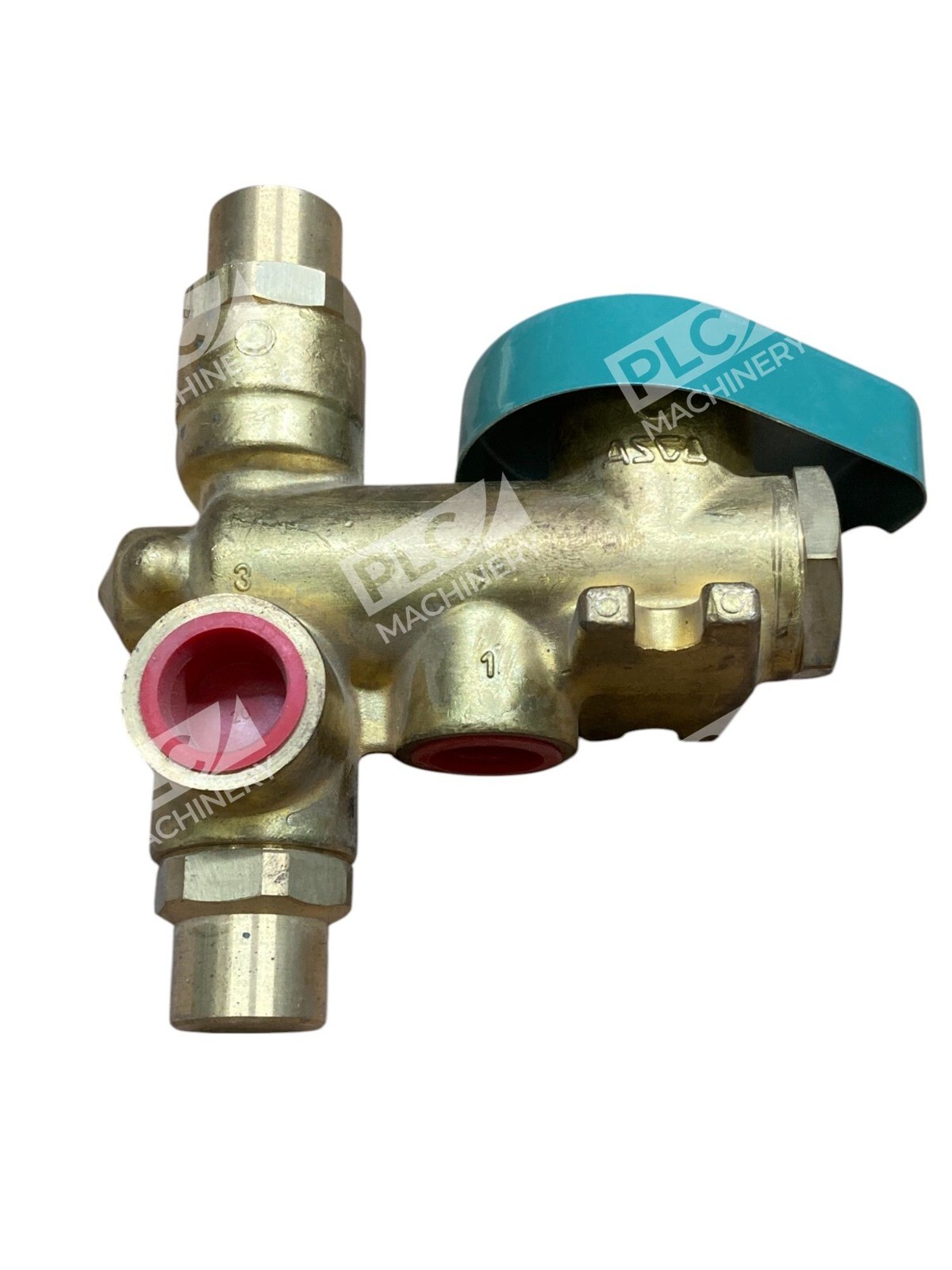

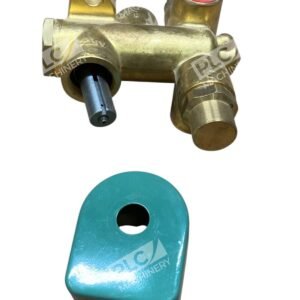

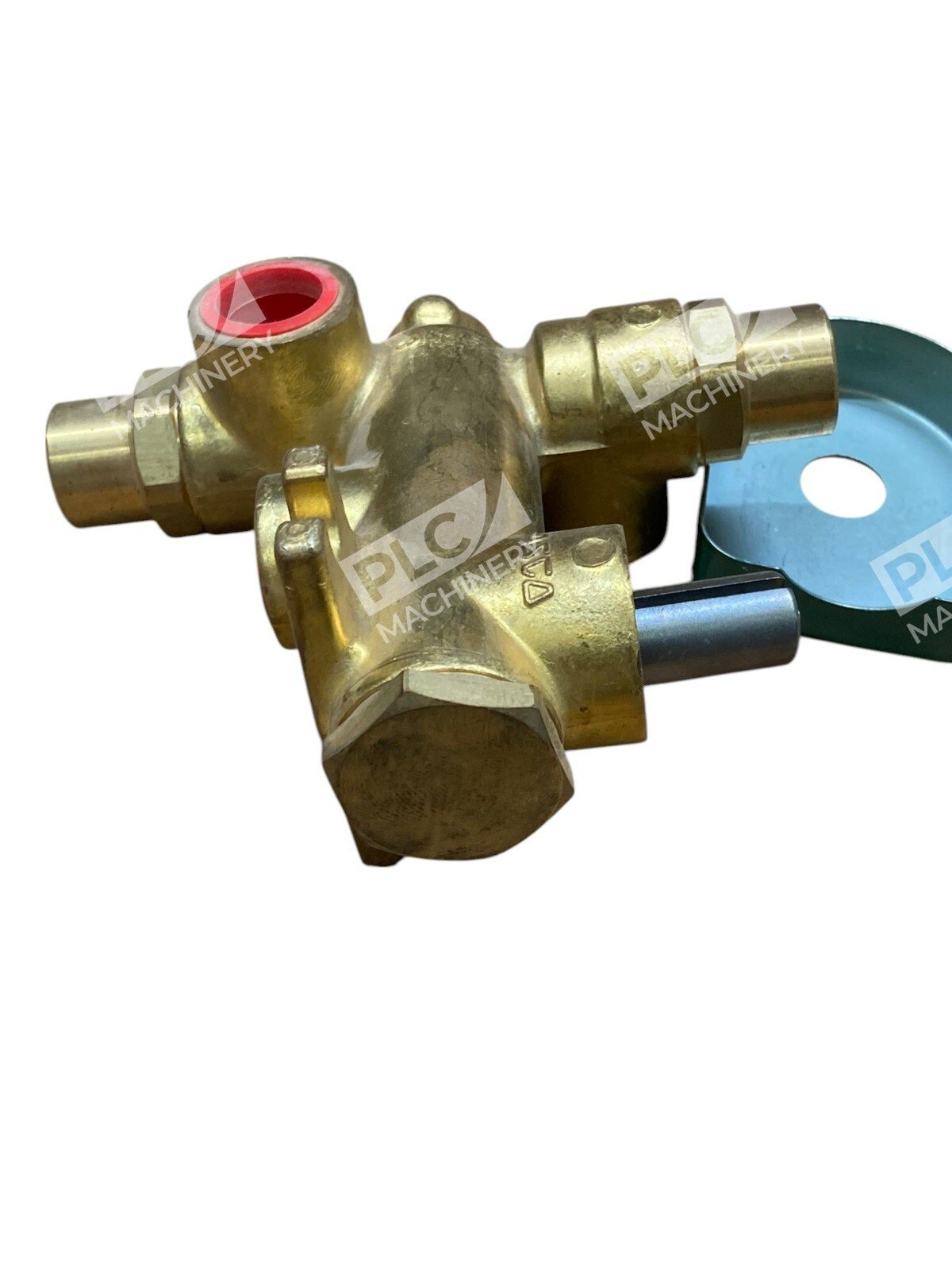

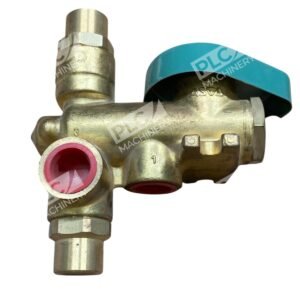

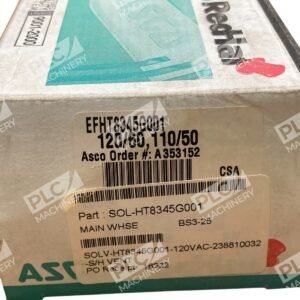

ASCO Red Hat Valve EFHT8345G001
The ASCO Red Hat Valve EFHT8345G001 is a compact, pilot-operated, 4-way solenoid valve designed for general service applications. Its robust construction and versatile design make it suitable for controlling small double-acting cylinders up to 4 inches in diameter.
Key Features
- Compact Design: Ideal for low-flow applications where space and weight are critical considerations.
- Versatile Mounting: Can be installed in any position, offering flexibility in various system configurations.
- Durable Construction: Available with brass or stainless steel bodies to accommodate a wide range of applications.
- Explosion-Proof Enclosure: Equipped with a NEMA-rated enclosure suitable for hazardous environments.
Specifications
- Pipe Size: 1/4 inch NPT
- Orifice Size: 1/16 inch
- Flow Coefficient (Cv): 0.09
- Operating Pressure: 10 to 150 psi for air, inert gas, water, and light oil
- Fluid Temperature Range: Up to 180°F
- Voltage Options: 120V AC at 60Hz or 110V AC at 50Hz
- Power Consumption: 10.1 watts
- Coil Insulation Class: F
- Enclosure Ratings: NEMA 3, 3S, 4, 4X, 6, 6P, 7, 9
- Approvals: UL, CSA, CE
Applications
The EFHT8345G001 valve is commonly utilized in:
- Analytical and diagnostic equipment
- Biofuel and heating systems
- Refineries
Its reliable performance and compact size make it an excellent choice for systems requiring precise control in limited spaces.
