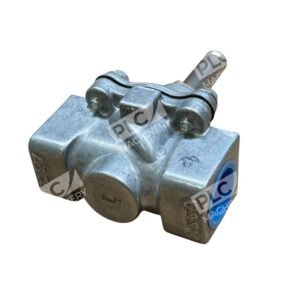

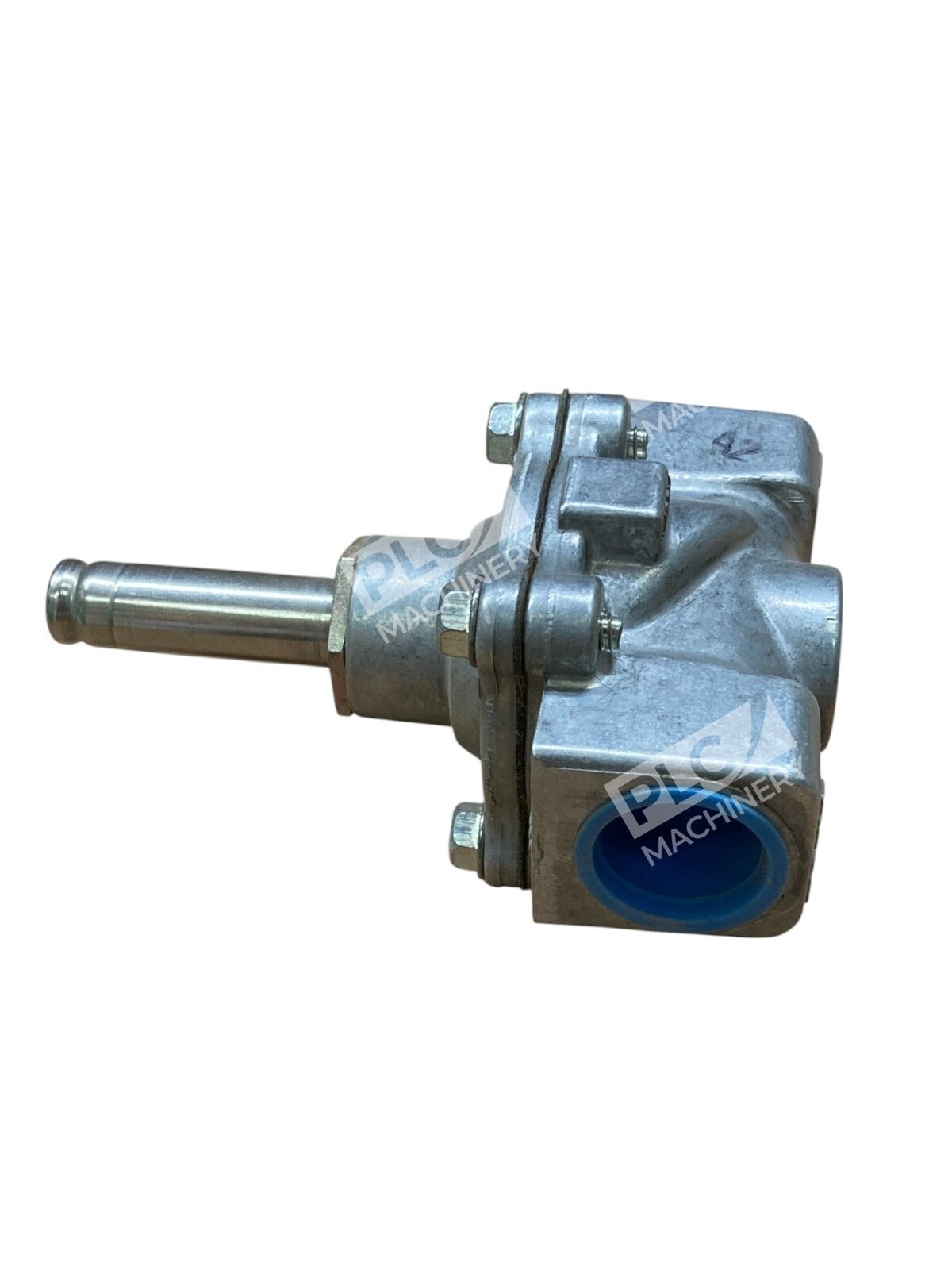

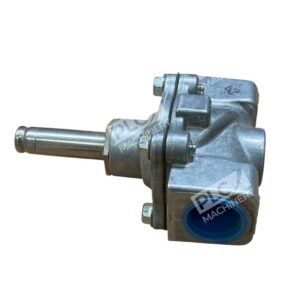

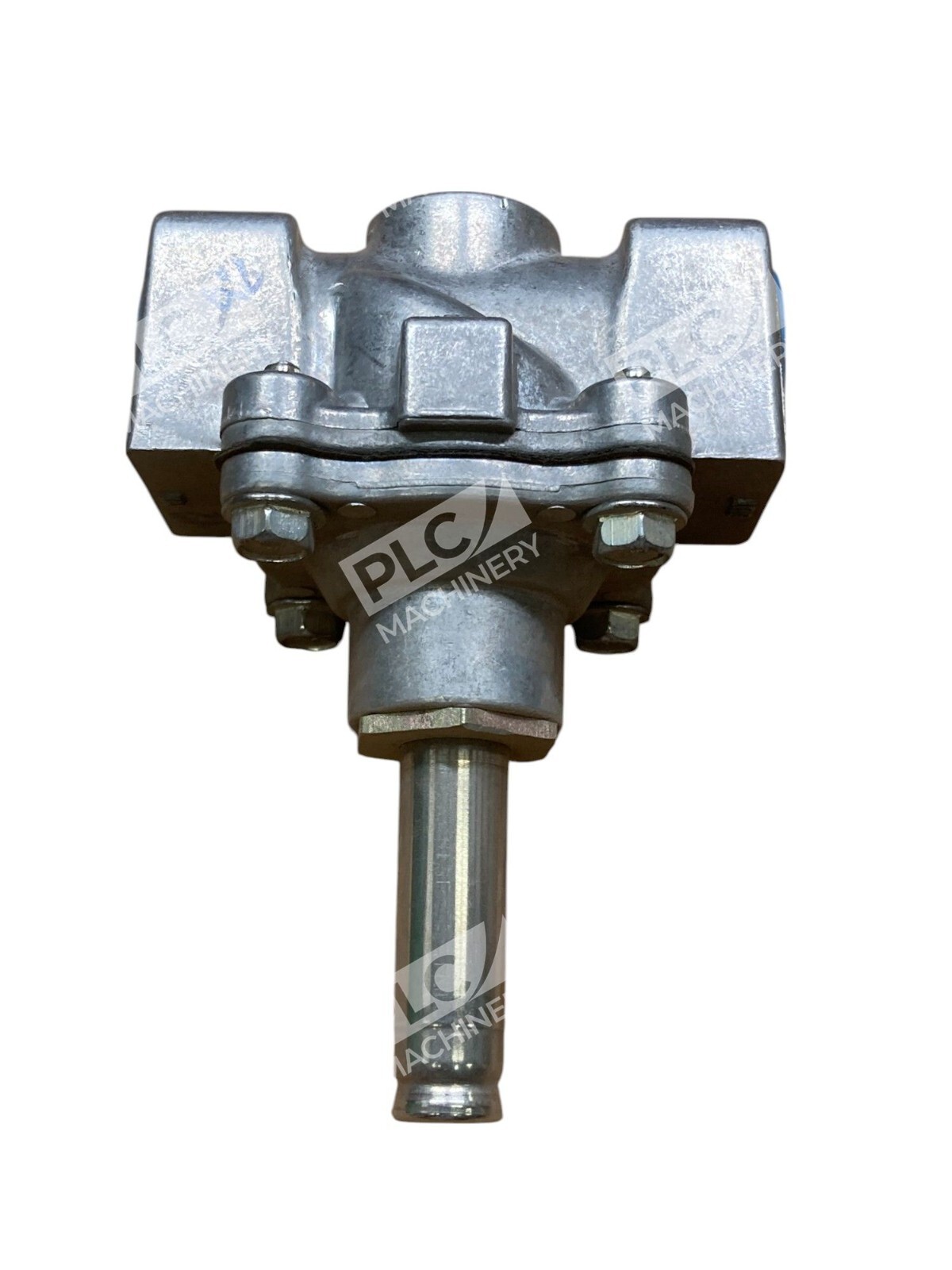

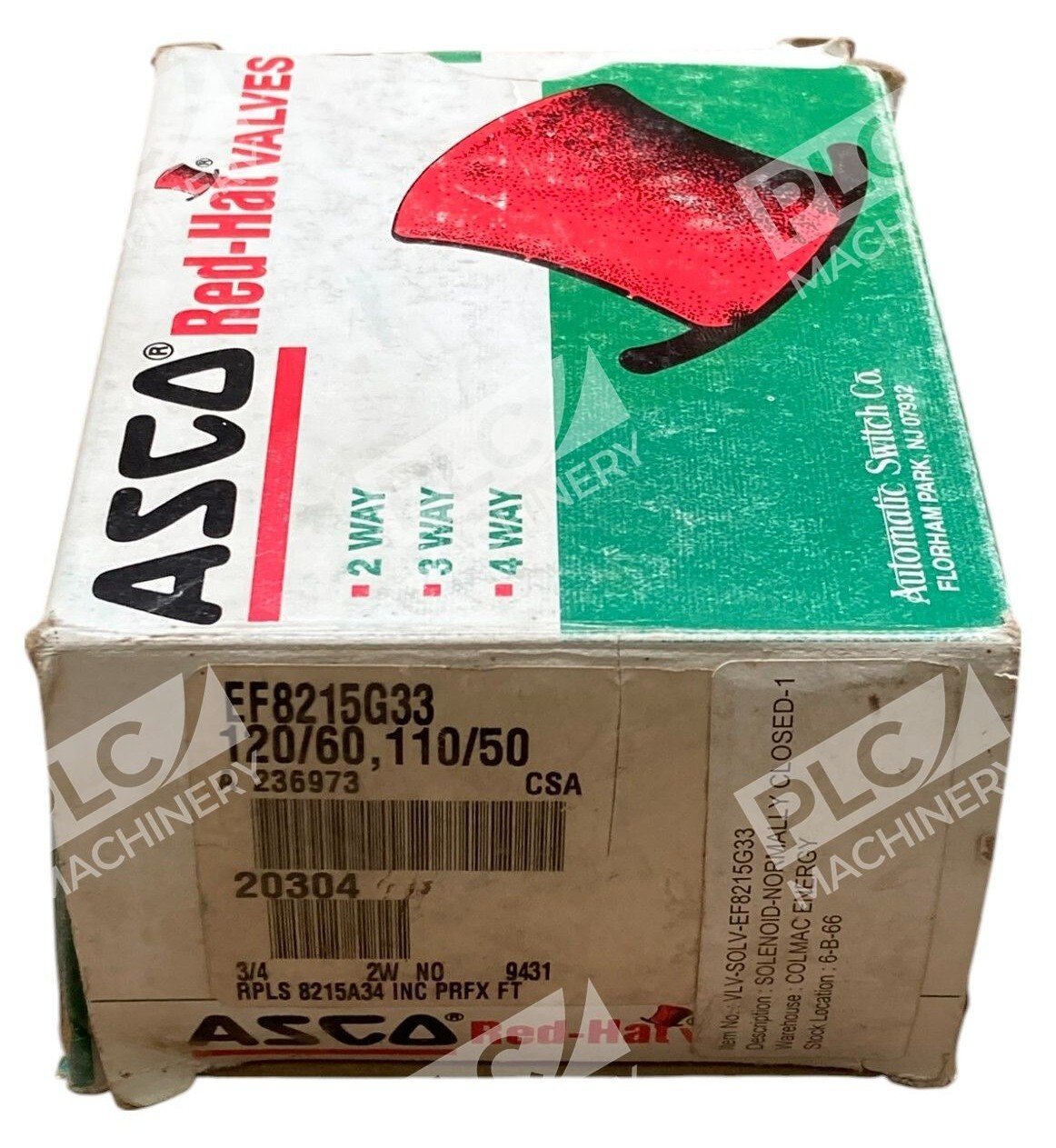

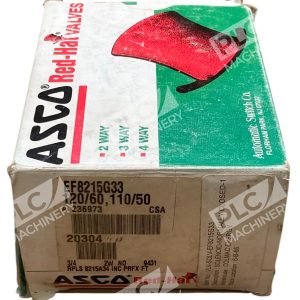

ASCO EF8215G33 3/4″ 2-Way Normally Open Red Hat Solenoid Valve
The ASCO EF8215G33 is a 3/4-inch, 2-way, normally open solenoid valve designed for high-flow, low-pressure air and gas applications. Its lightweight aluminum construction and direct-acting mechanism make it ideal for various industrial uses, including air service and vacuum systems.
Key Features
- High Flow Capacity: With a flow coefficient (Cv) of 4.6, the valve ensures efficient handling of large volumes of air or gas.
- Direct Acting Mechanism: Provides immediate operation without the need for a minimum pressure differential, enhancing responsiveness.
- Lightweight Aluminum Body: Reduces installation strain and material costs while offering durability.
- Versatile Media Compatibility: Suitable for air, inert gases, and vacuum services, making it adaptable to various applications.
- Temperature Resilience: Operates effectively within a temperature range of 32°F to 125°F (0°C to 52°C).
Technical Specifications
- Valve Type: 2-Way, Normally Open
- Pipe Size: 3/4″ NPT
- Orifice Size: 3/4 inch
- Flow Coefficient (Cv): 4.6
- Operating Pressure Range: 0 to 125 psi
- Body Material: Aluminum
- Seal Material: Nitrile (NBR)
- Coil Insulation Class: F
- Voltage Options: 120V AC at 60 Hz; 110V AC at 50 Hz
- Power Consumption: 10.1 W
- Enclosure Rating: NEMA 1, 2, 3, 3S, 4, 4X
- Temperature Range: 32°F to 125°F (0°C to 52°C)
- Dimensions: 3.31 in L x 2.36 in W x 4.86 in H
- Weight: 1.17 lbs
Applications
- Air Service Systems: Efficiently controls airflow in pneumatic applications.
- Vacuum Systems: Suitable for vacuum service, providing reliable operation in low-pressure environments.
- Industrial Gas Burners: Manages gas flow in combustion systems.
- HVAC Equipment: Regulates airflow for heating and cooling systems.
Compliance and Certifications
- Standards Met: CE, CSA, FM, UL
The ASCO EF8215G33 solenoid valve combines high flow capacity with a compact, lightweight design, making it a versatile and reliable choice for various industrial applications requiring efficient air and gas control.
