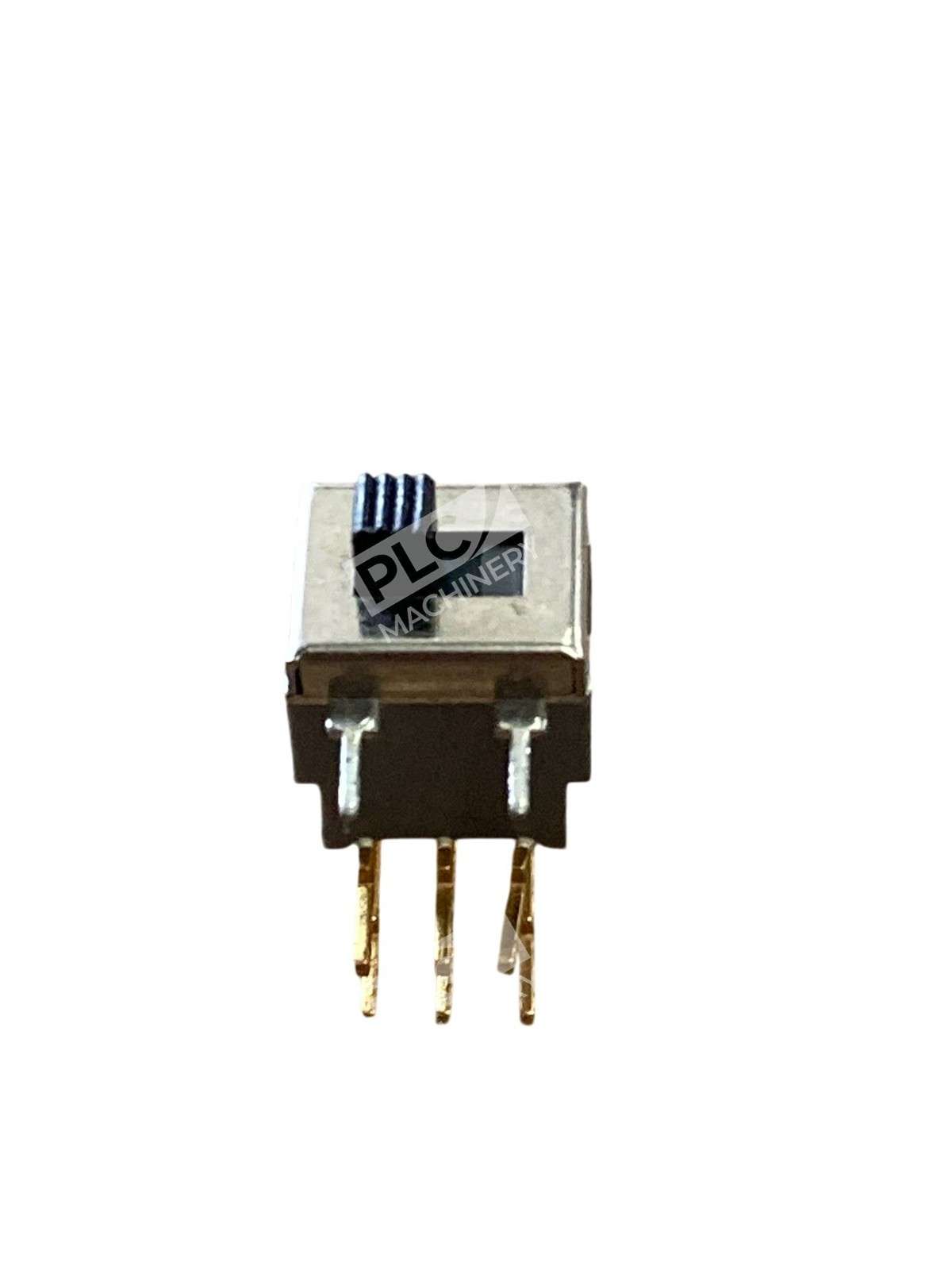

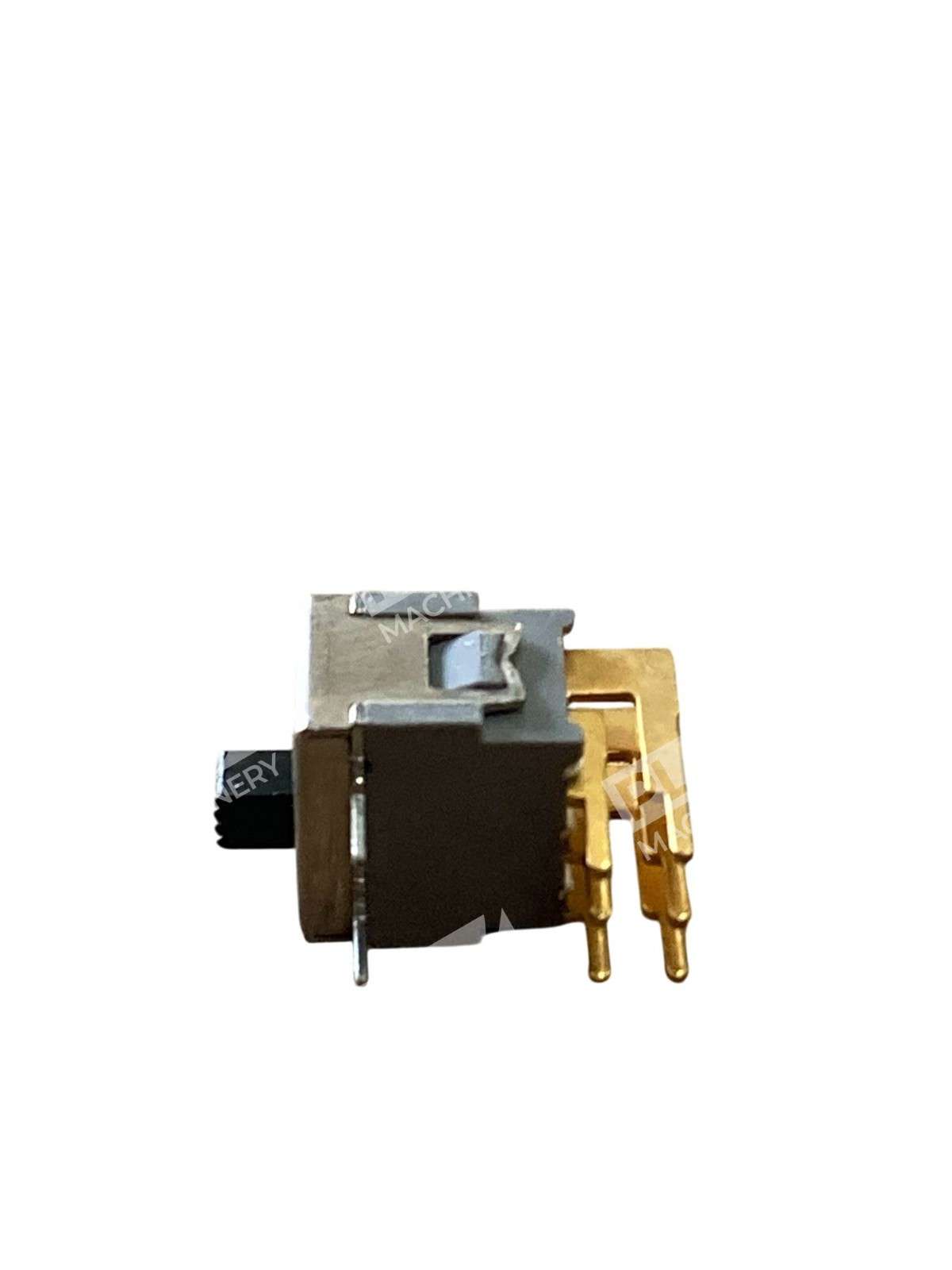

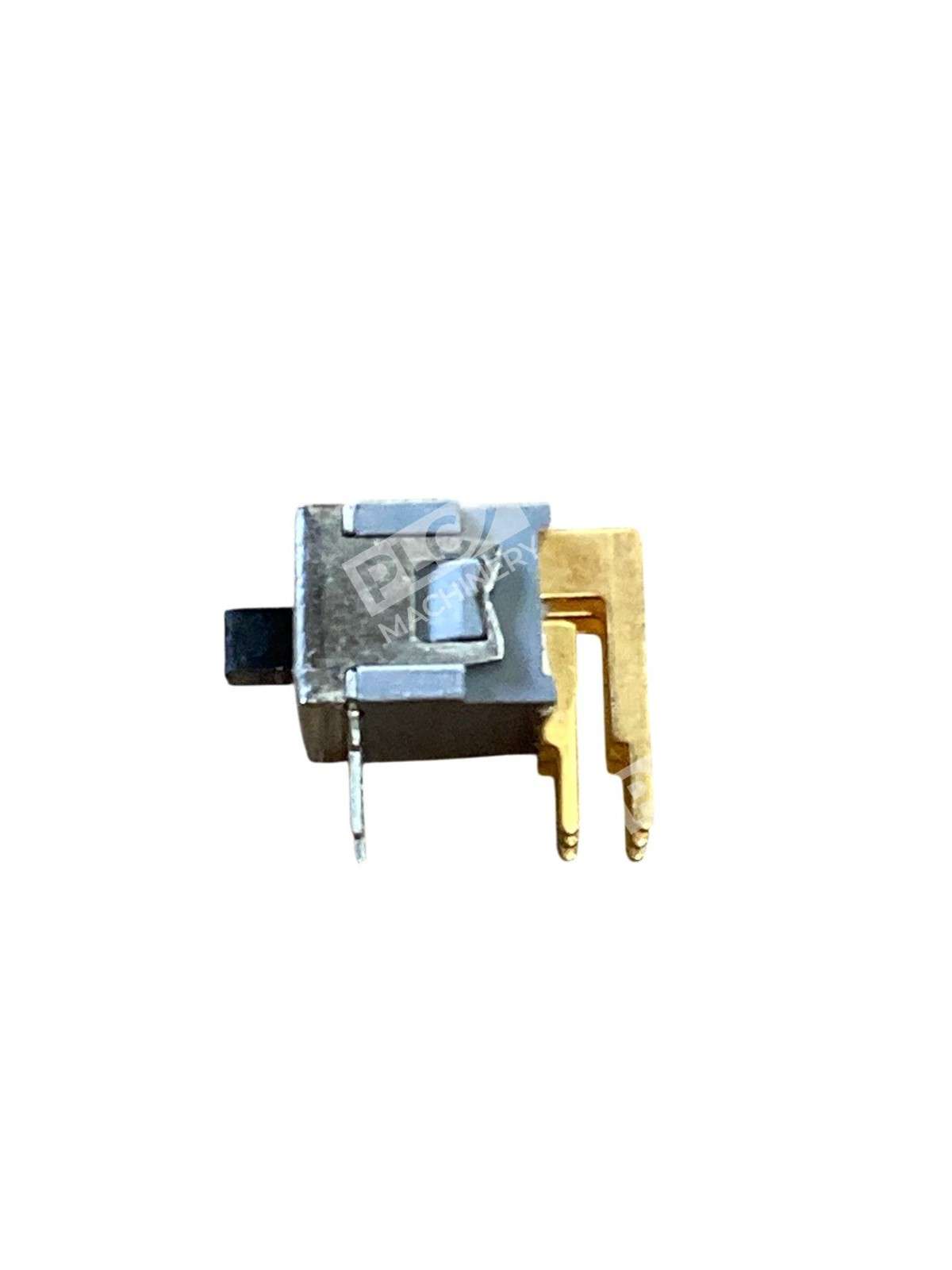

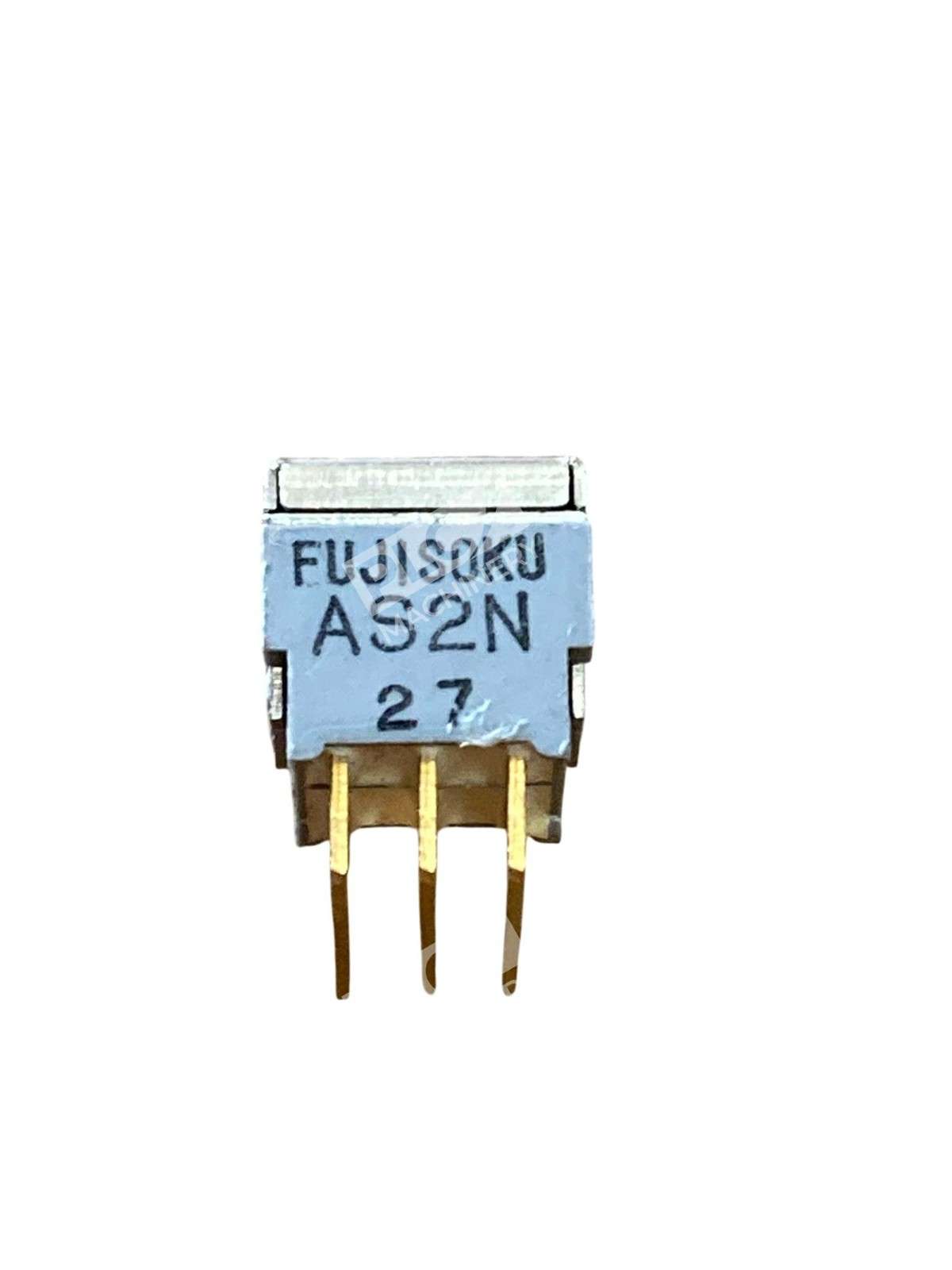

Fujisoku AS2N-27 DPDT On-On Hyper-Miniature Slide Switch The Fujisoku AS2N-27 is a hyper-miniature slide switch engineered for precise and reliable operation in compact electronic applications. Its Double Pole Double Throw (DPDT) configuration with an On-On switching function makes it ideal for circuits requiring dual independent signal paths. Key Features High Contact Reliability: Utilizes a twin-contact clip mechanism to ensure consistent and dependable electrical connections. Gold-Plated Contacts: Optimized for low current applications, the gold plating enhances conductivity and resistance to corrosion. PCB Mounting: Designed for straightforward integration onto printed circuit boards, facilitating efficient assembly processes. Enhanced Operability: An independent detent structure provides a light and tactile operating feel, improving user experience. Specifications Electrical Rating: 0.4 VA AC/DC Voltage Range: 20 mV to 60 V Current Range: 1 ?A to 50 mA Maximum Rating: 60 VAC/DC at 50 mA Minimum Rating: 20 mV AC/DC at 1 ?A Initial Contact Resistance: 50 m? max. (measured at 1.5 mA, 200 ?V AC) Dielectric Strength: 250 VAC for 1 minute Insulation Resistance: 500 M? min. (at 500 VDC) Electrical Life: 10,000 cycles at maximum rating; 50,000 cycles at minimum rating or 0.4 VA Operating Force: 0.69 to 4.9 N Operating Temperature Range: -20°C to +85°C Storage Temperature Range: -40°C to +85°C Applications The AS2N-27 switch is suitable for a variety of applications, including: Telecommunication devices Computer peripherals Instrumentation equipment Medical devices Its compact size and reliable performance make it an excellent choice for designs where space is limited, and dependable switching is essential.
