Artesyn Input 36-75VDC/1.5A DC/DC Converter BXA40-48T05-12-M

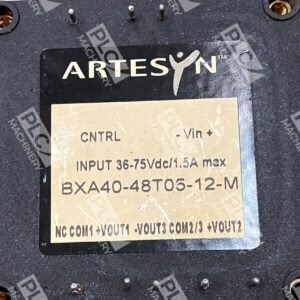

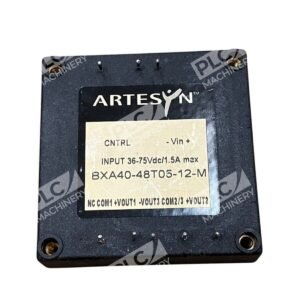

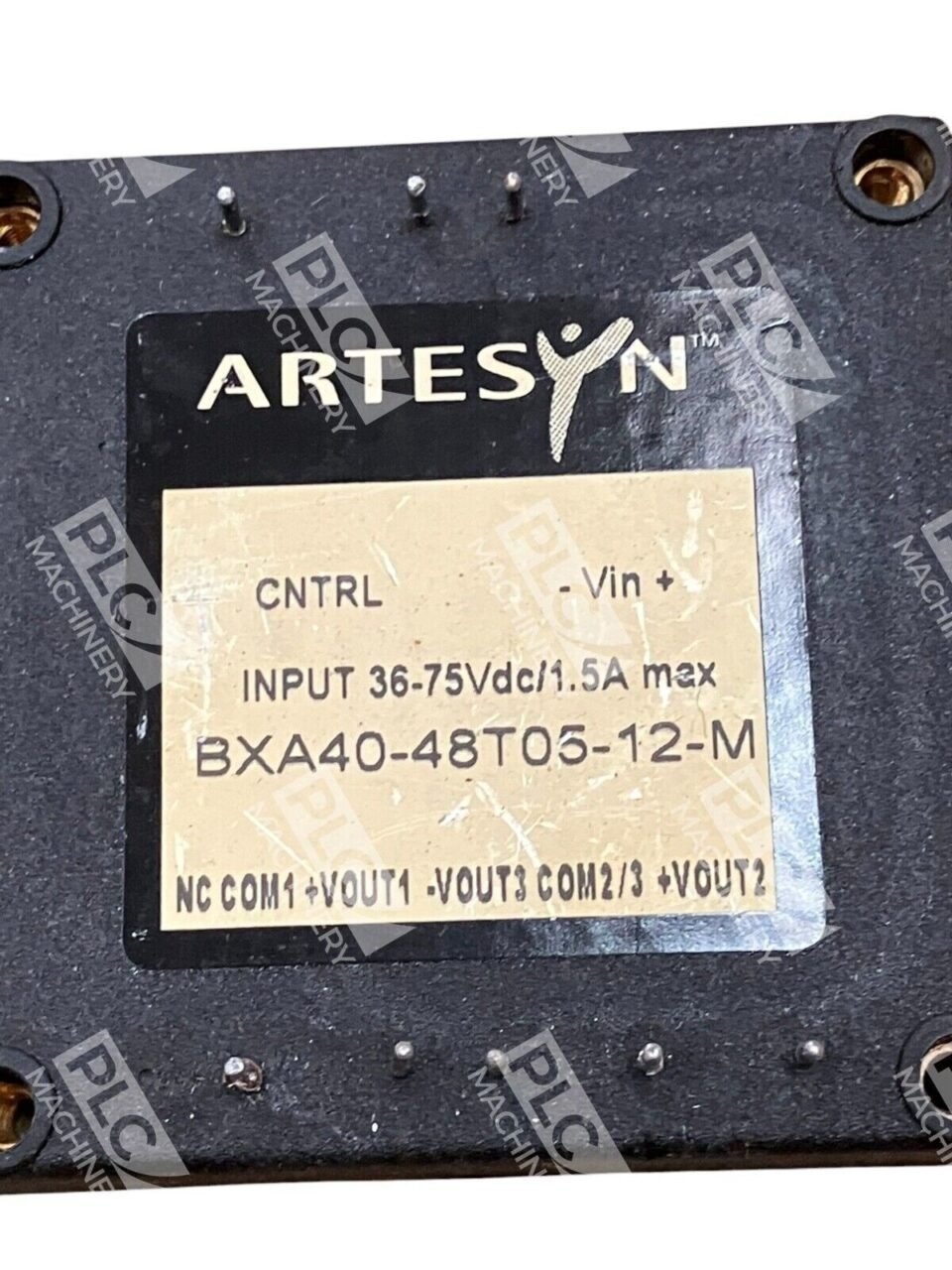

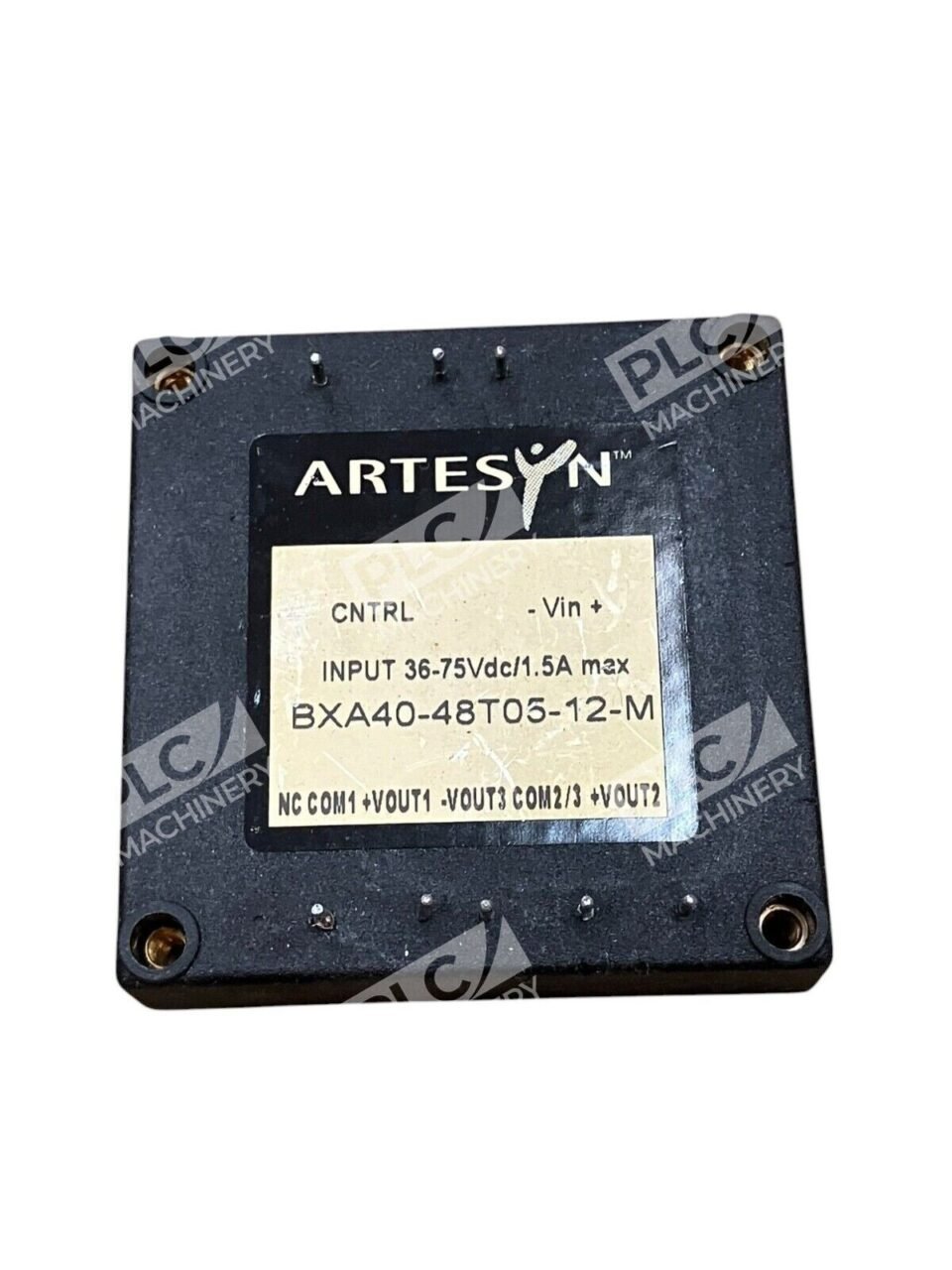

Artesyn BXA40-48T05-12-M DC/DC Converter

The Artesyn BXA40-48T05-12-M is a high-performance DC/DC converter designed to deliver reliable power solutions for telecommunications, industrial electronics, test equipment, mobile telecommunications, and distributed power applications. This triple-output converter provides a total power output of 40 watts, ensuring efficient and stable performance across various demanding environments.

Key Features

• Wide Input Voltage Range: Operates within a 36 to 75 VDC input range, accommodating standard 48V power systems commonly used in telecommunications.
• Triple Output Configuration: Delivers three regulated outputs:
  • Main Output: 5V at 6A
  • Auxiliary Outputs: +12V and -12V, each at 0.4A
• High Efficiency: Achieves an efficiency of up to 83%, optimizing energy use and reducing heat dissipation.
• Compact Design: Encased in a 9-DIP module measuring 2.20″ x 2.20″ x 0.50″ (55.9mm x 55.9mm x 12.7mm), facilitating easy integration into space-constrained applications.
• Robust Protection Mechanisms: Equipped with overvoltage protection (OVP), short circuit protection (SCP), and remote on/off control, enhancing system reliability and safety.
• High Isolation Voltage: Provides 1500V DC isolation, ensuring robust separation between input and output circuits.
• Wide Operating Temperature Range: Functions effectively in temperatures ranging from -40°C to +105°C, suitable for diverse environmental conditions.

Applications

The BXA40-48T05-12-M is ideal for applications requiring multiple voltage outputs from a single DC input source. Its design and features make it particularly suitable for:

• Telecommunications equipment
• Industrial control systems
• Test and measurement instruments
• Mobile telecommunications devices
• Distributed power architectures

With its combination of wide input range, multiple outputs, high efficiency, and protective features, the Artesyn BXA40-48T05-12-M DC/DC converter offers a reliable and versatile power solution for various demanding applications.
