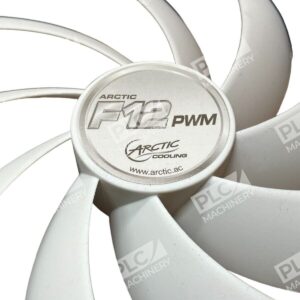

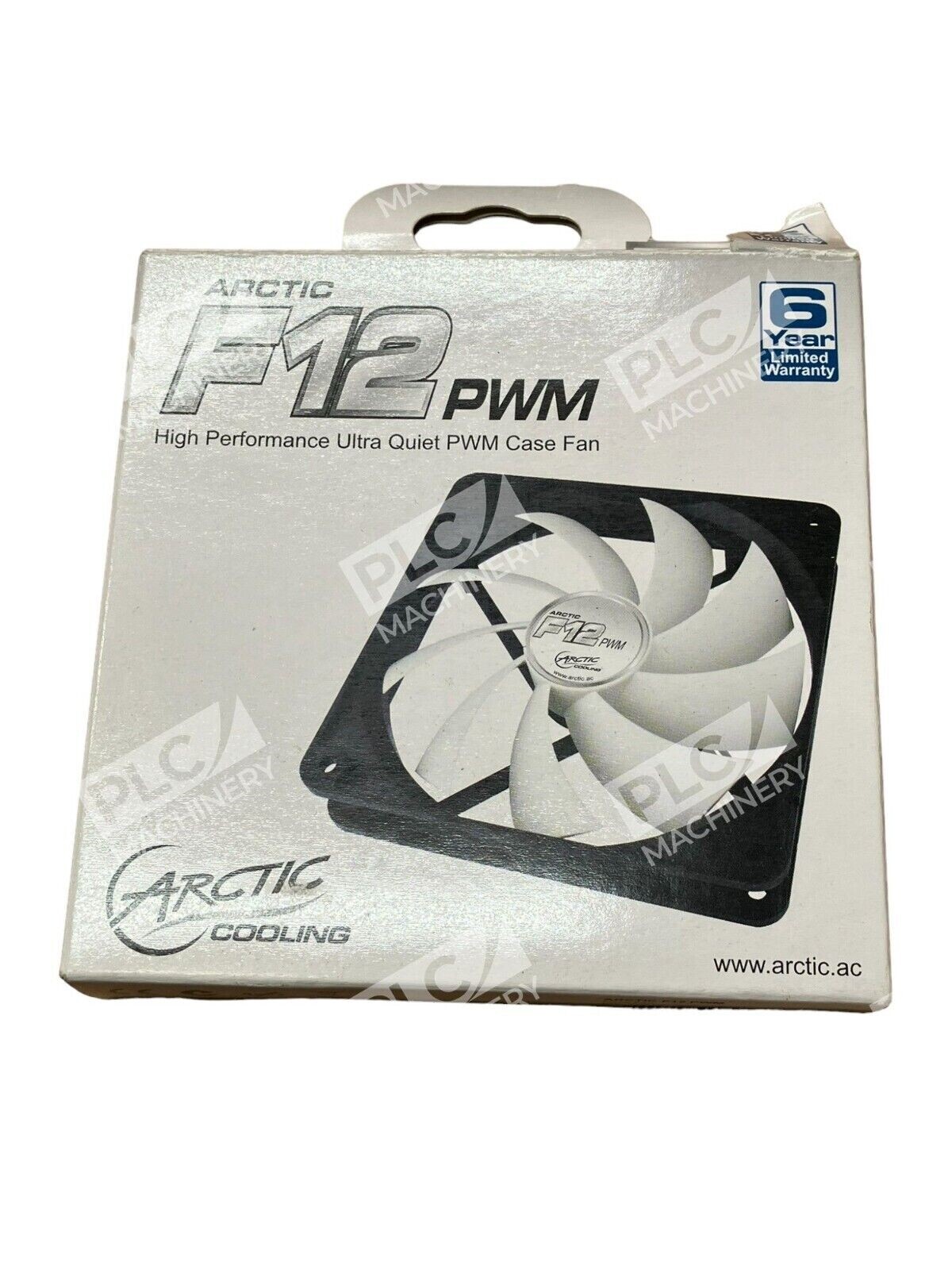

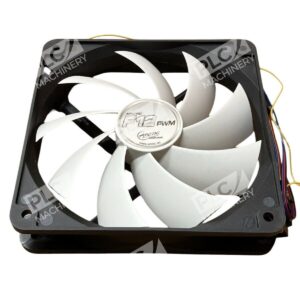

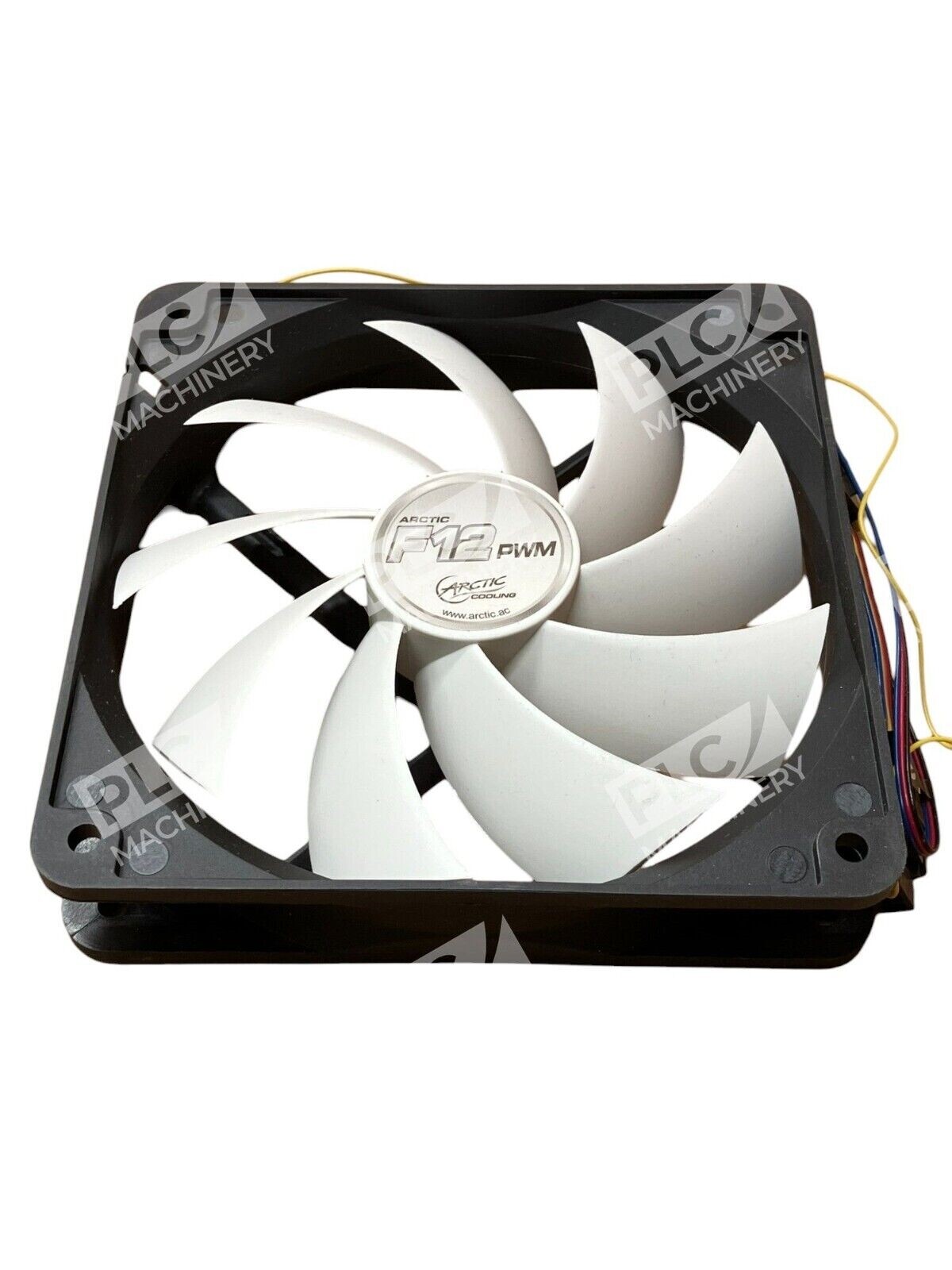

Arctic Cooling F12 PWM High Performance Ultra Quiet PWM Case Fan
The Arctic Cooling F12 PWM is a 120 mm case fan engineered to deliver exceptional cooling performance while maintaining ultra-quiet operation. Its advanced design and innovative features make it an ideal choice for enhancing airflow in your PC system.
Key Features
- Maximum Quietness, Minimum Vibration: The fan’s motor operates with minimal noise, producing only about 5% of the vibration compared to standard DC motors, ensuring a whisper-quiet experience.
- Perfect Case Fan Regulation with PWM: Pulse Width Modulation (PWM) allows precise speed control, enabling the fan to adjust its speed based on system requirements, thereby optimizing cooling and reducing noise levels.
- Long Service Life: Equipped with a Fluid Dynamic Bearing that includes an oil capsule to prevent lubricant leakage, the F12 PWM offers a longer lifespan and quieter operation compared to traditional sleeve bearings.
- Innovative Design for Efficient Ventilation: The fan blades are designed to improve airflow and facilitate efficient ventilation, focusing on minimizing noise while delivering the desired airflow and pressure.
- Two-Way Installation: The fan can be installed to either blow warm air out of the case or draw cool air into the case, providing flexibility based on your system’s cooling needs.
Technical Specifications
- Dimensions: 120 mm (L) x 120 mm (W) x 25 mm (H)
- Fan Speed: 230–1350 RPM (PWM controlled), with 0 RPM below 5% PWM
- Airflow: 53 CFM (90.1 m³/h)
- Static Pressure: 1.0 mm Hâ‚‚O
- Fan Bearing: Fluid Dynamic Bearing
- Typical Voltage: 12 V DC
- Start-Up Voltage: 5 V DC
- Current: 0.21 A
- Cable Length: 400 mm

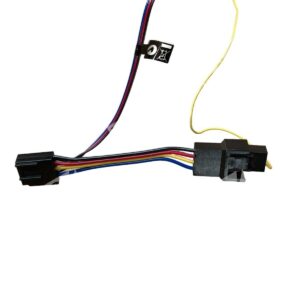

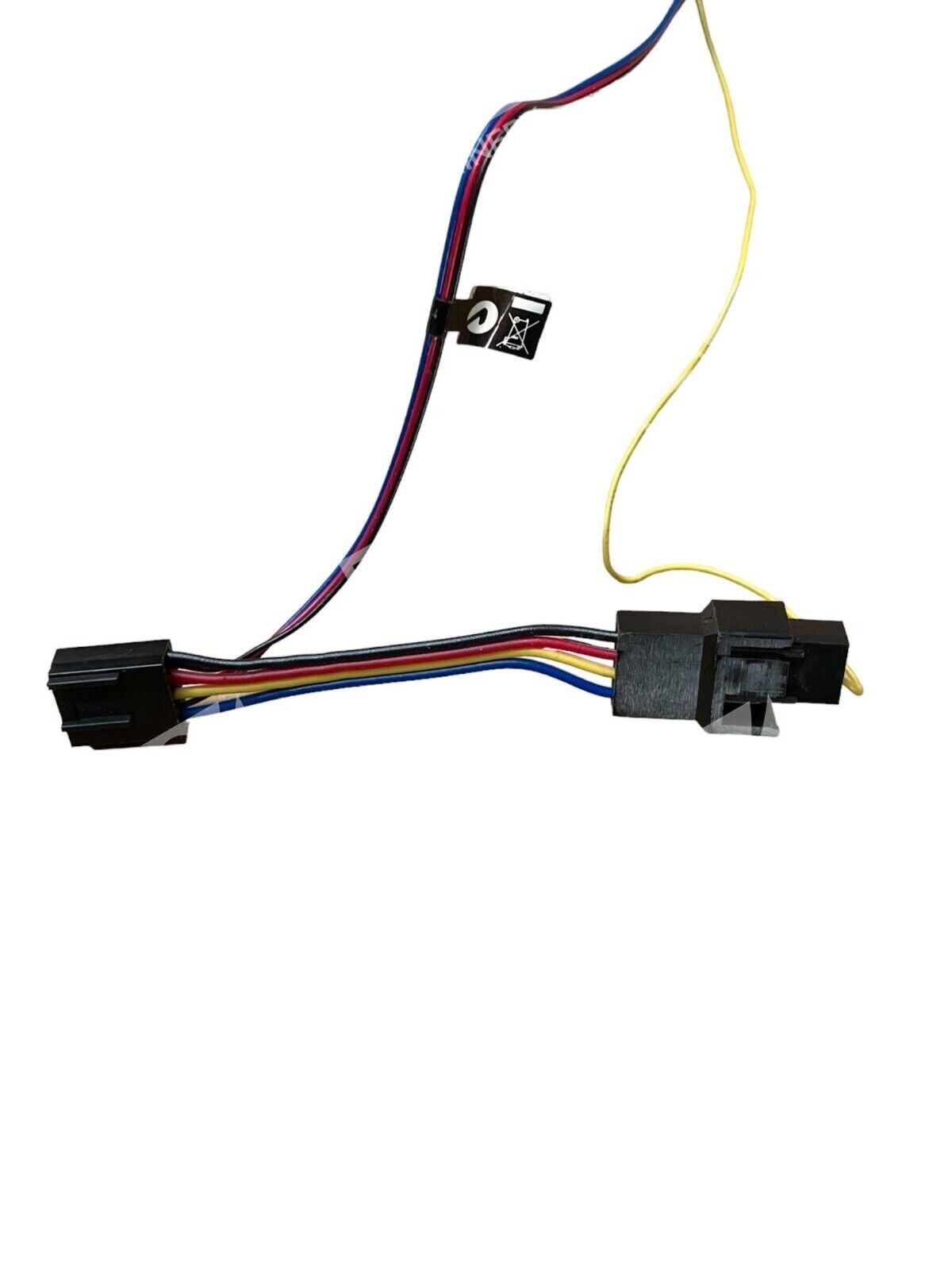

- Connector: 4-Pin Connector
- Warranty: 6 Years
The Arctic Cooling F12 PWM fan is designed to provide efficient and quiet cooling for your PC, ensuring optimal performance and longevity.
