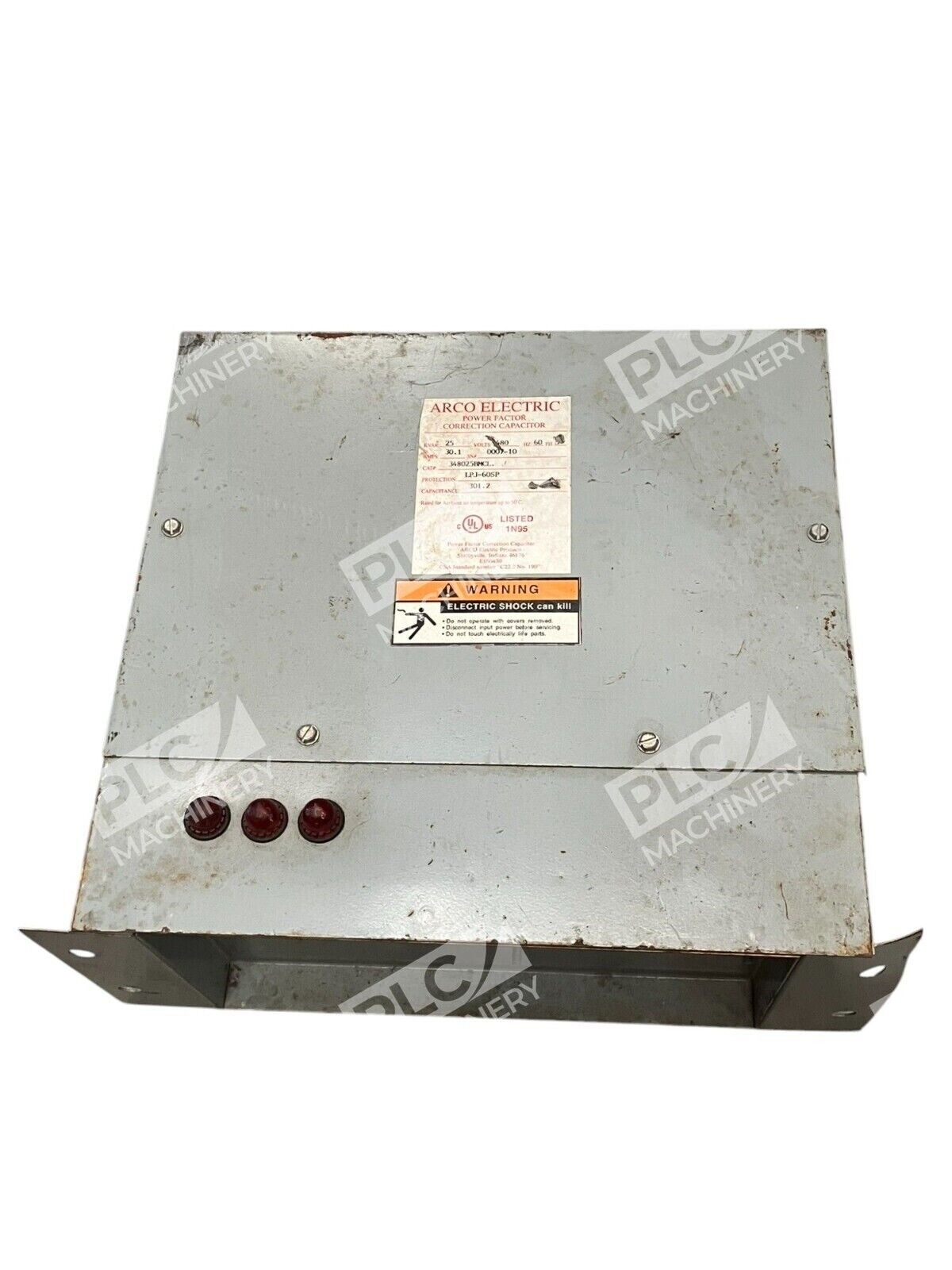

Arco Electric 30.1A LPJ-60SP Power Factor Correction Capacitor 348025BMCL

Arco Electric 30.1A LPJ-60SP Power Factor Correction Capacitor 348025BMCL

The Arco Electric 30.1A LPJ-60SP Power Factor Correction Capacitor, model 348025BMCL, is engineered to enhance the efficiency of electrical systems by improving power factor, thereby reducing energy losses and optimizing performance.

Key Features

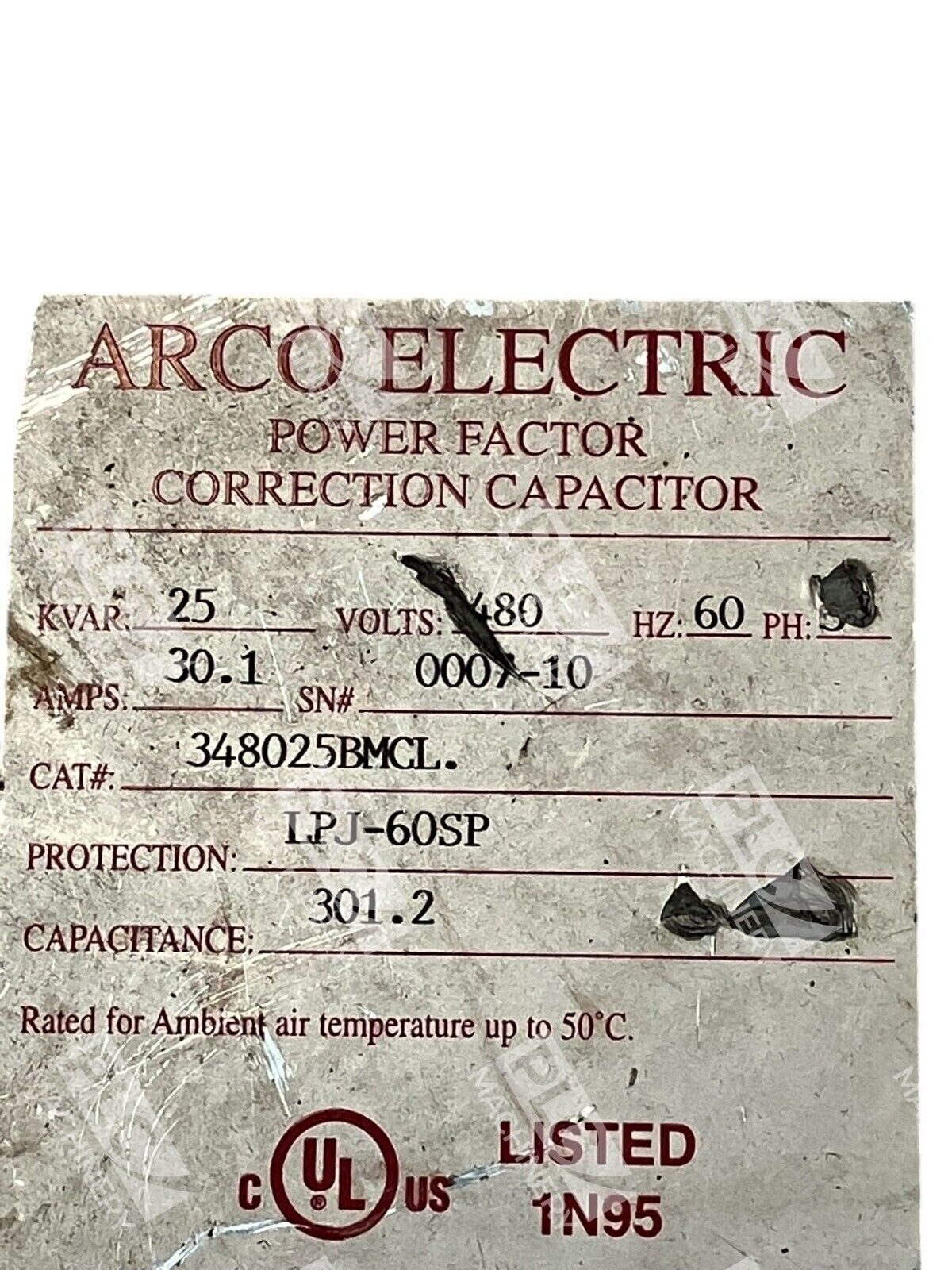

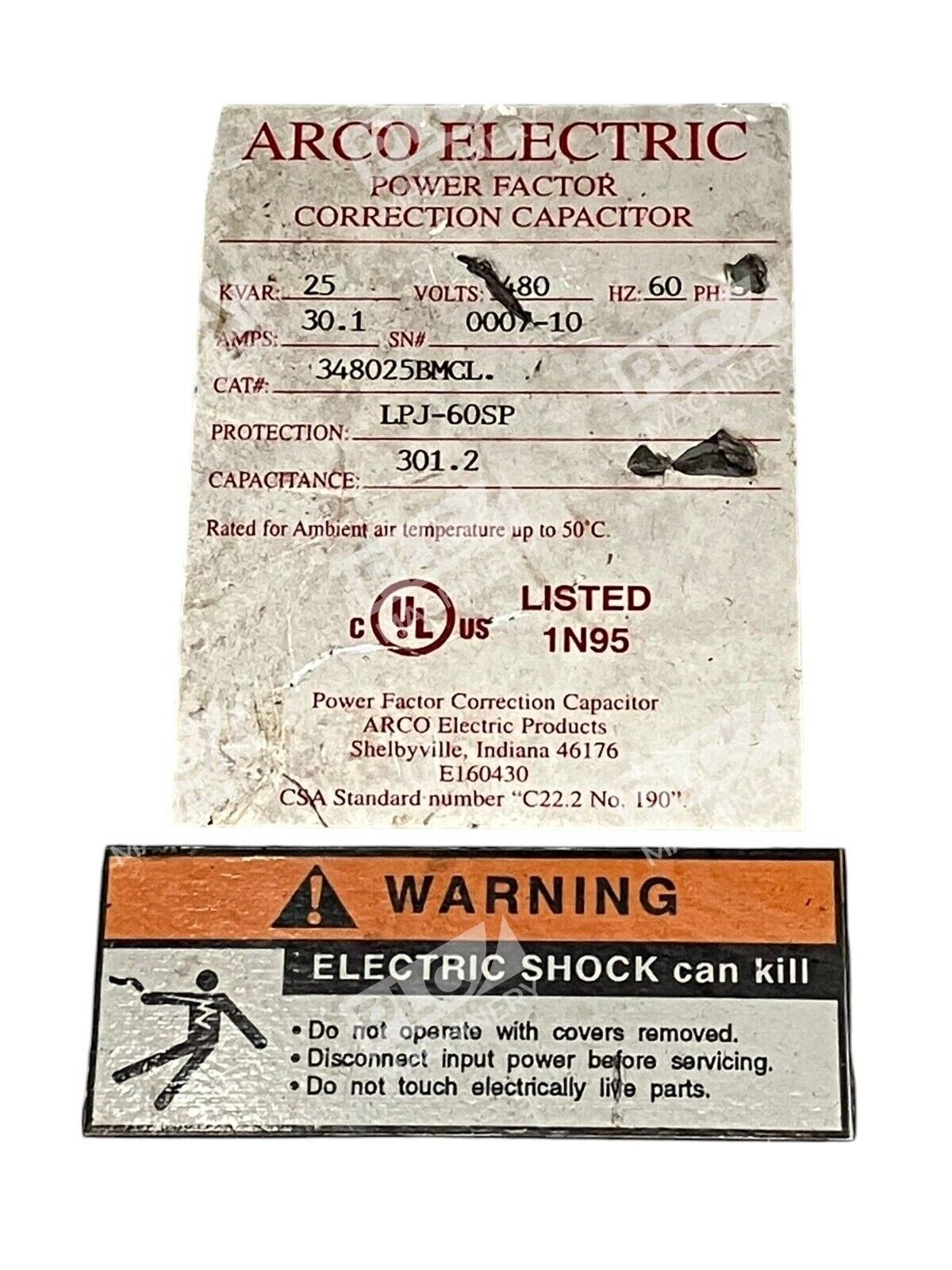

• Voltage Rating: 480 V
• Frequency: 60 Hz
• Current Rating: 30.1 A
• Capacitance: 179.7 µF
• Protection: FNQ 30 fuse

Construction and Design

This capacitor is constructed with high-quality three-phase cells, vacuum-impregnated with a dielectric fluid, and hermetically sealed in a robust steel welded case. This design ensures enhanced insulation, superior corona protection, and a reliable moisture barrier.

Environmental Considerations

The dielectric fluid used is a green, non-PCB, non-toxic, biodegradable, and Class III combustible fluid, aligning with environmental safety standards.

Safety and Compliance

Equipped with an internal pressure-sensitive interrupter, the capacitor safely disconnects from the circuit under heavy fault conditions or at the end of its operational life, maintaining the integrity of the steel casing. It complies with standards such as UL810, C22.2 No. 190 Canadian Standards, ANSI/IEEE 18, IEC 831, NEMA CP-1, UL Recognized CYTW2, and cUL Recognized CYTW8.

Electrical Characteristics

• Capacitance Tolerance: ±15%
• Overcurrent Tolerance: 135% of rated current continuously
• Overvoltage Tolerance: 110% of rated voltage
• Operating Temperature Range: -40°F to +115°F

Applications

Ideal for low voltage linear applications, this capacitor is suitable for industrial settings where power factor correction is essential to maintain efficient and reliable electrical system performance.

Warranty

Arco Electric offers a 1-year warranty on the capacitor cells, ensuring quality and reliability.
