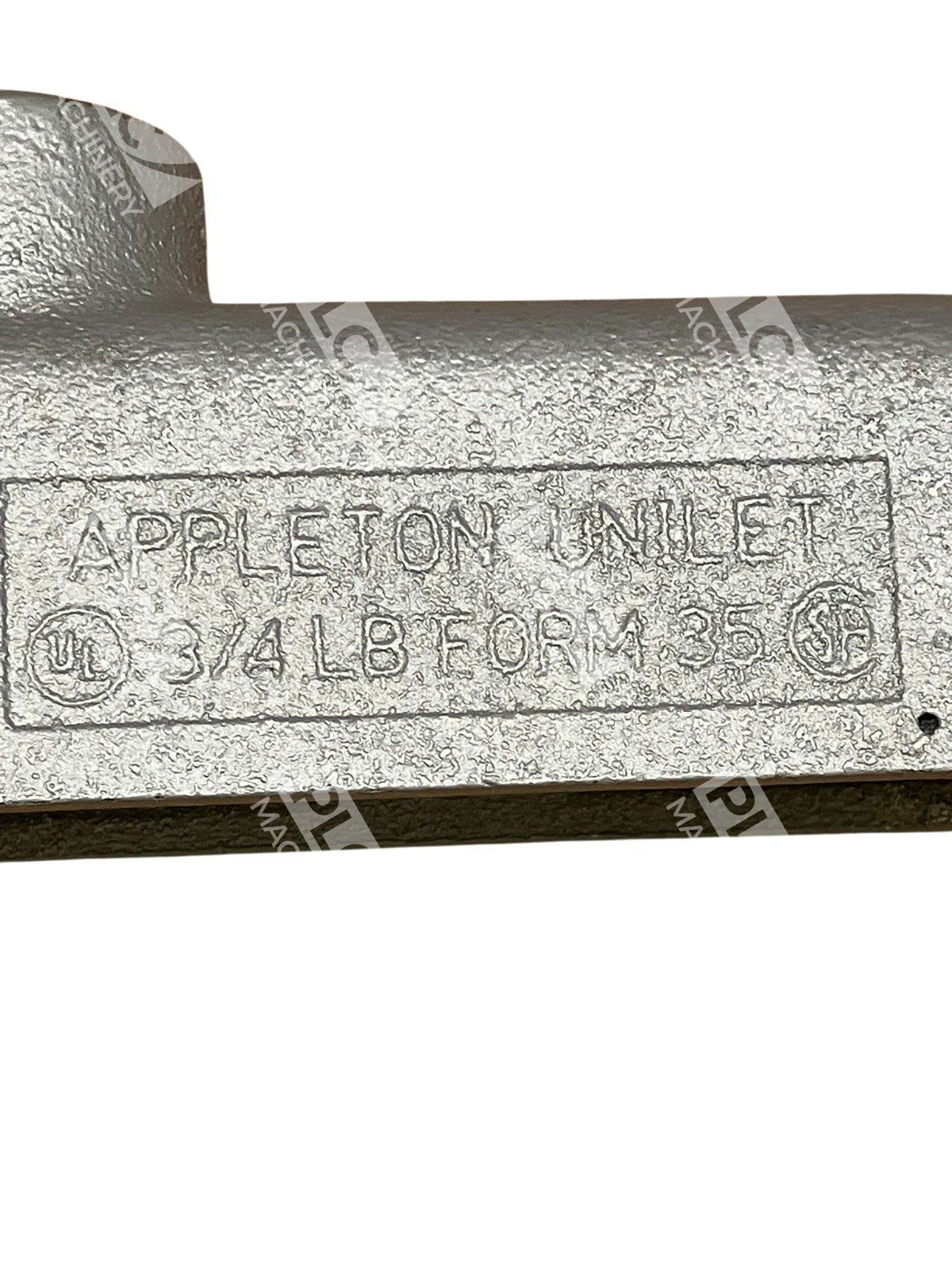

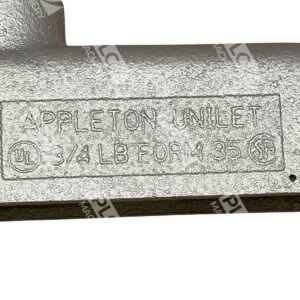

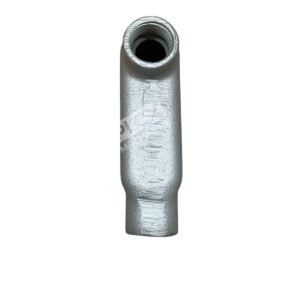

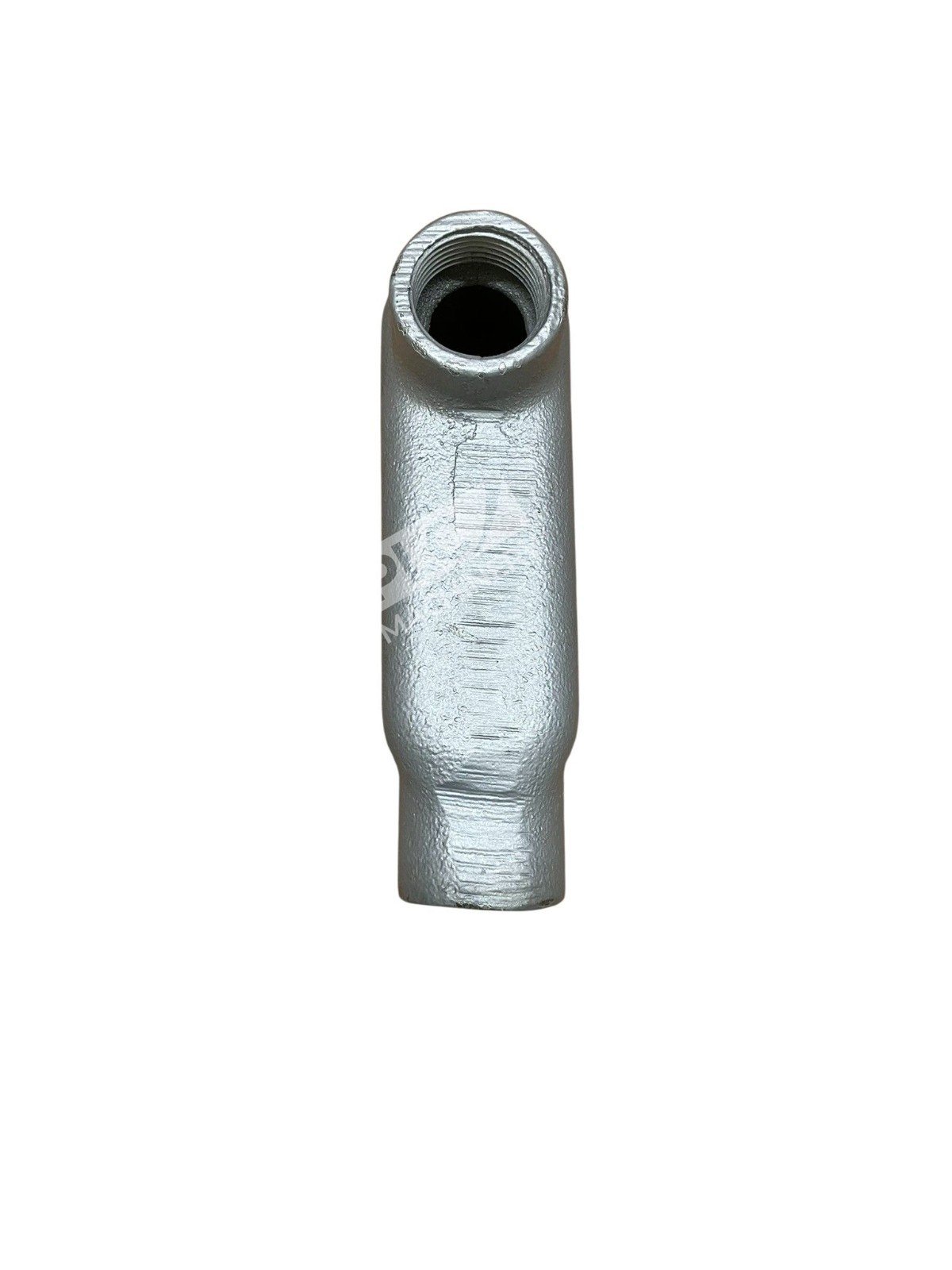

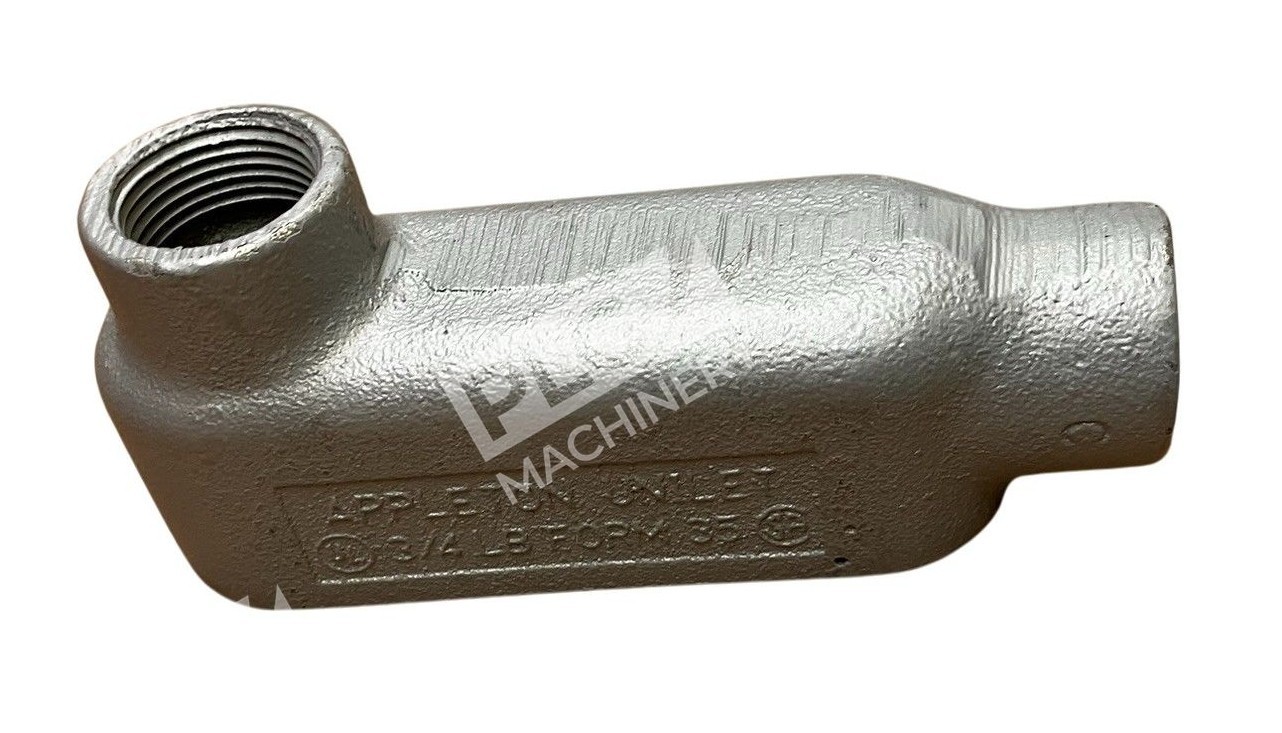

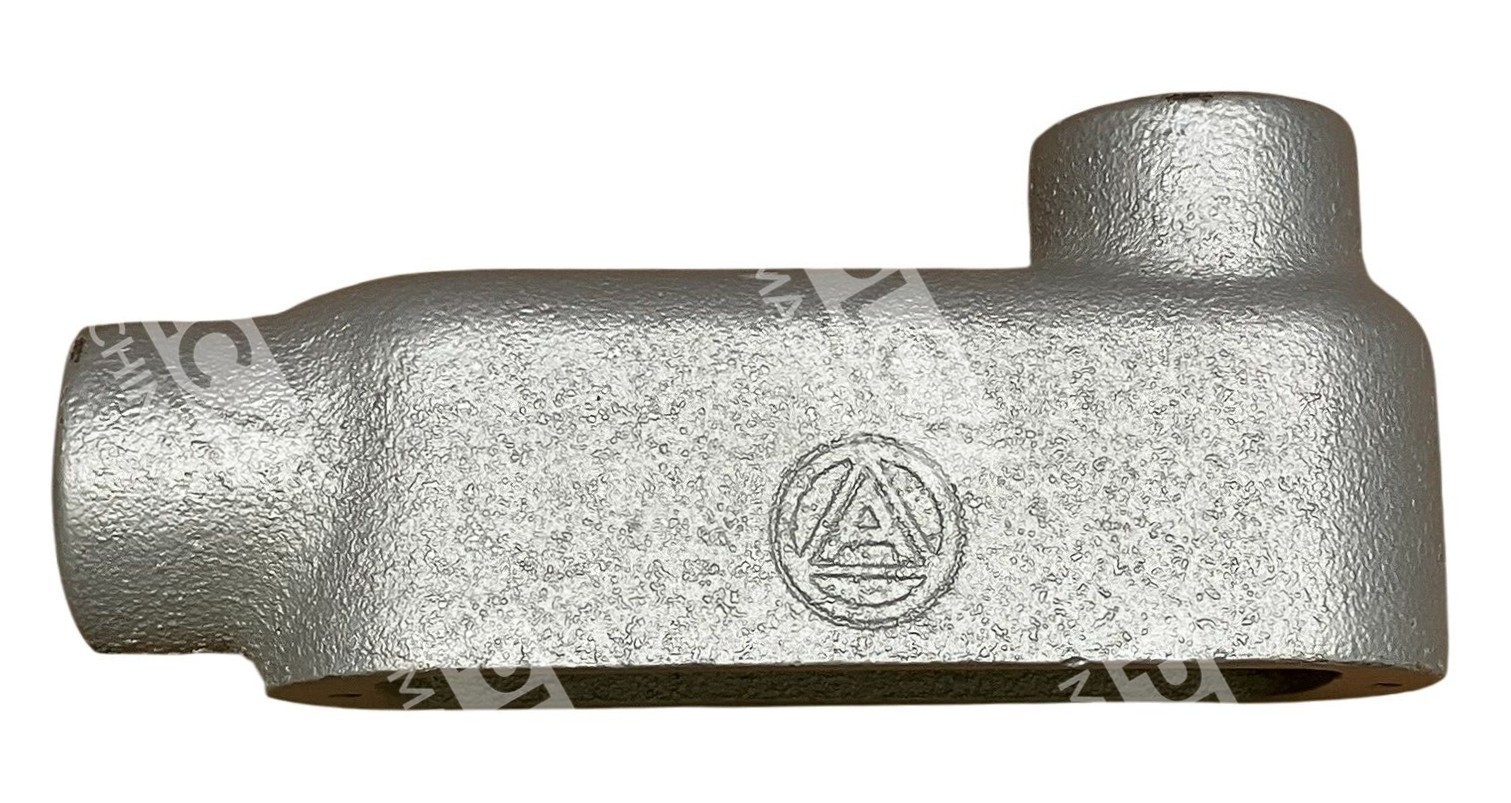

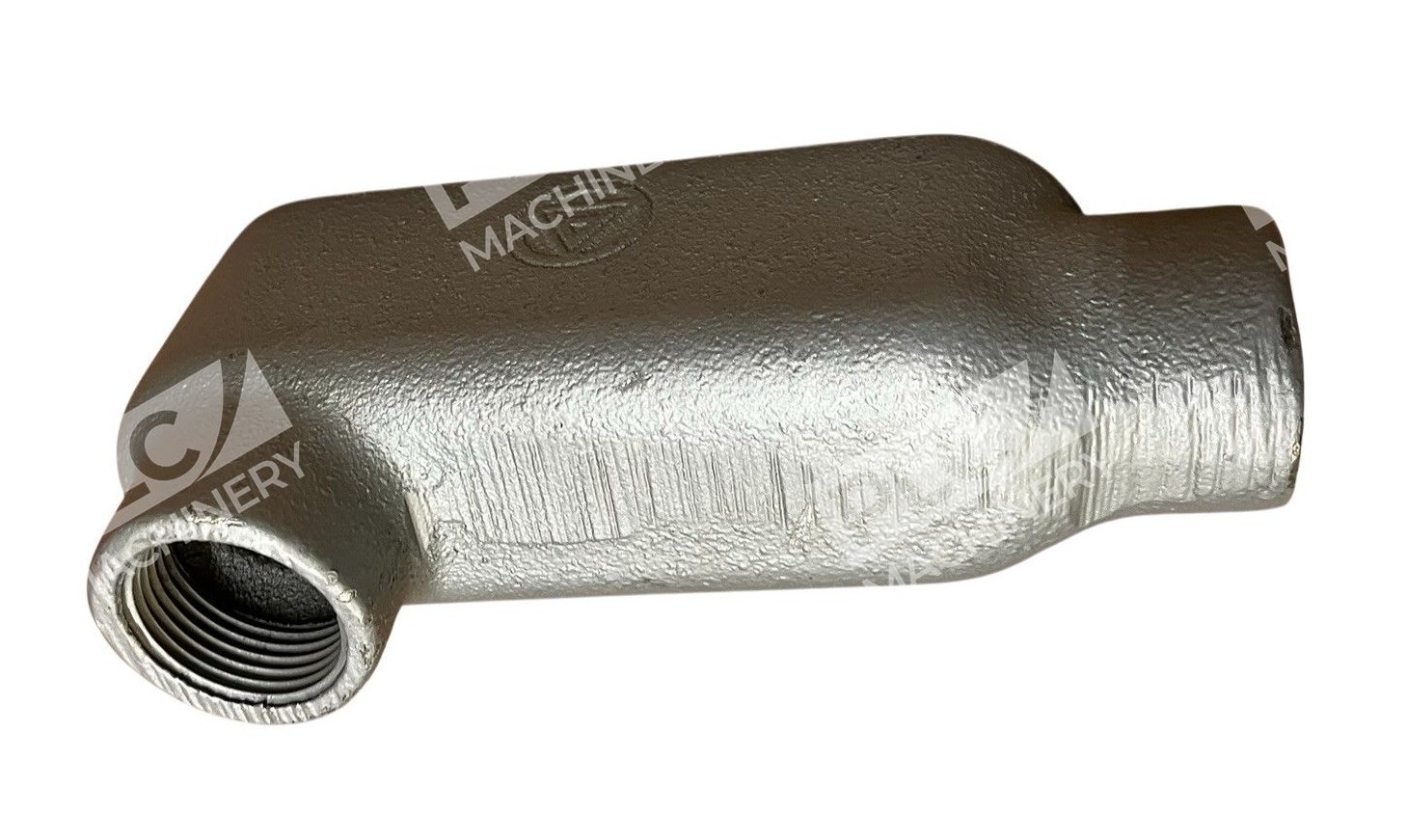

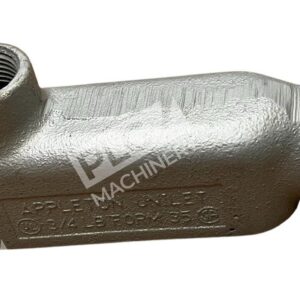

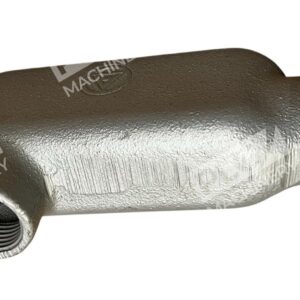

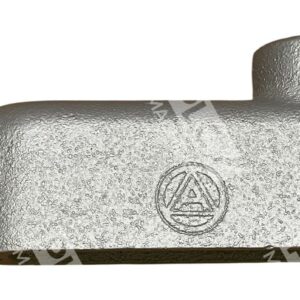

Appleton Conduit Body Unilet 3/4 LB Form 35

Appleton Conduit Body Unilet 3/4 LB Form 35

The Appleton Conduit Body Unilet 3/4 LB Form 35 is a robust and versatile conduit outlet body designed to facilitate efficient cable management in electrical systems. Engineered for use with rigid steel, rigid aluminum conduit, and intermediate metal conduit (IMC), this conduit body serves multiple functions, including acting as a pulling fitting, making bends in conduit systems, providing openings for splicing, connecting and changing the direction of conduit runs, allowing connections for branch runs, and permitting access to conductors for maintenance.

Key Features

• Material and Durability: Constructed from high-strength malleable iron, the Form 35 conduit body offers exceptional tensile strength, ductility, and resistance to corrosion, impact, and shock.
• Protective Finish: The triple-coat finish, comprising zinc electroplate, chromate, and epoxy powder coat, ensures enhanced durability and protection against environmental factors.
• Design and Functionality: Featuring smooth, rounded integral bushings in each hub, it protects conductor insulation. The accurately tapped, tapered threads provide tight, rigid joints and excellent ground continuity. The flat-back design is ideal for mounting flush against surfaces, optimizing space utilization.
• Dimensions and Capacity: With a length of 5.38 inches and a height of 2.31 inches, this conduit body offers a wiring capacity of 7.5 cubic inches, accommodating various wiring configurations.
• Compliance and Standards: The Form 35 conduit body meets industry standards, including UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, and NEMA FB-1, ensuring reliability and safety in electrical installations.

Incorporating the Appleton Conduit Body Unilet 3/4 LB Form 35 into your electrical system enhances the efficiency and safety of conduit installations, providing a dependable solution for managing complex wiring configurations.
