AMP 2261-3 (2/96) Connector 749879-9

AMP 2261-3 (2/96) Connector 749879-9

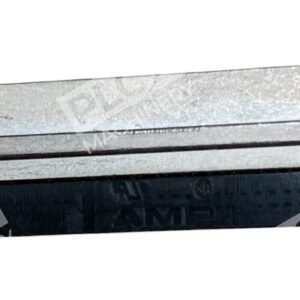

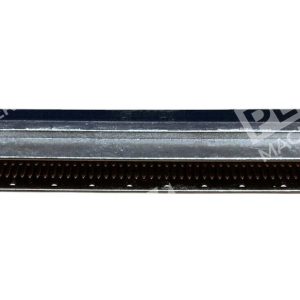

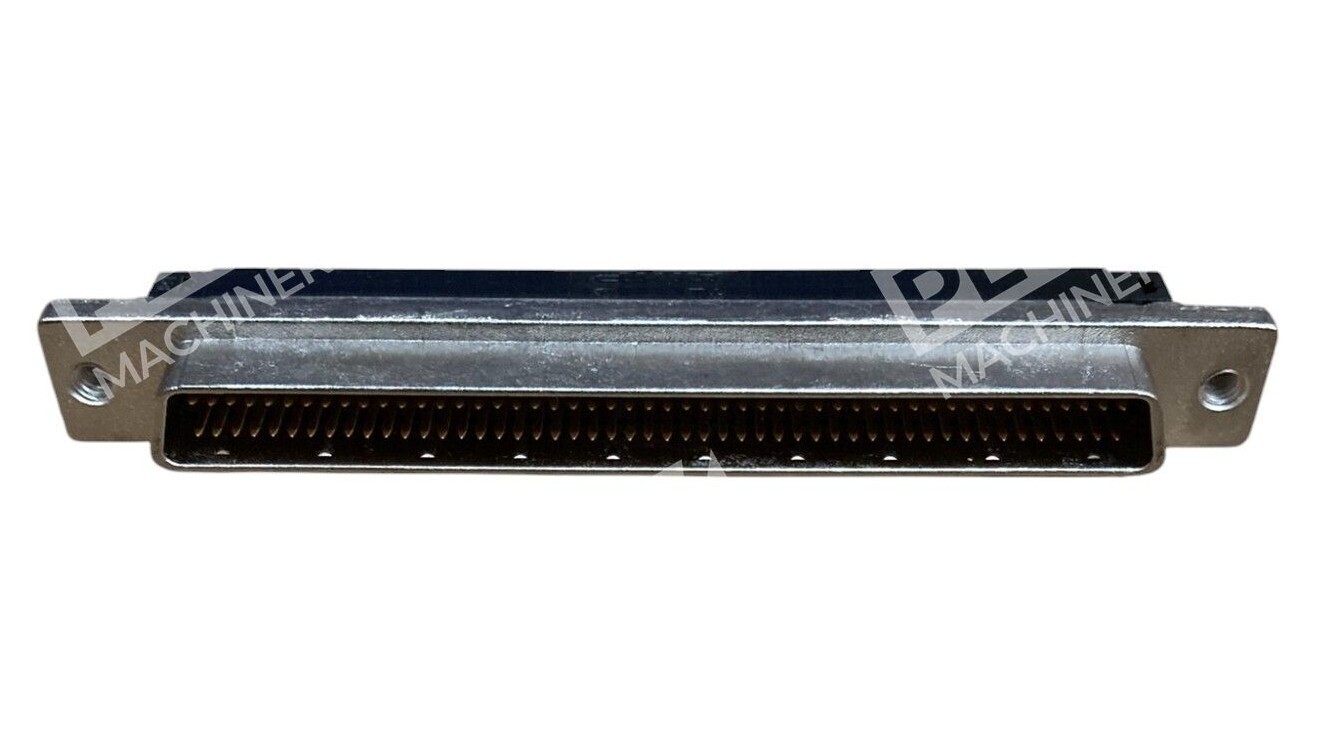

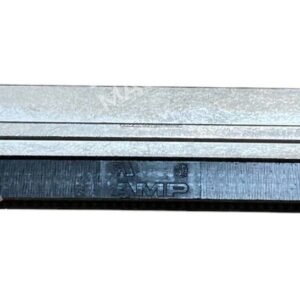

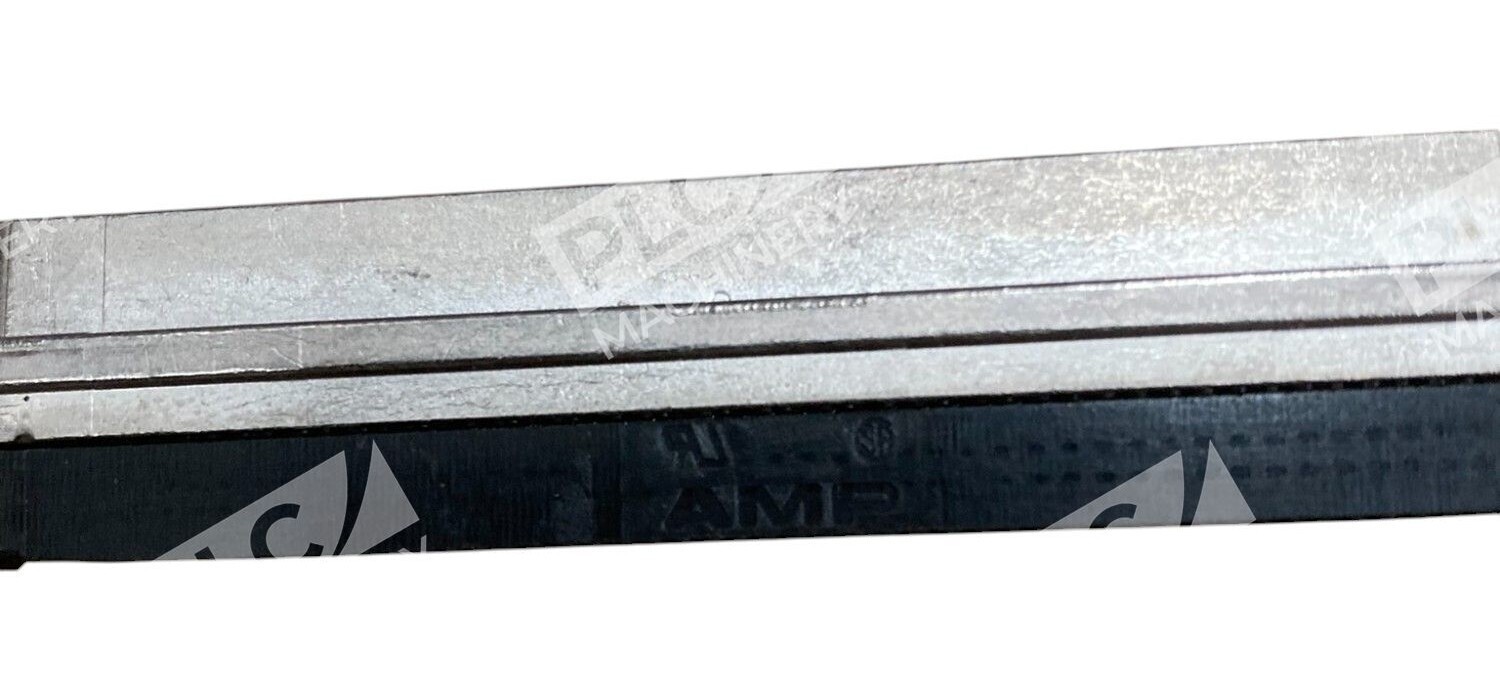

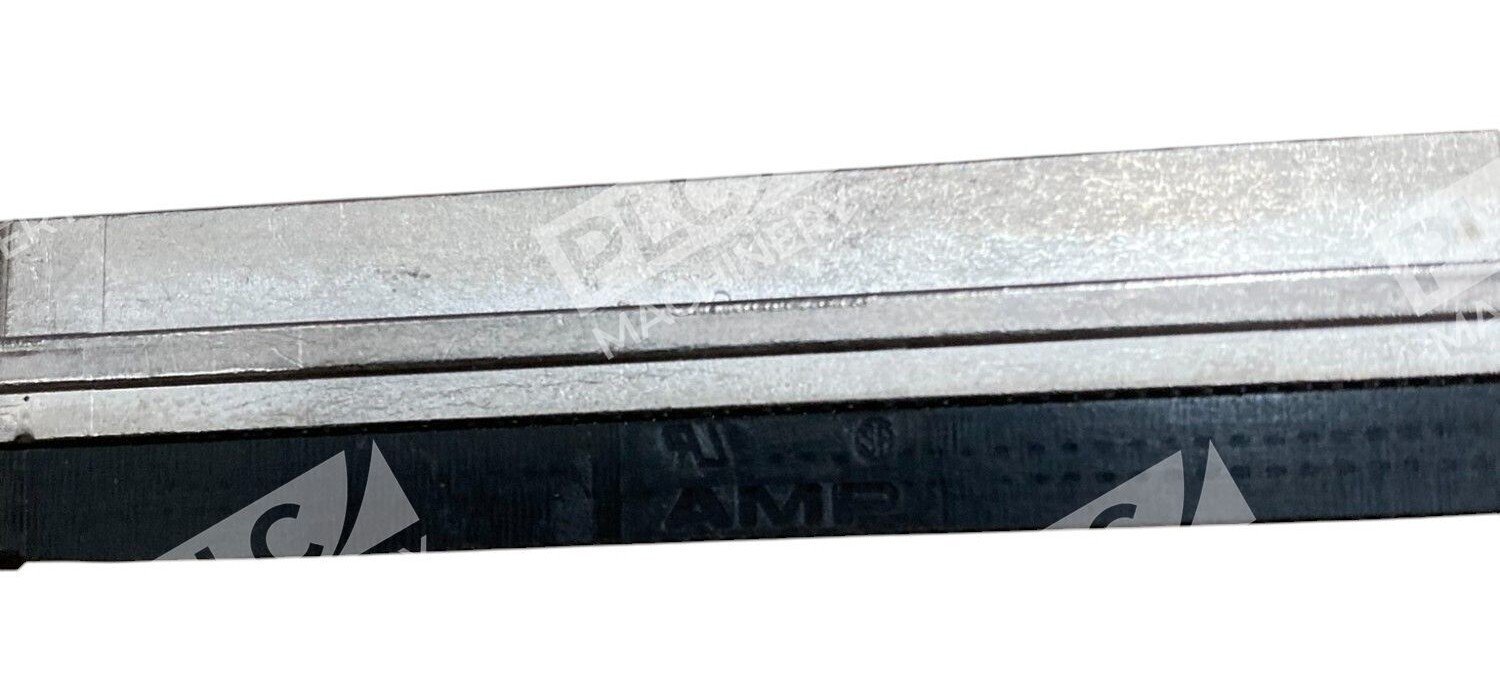

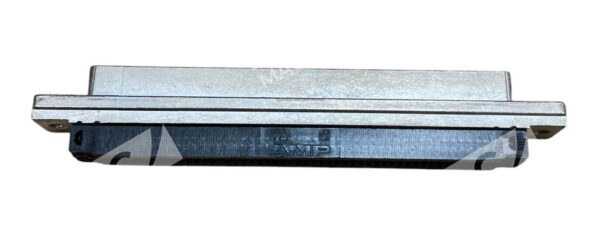

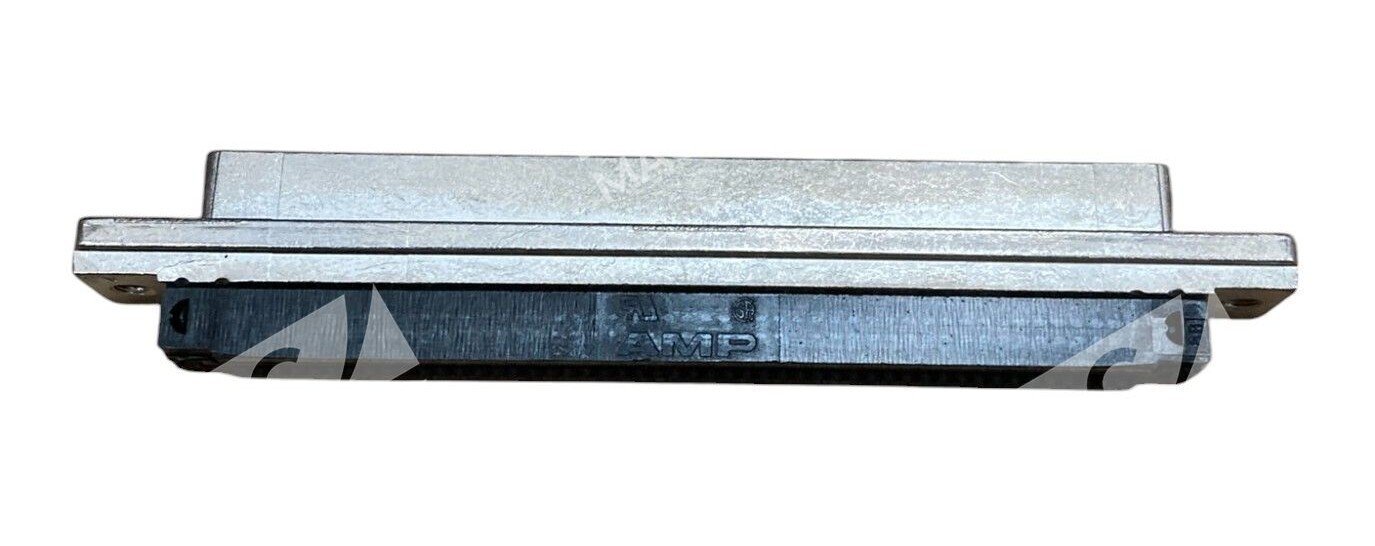

The AMP 2261-3 (2/96) Connector 749879-9 is a high-performance D-Type plug designed for reliable signal transmission in various applications. This connector is part of the AMPLIMITE .050 Series, known for its compact design and robust performance.

Key Features

• Connector Type: D-Type plug with male pins
• Number of Positions: 100
• Number of Rows: 2
• Mounting Type: Panel mount
• Termination Method: Insulation Displacement Crimp (IDC) suitable for ribbon and round jacketed cables
• Contact Material: Phosphor bronze with gold or gold flash plating over palladium nickel for enhanced conductivity
• Housing Material: Black thermoplastic, ensuring durability and compliance with UL 94V-0 flammability standards
• Operating Temperature Range: -55°C to 105°C (-67°F to 221°F)
• Current Rating: 1A
• Voltage Rating: 30V
• Centerline (Pitch): 1.27 mm (0.05 in)
• Compatible Wire Size: 28 to 30 AWG (0.05 to 0.1 mm²)
• Termination Cover: Included, with assembled method
• Mating Retention: Latch blocks for secure connections

Applications

This connector is ideal for applications requiring high-density signal transmission, such as:

• Industrial automation systems
• Telecommunications equipment
• Data communication devices
• Medical instrumentation

Its robust design and reliable performance make it suitable for environments where secure and efficient connectivity is essential.

Compliance and Standards

The AMP 2261-3 (2/96) Connector 749879-9 meets the following standards:

• UL 94V-0 flammability rating
• RoHS compliance

These certifications ensure the connector’s safety and environmental compatibility.

For detailed specifications and design considerations, refer to the product datasheet and technical documents provided by the manufacturer.
