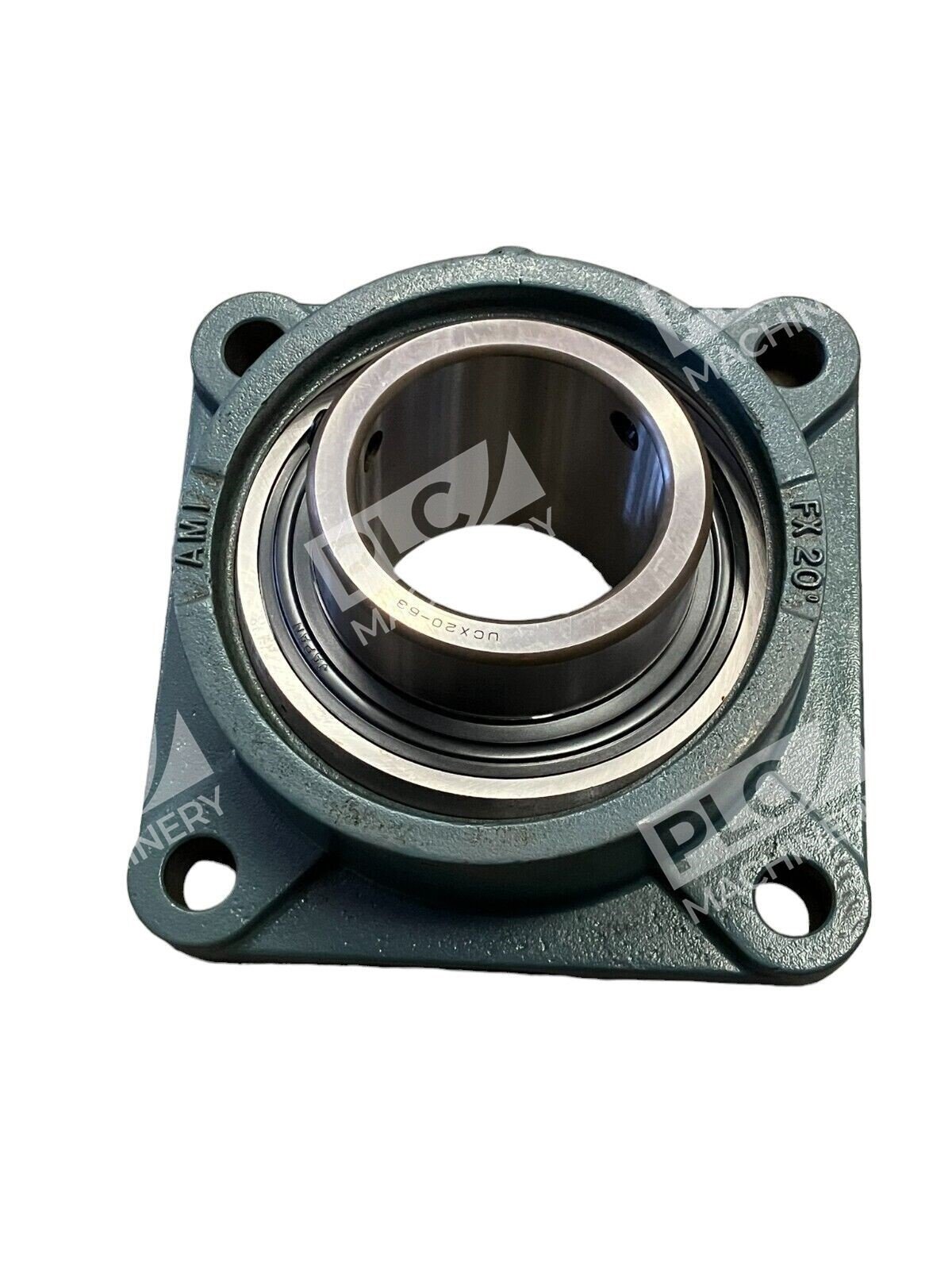

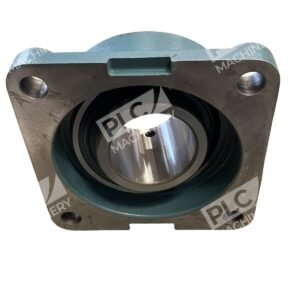

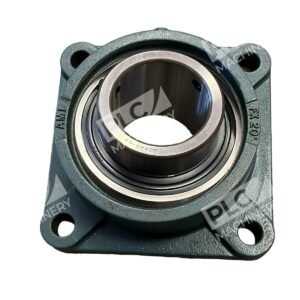

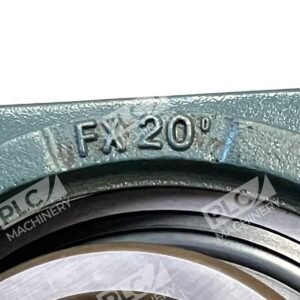

AMI Bearings UCFX20-63 4-Bolt Flanged Bearing

The AMI Bearings UCFX20-63 is a medium-duty, 4-bolt flanged bearing unit designed for robust performance in various industrial applications.

Key Features

• Bore Diameter: 3-15/16 inches (100 mm)
• Housing Material: Durable cast iron
• Locking Mechanism: Set screw locking for secure shaft attachment
• Seal Type: Contact seal with flinger to protect against contaminants
• Lubrication: Relubricatable design with a 1/8-27 NPT lubrication fitting tap
• Load Capacities: Radial dynamic load capacity of 30,200 lbf and radial static load capacity of 23,600 lbf

Dimensions

• Overall Housing Length (a): 10-9/16 inches (268 mm)
• Bolt Center-to-Center Length (e): 8-5/16 inches (211 mm)
• Housing Width (x): 3-13/16 inches (97 mm)
• Flange Thickness (g): 1-7/32 inches (31 mm)
• Length Through Bore (Bi): 4.626 inches (117.5 mm)

Applications

This bearing unit is suitable for a wide range of industrial applications, including conveyors, material handling equipment, and machinery requiring reliable shaft support and alignment.

Additional Information

• Replacement Bearing: UCX20-63
• Weight: Approximately 37.03 lbs (16.8 kg)
• Mounting Bolt Size: 1 inch (M24)

The AMI Bearings UCFX20-63 combines durability and performance, making it a reliable choice for demanding industrial environments.
