Alps 20KWX2 Printed Circuit Board (PCB) Interface 123k

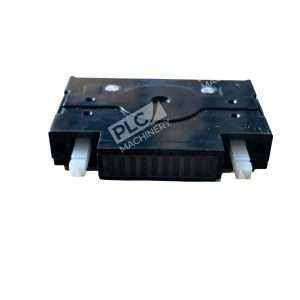

The Alps 20KWX2 is a dual-gang potentiometer designed for seamless integration into printed circuit boards (PCBs). This component is engineered to provide precise control over electrical parameters, making it an essential element in various electronic applications.
Key Features
- Dual-Gang Configuration: The 20KWX2 features two potentiometer units in a single package, allowing for synchronized adjustments and enhanced control in stereo or dual-channel circuits.
- 20kΩ Resistance: Each gang offers a resistance of 20 kilo-ohms, suitable for applications requiring moderate resistance values.
- Vertical Mounting: Designed for vertical PCB mounting, this potentiometer facilitates efficient use of board space and straightforward integration into existing designs.
- Compact Design: With a 14mm form factor, the 20KWX2 balances size and functionality, making it ideal for compact electronic devices.
Applications
The Alps 20KWX2 potentiometer is versatile and can be utilized in various applications, including:
- Audio Equipment: Volume and tone control in mixers, amplifiers, and other audio devices.
- Instrumentation: Calibration and adjustment in measurement instruments.
- Consumer Electronics: User interface controls in devices such as radios and televisions.
Technical Specifications
- Resistance Value: 20kΩ per gang
- Mounting Type: Vertical PCB mount
- Form Factor: 14mm
- Configuration: Dual-gang
Incorporating the Alps 20KWX2 potentiometer into your PCB design ensures reliable performance and precise control, enhancing the overall functionality of your electronic projects.
