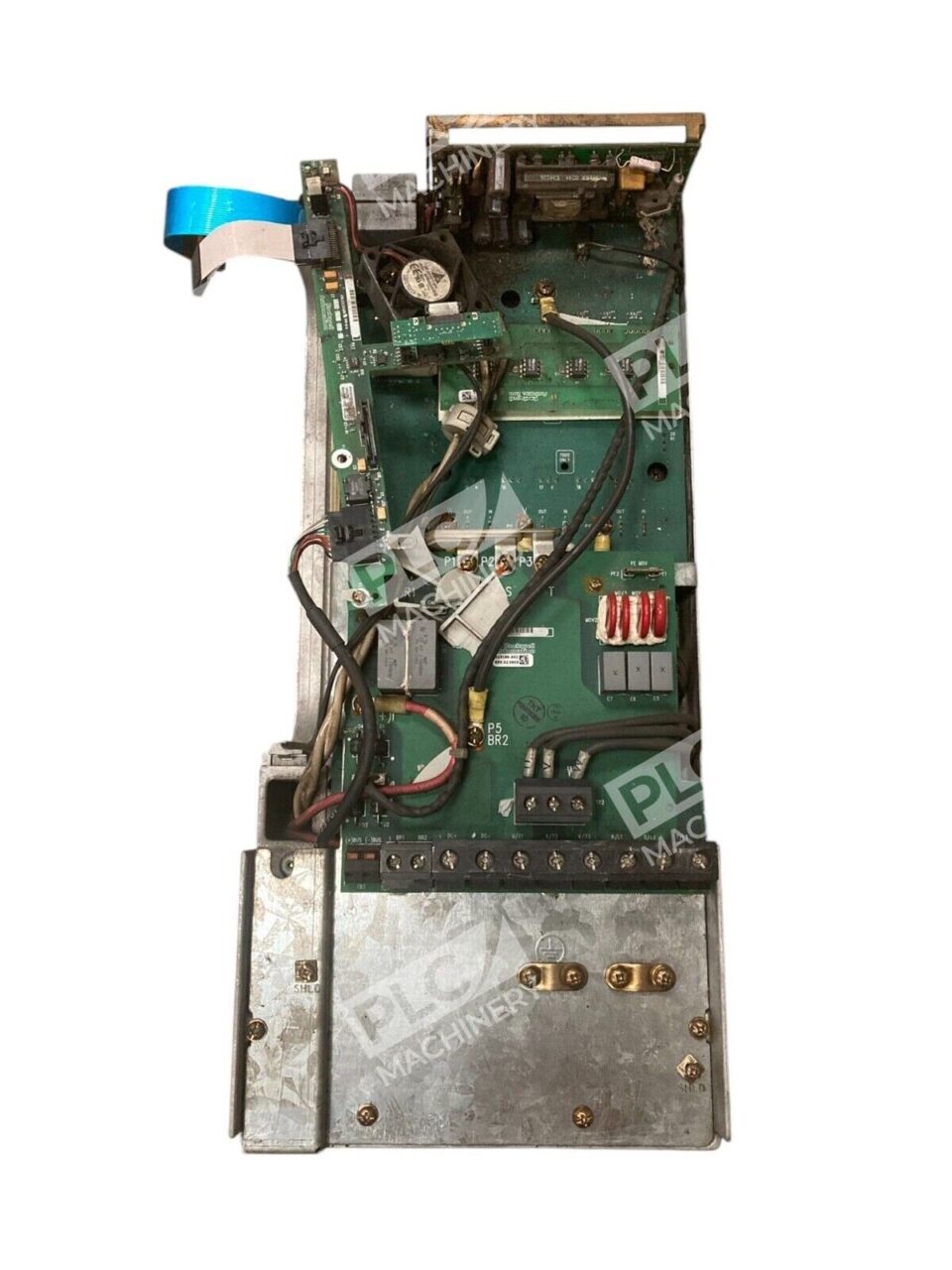

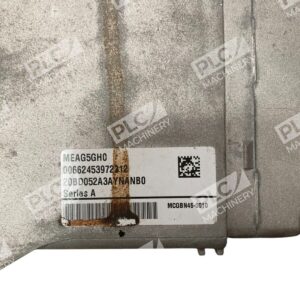

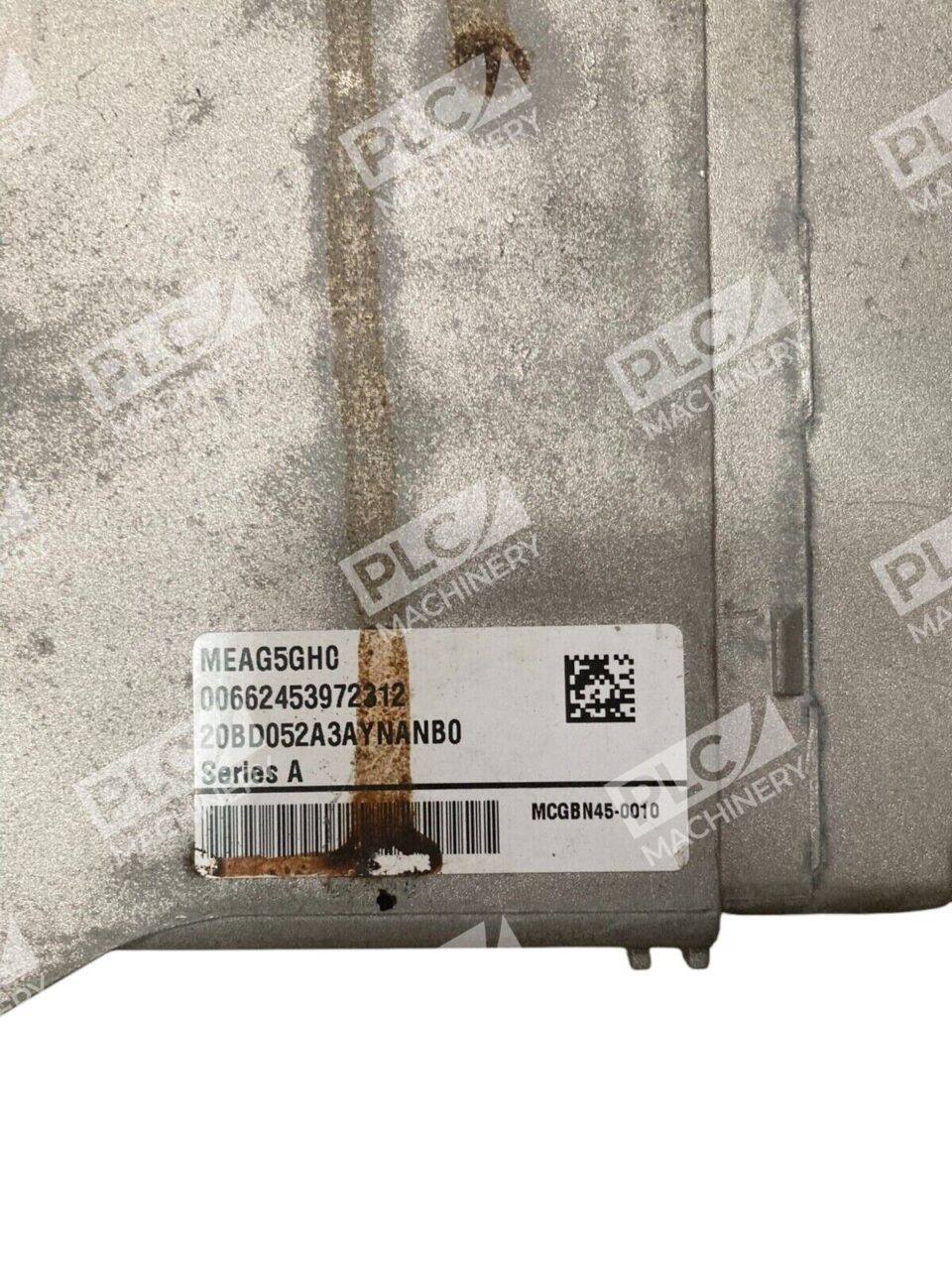

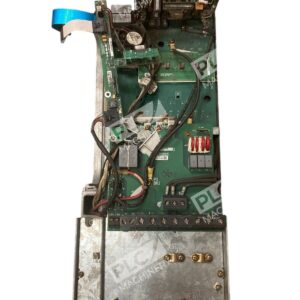

The Allen-Bradley PowerFlex 700 AC Drive, catalog number 20BD052A3AYNANB0, is a robust and versatile solution designed to meet the demanding requirements of various industrial applications.
Key Features
- Power Rating: Delivers 40 HP (Normal Duty) and 30 HP (Heavy Duty) output at 480V AC input voltage.
- Current Capacity: Handles an output current of 52 Amps, ensuring reliable performance under load.
- Enclosure: Comes with an IP20/NEMA Type 1 enclosure, providing protection against solid objects and ensuring safety in industrial environments.
- Human Interface Module (HIM): Equipped with an LCD display and a full numeric keypad, facilitating easy configuration and monitoring.
- Brake IGBT: Includes a Brake IGBT, enhancing braking performance and energy efficiency.
- EMC Filtering: Features a Second Environment Filter compliant with the CE EMC directive (89/336/EEC), minimizing electromagnetic interference.
- Control and I/O: Offers standard control with 115V AC I/O, providing flexibility for various control schemes.
Technical Specifications
- Input Voltage: 480V AC, 3-phase
- Output Frequency: 0 to 400 Hz
- Frame Size: Frame 3
- Dimensions: Approximately 20.37 x 8.74 x 7.87 inches
- Weight: Approximately 40.9 lbs
- Operating Temperature: 0 to 50°C
- Cooling: Integrated 120 CFM heatsink fan
Applications
The PowerFlex 700 AC Drive is suitable for a wide range of applications, including conveyors, pumps, fans, and other machinery requiring precise speed control and reliable operation.
Additional Information
This drive does not include a drive-mounted brake resistor and lacks an integrated communication module. However, optional communication modules such as Ethernet, serial, ControlNet, and BACnet are available to enhance connectivity based on specific application needs.
With its comprehensive features and robust design, the Allen-Bradley PowerFlex 700 AC Drive 20BD052A3AYNANB0 stands as a reliable choice for industrial motor control solutions.
