Allen Bradley AB Polarized Light Array 45PLA-P2LPT1-F4 /A

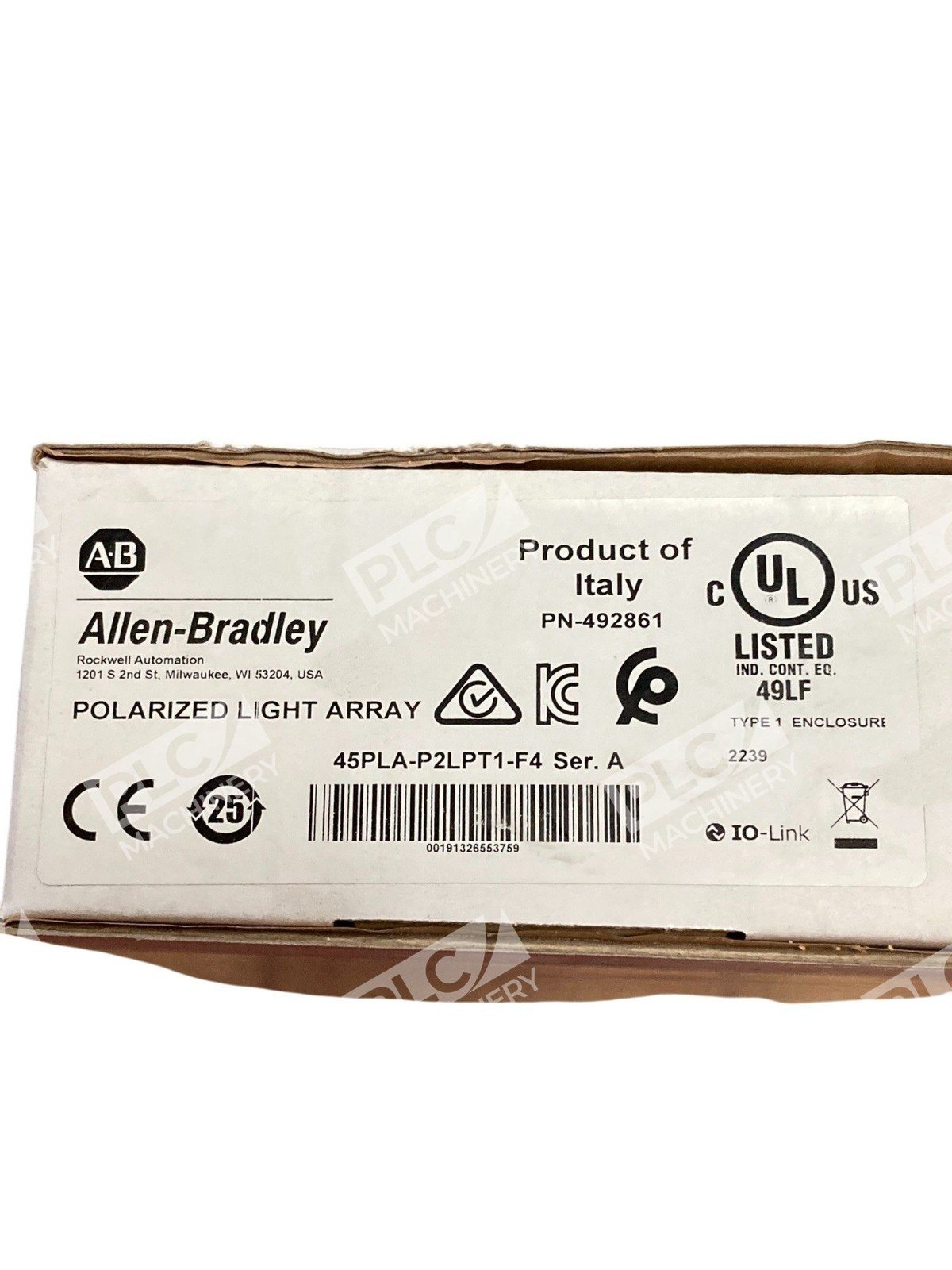

Allen-Bradley 45PLA-P2LPT1-F4 Polarized Light Array

The Allen-Bradley 45PLA-P2LPT1-F4 is a high-performance polarized light array sensor designed to deliver precise object detection across a wide area. Its advanced features make it suitable for various industrial applications requiring reliable sensing solutions.

Key Features

• Wide Detection Area: Covers a 69 mm (2.7 in.) wide detection zone, enabling the monitoring of larger areas with a single sensor. ([literature.rockwellautomation.com](https://literature.rockwellautomation.com/idc/groups/literature/documents/in/45pla-in001_-en-p.pdf?utm_source=openai))
• Extended Sensing Range: Capable of detecting objects up to 4.5 meters (14.8 feet) away when used with the 92-135 reflector, providing flexibility in various setups. ([literature.rockwellautomation.com](https://literature.rockwellautomation.com/idc/groups/literature/documents/in/45pla-in001_-en-p.pdf?utm_source=openai))
• High Sensitivity: Detects objects as small as 6 mm (0.24 in.), ensuring accurate detection of small items. ([literature.rockwellautomation.com](https://literature.rockwellautomation.com/idc/groups/literature/documents/in/45pla-in001_-en-p.pdf?utm_source=openai))
• Visible Indicators: Equipped with 360° indicator LEDs, facilitating easy status monitoring and troubleshooting. ([literature.rockwellautomation.com](https://literature.rockwellautomation.com/idc/groups/literature/documents/in/45pla-in001_-en-p.pdf?utm_source=openai))
• IO-Link Communication: Features embedded IO-Link 1.1 for enhanced diagnostics and configuration, including beam blanking and bin picking modes. ([literature.rockwellautomation.com](https://literature.rockwellautomation.com/idc/groups/literature/documents/in/45pla-in001_-en-p.pdf?utm_source=openai))
• Quick Response Time: Offers a maximum response time of 2.5 milliseconds, suitable for high-speed applications. ([literature.rockwellautomation.com](https://literature.rockwellautomation.com/idc/groups/literature/documents/in/45pla-in001_-en-p.pdf?utm_source=openai))
• Durable Construction: Housed in an IP67-rated enclosure, ensuring protection against dust and water ingress for reliable operation in harsh environments. ([literature.rockwellautomation.com](https://literature.rockwellautomation.com/idc/groups/literature/documents/in/45pla-in001_-en-p.pdf?utm_source=openai))

Technical Specifications

• Light Source: Visible red LED
• Operating Voltage: 12 to 30V DC
• Output Type: Selectable PNP or NPN
• Output Mode: Programmable for Light Operate or Dark Operate
• Connection Type: 4-pin M12 quick disconnect on a 150 mm pigtail
• Operating Temperature Range: -10 to +55°C (14 to 131°F)

The 45PLA-P2LPT1-F4 is engineered to provide reliable and efficient object detection, making it an ideal choice for applications requiring precise sensing over a broad area.
