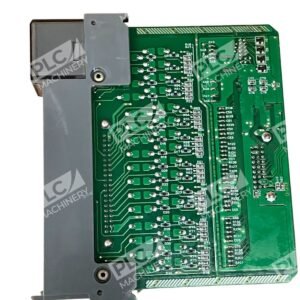

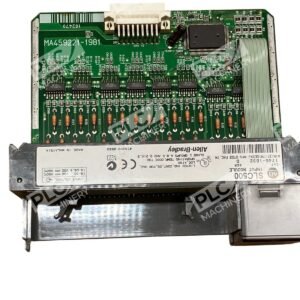

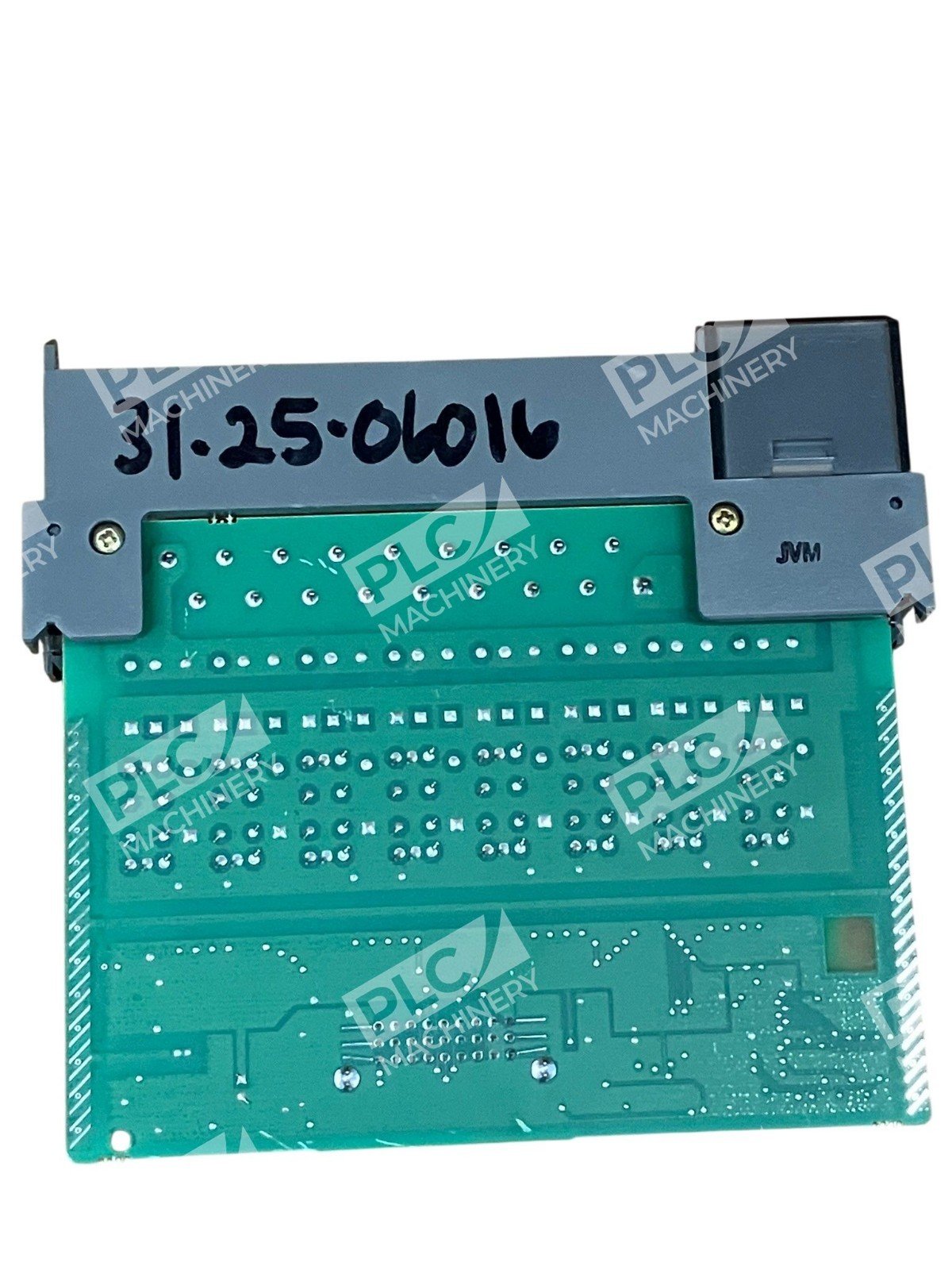

Allen Bradley AB Missing Door SLC500 Input Module 1746-IB32 /D

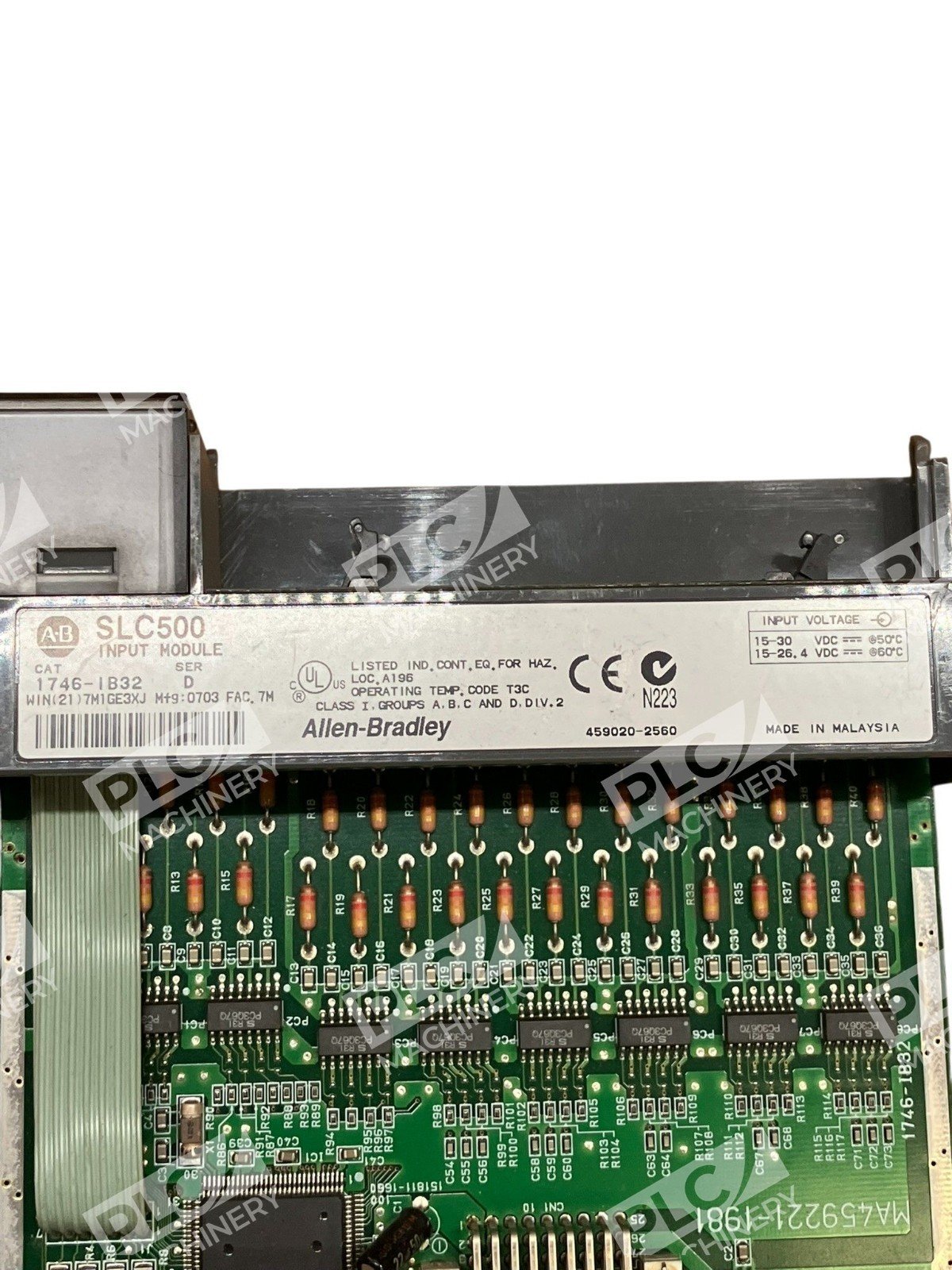

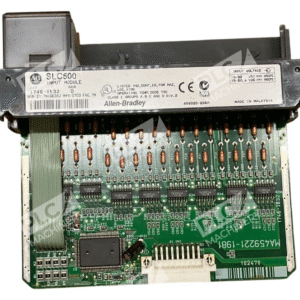

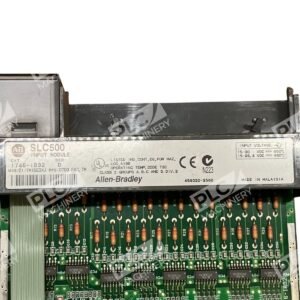

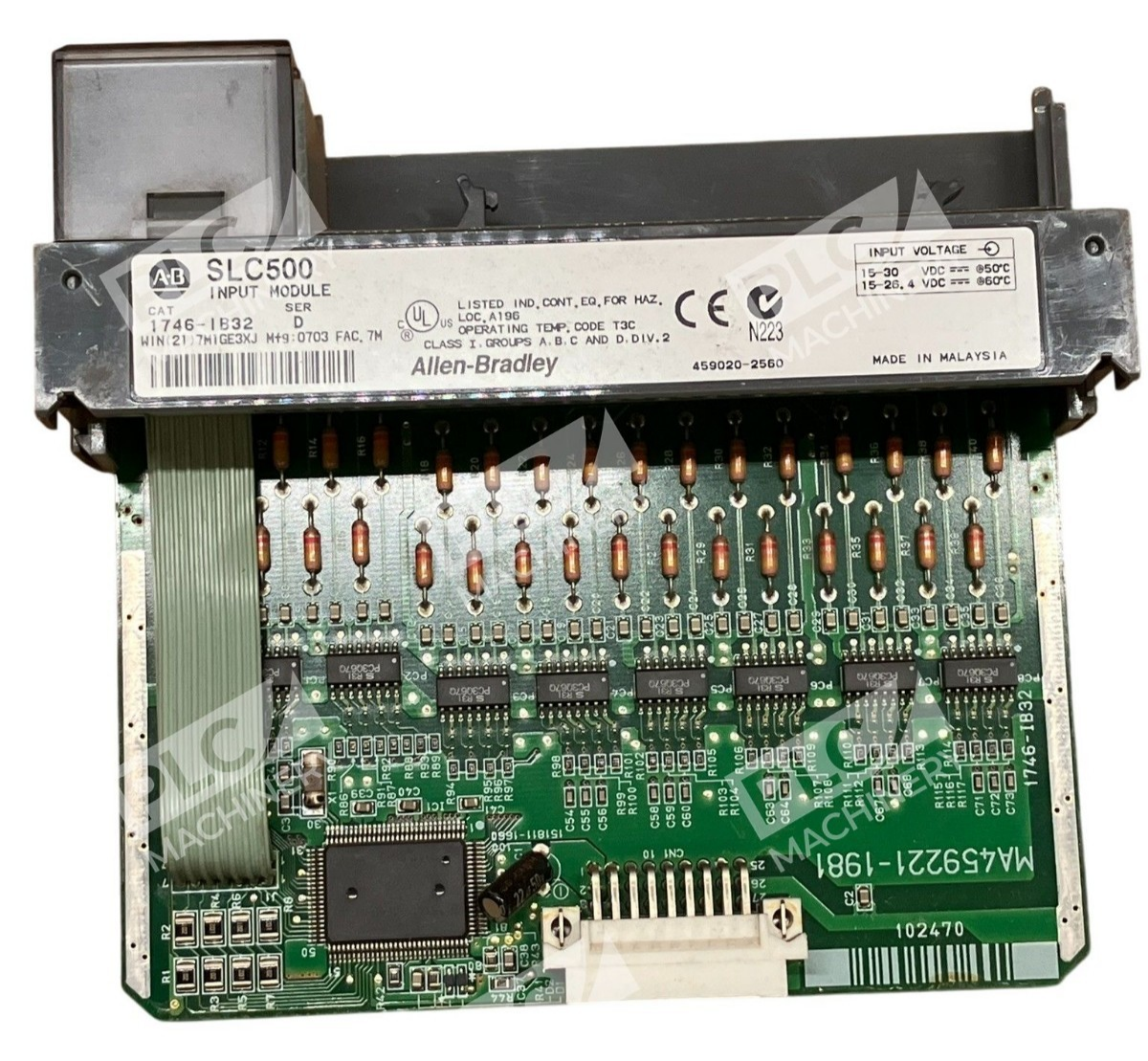

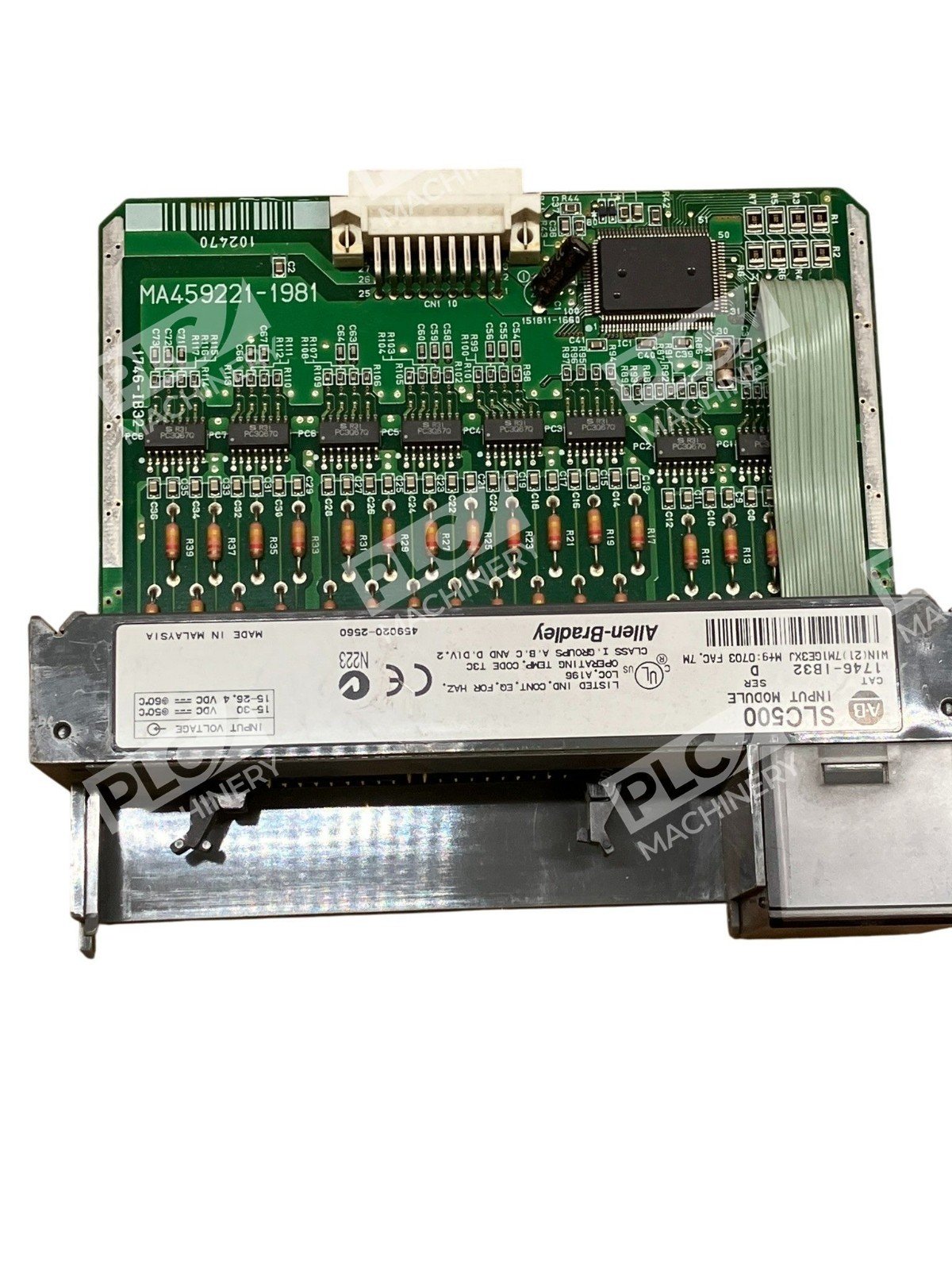

Allen-Bradley 1746-IB32/D SLC 500 32-Point DC Input Module

The Allen-Bradley 1746-IB32/D is a high-density digital input module designed for the SLC 500 series programmable logic controllers (PLCs). This module provides 32 sinking input channels, making it ideal for applications requiring multiple discrete inputs within a compact form factor.

Key Features

• Input Channels: 32 sinking inputs
• Operating Voltage Range:
  • 15 to 30V DC at 50°C (122°F)
  • 15 to 26.4V DC at 60°C (140°F)
• Nominal Input Current: 5.1 mA at 24V DC
• Input Delay Time: 3 ms (OFF to ON and ON to OFF)
• Backplane Current Draw: 50 mA at 5V DC
• Power Dissipation: 0.20 W per channel; 6.65 W per module
• Isolation Voltage: 1500V AC between backplane and field wiring for 1 minute
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Humidity: 5 to 95% non-condensing
• Shock Rating: 30G

Installation and Compatibility

The 1746-IB32/D module is compatible with all SLC 500 processors and can be installed in any available slot of the 1746 chassis, except slot 1, which is reserved for the controller. It supports local installation alongside the controller, in an expansion I/O rack, or in a remote I/O chassis with an appropriate communication adapter. The module features a removable terminal block, facilitating easy wiring and maintenance.

Applications

This module is suitable for interfacing with various electrical devices such as switches, sensors, and auxiliary contacts, making it ideal for general-purpose DC input applications in industrial automation systems.

Note

Ensure that power is removed from the chassis during installation, as the 1746-IB32/D does not support removal and insertion under power (RIUP).
