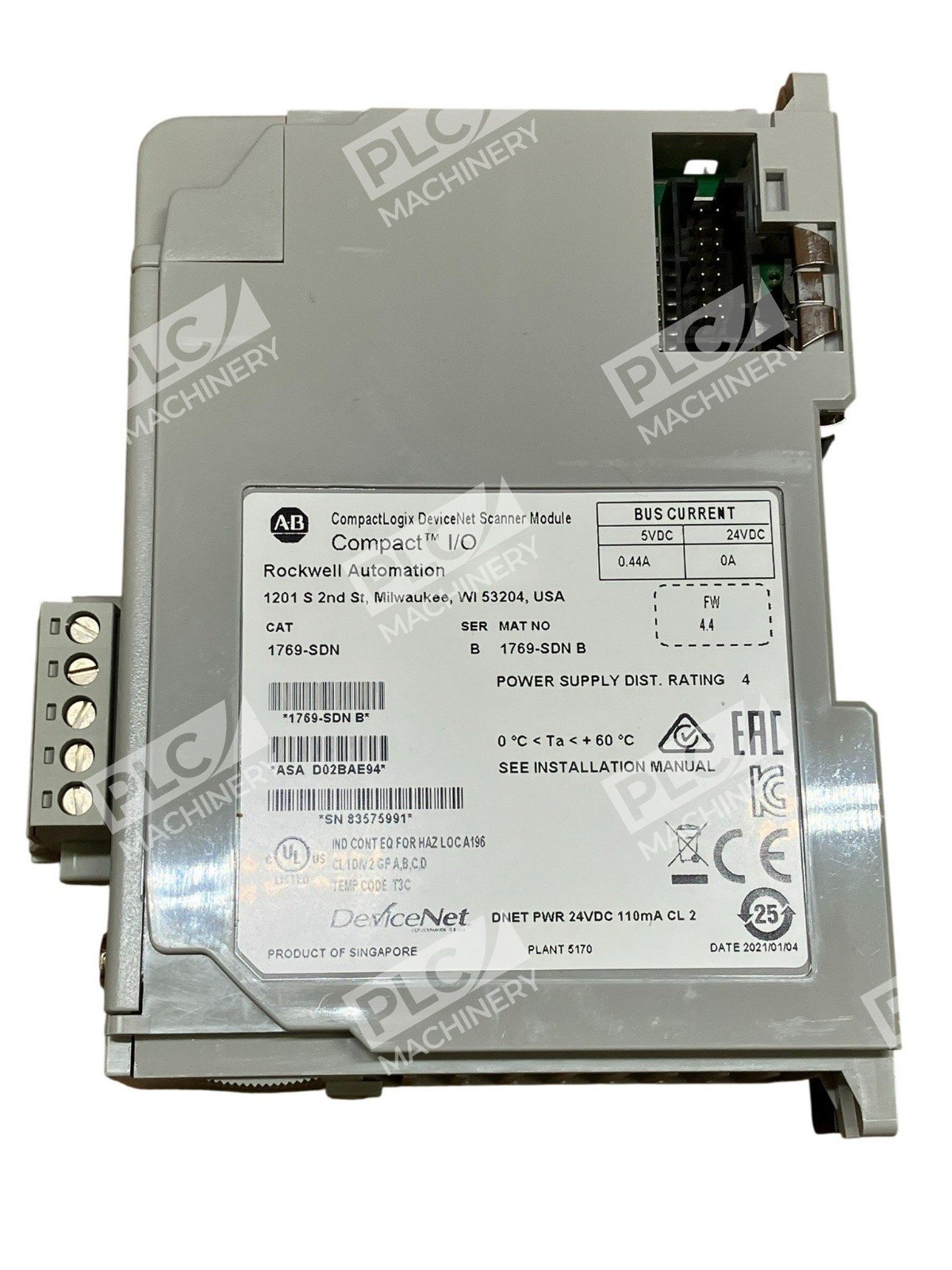

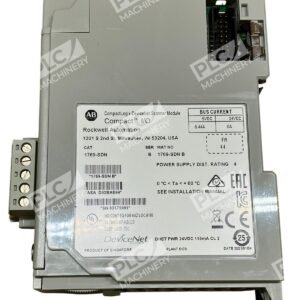

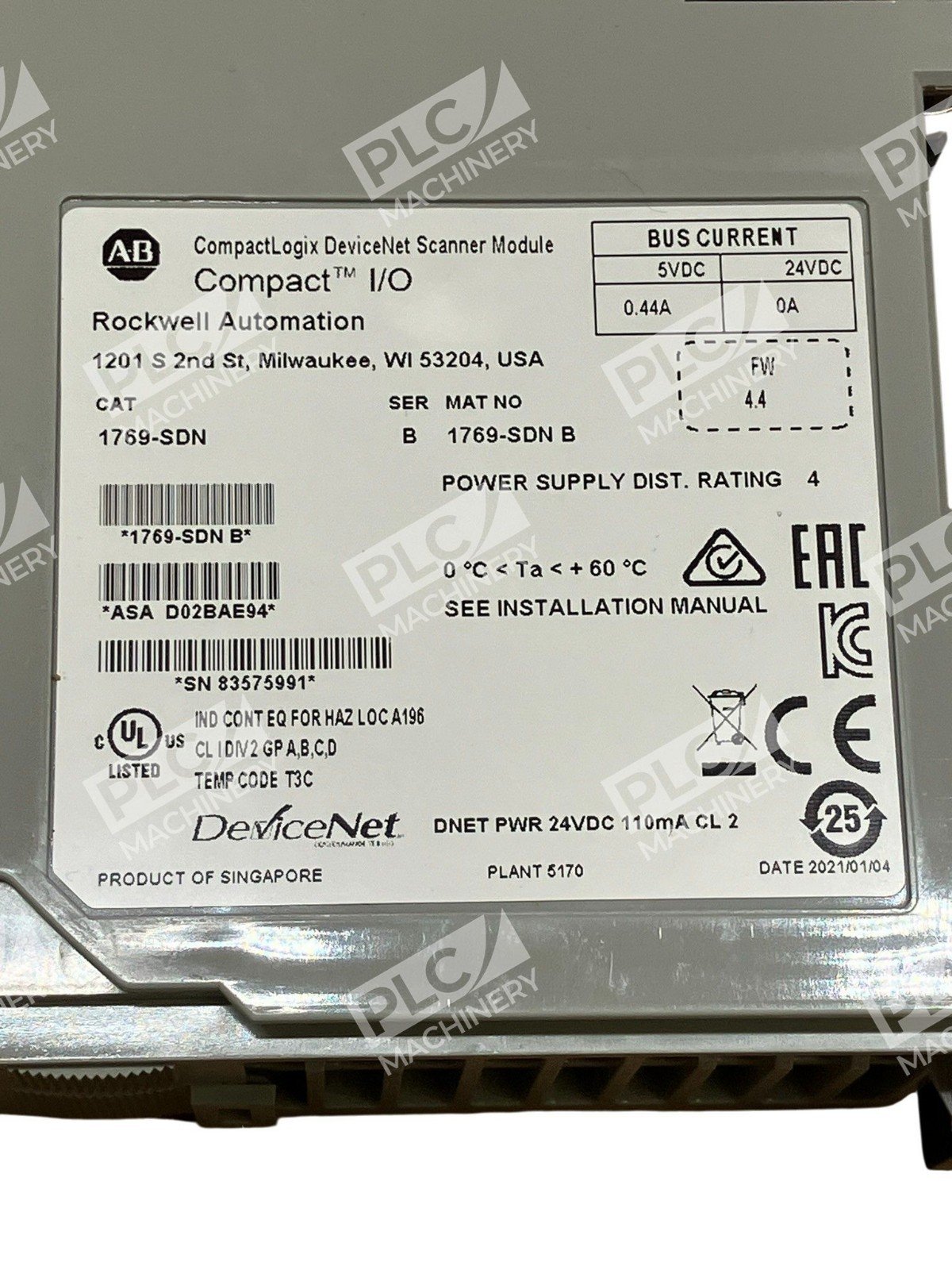

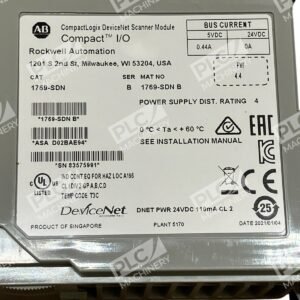

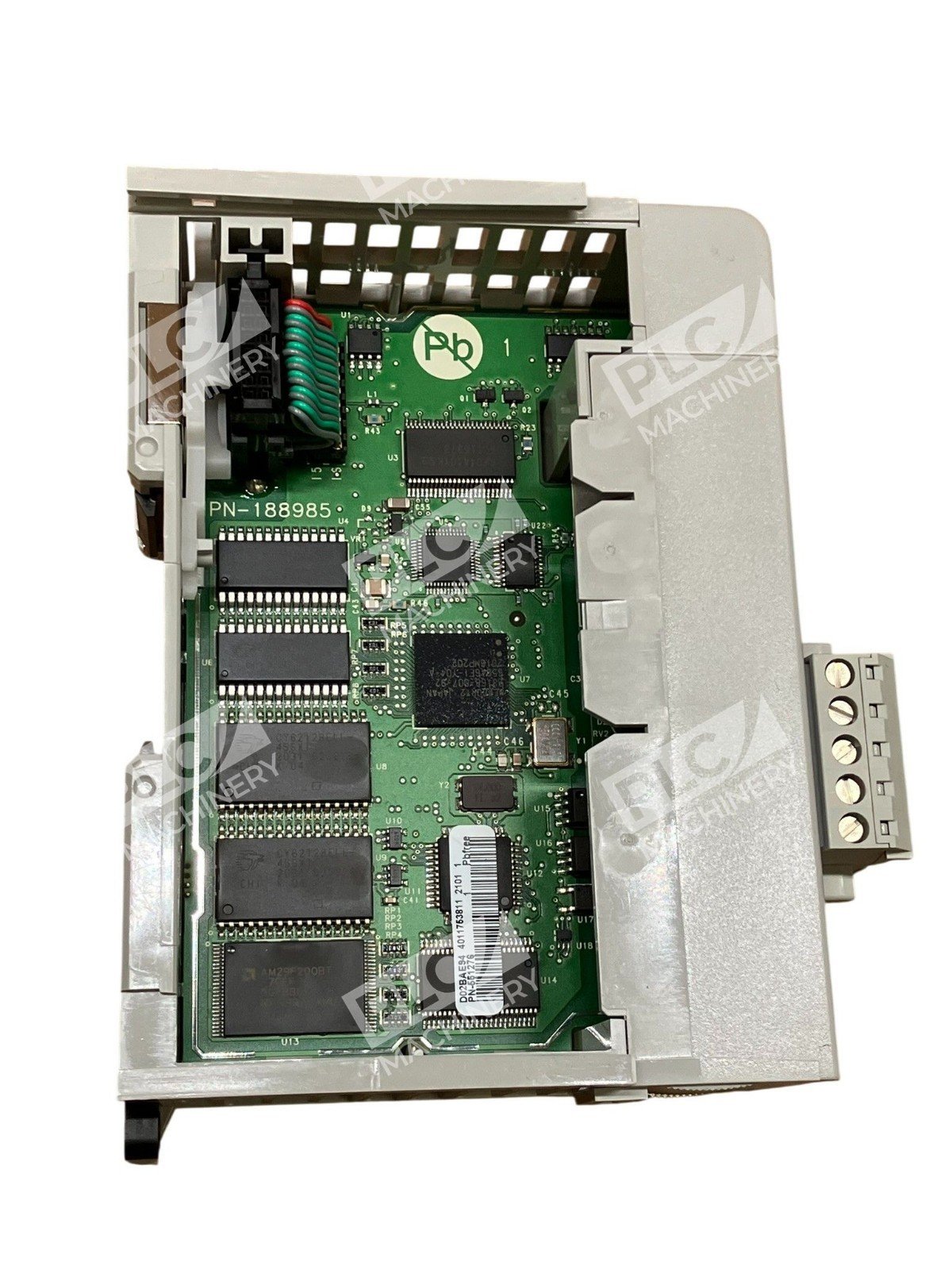

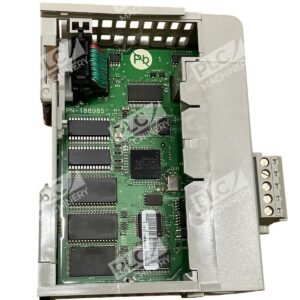

Allen Bradley AB CompactLogix DeviceNet Scanner I/O Module 1769-SDN /B

The Allen-Bradley 1769-SDN Series B is a DeviceNet Scanner I/O Module designed for seamless integration with CompactLogix and MicroLogix 1500 controllers. This module facilitates efficient communication between controllers and up to 63 DeviceNet-enabled devices, enhancing the flexibility and scalability of industrial automation systems.

Key Features

• Network Compatibility: Supports DeviceNet communication, enabling integration with a wide range of industrial devices.
• Data Transfer Rates: Operates at 125 kbps, 250 kbps, and 500 kbps, allowing for adaptable network configurations.
• Node Support: Manages communication with up to 63 DeviceNet nodes, facilitating extensive device connectivity.

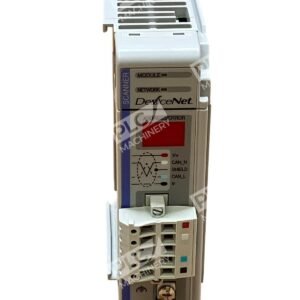

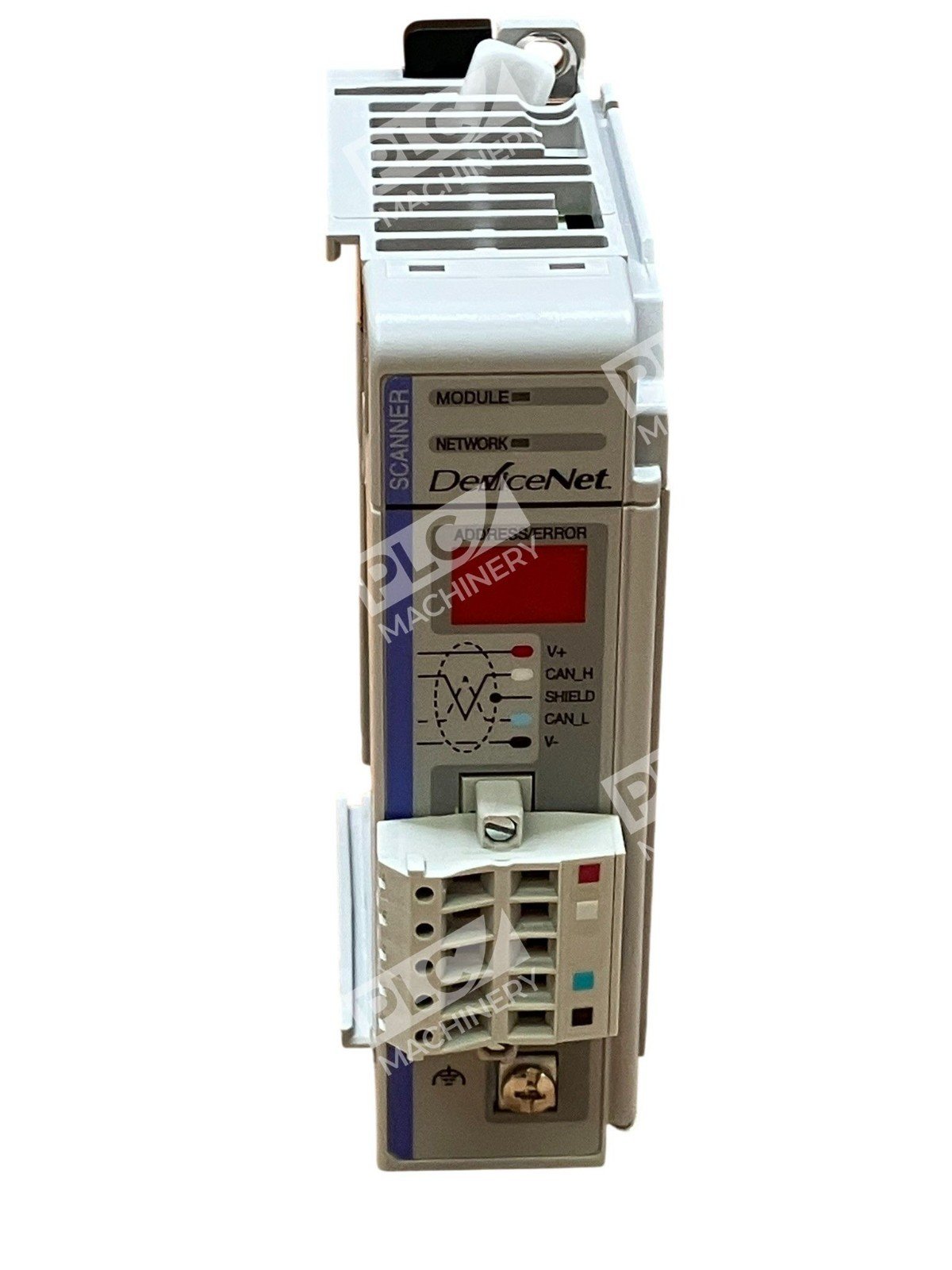

• Diagnostic Indicators: Equipped with LED indicators for module status, network status, I/O status, and diagnostic status, providing real-time operational insights.
• Mounting Options: Designed for DIN rail or panel mounting, offering flexibility in installation.

Technical Specifications

• Dimensions: Height: 118 mm; Width: 50 mm; Depth: 87 mm.
• Weight: Approximately 0.28 kg.
• Backplane Current Load: 500 mA at 5V DC.
• Operating Temperature: 0°C to 60°C (32°F to 140°F).
• Storage Temperature: -40°C to 85°C (-40°F to 185°F).
• Relative Humidity: 5% to 95% non-condensing.
• Shock Resistance: Operating: 30 G.
• Vibration Resistance: 2 G at 10…500 Hz.

Installation and Configuration

The 1769-SDN module is designed for easy integration into existing systems. It can be mounted on a DIN rail or directly onto a panel, providing flexibility in installation. The module supports various data transfer methods, including polled, strobed, and change-of-state, ensuring efficient communication tailored to specific application needs. Configuration is streamlined using RSNetWorx for DeviceNet, simplifying network setup and management.

Applications

Ideal for factory automation, process control, material handling, and other industrial applications, the 1769-SDN enhances system performance by enabling reliable communication between controllers and DeviceNet devices. Its compact design and robust features make it a valuable component in diverse industrial settings.

In summary, the Allen-Bradley 1769-SDN Series B DeviceNet Scanner I/O Module offers a reliable and efficient solution for integrating DeviceNet networks with CompactLogix and MicroLogix 1500 controllers, supporting a wide range of industrial automation applications.
