Allen Bradley AB 42185-800-01 595-A Starter 509-BOD /B

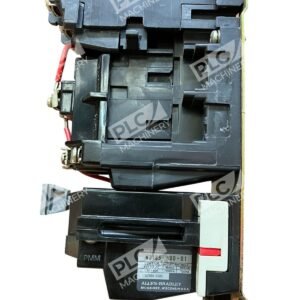

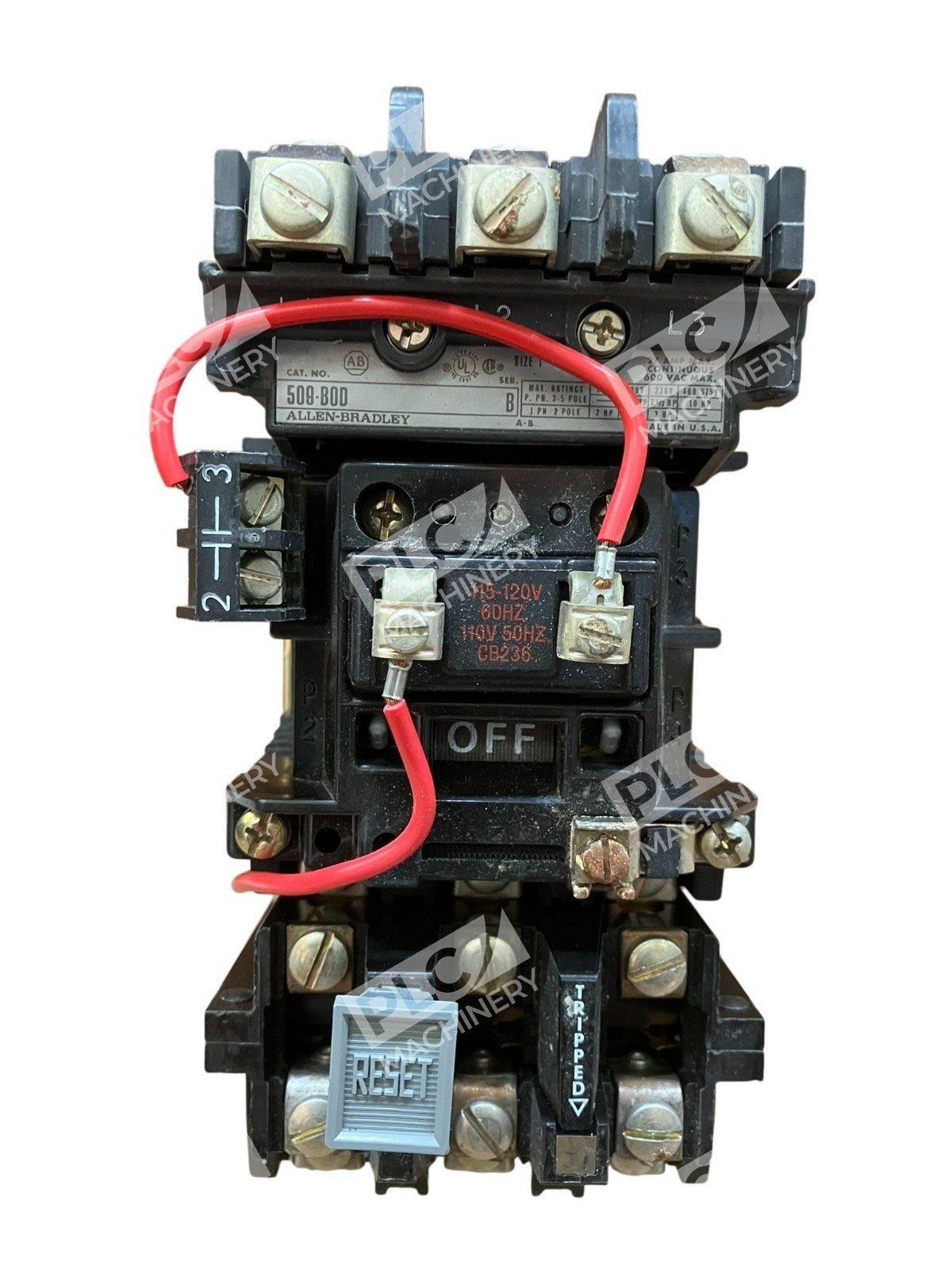

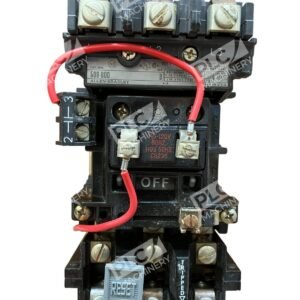

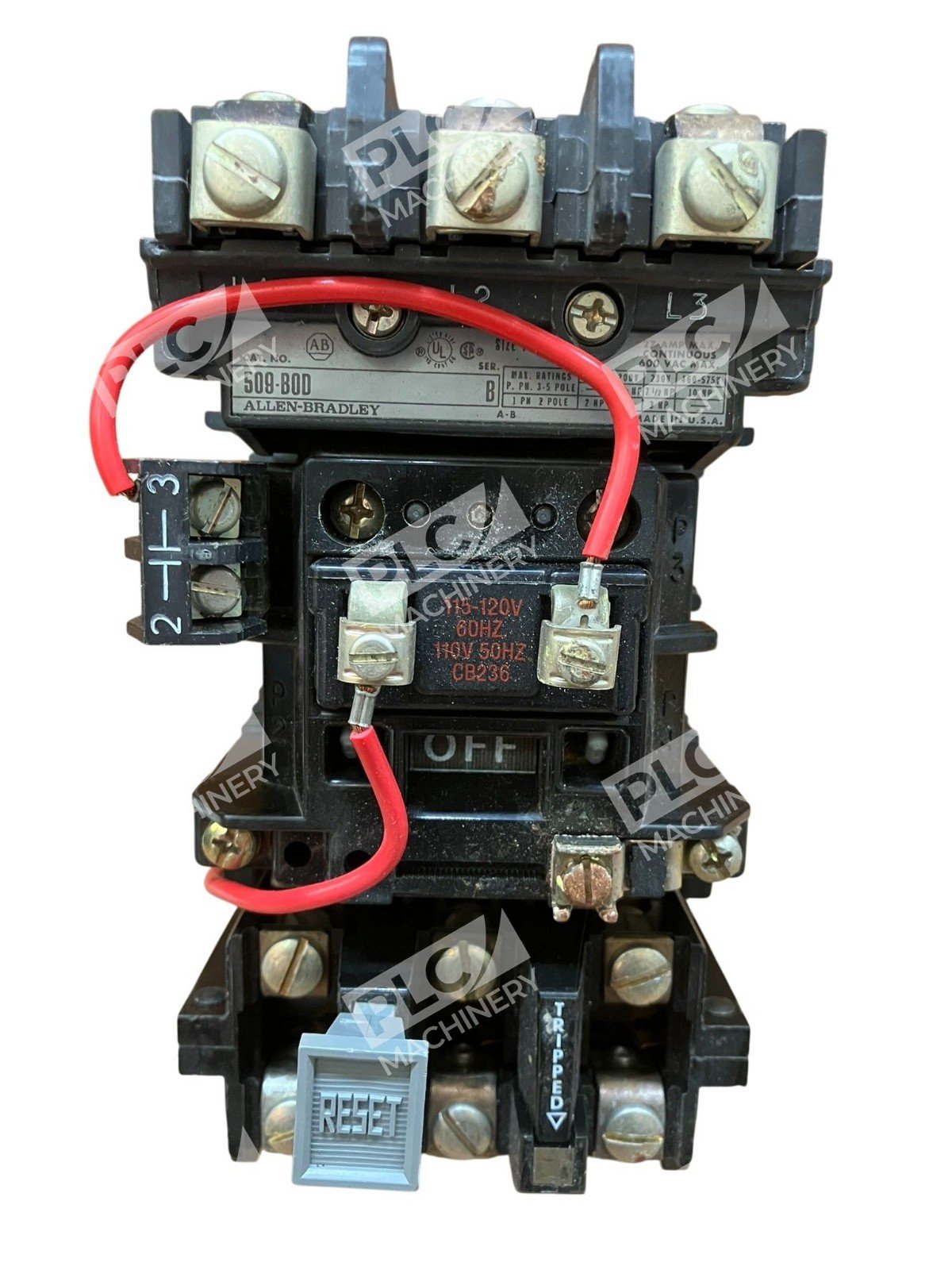

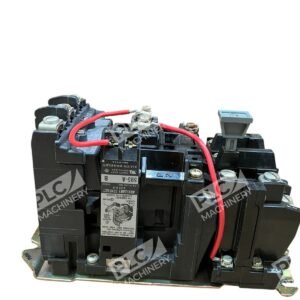

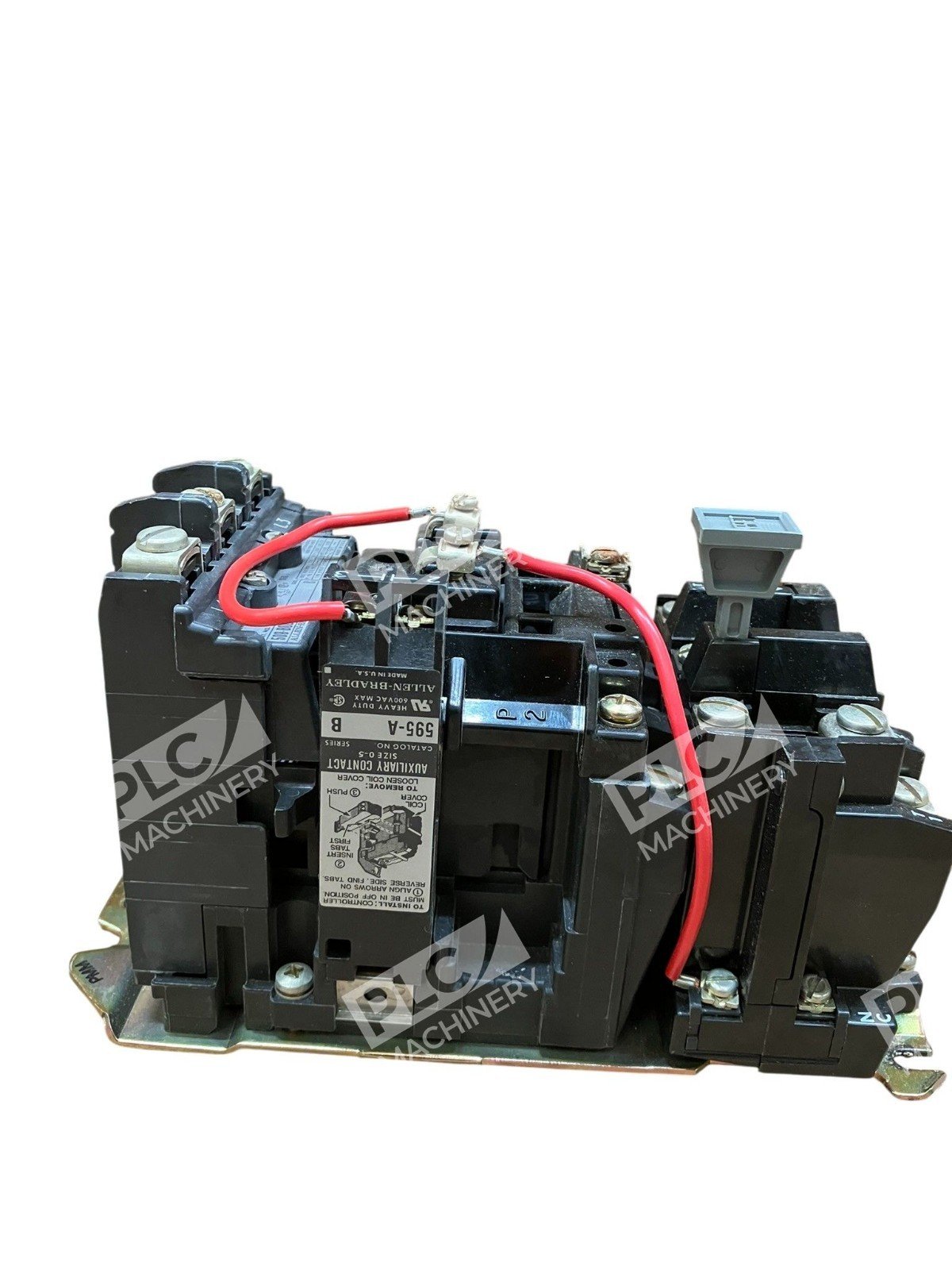

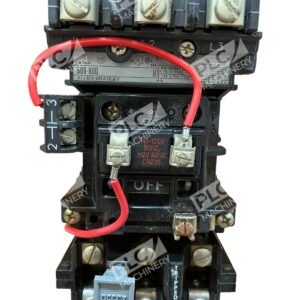

Allen-Bradley 509-BOD /B NEMA Size 1 Non-Reversing Starter with 595-A /B Auxiliary Contact and 42185-800-01 Overload Relay

The Allen-Bradley 509-BOD /B is a robust NEMA Size 1 non-reversing motor starter designed for reliable motor control in industrial applications. This starter is equipped with a 595-A /B auxiliary contact and a 42185-800-01 overload relay, ensuring comprehensive motor protection and control.

Key Features

• Continuous Current Rating: 27A
• Maximum Voltage: 600V AC
• Control Voltage: 115-120V at 60Hz; 110V at 50Hz

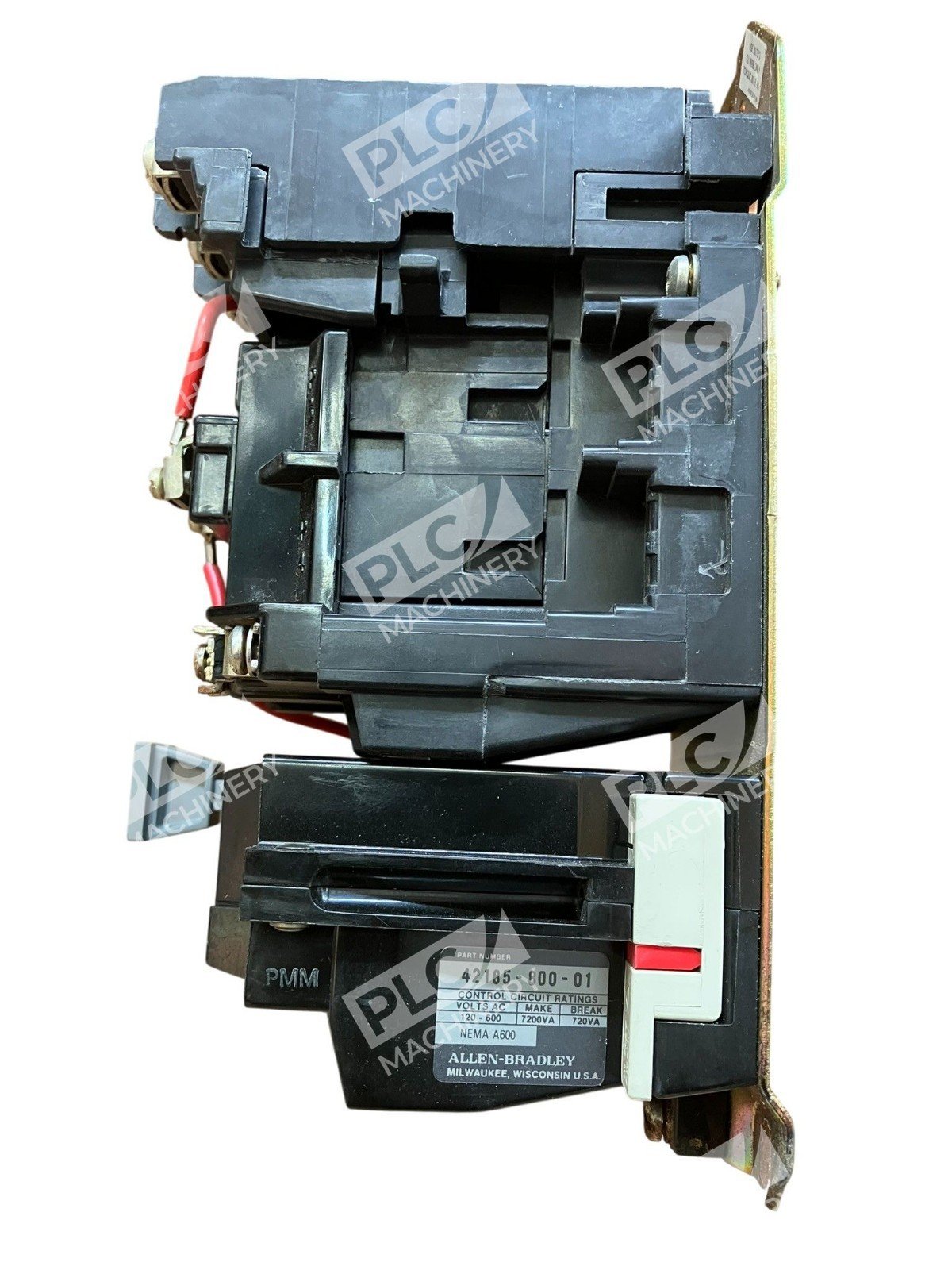

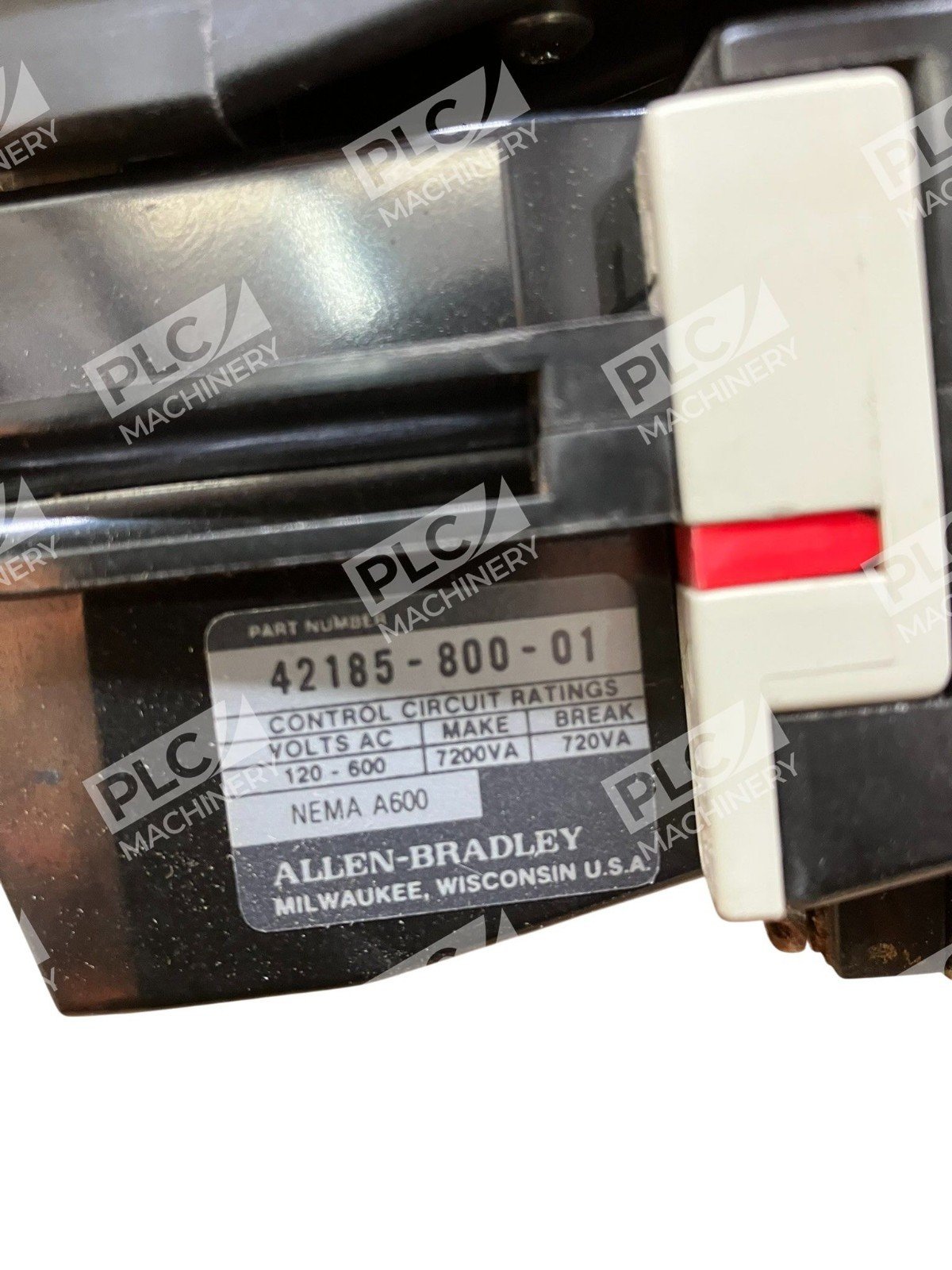

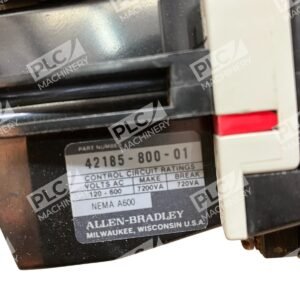

• Overload Relay: Eutectic alloy overload relay (Part Number: 42185-800-01)

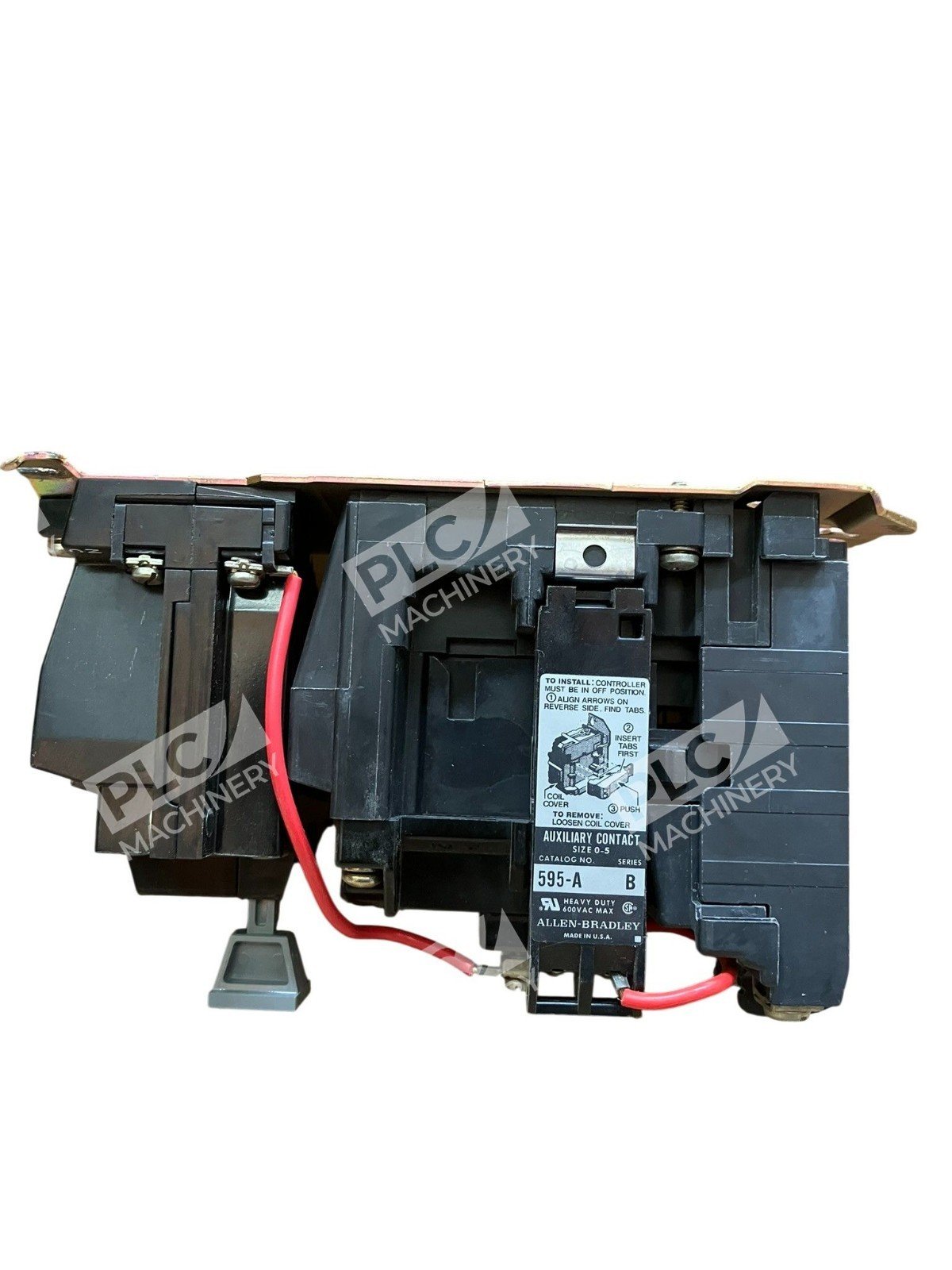

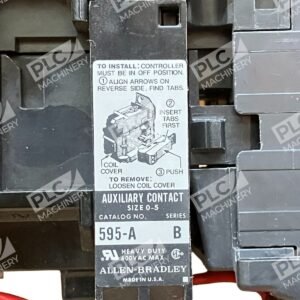

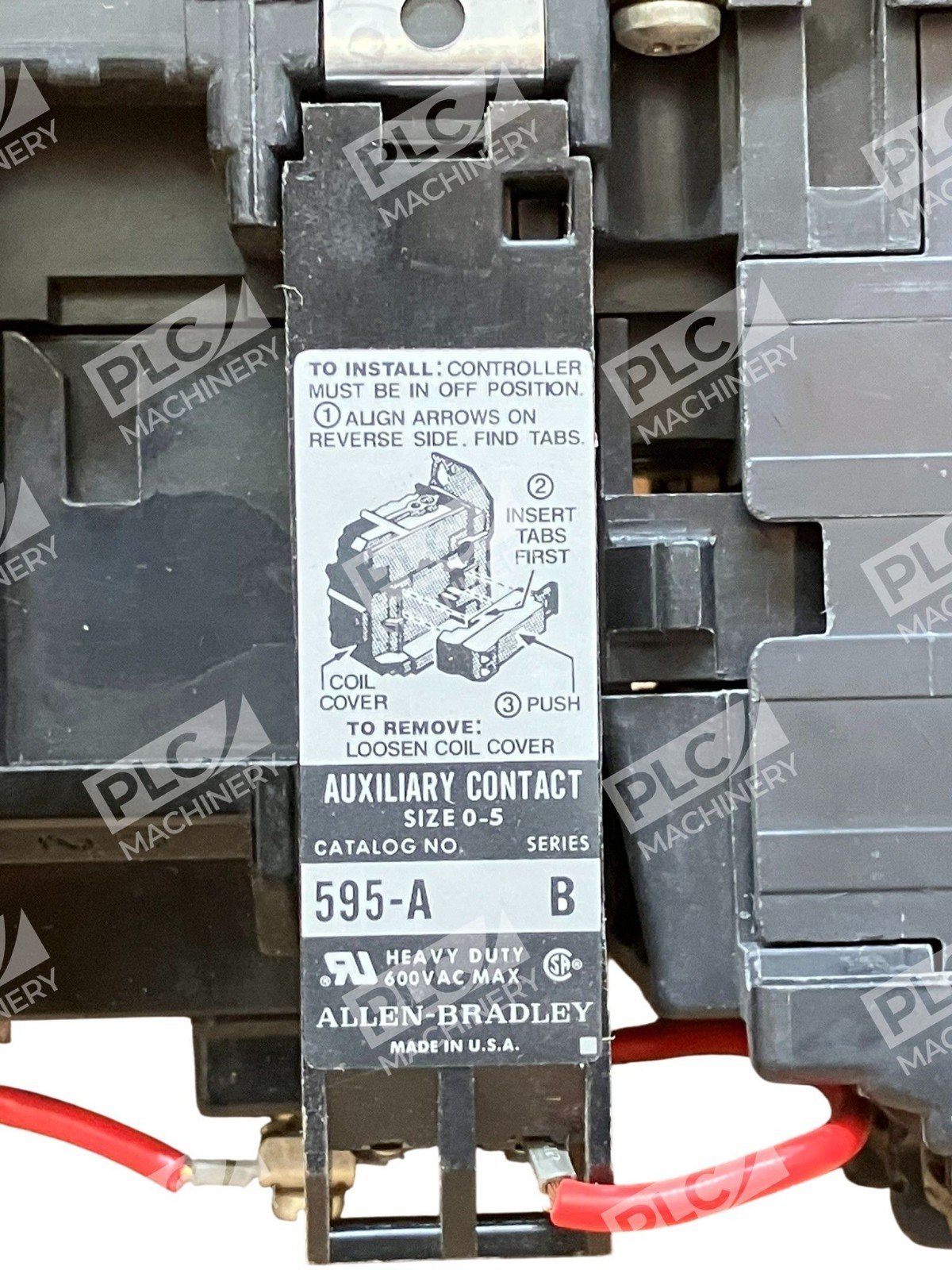

• Auxiliary Contact: NEMA A600 rated (Catalog No.: 595-A /B)
• Enclosure Type: Open type
• Operating Temperature: Up to 65°C
• Altitude: Up to 10,000 ft before derating

Applications

This starter is ideal for various industrial settings requiring dependable motor control, including manufacturing plants, processing facilities, and other environments where consistent motor operation is critical.

Additional Information

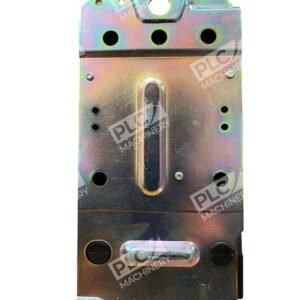

The 509-BOD /B starter is designed for vertical mounting and features screw-type electrical connections for both main and auxiliary circuits. It offers temperature-compensated overload protection and is suitable for emergency stop applications, ensuring both safety and performance in demanding industrial environments.

Specifications

• Brand: Allen-Bradley
• Model: 509-BOD
• Series: B
• Size: 1
• Continuous Current: 27A
• Maximum Voltage: 600V AC
• Control Voltage: 115-120V at 60Hz; 110V at 50Hz
• Overload Relay Part Number: 42185-800-01
• Auxiliary Contact Catalog No.: 595-A /B
• Enclosure Type: Open
• Operating Temperature: Up to 65°C
• Altitude: Up to 10,000 ft before derating

By integrating the Allen-Bradley 509-BOD /B starter with the 595-A /B auxiliary contact and the 42185-800-01 overload relay, this assembly offers a reliable and efficient solution for motor control and protection in demanding industrial applications.
