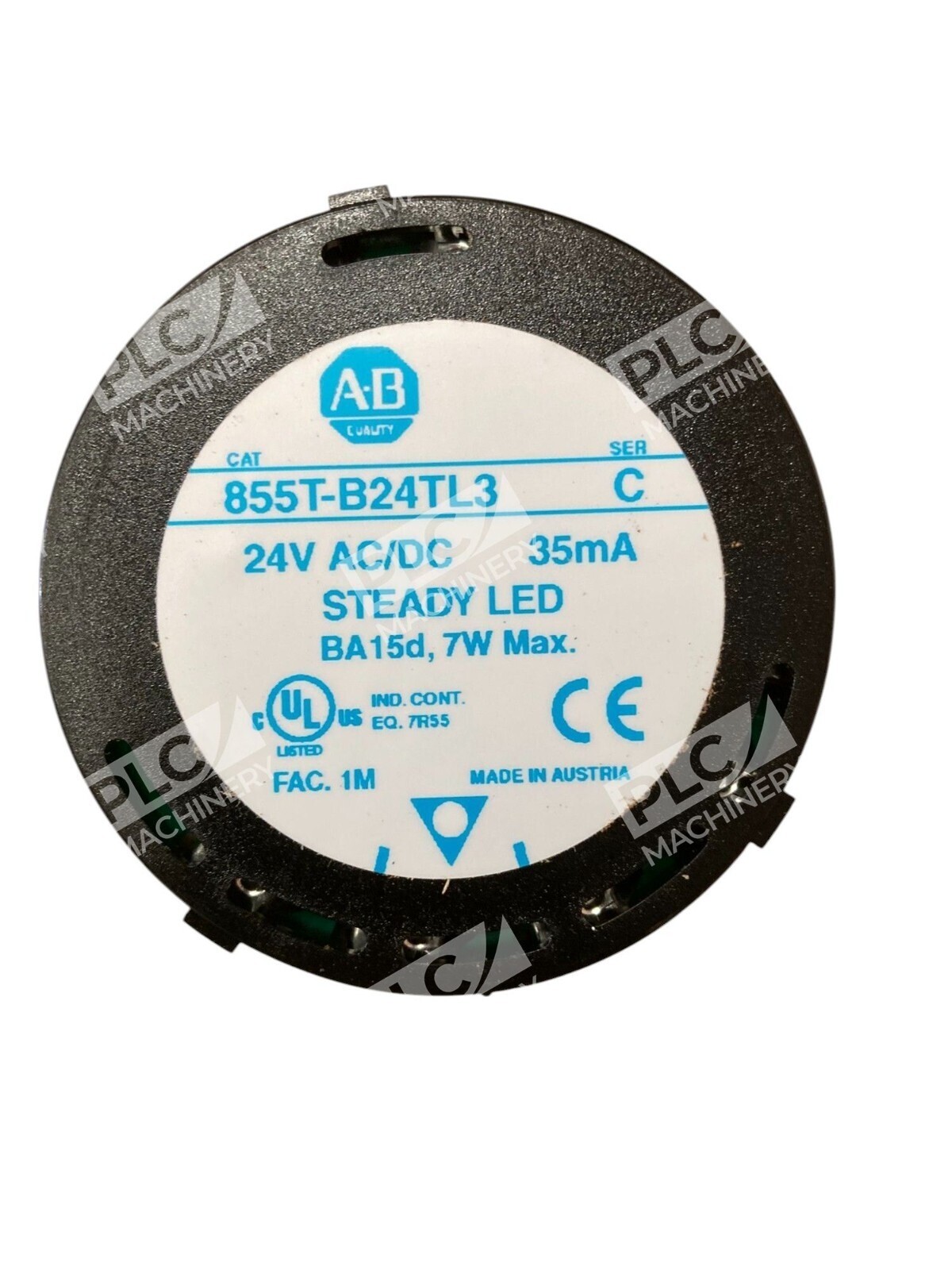

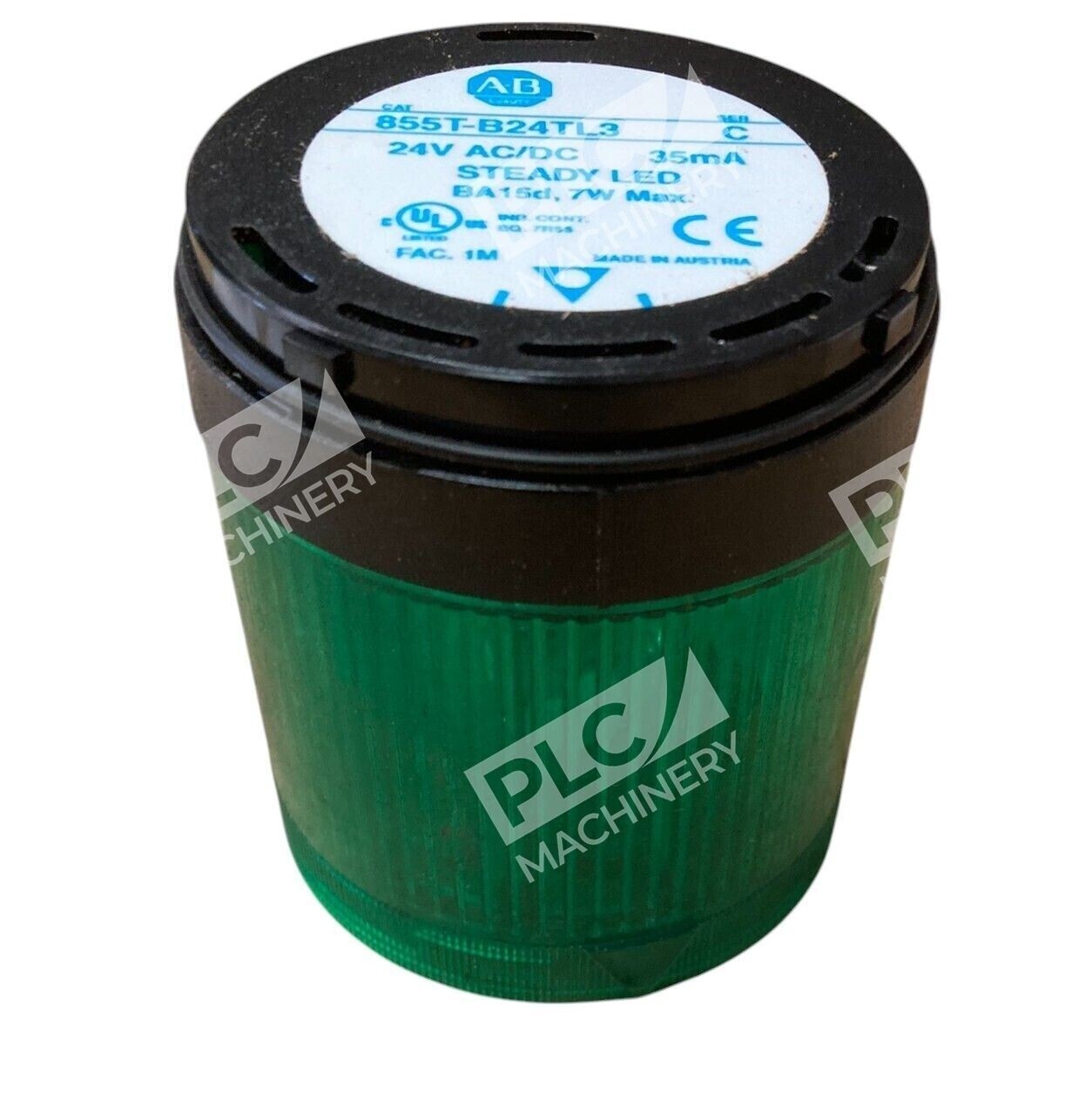

The Allen-Bradley 855T-B24TL3 is a 70 mm green steady LED stack light module designed for industrial signaling applications.
Key Features
- Voltage Compatibility: Operates efficiently at 24V AC/DC, accommodating various industrial power systems.
- Energy Efficiency: Consumes only 29 mA at 24V AC/DC, ensuring minimal energy usage.
- Durability: Offers a lamp life rating of 100,000 hours, reducing maintenance needs.
- Environmental Protection: Rated NEMA 4X and IP65, providing robust protection against dust and water ingress.
- High Visibility: Delivers a light output between 900 to 1800 millicandelas (mcd), ensuring clear signaling.
Technical Specifications
- Lens Color: Green
- Outer Diameter: 70 mm
- Housing Color: Black
- Module Type: Steady LED
- Operating Temperature Range: -25°C to 40°C
- Storage Temperature Range: -40°C to 85°C
- Recommended Wire Size: 0.5 mm²
- Recommended Terminal Torque: 0.8 Nm
- Shock Resistance: 35 G for a 5-module stack (surface-mount base or 10 cm aluminum pole base)
- Vibration Resistance: 0.75 G for a 5-module stack (surface-mount base or 10 cm aluminum pole base)
Applications
Ideal for indicating normal operation or ‘OK’ status on manufacturing and assembly equipment, visual signaling for process control in automated warehousing and logistics, and use in bottling, packaging, and material handling systems to show active status.
Certifications
- CE Marked
- cULus Listed
The 855T-B24TL3’s modular design allows for easy, tool-free assembly and reconfiguration of the tower, making it a versatile component for custom-configured, multi-status indicator towers.
