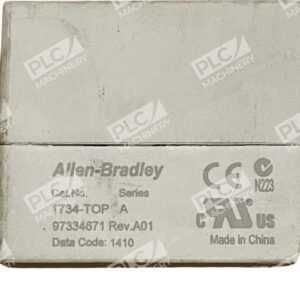

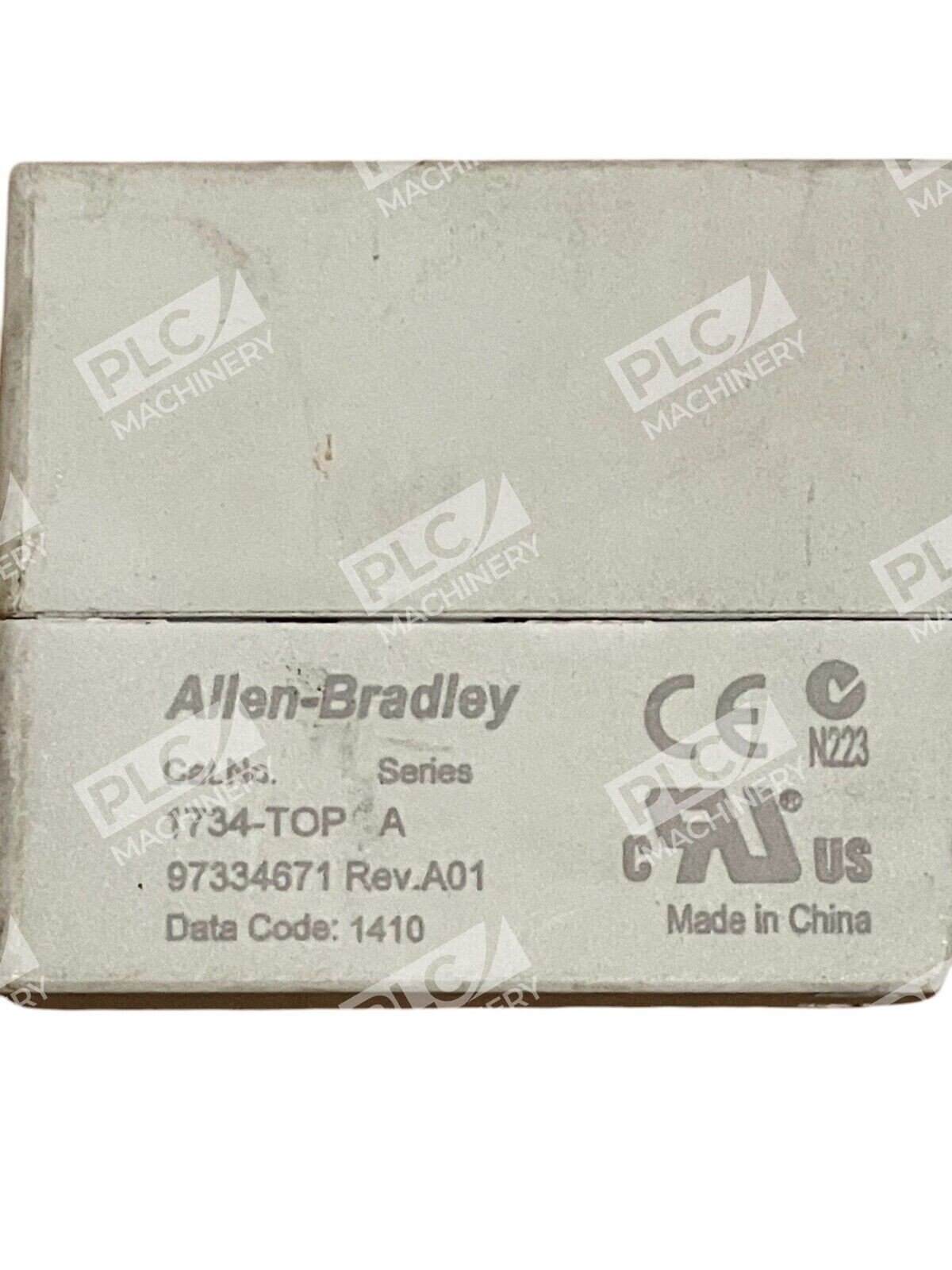

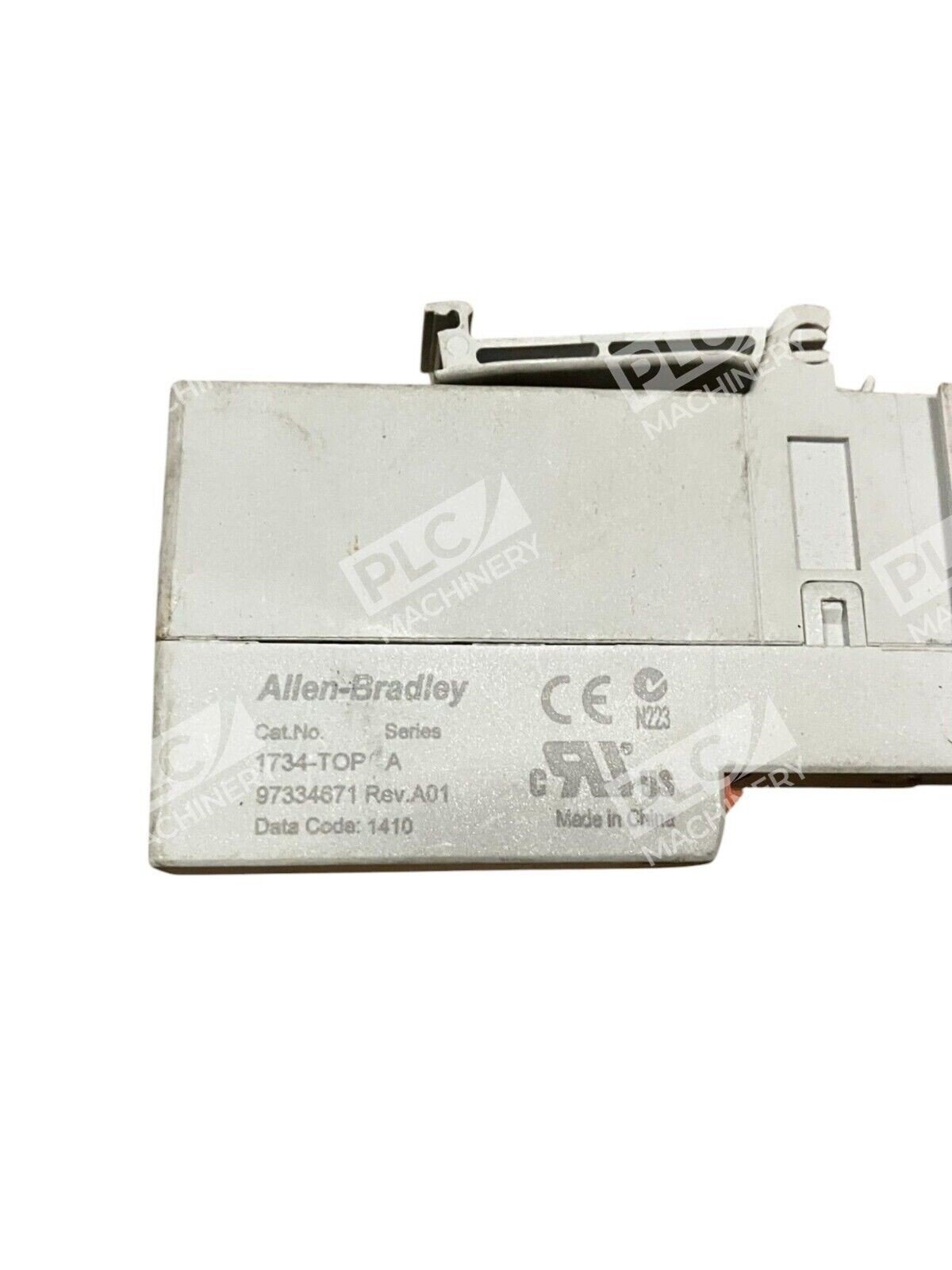

Allen Bradley 97334671 RevA01 Terminal Base Assembly 1734-TOP /A (lot of 6)

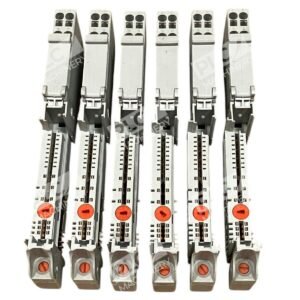

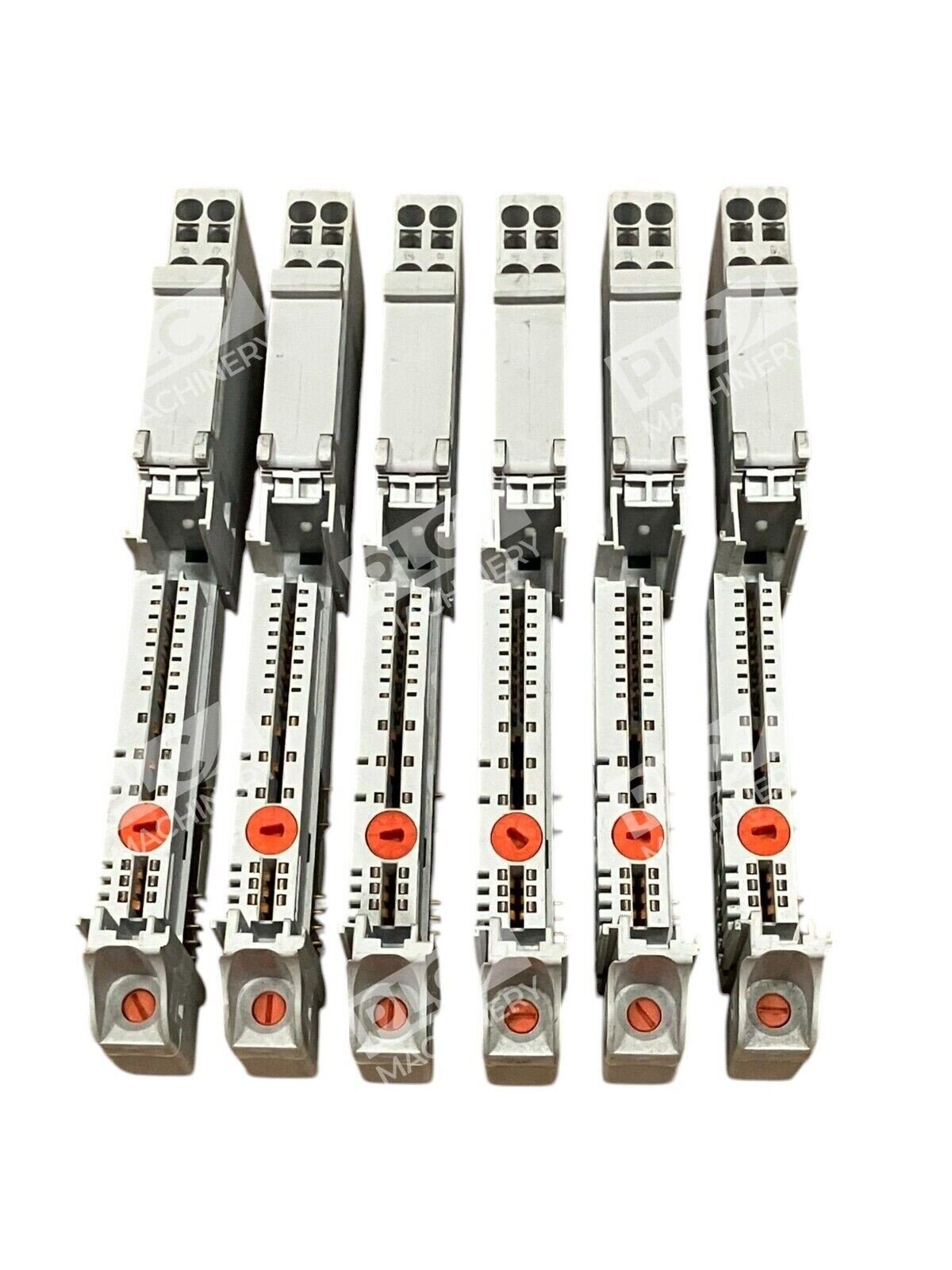

Allen-Bradley 1734-TOP Terminal Base Assembly (Lot of 6)

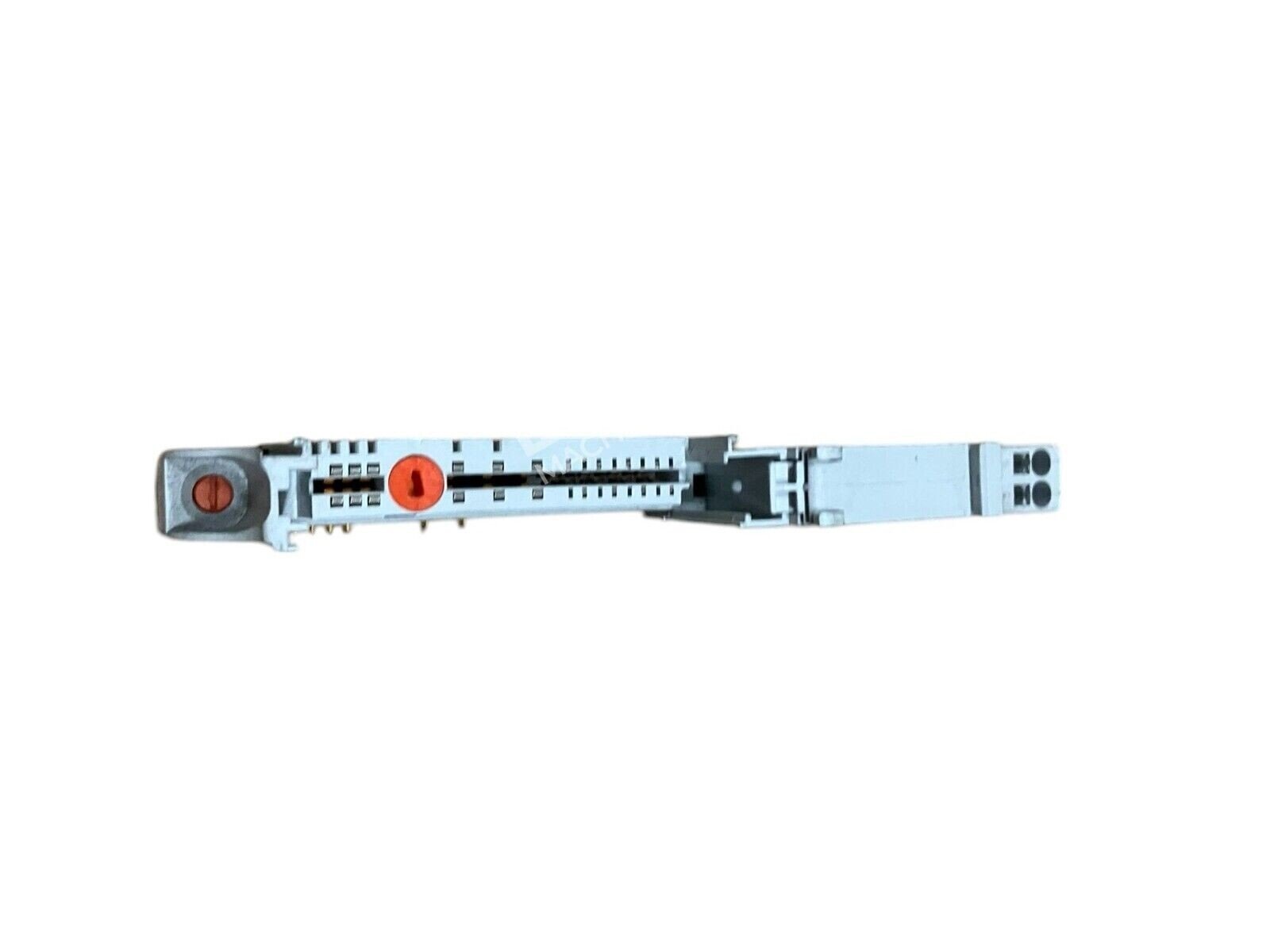

The Allen-Bradley 1734-TOP Terminal Base Assembly is a crucial component in the POINT I/O system, designed to provide a reliable and efficient mounting base for various I/O modules. This lot includes six units, ensuring ample support for extensive industrial automation applications.

Key Features

• Integrated 8-Terminal Screw-Clamp Block: Facilitates secure and straightforward wiring connections for digital and analog I/O modules, as well as specialty modules.
• One-Piece Design: Simplifies installation with a compact form factor, allowing for direct mounting on DIN rails either horizontally or vertically.
• Mechanical Keying: Prevents incorrect module placement, enhancing system reliability and reducing setup errors.
• No-Tools Assembly: Enables a smooth installation process without the need for additional tools, streamlining system setup.

Technical Specifications

• Dimensions: 49 mm x 12 mm x 144 mm (1.93 in x 0.47 in x 5.67 in)
• Weight: 63.8 grams (2.25 ounces)
• Wire Size Compatibility: 0.25 mm² to 2.5 mm² (22 to 14 AWG)
• Screw Torque: 0.6 Nm (7 lb-in)
• Maximum Supply Voltage: 300 V
• Maximum Terminal Current: 8 A
• Field Power Bus Supply Voltage: 28.8 V DC to 120/240 V AC
• Operating Temperature Range: -20°C to 55°C (-4°F to 131°F)

Installation and Compatibility

The 1734-TOP Terminal Base Assembly is designed for easy installation. Position the base vertically above existing units, slide it down to interlock with adjacent terminals, and press firmly until it clicks into place. The locking screw should remain horizontal and in the “locked” position before inserting an I/O module.

Compatible POINT I/O modules include, but are not limited to:

• 1734-IB2, 1734-IB4, 1734-IB8
• 1734-IV2, 1734-IV4, 1734-IV8
• 1734-OB2, 1734-OB4, 1734-OB8
• 1734-IE2C, 1734-IE2V
• 1734-OE2C, 1734-OE2V
• 1734-OW2, 1734-OW4
• 1734-IA2, 1734-IA4

Ensure proper grounding by using a zinc-plated yellow-chromate steel DIN rail. Each terminal pin is numbered 0 to 7, with connections determined by the specific I/O module in use. Avoid connecting more than two conductors to any single terminal pin.

This lot of six Allen-Bradley 1734-TOP Terminal Base Assemblies offers a robust solution for expanding and maintaining your industrial automation systems, providing reliable performance and ease of integration.
