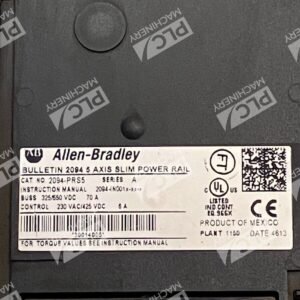

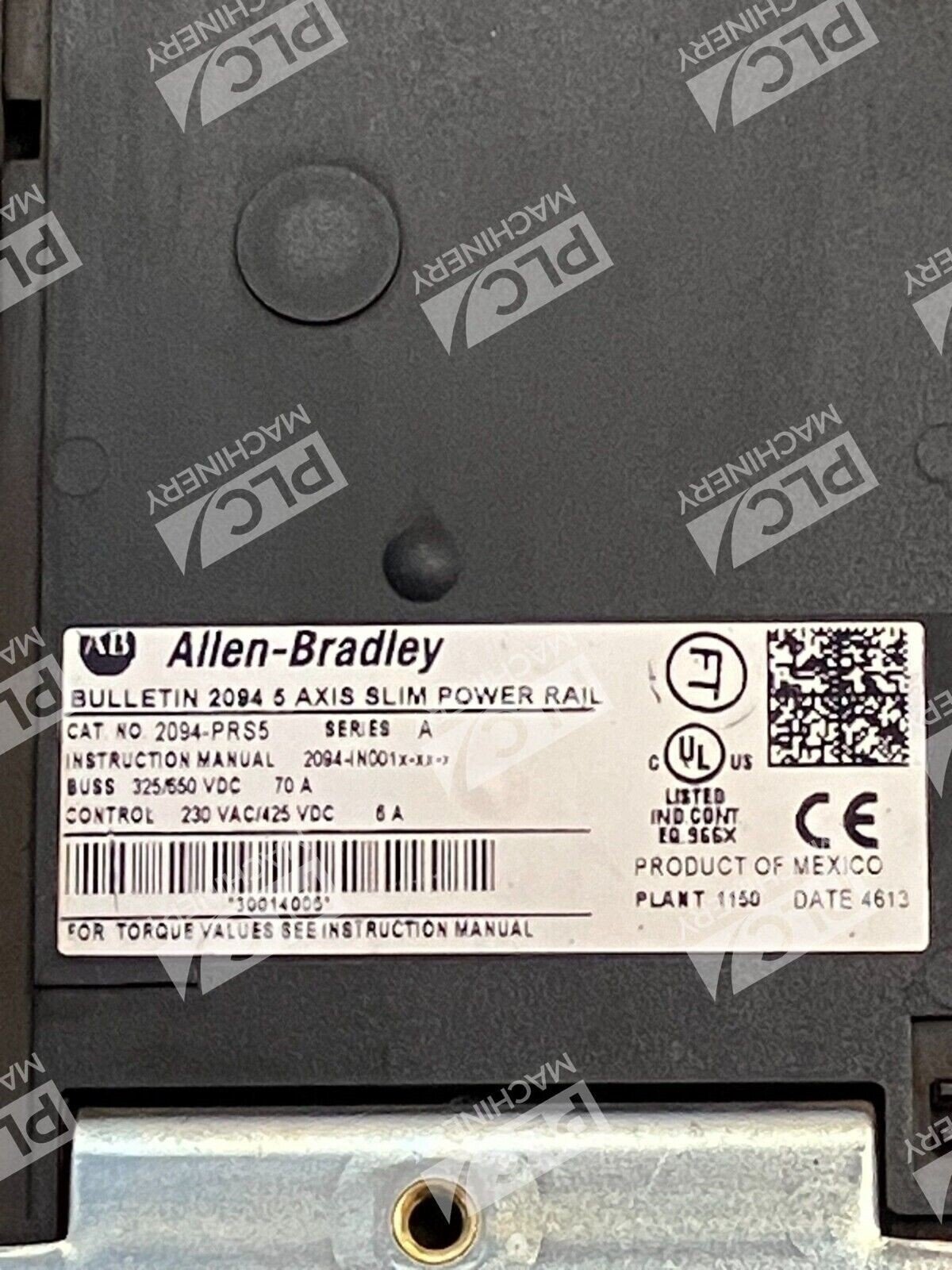

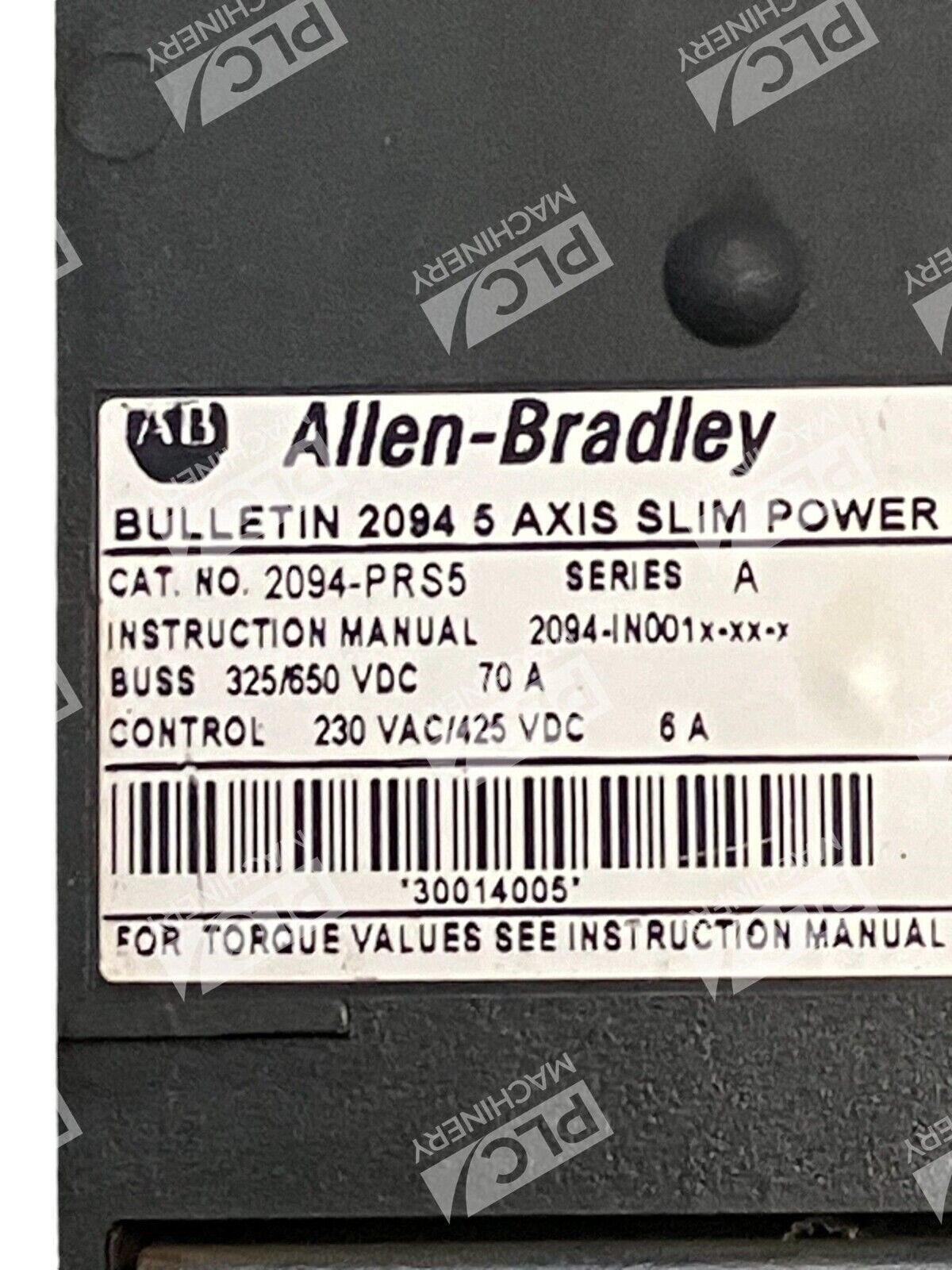

Allen-Bradley 5-Axis Slim Power Rail 2094-PRS5/A

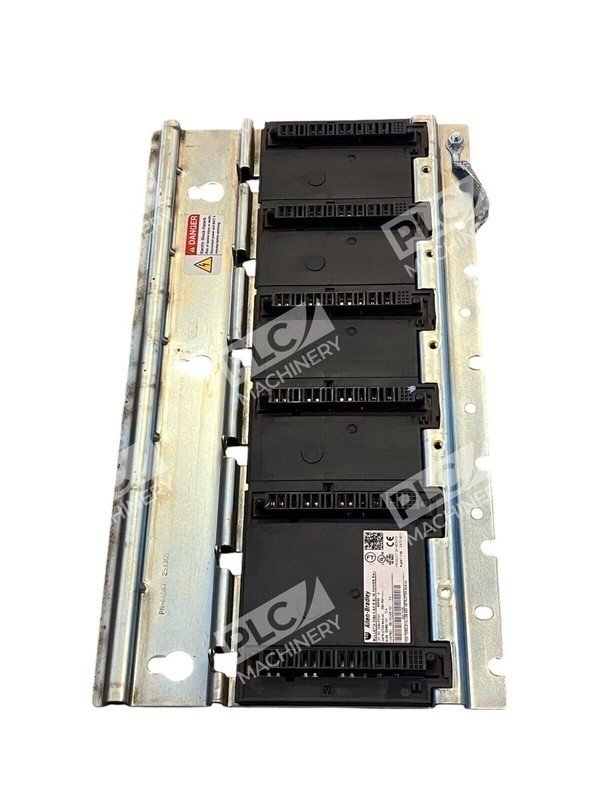

The Allen-Bradley 2094-PRS5/A is a slim power rail designed for the Kinetix 6000 servo drive system, providing a streamlined solution for multi-axis motion control applications. This power rail supports up to five axes, accommodating one Integrated Axis Module (IAM) and up to four additional modules, including Axis Modules (AM), shunt modules, or slot-filler modules.

Key Features

• Multi-Axis Support: Capable of supporting one IAM and up to four AMs, facilitating complex motion control configurations.
• Voltage Compatibility: Designed for use with both 230V and 460V drive systems, offering flexibility across various industrial applications.
• Compact Design: The slim profile conserves panel space, making it suitable for installations where space is at a premium.
• Robust Construction: Built to withstand industrial environments, ensuring reliable performance under demanding conditions.

Technical Specifications

• Dimensions: Approximately 16.5 x 13.3 x 7.7 inches (419.1 x 337.8 x 195.6 mm).
• Weight: Approximately 6.8 lbs (3.11 kg).
• Operating Temperature: 0 to 55°C (32 to 131°F).
• Relative Humidity: 5% to 95%, non-condensing.
• Altitude: Up to 1000 meters (3281 feet).
• Vibration Resistance: 5 to 55 Hz at 0.35 mm double amplitude; 55 to 500 Hz at 2.0 g peak constant acceleration.

Installation and Compatibility

The 2094-PRS5/A power rail is engineered for seamless integration with the Kinetix 6000 series modules. It provides power and control signals from the IAM to adjacent AMs, shunt modules, and slot-filler modules. Unused slots should be occupied with slot-filler modules to maintain system integrity. Proper grounding and secure mounting are essential to ensure optimal performance and safety.

Applications

This power rail is ideal for industries requiring precise and efficient multi-axis motion control, such as manufacturing, packaging, and material handling. Its compatibility with both 230V and 460V systems allows for versatile deployment across various operational settings.

For detailed installation instructions and safety guidelines, refer to the Kinetix 6000 Power Rail Installation Manual.
