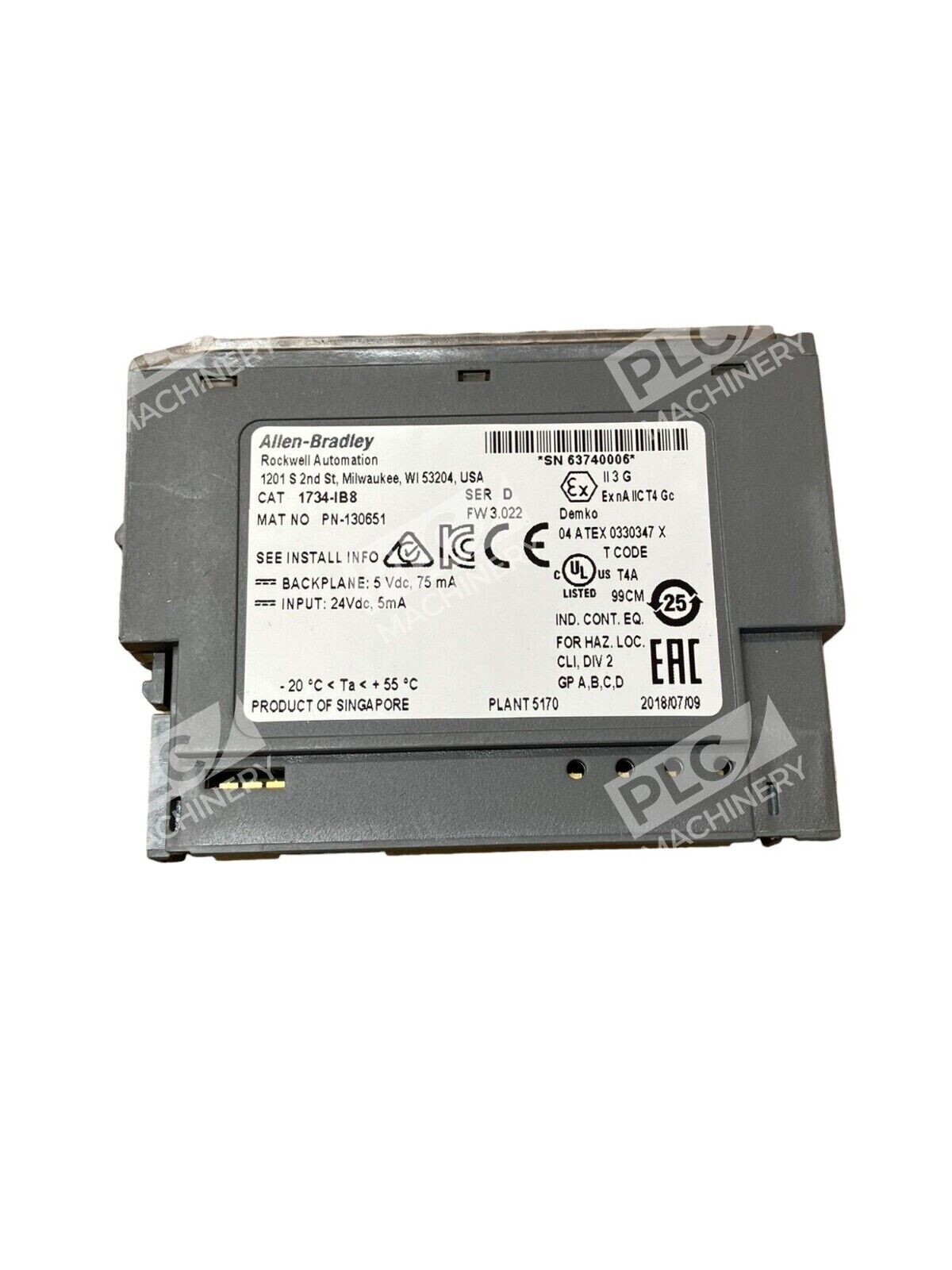

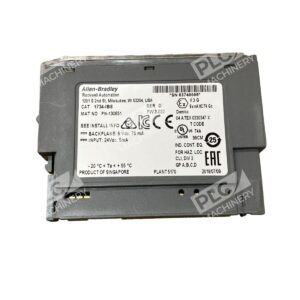

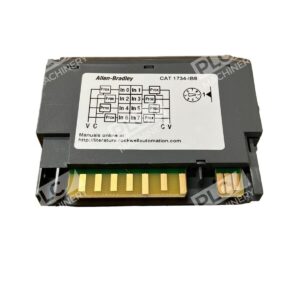

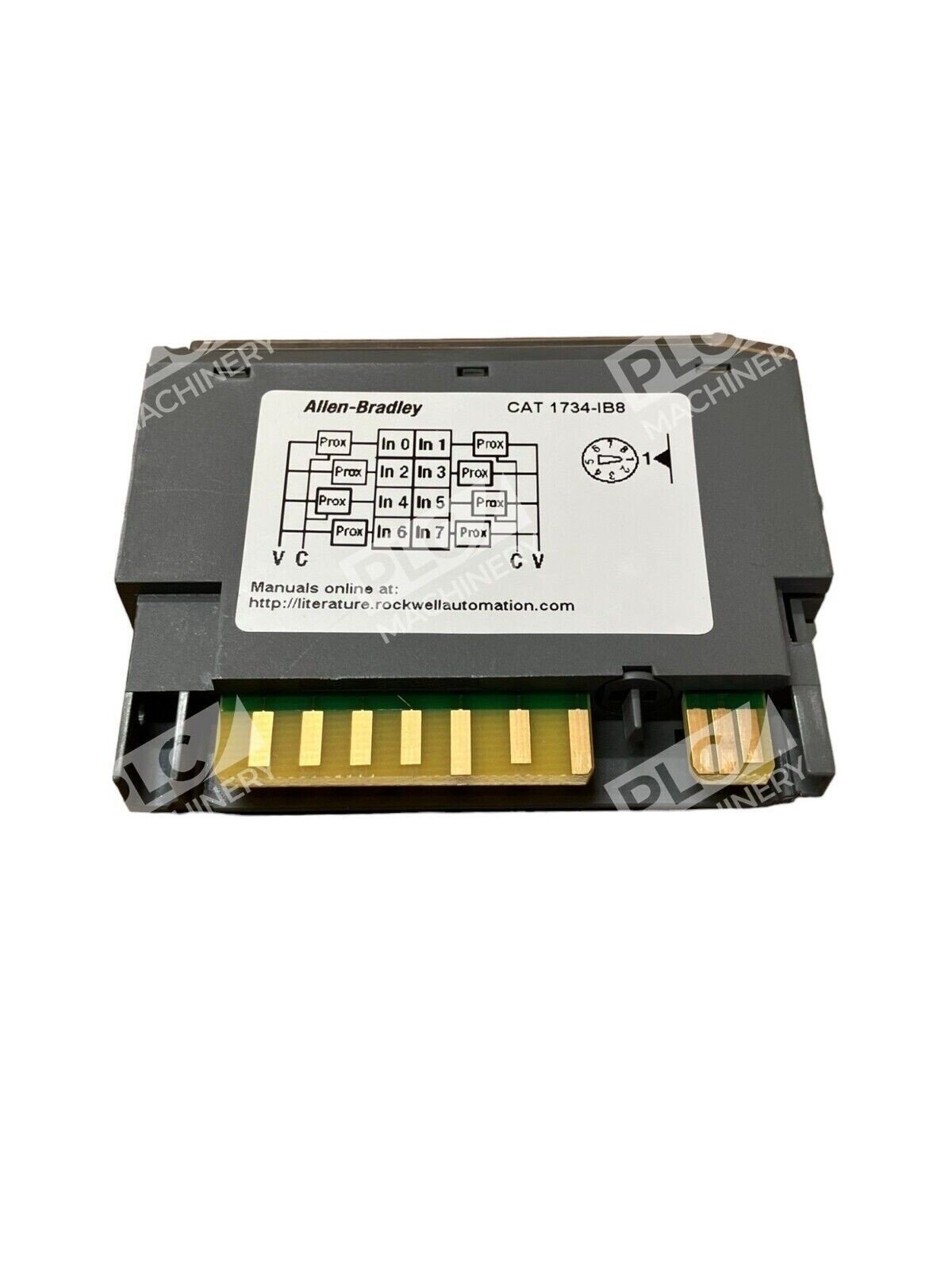

The Allen-Bradley 1734-IB8 is an 8-channel, 24V DC sink input module designed for use within the POINT I/O system. This module facilitates efficient and reliable digital input processing in industrial automation applications.
Key Features
- Input Channels: 8 sinking inputs
- Nominal Input Voltage: 24V DC
- Input Voltage Range: 10V DC to 28.8V DC
- On-State Current: 2 mA to 5 mA
- Input Filter Time: 0.5 ms hardware filter, with user-configurable filter from 0 ms to 63 ms
- Mounting: DIN rail with 1734-TB or 1734-TBS wiring base assembly
- Dimensions: 56.6 mm (H) x 12.1 mm (W) x 77.5 mm (D)
- Weight: Approximately 36.95 g
- Operating Temperature: -20°C to 55°C (-4°F to 131°F)
- Enclosure Type: Open-style (IP20)
Performance Specifications
- POINTBus Current: 75 mA at 5V DC
- Power Dissipation: 1.6 W at 28.8V DC
- Thermal Dissipation: 5.5 BTU/hr at 28.8V DC
Additional Information

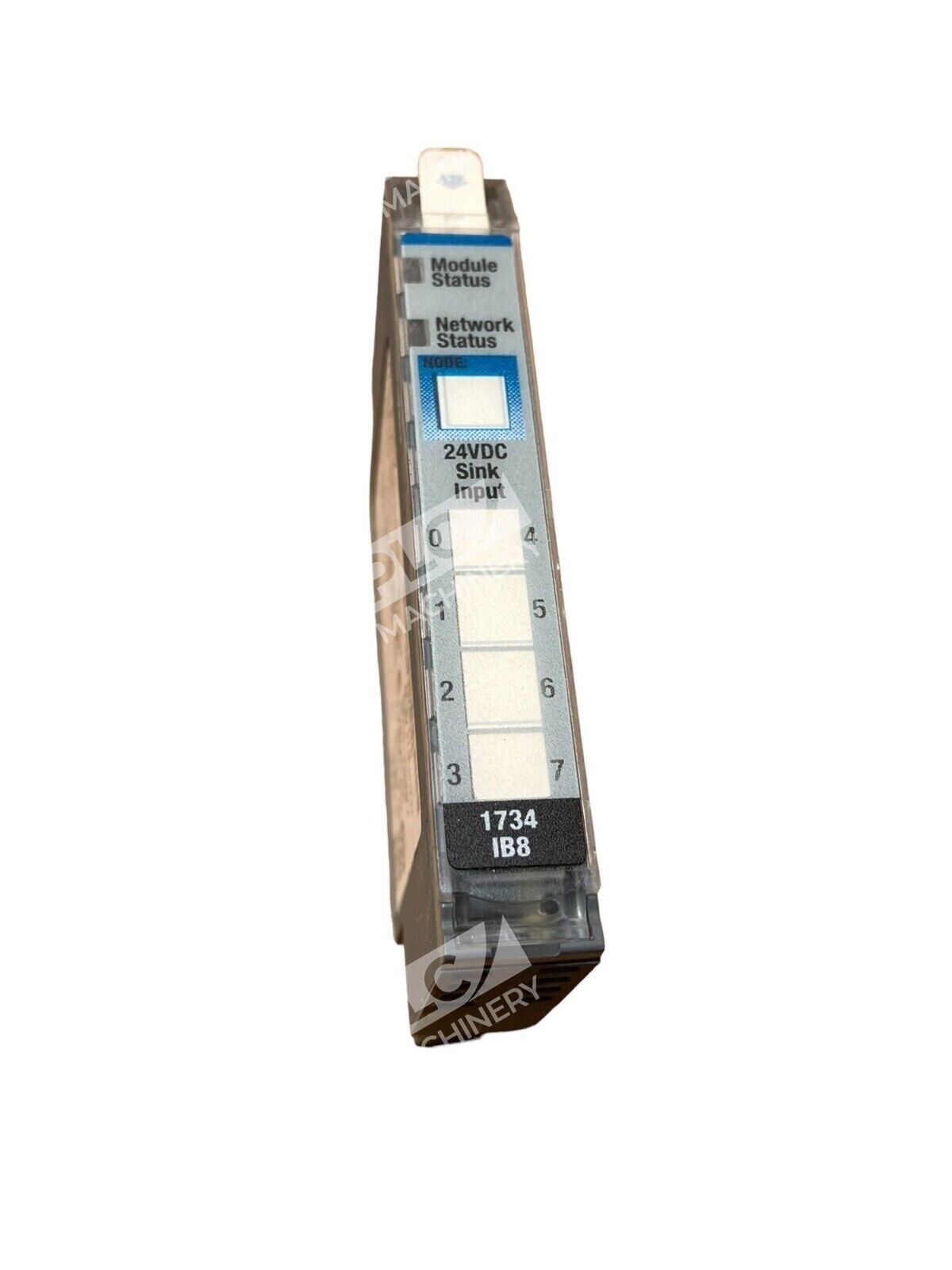

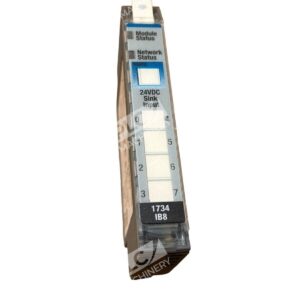

Each input channel is equipped with LED indicators to provide real-time status updates, enhancing diagnostics and system monitoring. The module’s compact design and DIN rail mounting facilitate easy installation and integration into existing systems. Its open-style enclosure ensures adequate ventilation while maintaining a small footprint.

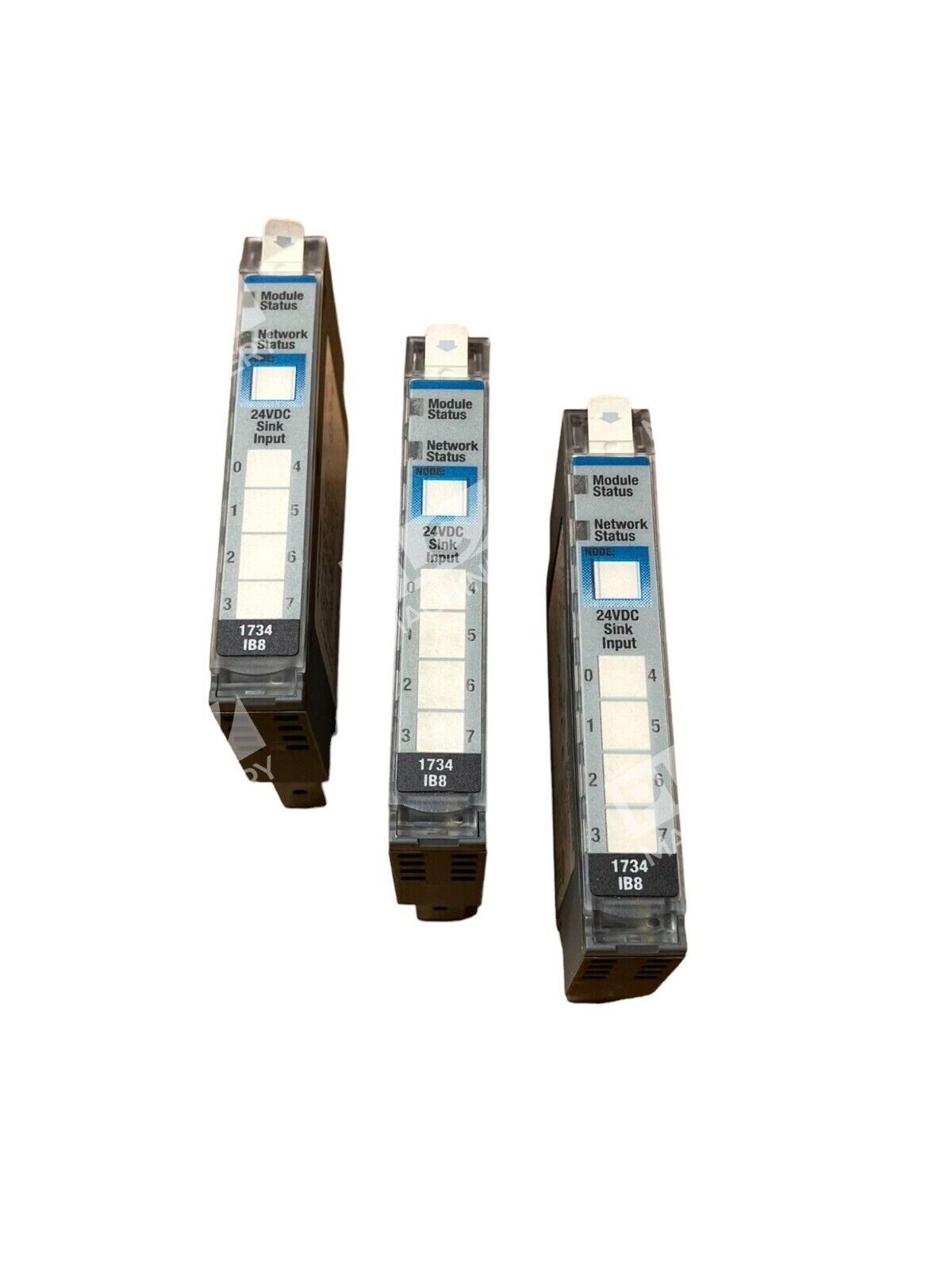

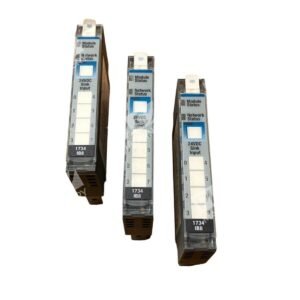

This product is available in a lot of three units, offering a cost-effective solution for expanding input capacity in your automation setup.
