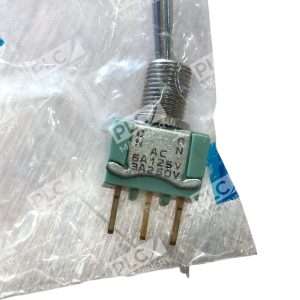

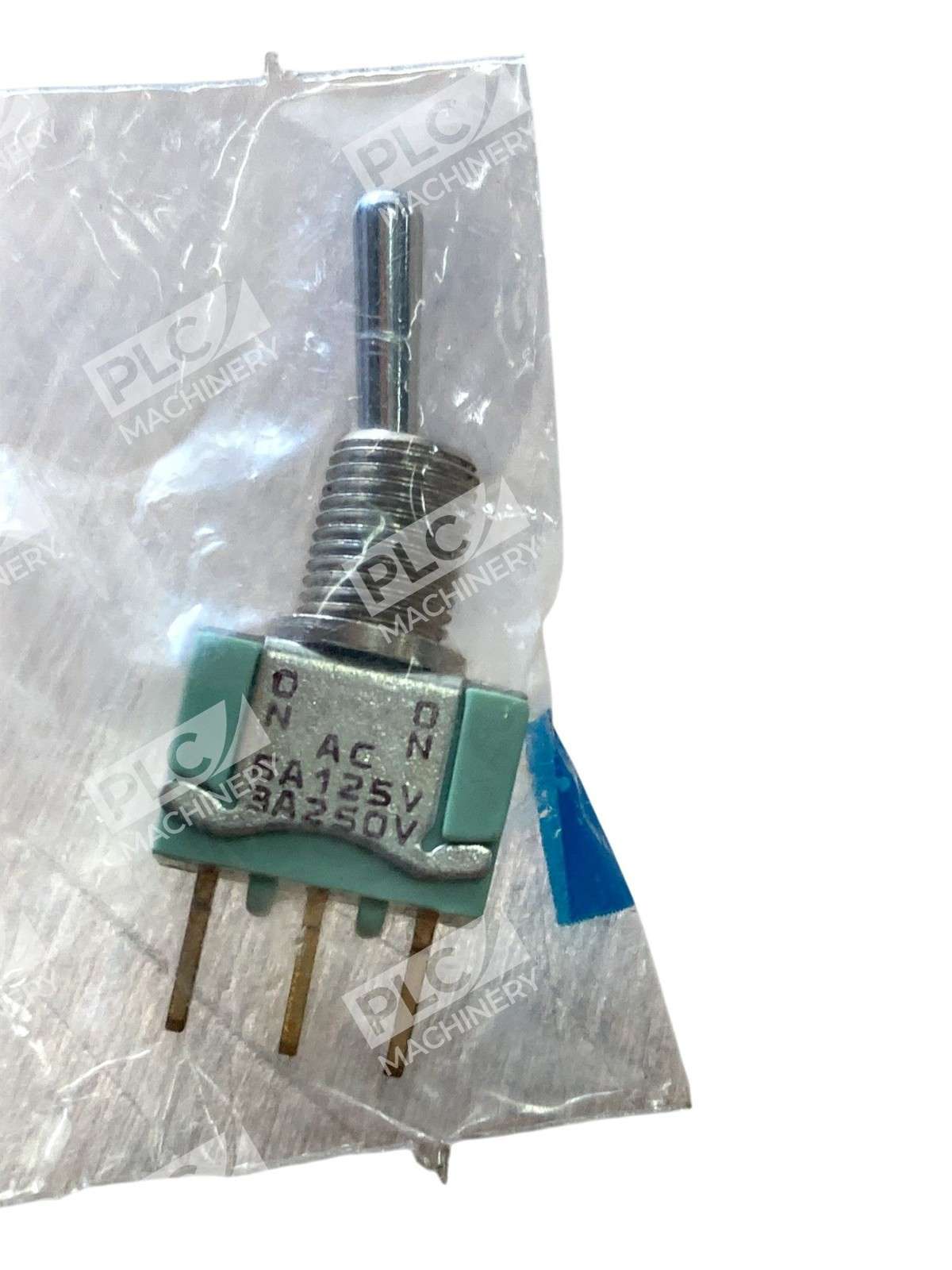

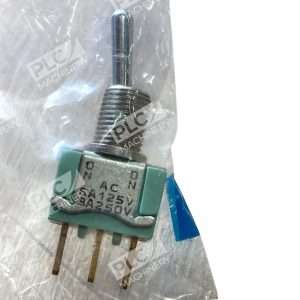

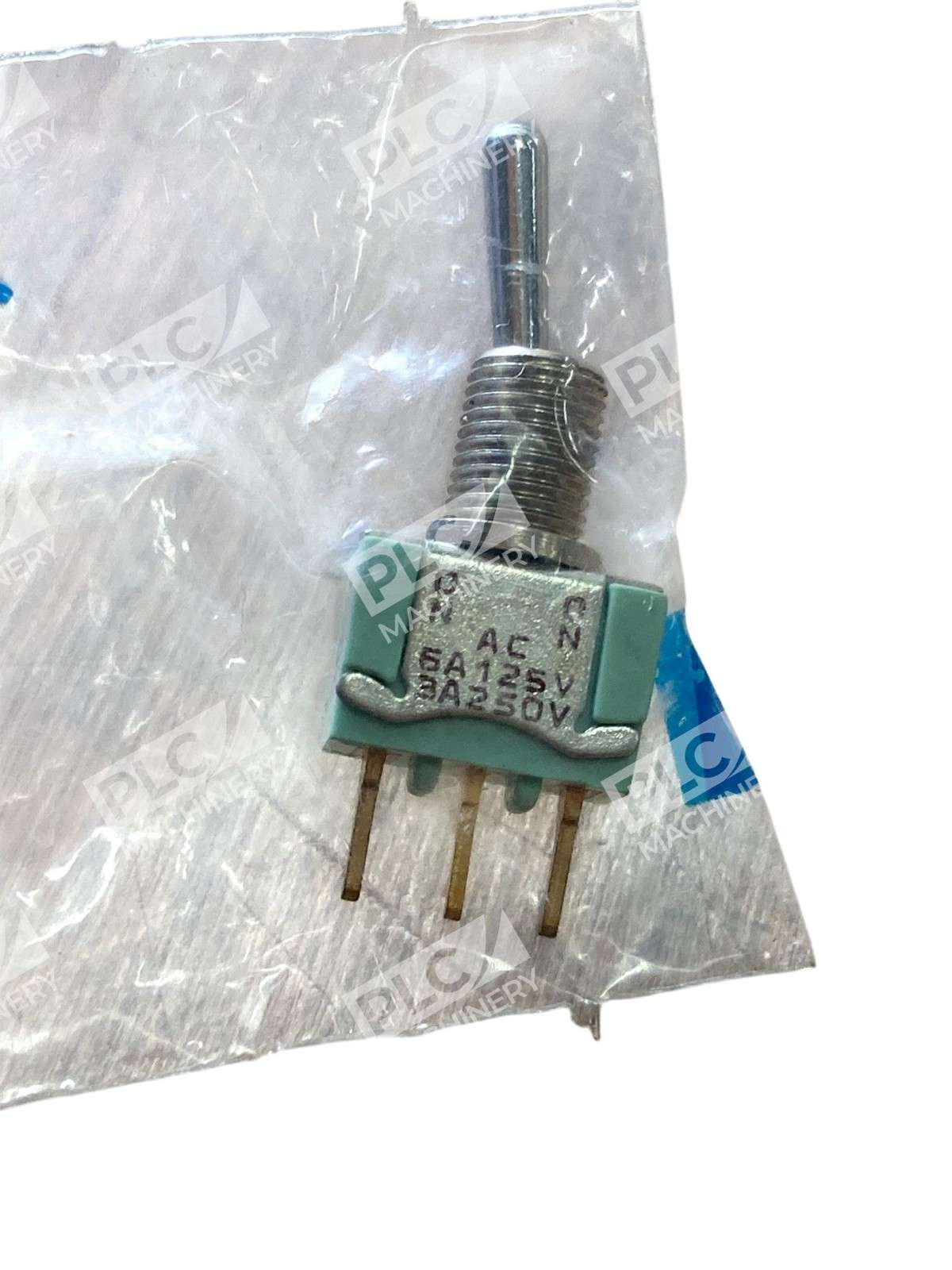

Alcoswitch MTA106D SPDT Toggle Switch
The Alcoswitch MTA106D is a Single Pole Double Throw (SPDT) toggle switch designed for reliable performance in various applications. Its robust construction and precise engineering make it suitable for both industrial and commercial environments.
Key Features
- Switch Operation: On-On configuration, allowing seamless switching between two circuits.
- Contact Configuration: SPDT, providing versatility in circuit design.
- Current Rating: Supports up to 6A at 125V AC and 4A at 28V DC, accommodating a range of electrical requirements.
- Voltage Rating: Rated for 125V AC and 28V DC, ensuring compatibility with standard power systems.
- Mounting Style: Panel mount design with a 1/4-40 threaded bushing, facilitating secure installation.
- Actuator Type: Standard round baton long actuator with a length of 10.49mm, offering comfortable operation.
- Termination Style: Solder lug terminals, ensuring reliable electrical connections.
- Operating Temperature Range: Designed to function effectively between -20°C and 80°C, suitable for various environmental conditions.
- Durability: Electrical life expectancy of up to 80,000 cycles, ensuring long-term reliability.
- Construction: Features a copper alloy contact base with gold flash over silver plating, enhancing conductivity and resistance to oxidation.
Applications
The MTA106D toggle switch is ideal for use in industrial machinery, medical equipment, aerospace systems, and other applications requiring dependable switching capabilities.
Additional Information

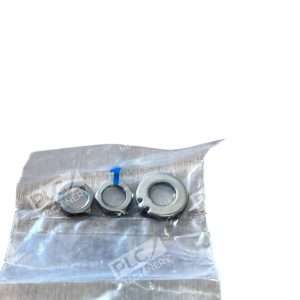

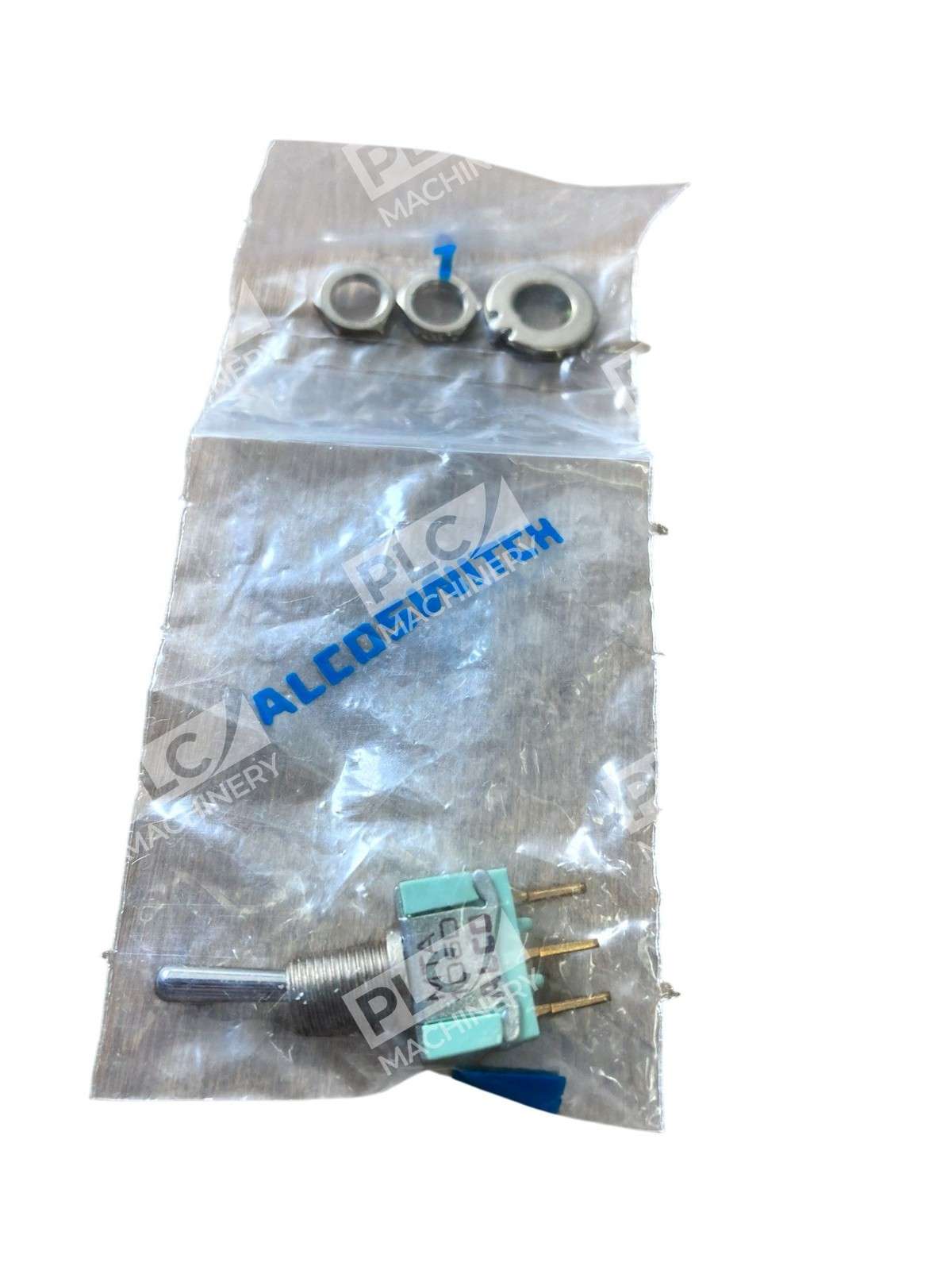

Each switch is supplied with necessary mounting hardware, including hex nuts, an internal tooth lock washer, and a locating ring, ensuring ease of installation. The switch’s design includes over-molded terminals, eliminating voids that can occur with epoxy-sealed terminals, thereby enhancing durability and performance.
