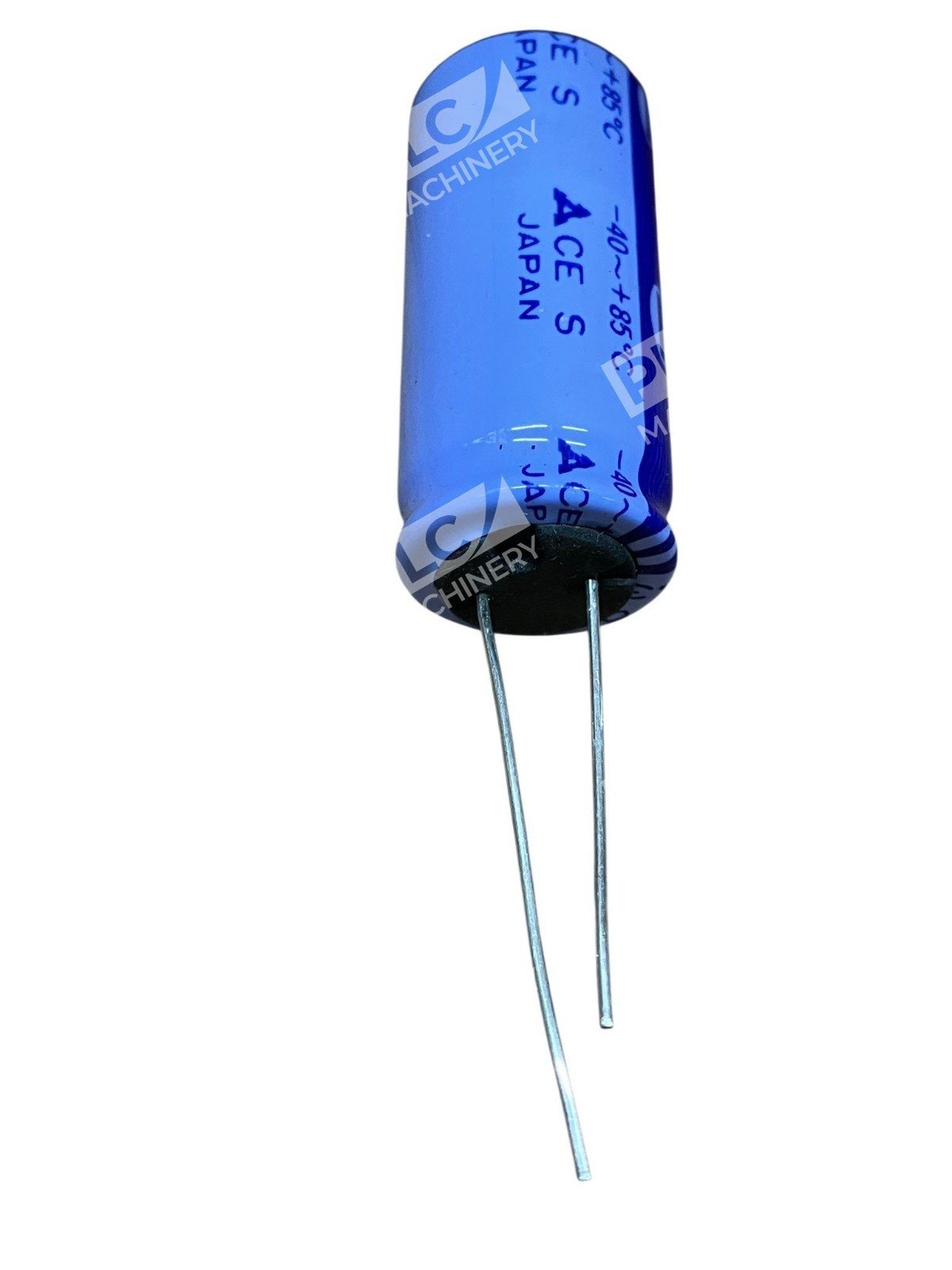

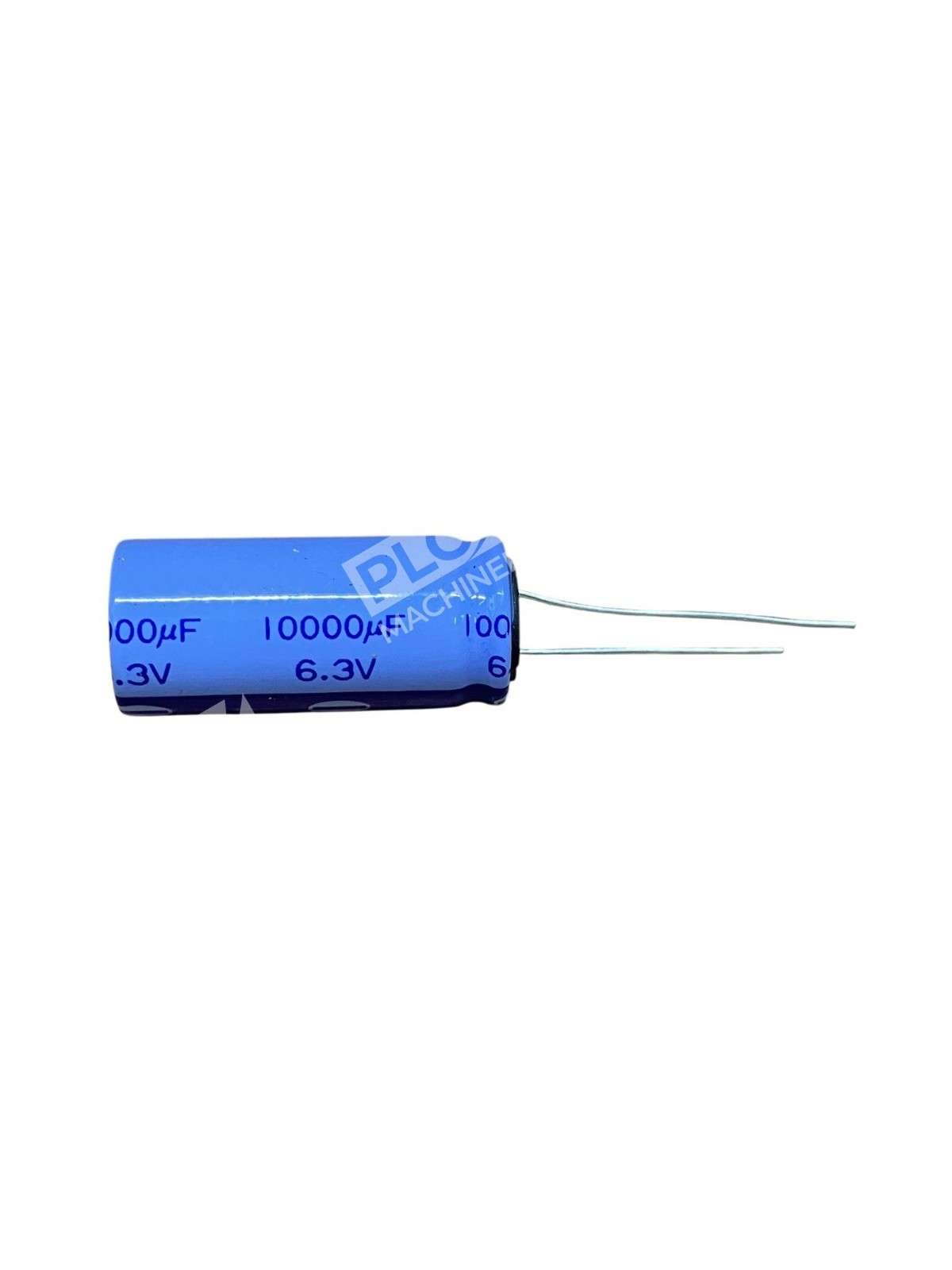

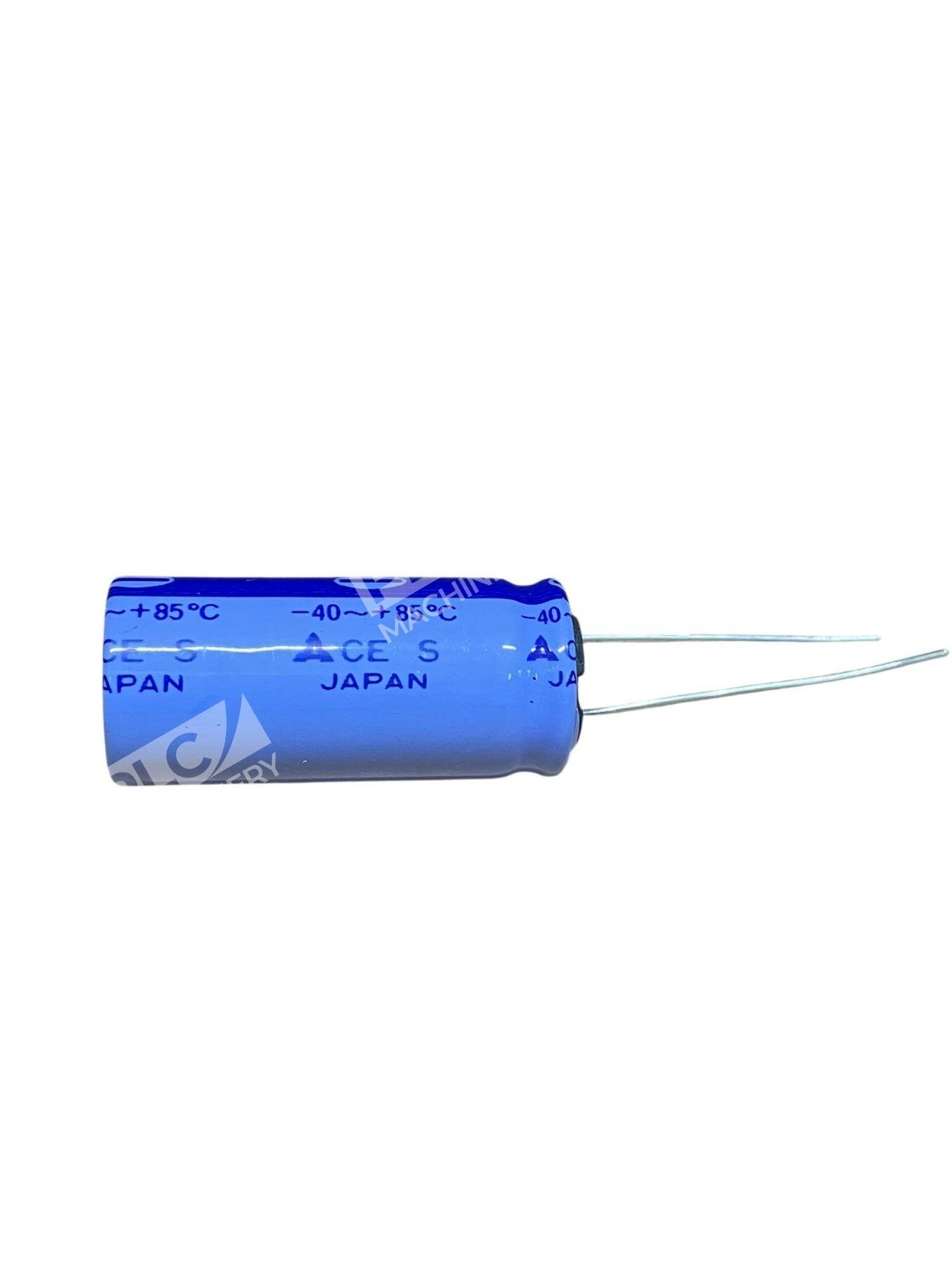

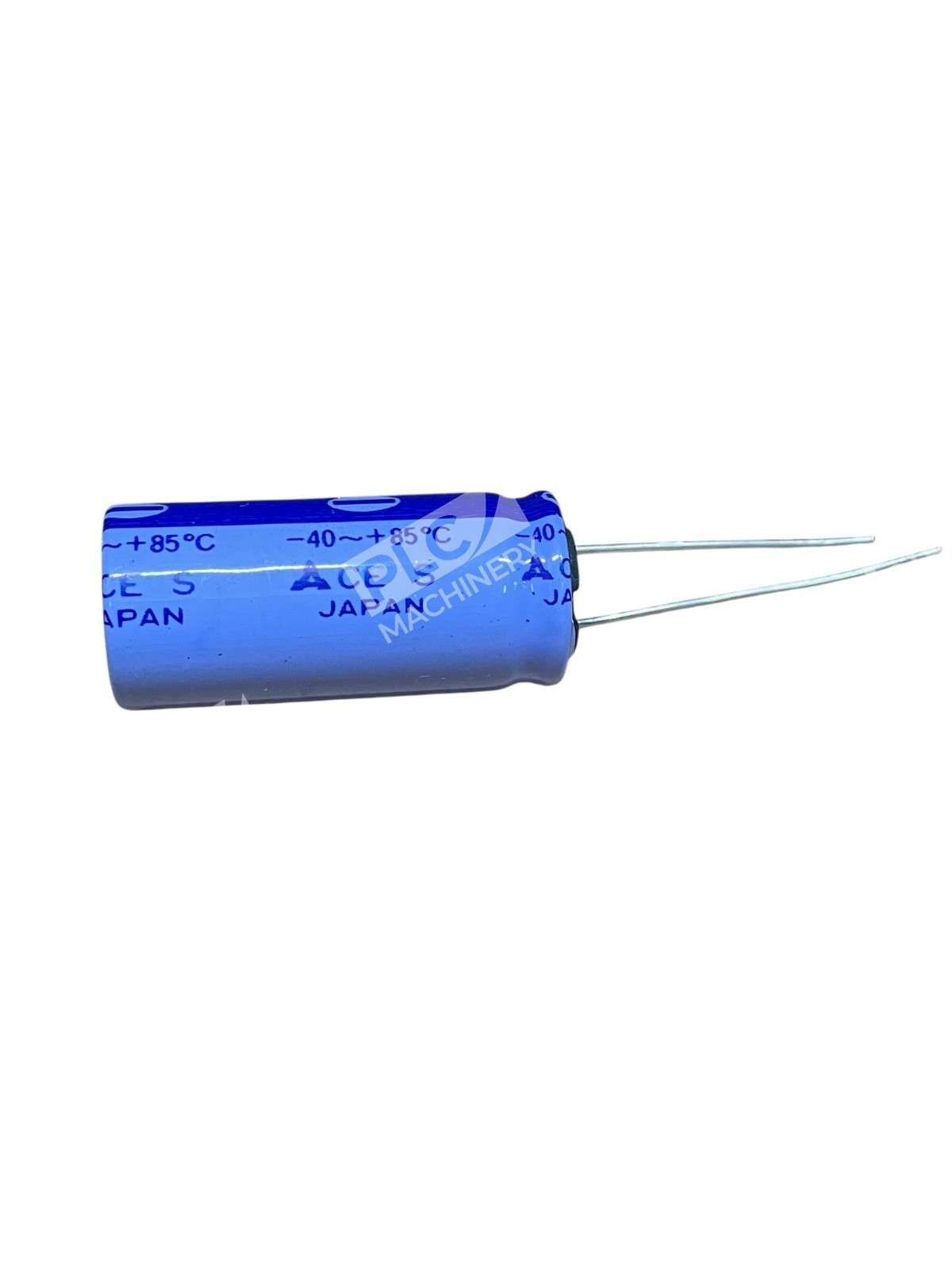

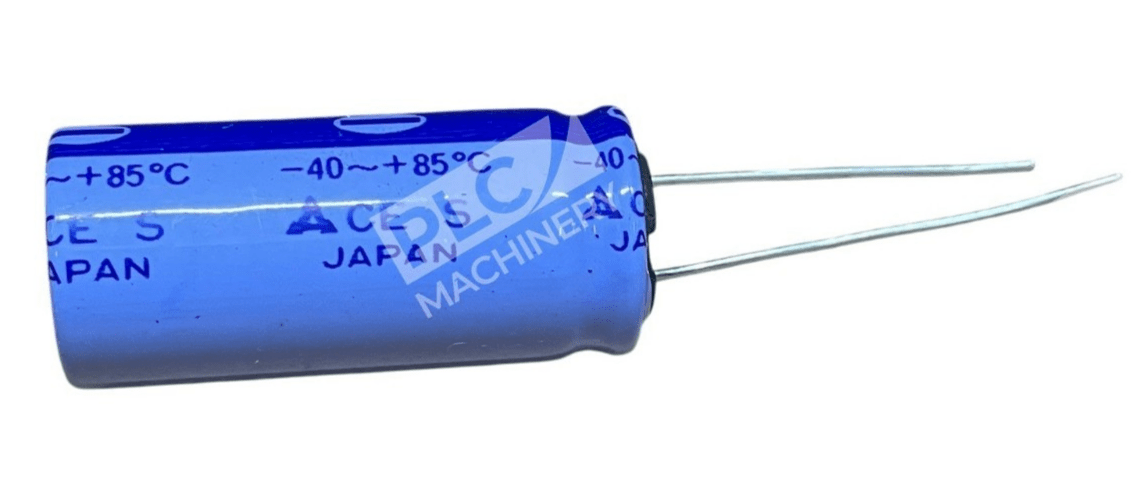

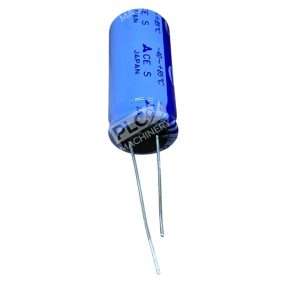

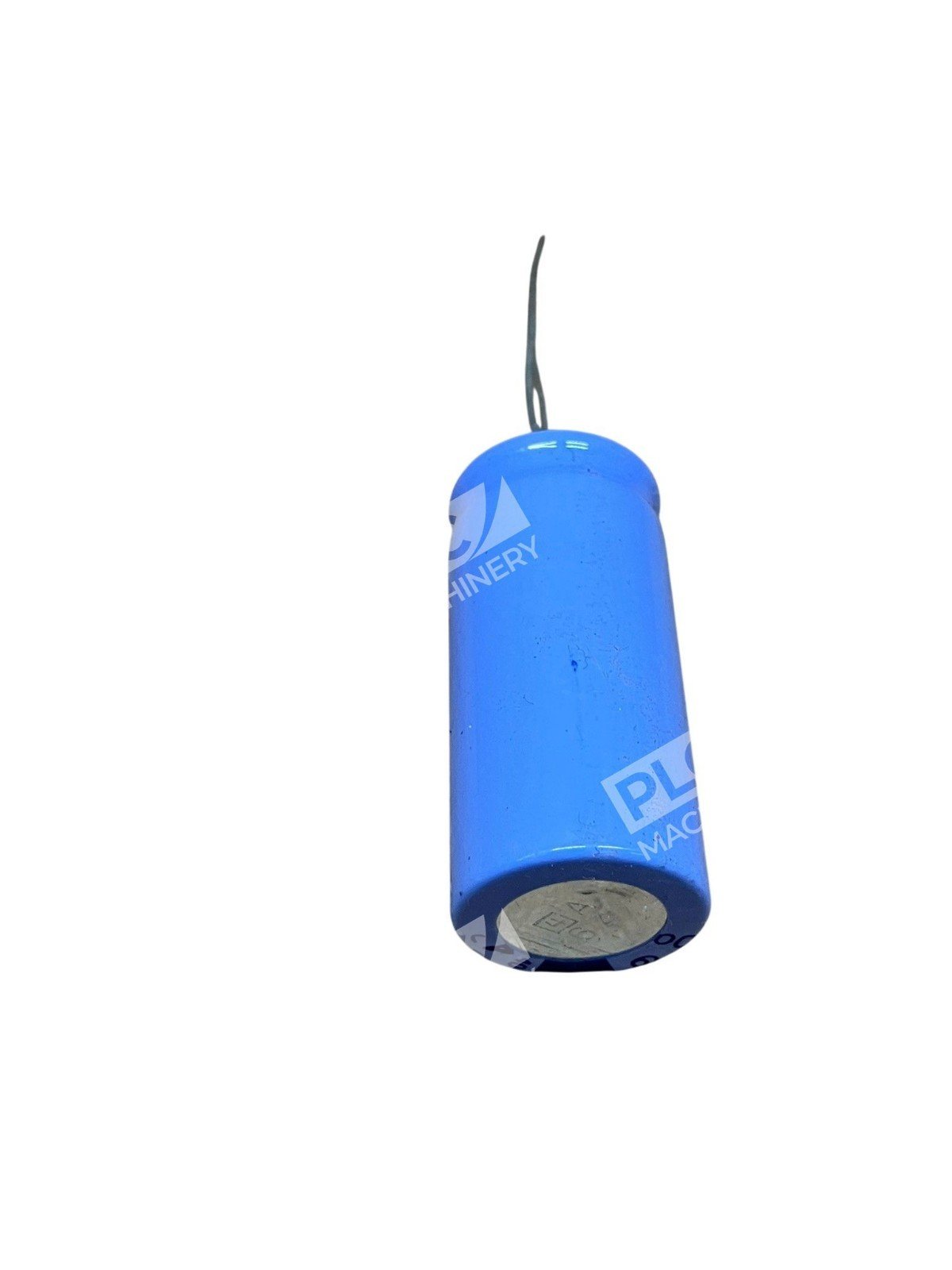

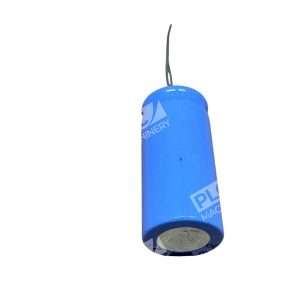

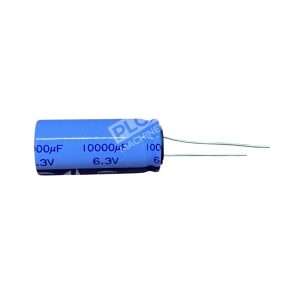

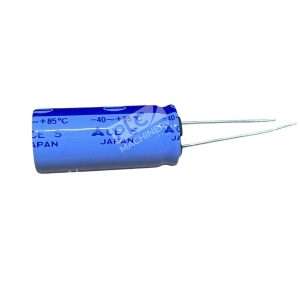

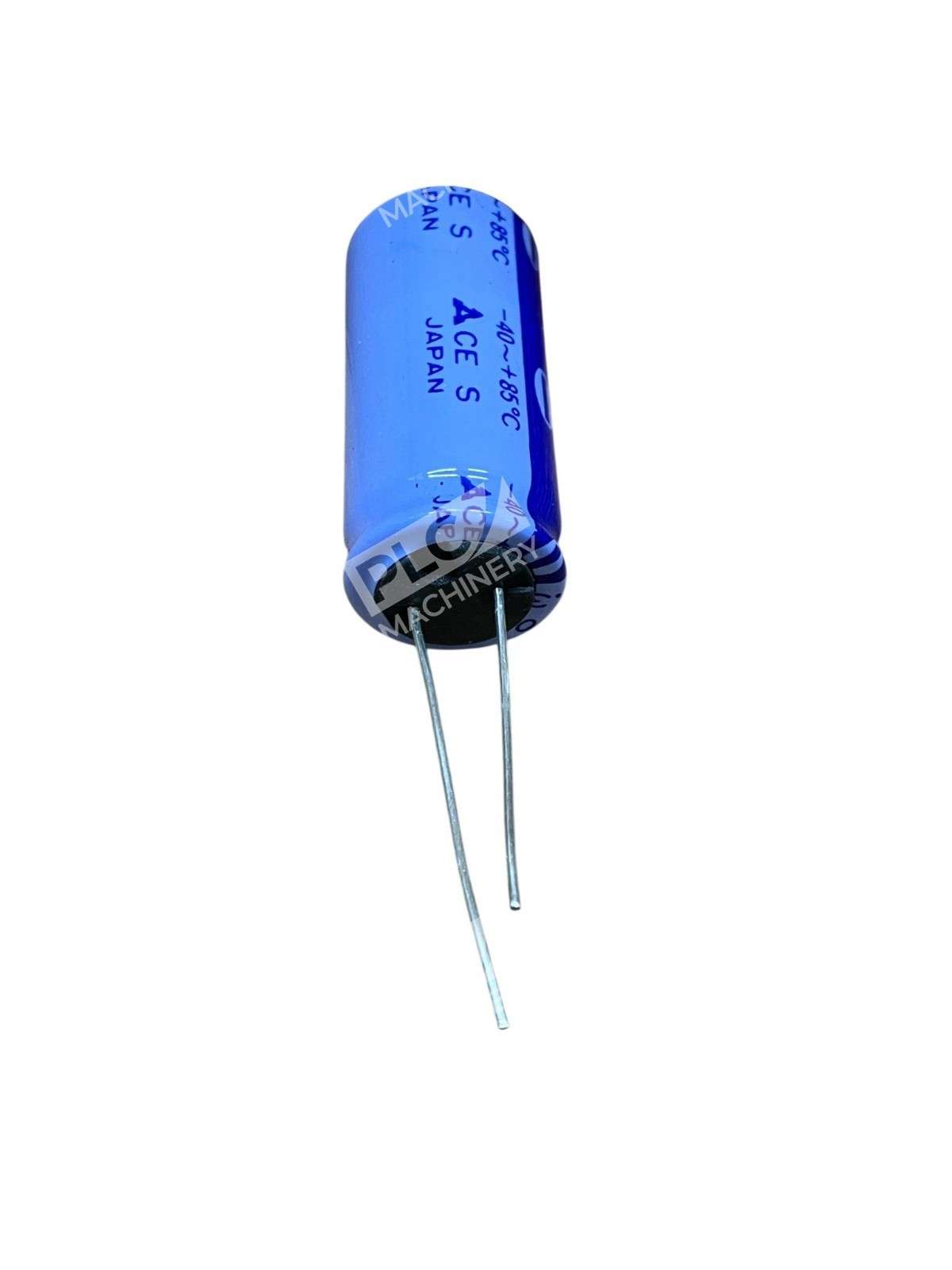

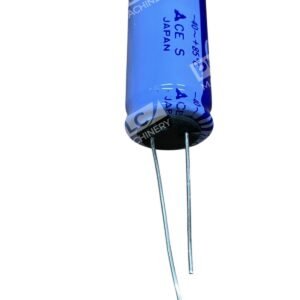

Ace S -40~+85°C Capacitor 10000µF 6.3V
The Ace S series capacitor is a high-quality aluminum electrolytic capacitor designed for a wide range of electronic applications. With a capacitance of 10,000 microfarads (µF) and a rated voltage of 6.3 volts (V), it is suitable for circuits requiring substantial energy storage and filtering capabilities.
Key Features
- Capacitance: 10,000µF
- Rated Voltage: 6.3V
- Operating Temperature Range: -40°C to +85°C
- Capacitance Tolerance: ±20%
- Endurance: 2,000 hours at 85°C
- Leakage Current: 0.03CV or 3µA, whichever is greater, after 5 minutes at 20°C
- Dissipation Factor (tan δ): 0.24 at 120Hz and 20°C
- Low Temperature Characteristics: Impedance ratio of 4 at -25°C and 10 at -40°C (relative to 20°C)
Applications
This capacitor is ideal for use in power supply circuits, audio equipment, and other electronic devices where reliable performance over a broad temperature range is essential. Its high capacitance and low equivalent series resistance (ESR) make it effective for smoothing and filtering applications.
Dimensions
- Diameter: 18.0 mm
- Length: 40.0 mm
- Lead Spacing: 7.5 mm
The Ace S series capacitor combines durability with high performance, making it a dependable choice for various electronic applications.
