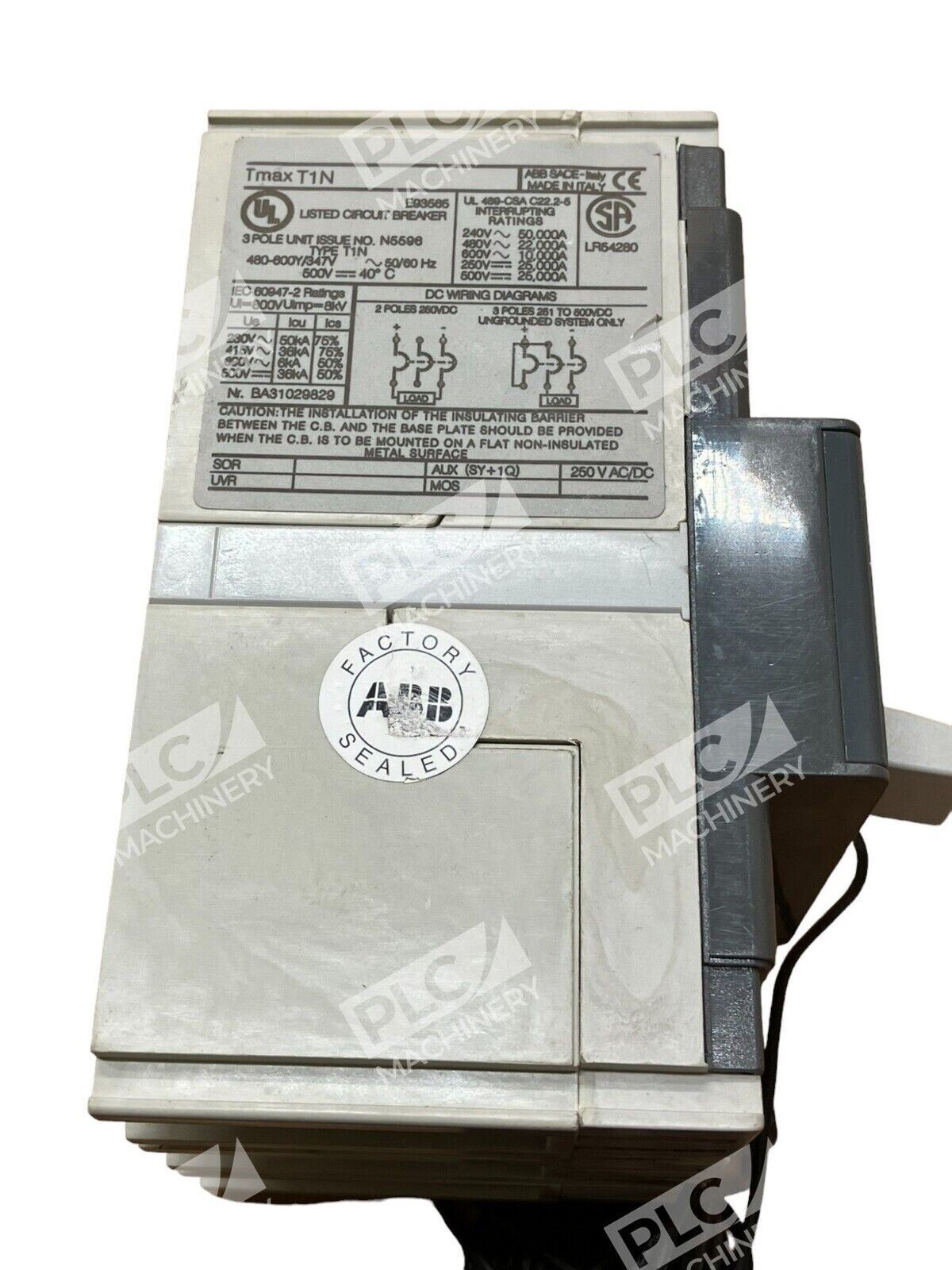

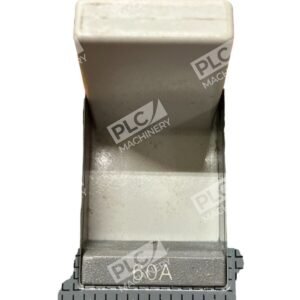

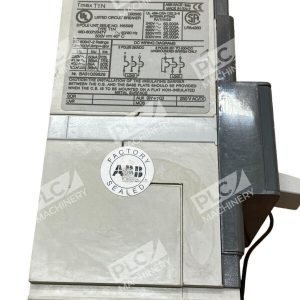

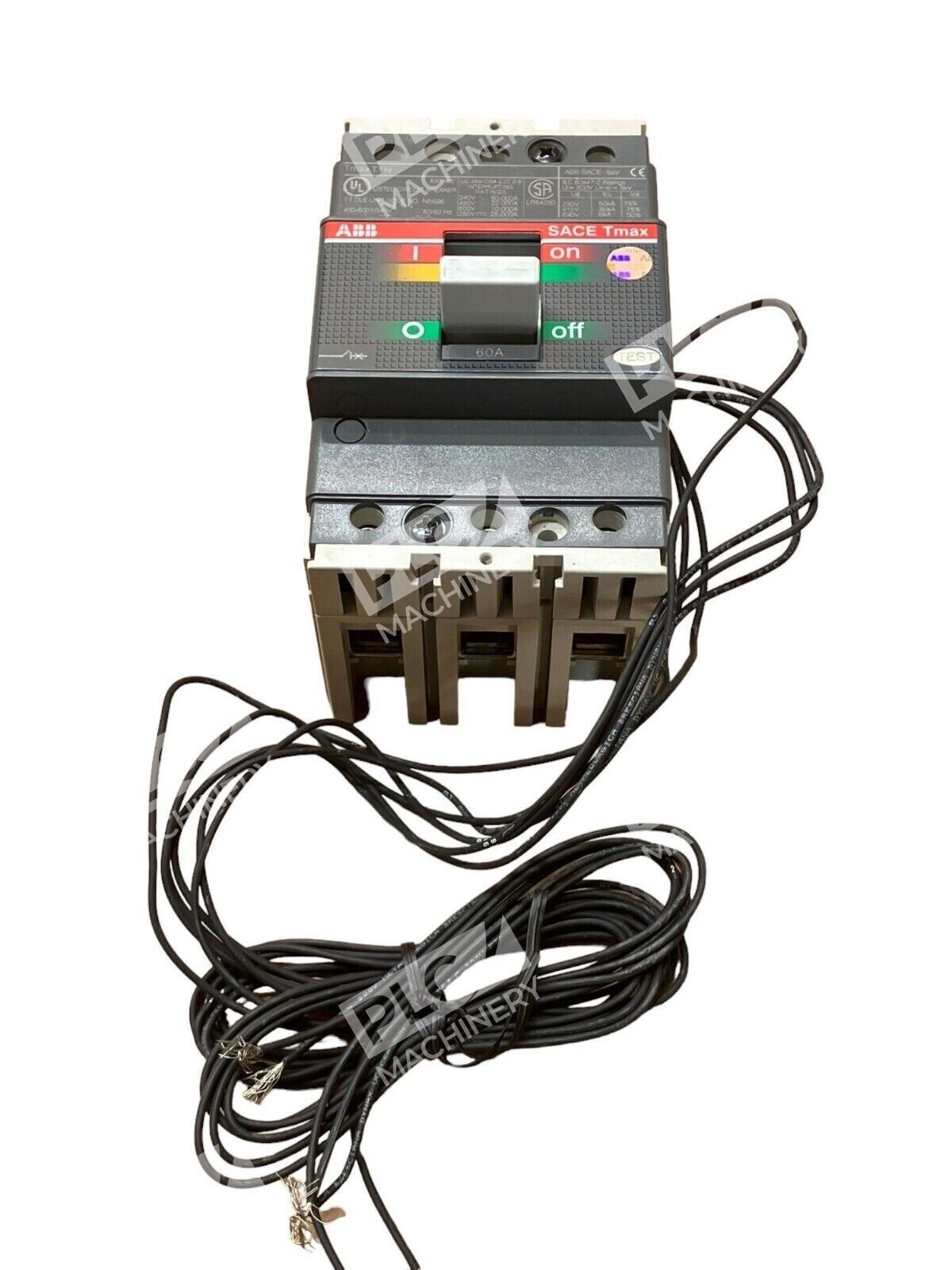

ABB Tmax T1N 60A Listed Circuit Breaker

ABB Tmax T1N 60A Listed Circuit Breaker

The ABB Tmax T1N 60A Circuit Breaker is a robust and reliable solution designed to provide superior protection for electrical circuits in both industrial and commercial settings. As part of ABB’s esteemed Tmax T Series, this molded case circuit breaker combines advanced technology with user-friendly features to ensure optimal performance and safety.

Key Features

• Rated Current: 60 Amperes
• Poles: 3-Pole Configuration
• Voltage Rating: Up to 600Y/347 VAC and 500 VDC
• Interrupting Capacity: 22 kA at 480 VAC
• Trip Unit: Fixed Thermal and Fixed Magnetic
• Mounting: Panel Mount
• Terminal Type: Includes Standard Terminal Lugs
• Certifications: UL 489 Listed, CSA C22.2, IEC 60947-2

Design and Construction

Engineered with state-of-the-art construction, the Tmax T1N features advanced contacts and arcing chambers that effectively limit damaging fault currents, thereby enhancing the safety and longevity of connected equipment. Its compact design allows for efficient use of space within control panels and distribution boards.

Protection Mechanisms

The circuit breaker employs a dual protection system:

• Thermal Overload Protection: Utilizes heat-sensitive bimetals to detect and respond to prolonged overcurrent conditions.
• Magnetic Short Circuit Protection: Incorporates precise magnetic coils to swiftly interrupt short circuit currents, minimizing potential damage.

Versatility and Applications

The ABB Tmax T1N 60A Circuit Breaker is suitable for a wide range of applications, including:

• Industrial Automation Systems
• Commercial Building Infrastructure
• Renewable Energy Installations
• Critical Infrastructure Projects

Its adaptability to various environments makes it an ideal choice for ensuring electrical safety and reliability across diverse sectors.

Additional Features

• Double Insulation: Allows for the installation of internal accessories without exposure to energized parts, enhancing safety during maintenance.
• Positive Operation: The toggle mechanism clearly indicates the precise position of the moving contacts, ensuring reliable signaling.
• Global Compliance: Meets international standards, making it suitable for applications worldwide.

In summary, the ABB Tmax T1N 60A Listed Circuit Breaker offers a combination of advanced protection features, compact design, and versatile applications, making it a dependable choice for safeguarding electrical systems in various environments.
